LT3480

量产

具 70μA 静态电流的 36V、2A、2.4MHz 降压型开关稳压器

产品模型
12
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

Viewing:

产品详情

  • 宽输入范围:
    • 工作时为 3.6V 至 36V
    • 过压闭锁功能可保护电路安全承受 60V 瞬变
  • 2A 最大输出电流
  • 低纹波突发模式 (Burst Mode®) 操作
    • 70μA IQ (在 12VIN 至 3.3VOUT)
    • 输出纹波 <15mV
  • 可调开关频率:200kHz 至 2.4MHz
  • 低停机电流:IQ <1μA
  • 集成升压二极管
  • 可同步范围:250kHz 至 2MHz
  • 电源良好标记
  • 饱和开关设计:0.25Ω 接通电阻
  • 0.790V 反馈基准电压
  • 输出电压:0.79V 至 20V
  • 软起动功能
  • 小外形 10 引脚耐热增强型 MSOP 和 (3mm x 3mm) DFN 封装


LT3480
具 70μA 静态电流的 36V、2A、2.4MHz 降压型开关稳压器

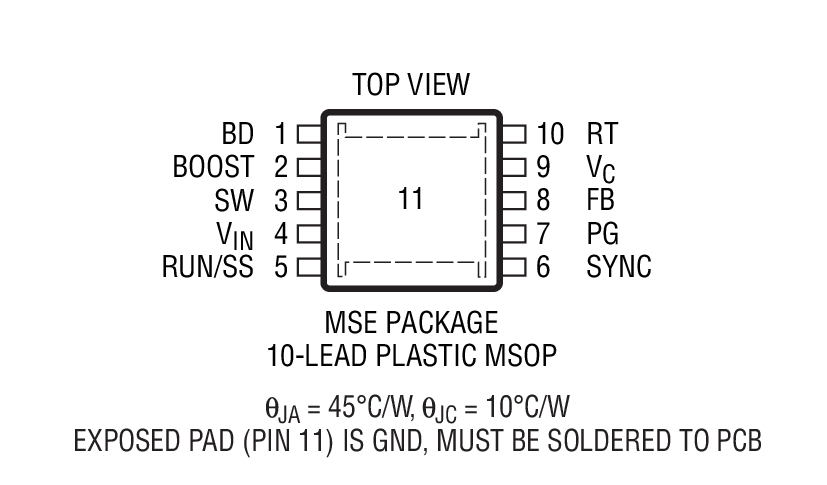

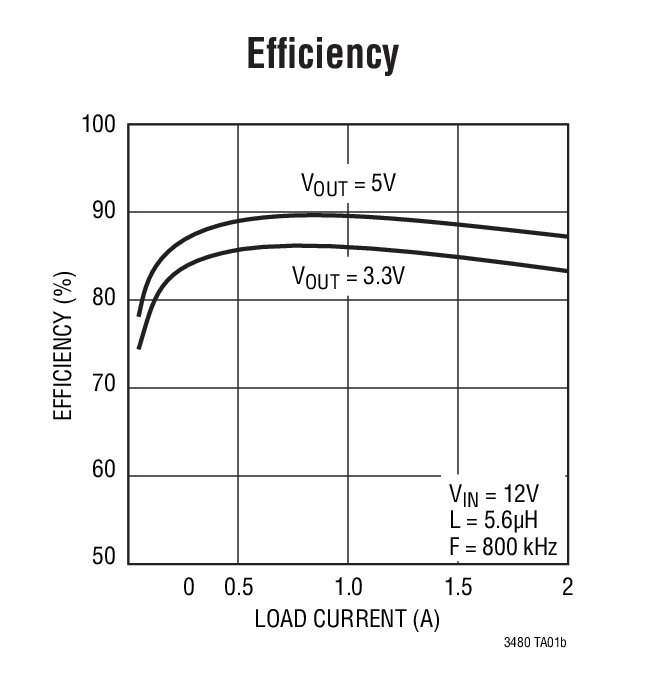

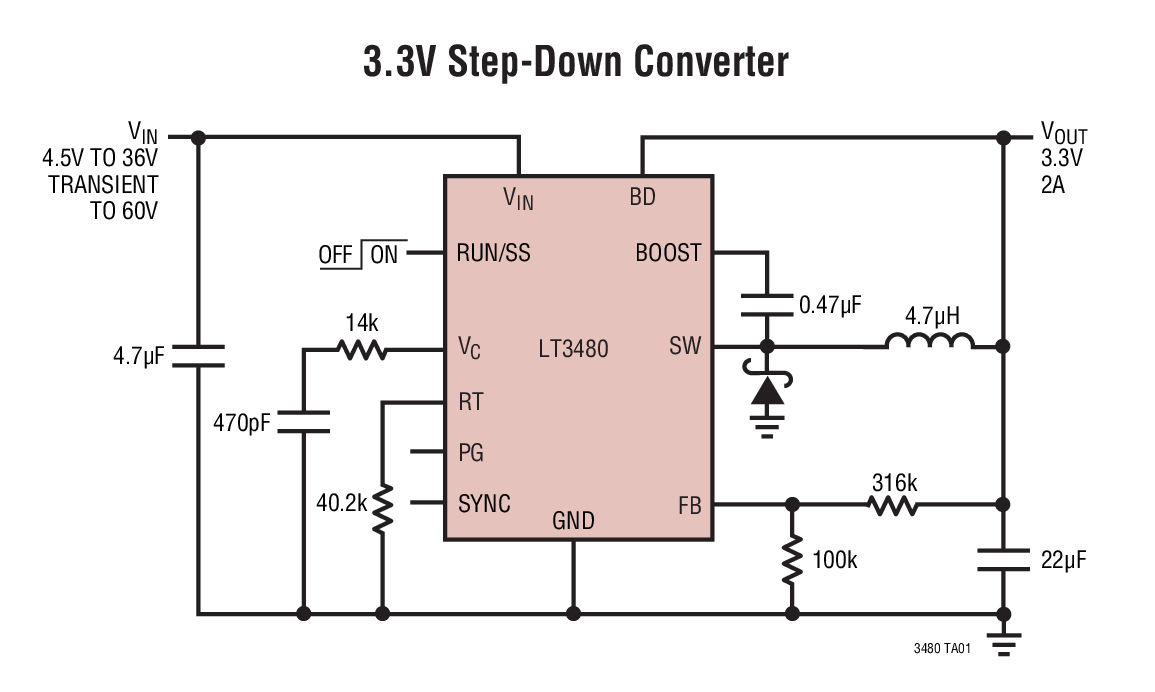

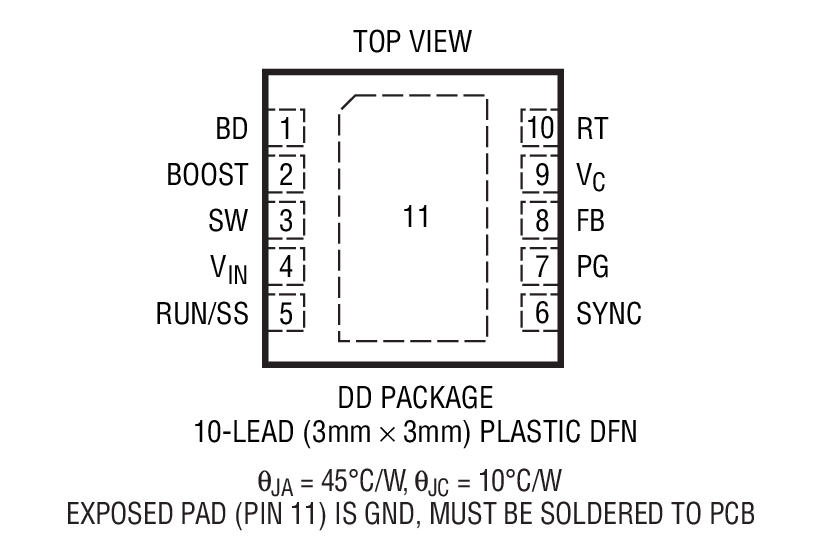

3.3V Step-Down Converter Efficiency Product Package 1 Product Package 2
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目
提问

参考资料

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目

硬件生态系统

部分模型 产品周期 描述
PowerPath、理想二极管和负载开关 1
LTC4359 推荐新设计使用 具反向输入保护功能的理想二极管控制器
硅振荡器 1
LTC6909 量产 采用扩频调制、可提供 1 至 8 个输出的多相硅振荡器
浪涌抑制器、过压和过流保护 1
LT4363 推荐新设计使用 具电流限制功能的高电压浪涌抑制器
双电源监控器 1
LTC2960 推荐新设计使用 36V、纳安级电流、两输入电压监视器
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目

工具及仿真模型

LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器,为改善模拟电路的仿真提供增强功能和模型。


评估套件

eval board
DC1212A-A

LT3480EDD Demo Board | (DFN) EN55022 Compliant, Micropower, 6.3V ≤ VIN ≤ 38V (60V Transients), VOUT = 5V at 2A

产品详情

Demonstration circuit 1212A-A is a monolithic step-down DC/DC switching regulatro featuring the LT3480 in the 3 × 3 DFN-10 package. The demo board provides 5V at 2A from a 6.3V to 38V input and has transient protection up to 60V. The demo boards default switching frequency is 800kHz, but the LT3480 has a SYNC pin which allows frequency synchronization to an external clock over a 250kHz to 2MHz range. The LT3480's quiescent current is 70uA, while the LT3685 has a 0.9mA quiescent current.


An EMC filter at the input makes the circuit compatible with EMC standard EN55022 Class B.

eval board
DC1091A

LT3480EMSE Demo Board | (MSOP) 6.3V ≤ VIN ≤ 38V (60V Transients), VOUT = 5V @ 2A

产品详情

Demonstration circuit 1091 is a monolithic step-down switching regulator featuring the LT3480 in the MSOP-10 exposed pad package. The operating frequency can be synchronized up to 2MHz. The demo board is designed for 5V/2A output from a 6.3V to 38V input with transients up to 60V. The wide input range of the LT3480 allows a variety of input sources. The typical sources are automotive batteries, wall adaptors and industrial supplies. The modes of operation (Burst Mode and fixed frequency) are jumper selectable.

eval board
DC1394A

具有插件接口的LT3480高压降压稳压器板

产品详情

演示电路1394A显示了LT3480高压降压稳压器如何与兼容LTC4098 USB的锂离子电池充电器一起使用,以设计一个双输入源电池充电器电路,该电路还根据可用电源通过LT3480、5V墙壁适配器或电池向负载供电。LTC4098与多个ADI开关稳压器相连,以提供高效率高压电源路径。LT3480的工作电压范围为8V至38V(60V瞬态),并提供2A电流,具体电压范围取决于模式和负载。

DC1212A-A
LT3480EDD Demo Board | (DFN) EN55022 Compliant, Micropower, 6.3V ≤ VIN ≤ 38V (60V Transients), VOUT = 5V at 2A

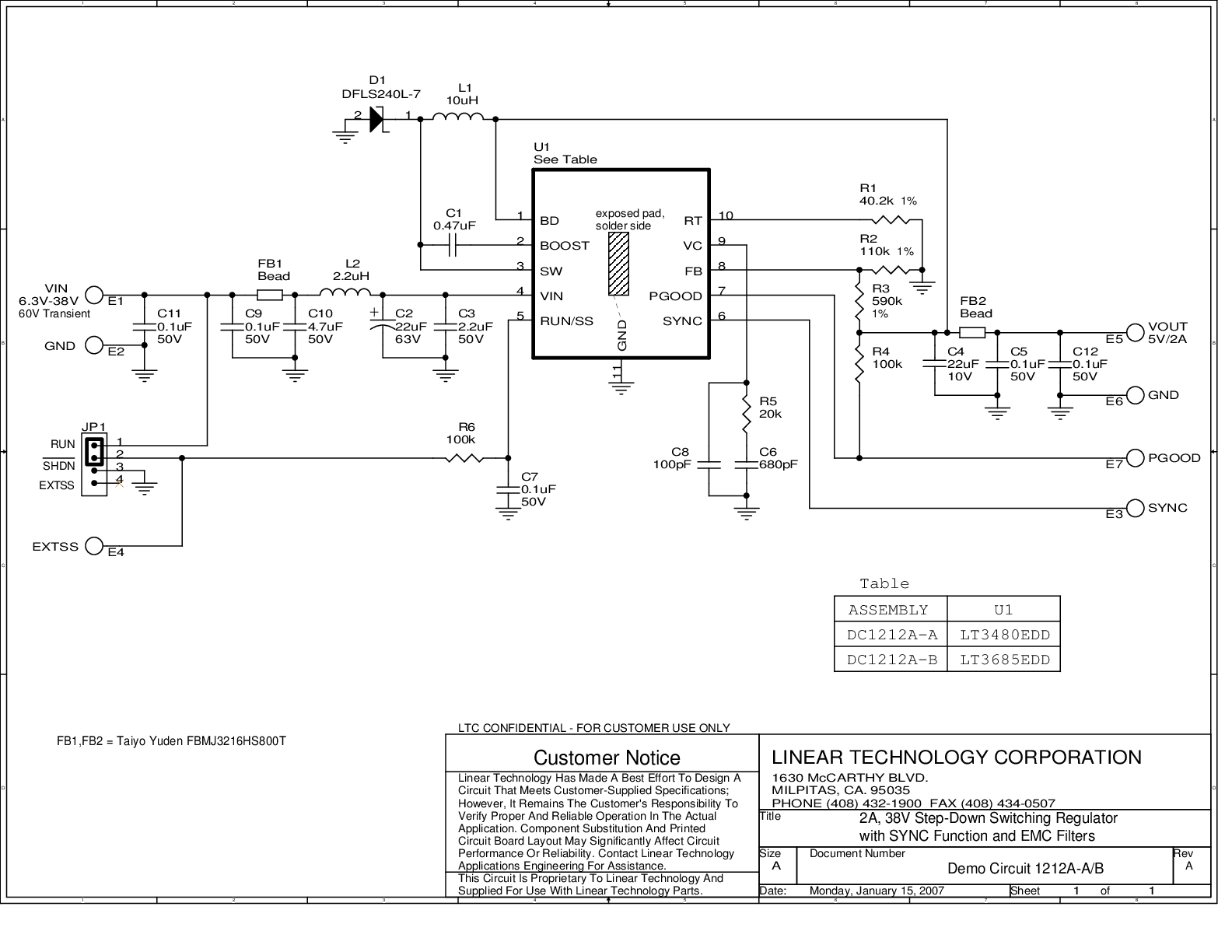

DC1212A-A - Schematic
DC1091A
LT3480EMSE Demo Board | (MSOP) 6.3V ≤ VIN ≤ 38V (60V Transients), VOUT = 5V @ 2A

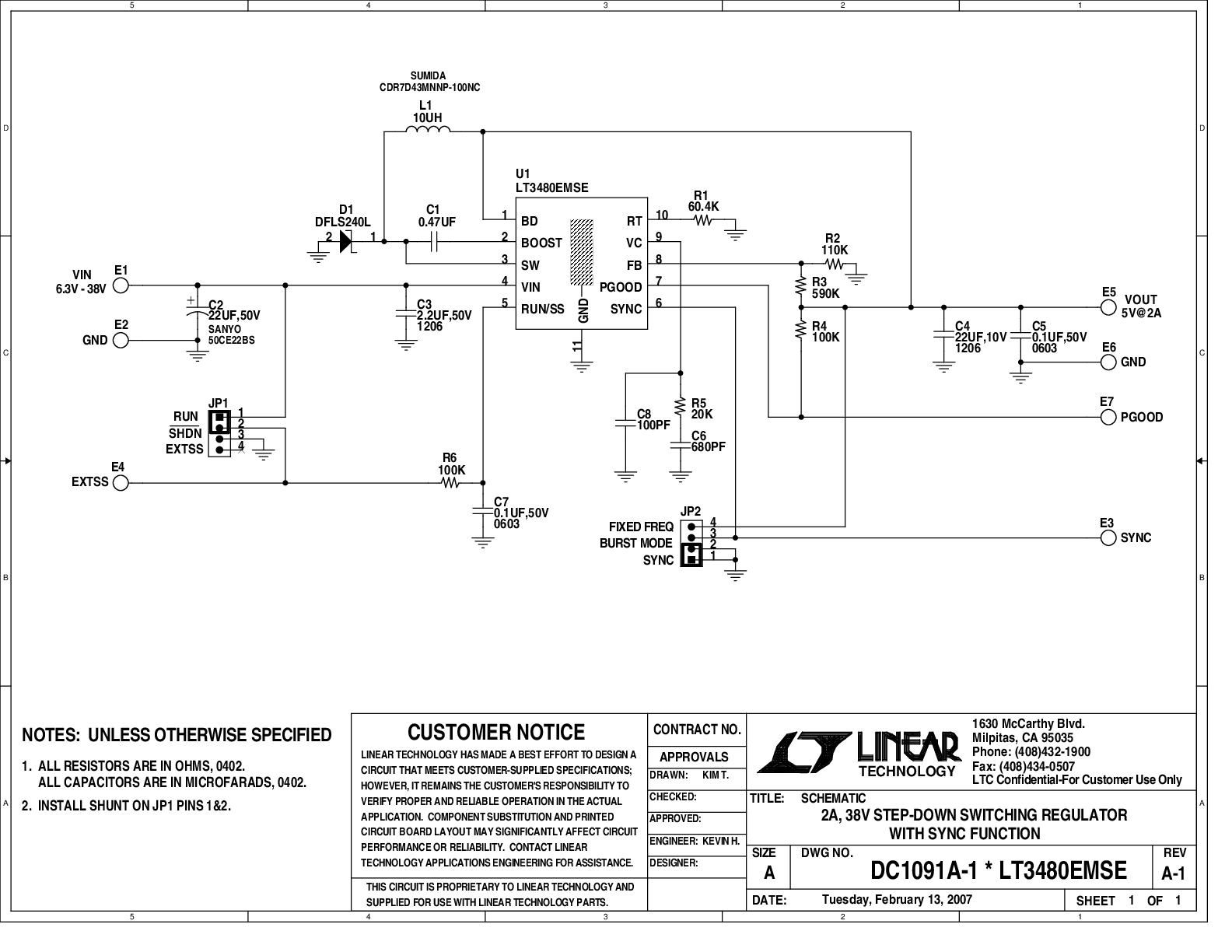

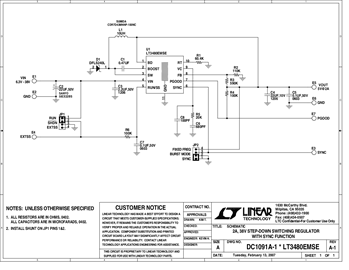

DC1091A - Schematic
DC1394A
具有插件接口的LT3480高压降压稳压器板

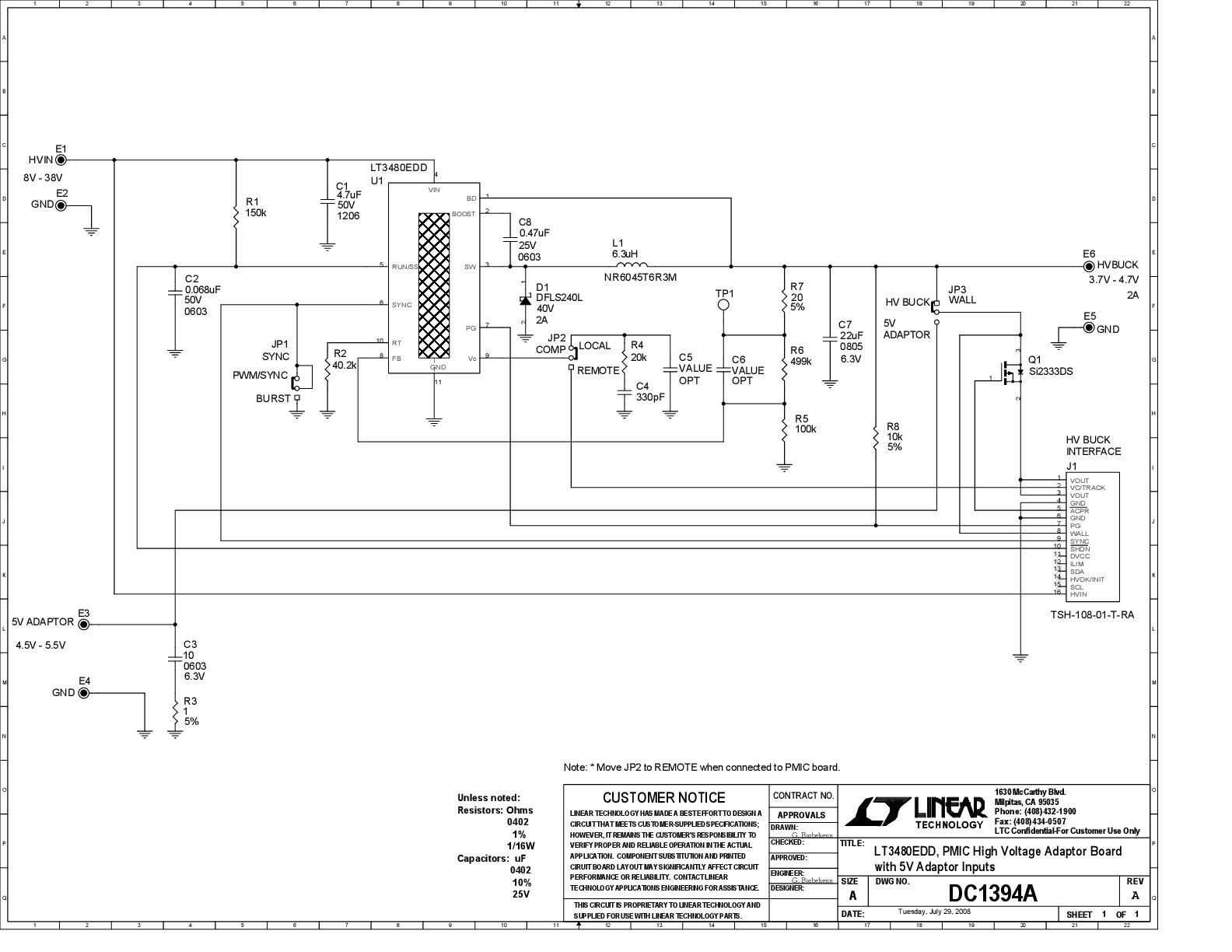

DC1394A - Schematic

参考电路

DK-VIDEO-4SGX230N Dev Kit
Altera Audio Video Development Kit, Stratix IV GX Edition 参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
Altera Audio Video Development Kit, Stratix IV GX Edition
DK-VIDEO-4SGX230N Dev Kit
LTC Parts List
DK-VIDEO-4SGX230N Block Diagram
DK-VIDEO-4SGX230N Power Tree
