LTC4151

高电压 I2C 电流和电压监视器

更多 showmore-icon

Info: : 量产 tooltip
Info: : 量产 tooltip
查看： 产品详情
arrow-icon

不是您想寻找的产品？

viewall 去产品选项表
file 查看数据手册
Documentation 查看所有文档
Linduino LTC4151 Linduino Header File Download 10.00KB Linduino LTC4151 Linduino .CPP File Download 4.00KB Linduino LTC4151 - DC1206A Linduino .INO File Download 12.00KB
产品模型 24
特性
  • 宽工作电压范围：7V 至 80V
  • 电流和电压的测量分辨率均为 12 位
  • I2C 接口
  • 附加的 ADC 输入负责监视一个外部电压
  • 连续扫描和快照模式
  • 停机模式 (LTC4151) 把静态电流减小至 120μA
  • 用于光隔离的分离 SDA (LTC4151-1 / LTC4151-2)
  • 纤巧型 10 引脚 MSOP、10 引脚 3mm x 3mm DFN 和 16 引脚 SO 封装

更多细节
show more Icon

LTC®4151 是高端电源监视器，具有 7V 至 80V 的宽工作电压范围。在默认的操作模式中，内置 12 位 ADC 连续地测量高端电流、输入电压和一个外部电压。当由一个主机进行轮询时，数据将通过 I2C 接口来报告。这些监视器还能够以一种“快照”模式来执行按需的测量。LTC4151 具有一个专用的停机引脚以降低功耗。LTC4151-1 /  LTC4151-2 具有分离的 I2C 数据引脚以驱动光隔离器。在 LTC4151-1 的数据输出是反转的，而数据在 LTC4151-2 是不反转。


Applications

  • -48V 电信基础设施
  • 汽车
  • 工业
  • 消费类

Show More Arrow image
file 查看数据手册
Documentation 查看所有文档
Linduino LTC4151 Linduino Header File Download 10.00KB Linduino LTC4151 Linduino .CPP File Download 4.00KB Linduino LTC4151 - DC1206A Linduino .INO File Download 12.00KB
产品模型 24
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC4151

文档

8
overlayclose

筛查

1 应用

mobileoverlaydownarrow
  • 全部
    TickIcon
  • 数据手册
  • 用户手册
  • 可靠性数据
  • 设计笔记
  • 应用笔记
  • 全部
    TickIcon
  • 英文
  • 日文
resetfilter

重置过滤器

数据手册

2

PDF Vector

PDF

更新 03/10/2014
英文

LTC4151: High Voltage I2C Current and Voltage Monitor Data Sheet

打开PDF文件

redirect
435.00K
download

下载 PDF

PDF Vector

PDF

更新 05/15/2014
日文

LTC4151: 高電圧I2C電流モニタおよび電圧モニタ データシート

打开PDF文件

redirect
716.00K
download

下载 PDF

用户手册

1

PDF Vector

PDF

更新 09/24/2009
英文
DC1208A - Demo Manual redirect icon

234.00K

download

下载 PDF

可靠性数据

1

PDF Vector

PDF

更新 03/26/2018
英文
R503 Reliability Data redirect icon

16.17 K

download

下载 PDF

设计笔记

2

PDF Vector

HTML

更新 10/08/2008
英文
Design Note 452: Power Monitor for Automotive and Telecom Applications Includes ADC and I2C Interface redirect icon

PDF Vector

HTML

更新 10/08/2008
日文
DN-452: ADCとI2Cインタフェースを備えた、車載およびテレコム・アプリケーション向け電源モニタ redirect icon

应用笔记

2

PDF Vector

HTML

更新 12/01/2005
英文
AN-105: Current Sense Circuit Collection Making Sense of Current redirect icon

PDF Vector

HTML

更新 12/01/2005
日文
AN-105: 電流センス（検出）回路集 電流に対するセンスを養う redirect icon

没有符合要求的搜索结果。请尝试重置您的筛选或搜索一个不同的术语

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号 引脚/封装图-中文版 文档 CAD 符号，脚注和 3D模型
LTC4151CDD#PBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151CDD#TRPBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151CDD-1#PBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151CDD-1#TRPBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151CMS#PBF 10-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151CMS#TRPBF 10-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151CMS-1#PBF 10-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151CMS-1#TRPBF 10-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151CS-2#PBF 16-Lead SOIC (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151CS-2#TRPBF 16-Lead SOIC (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151HDD#PBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151HDD#TRPBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151HMS#PBF 10-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151HMS#TRPBF 10-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151IDD#PBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151IDD#TRPBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151IDD-1#PBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151IDD-1#TRPBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151IMS#PBF 10-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151IMS#TRPBF 10-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151IMS-1#PBF 10-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151IMS-1#TRPBF 10-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151IS-2#PBF 16-Lead SOIC (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4151IS-2#TRPBF 16-Lead SOIC (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

2月 4, 2020

- 20_0130

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC4151CMS#PBF

量产

LTC4151CMS#TRPBF

量产

LTC4151CMS-1#PBF

量产

LTC4151CMS-1#TRPBF

量产

LTC4151HMS#PBF

量产

LTC4151HMS#TRPBF

量产

LTC4151IMS#PBF

量产

LTC4151IMS#TRPBF

量产

LTC4151IMS-1#PBF

量产

LTC4151IMS-1#TRPBF

量产

pdf

PCN20_0130_Form

external-icon

xls

Material_Report

Download

10月 12, 2022

- 22_0252

Epoxy Change from Henkel 8290 to 8290A for 16-Lead SOIC Package

LTC4151CS-2#PBF

量产

LTC4151CS-2#TRPBF

量产

LTC4151IS-2#PBF

量产

LTC4151IS-2#TRPBF

量产

pdf

PCN22_0252_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

8月 6, 2022

- 22_0173

Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG]

LTC4151CS-2#PBF

量产

LTC4151CS-2#TRPBF

量产

LTC4151IS-2#PBF

量产

LTC4151IS-2#TRPBF

量产

pdf

PCN22_0173_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

1月 29, 2023

- 22_0244

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LTC4151IMS#PBF

量产

LTC4151IMS#TRPBF

量产

LTC4151IMS-1#PBF

量产

LTC4151IMS-1#TRPBF

量产

pdf

PCN22_0244_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

2月 4, 2020

- 20_0130

arrow down

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC4151CMS#PBF

量产

LTC4151CMS#TRPBF

量产

LTC4151CMS-1#PBF

量产

LTC4151CMS-1#TRPBF

量产

LTC4151HMS#PBF

量产

LTC4151HMS#TRPBF

量产

LTC4151IMS#PBF

量产

LTC4151IMS#TRPBF

量产

LTC4151IMS-1#PBF

量产

LTC4151IMS-1#TRPBF

量产

pdf

PCN20_0130_Form

external-icon

xls

Material_Report

Download
10月 12, 2022

- 22_0252

arrow down

Epoxy Change from Henkel 8290 to 8290A for 16-Lead SOIC Package

LTC4151CS-2#PBF

量产

LTC4151CS-2#TRPBF

量产

LTC4151IS-2#PBF

量产

LTC4151IS-2#TRPBF

量产

pdf

PCN22_0252_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon
8月 6, 2022

- 22_0173

arrow down

Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG]

LTC4151CS-2#PBF

量产

LTC4151CS-2#TRPBF

量产

LTC4151IS-2#PBF

量产

LTC4151IS-2#TRPBF

量产

pdf

PCN22_0173_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
1月 29, 2023

- 22_0244

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LTC4151IMS#PBF

量产

LTC4151IMS#TRPBF

量产

LTC4151IMS-1#PBF

量产

LTC4151IMS-1#TRPBF

量产

pdf

PCN22_0244_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

软件和型号相关生态系统

部分模型 产品周期 描述

I²C 隔离器1
LTM2883
popup image
Cart

量产

具可调 ±12.5V 和 5V 稳定电源的 SPI / 数字或 I2C μModule 隔离器

电流检测放大器1
LTC2945
popup image
Cart

推荐新设计使用

宽范围 I2C 功率监视器

电源监控器1
LT2940
popup image
Cart

量产

功率和电流监视器

高压热插拔控制器1
LTC4260
popup image
Cart

推荐新设计使用

具 I2C 兼容型监视功能的正高电压热插拔控制器

部分模型 产品周期 描述
LT2940
popup image
Cart

量产

功率和电流监视器

LTC4260
popup image
Cart

推荐新设计使用

具 I2C 兼容型监视功能的正高电压热插拔控制器

评估套件 1

reference details image

DC1208A

LTC4151演示板 | 80V高端电源监控器，需要DC2026

zoom

DC1208A

LTC4151演示板 | 80V高端电源监控器，需要DC2026

download icon

下载

 print icon

打印
DC1208A
LTC4151演示板 | 80V高端电源监控器，需要DC2026
立即购买 更多内容

产品详情

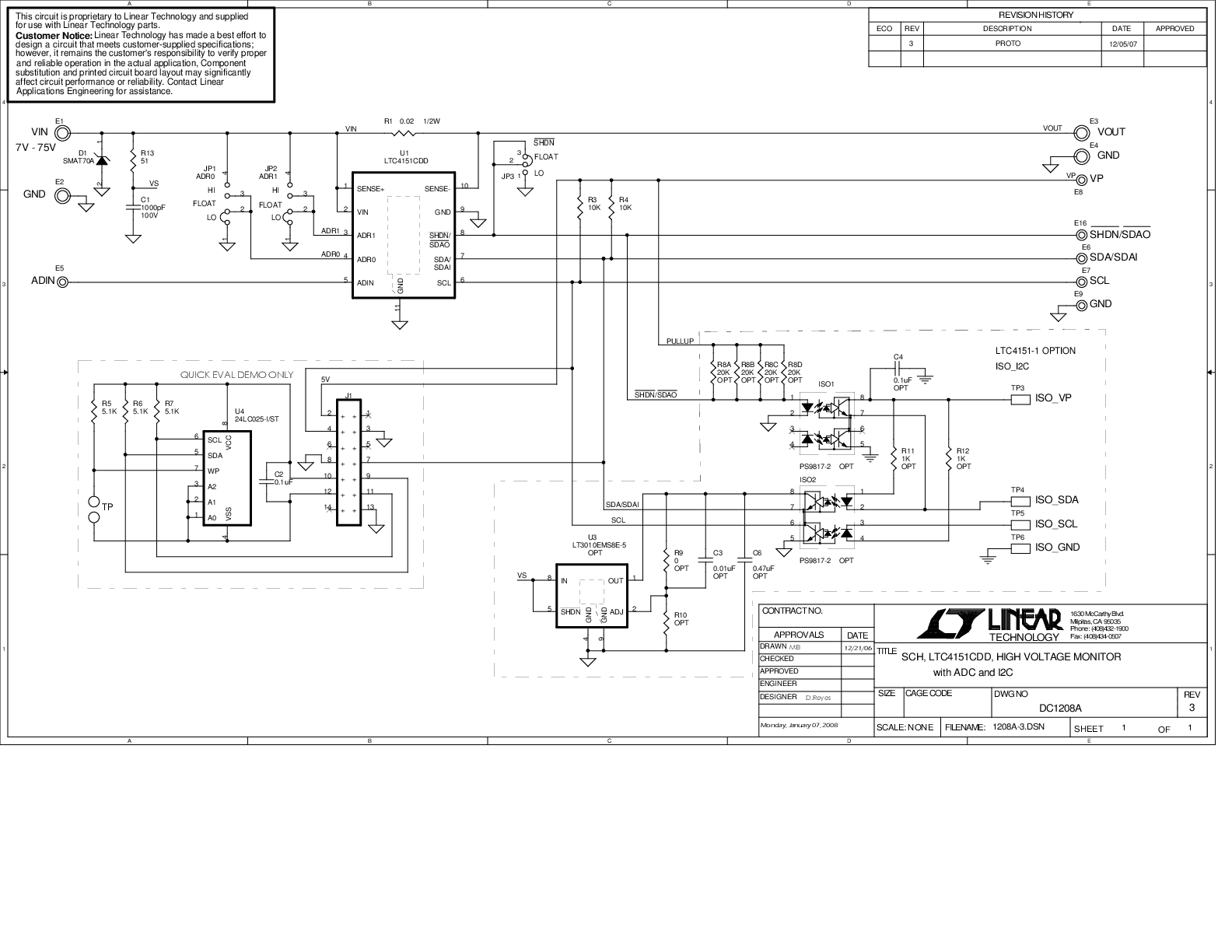

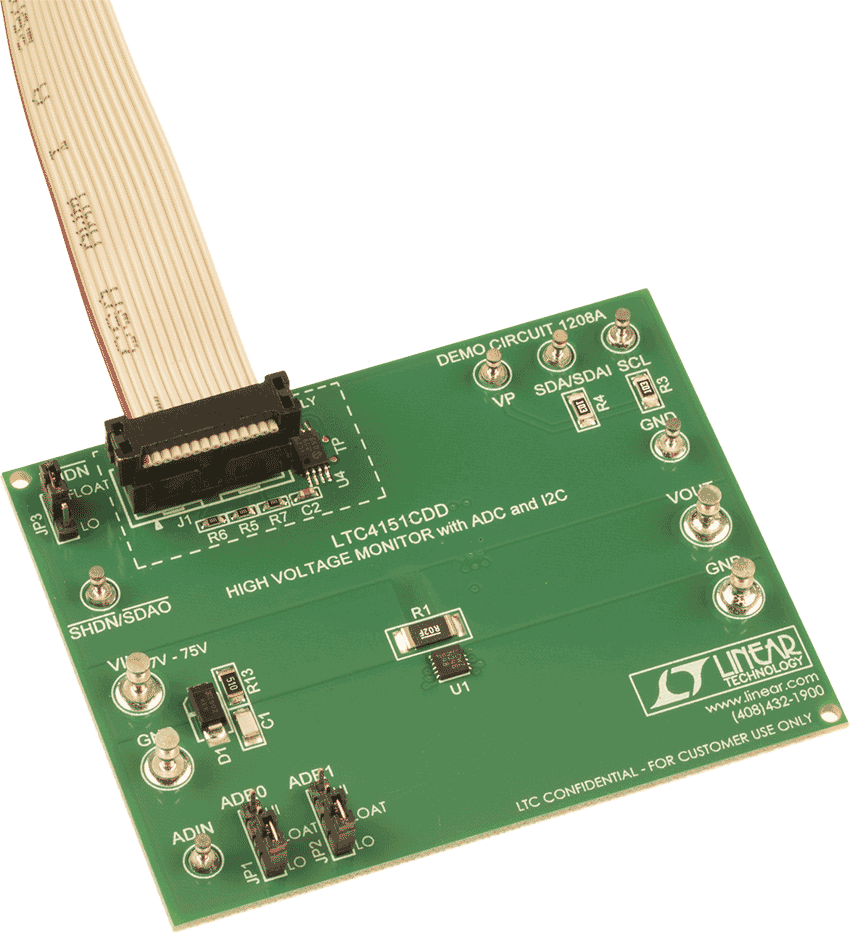

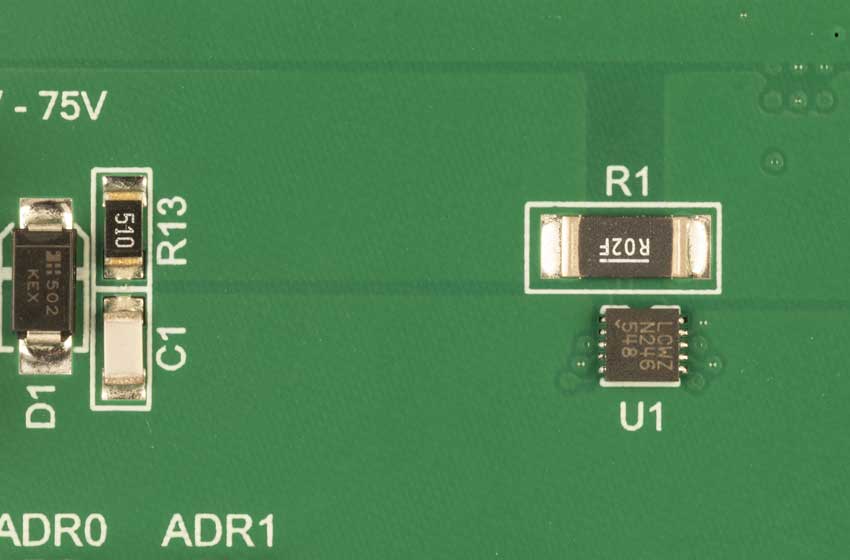

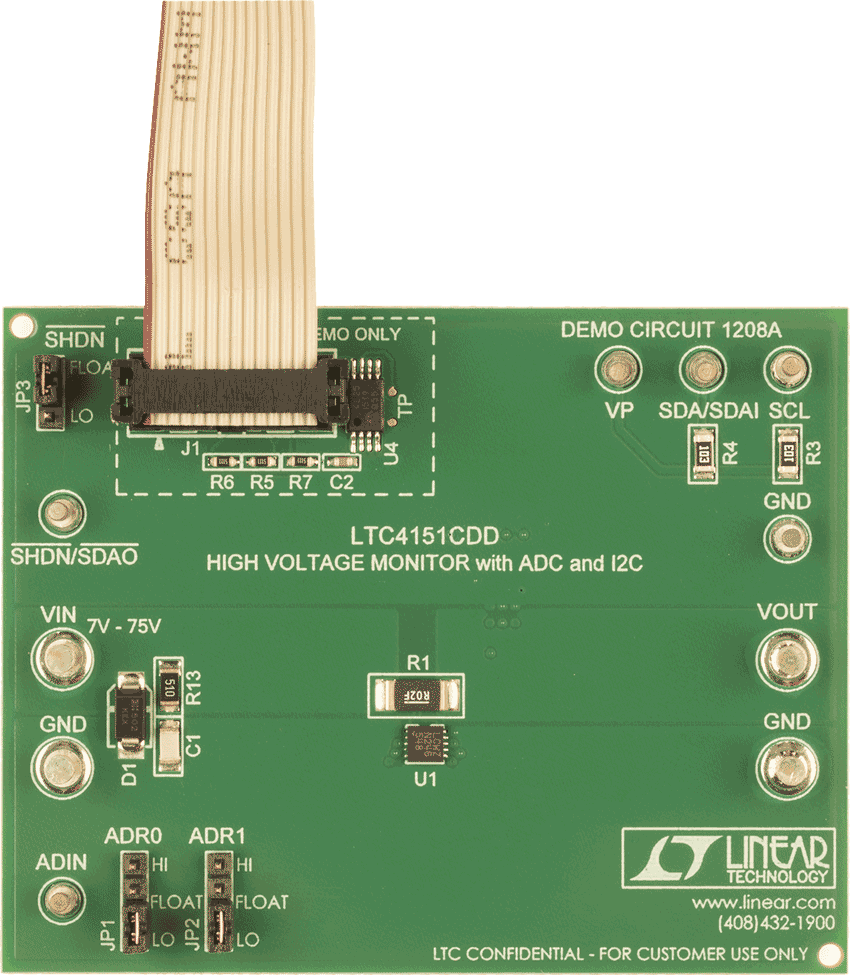

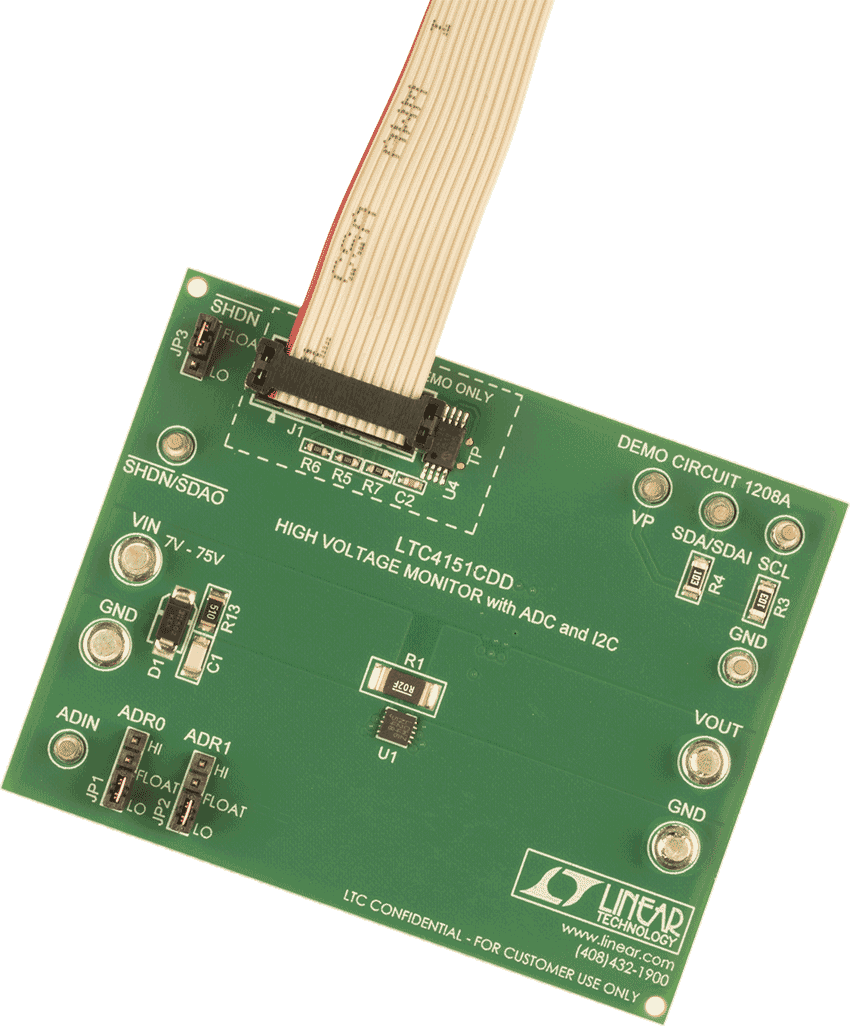

演示电路1208A内置LTC4151高端电源监控器，该监控器接受7V至80V的输入电压。在默认工作模式下，片上12位ADC连续测量高端电流、输入电压和外部电压。由主机进行轮询时，通过I2C接口报告数据。这些监控器还可以在快照模式下执行按需测量。LTC4151具有专用关断引脚以降低功耗。

资料

pdf icon

PDF

DC1208A - Demo Manual Download

234.00K

pdf icon

ZIP

DC1208A - Design File Download

1.00M

pdf icon

PDF

DC1208A - Schematic Download

41.00K

更多 Arrow image

评估套件1

evaluation kit item images

DC1208A

LTC4151演示板 | 80V高端电源监控器，需要DC2026

工具及仿真模型 1

Linduino

Linduino是ADI公司的Arduino兼容系统，用于开发和分配面向集成电路的固件库和示例代码。每个支持Linduino的产品包括示例主程序（在LTSketchbook/产品型号文件夹中定义）和驱动程序代码（在LTSketchbook/库文件夹中定义）。

GitHub上的Linduino代码存储库以及有关如何使用代码的说明。

购买Linduino

Linduino下载和文档
redirectbutton
代码文件

toolicon Linduino

LTC4151 Linduino Header File redirect

LTC4151 Linduino .CPP File redirect

LTC4151 - DC1206A Linduino .INO File redirect

参考电路 4

DK-VIDEO-4SGX230N Dev Kit

Altera Audio Video Development Kit, Stratix IV GX Edition

zoomopens a dialog

Altera Audio Video Development Kit, Stratix IV GX Edition

download icon

下载

 print icon

打印
Altera Audio Video Development Kit, Stratix IV GX Edition

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

使用部分 15

LT3480 reference design link

LTC4151 reference design link

LTC4352 reference design link

LTC4358 reference design link

LTC4357 reference design link

LTC6902 reference design link

LTC2418 reference design link

LTC3414 reference design link

LT3010
LT3010-5 reference design link

LTC3727-1 reference design link

LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4 reference design link

LT3080-1 reference design link

LTM8021 reference design link

LTM4614 reference design link

LTM4601 reference design link

DE-10 Nano Kit

Terasic DE10-Nano Kit

zoomopens a dialog

Terasic DE10-Nano Kit

download icon

下载

 print icon

打印
Terasic DE10-Nano Kit

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

使用部分 18

LTC1668 reference design link

LTC2497 reference design link

LTC2485 reference design link

LTC4261 reference design link

LTC4260 reference design link

LTC4245 reference design link

LTC4222 reference design link

LTC4215 reference design link

LTC4151 reference design link

LTC2990 reference design link

LTC2945 reference design link

ADV7513 reference design link

ADXL345 reference design link

LTC2308 reference design link

LT3580 reference design link

LT3080 reference design link

LTC3612 reference design link

LTC3616 reference design link

DK-DEV-4SGX230N Dev Kit

Altera Stratix IV GX FPGA Development Kit

zoomopens a dialog

Altera Stratix IV GX FPGA Development Kit

download icon

下载

 print icon

打印
Altera Stratix IV GX FPGA Development Kit

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

使用部分 14

LTC4151 reference design link

LTC4352 reference design link

LTC4358 reference design link

LTC4357 reference design link

LTC6902 reference design link

LTC2418 reference design link

LTC3414 reference design link

LT3010
LT3010-5 reference design link

LTC3727-1 reference design link

LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4 reference design link

LT3080-1 reference design link

LTM8021 reference design link

LTM4614 reference design link

LTM4601 reference design link

DK-DEV-4SE530N Dev Kit

Altera Stratix IV E FPGA Development Kit

zoomopens a dialog

Altera Stratix IV E FPGA Development Kit

download icon

下载

 print icon

打印
Altera Stratix IV E FPGA Development Kit

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

使用部分 5

LTC4151 reference design link

LTM4604 reference design link

LTC6902 reference design link

LT1764 reference design link

LTM4601 reference design link

参考电路4

DK-VIDEO-4SGX230N Dev Kit

Altera Audio Video Development Kit, Stratix IV GX Edition

DE-10 Nano Kit

Terasic DE10-Nano Kit

DK-DEV-4SGX230N Dev Kit

Altera Stratix IV GX FPGA Development Kit

DK-DEV-4SE530N Dev Kit

Altera Stratix IV E FPGA Development Kit

最新评论

需要发起讨论吗？ 没有关于 ltc4151的相关讨论？是否需要发起讨论？
在论坛上发起讨论

近期浏览

产品详情
参考资料
软件和型号相关生态系统
评估套件
工具及仿真模型
参考电路
最新评论
