LT3580

量产

具 2A 开关、软起动和同步功能的升压/负输出 DC/DC 转换器

产品模型
12
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

Viewing:

产品详情

  • 2A 内部电源开关
  • 可调开关频率
  • 用单个反馈电阻器设定 VOUT
  • 可同步至外部时钟
  • 高增益 SHDN 引脚可接受缓慢变化的输入信号
  • 宽输入电压范围:2.5V 至 32V
  • 低 VCESAT 开关:在 1.5A  时为 300mV (典型值)
  • 集成软起动功能
  • 可以容易地配置成一个升压或负输出转换器
  • 可由用户进行配置的欠压闭锁 (UVLO)
  • 纤巧型 8 引脚 3mm x 3mm DFN  封装和 8 引脚 MSOP 封装



LT3580
具 2A 开关、软起动和同步功能的升压/负输出 DC/DC 转换器
1.2MHz, 5V to 12V Boost Converter Achieves Over 88% Efficiency Efficiency and Power Loss Product Package 1 Product Package 2
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目
提问

参考资料

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目

硬件生态系统

部分模型 产品周期 描述
硅振荡器 1
LTC6909 量产 采用扩频调制、可提供 1 至 8 个输出的多相硅振荡器
内部电源开关升压稳压器 1
LT8335 量产 具 2A、28V 开关的低 IQ 升压 / SEPIC / 负输出转换器
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目

工具及仿真模型

LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器,为改善模拟电路的仿真提供增强功能和模型。


评估套件

eval board
DC1144A-A

LT3580EDD 演示板 | 3V ≤ VIN ≤ 10V,VOUT = 12V (在 300mA)

产品详情

演示电路 1144A-A 和 1144A-B 具有分别采用升压和负输出稳压器配置的 LT3580EDD。这些演示电路拥有尺寸小巧和组件数少的特点。DC1144A-A 设计用于将 3V 至 10V 电源转换为 12V/300mA 输出,而 DC1144A-B 负输出转换器则专为将 5V 至 12V 电源转换为 -12V/350mA 输出而设计。


LT3580 可在输入高达 32V 的条件下工作,但是在这些演示板中,输入受限于输入电容器的额定电压和升压输出的幅值。DC1146A-B 可以容易地配置成 SEPIC 转换器。


eval board
DC1144A-B

LT3580EDD Demo Board | 5V ≤ VIN ≤ 12, VOUT = -12V @ 350mA

产品详情

Demonstration circuits 1144A-A and 1144A-B feature the LT3580EDD in Boost and Inverting regulator configurations, respectively. The demo circuits demonstrate small size and low component count. The DC1144A-A is designed to convert a 3V to 10V source to 12V at 300mA, while the DC1144A-B inverter converts a 5V to 12V source to -12V at 350mA.


The LT3580 operates with inputs as high as 32V but in these demo boards the input is limited by the voltage rating of the input capacitors and the magnitude of the boost output. The DC1146A-B can easily be configured into a SEPIC converter.

DC1144A-A
LT3580EDD 演示板 | 3V ≤ VIN ≤ 10V,VOUT = 12V (在 300mA)

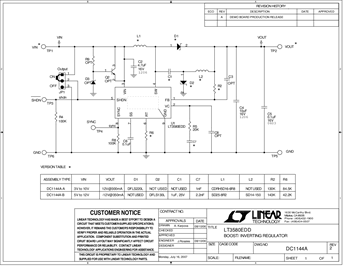

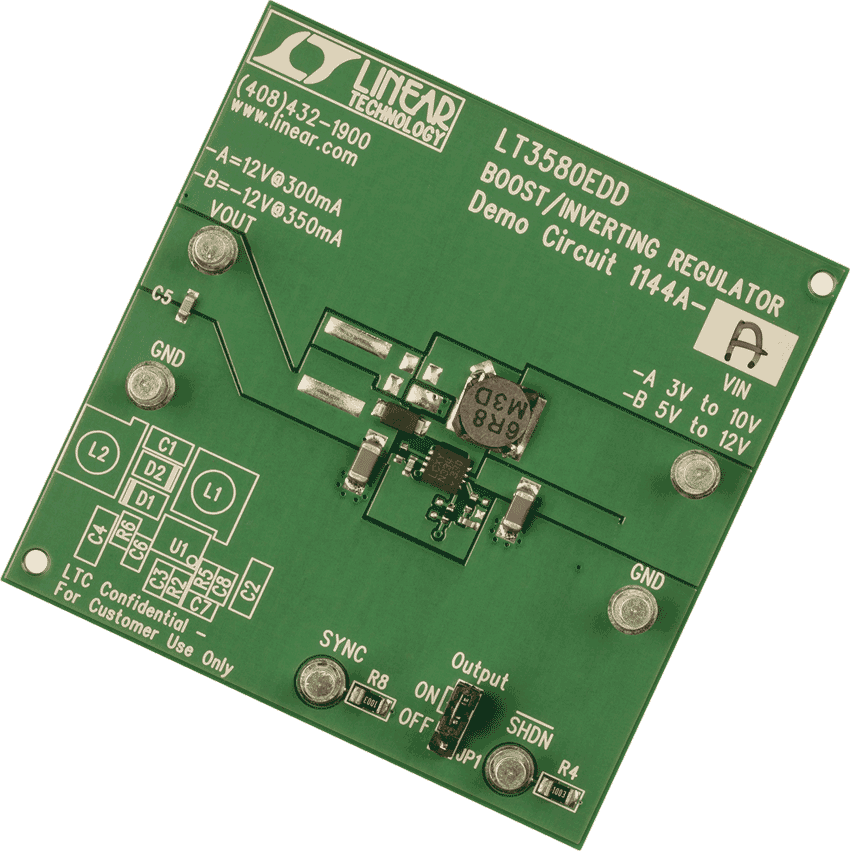

DC1144A-A Demo Board DC1144A-A Demo Board DC1144A-A Demo Board DC1144A-A Demo Board DC1144A-A - Schematic
DC1144A-B
LT3580EDD Demo Board | 5V ≤ VIN ≤ 12, VOUT = -12V @ 350mA

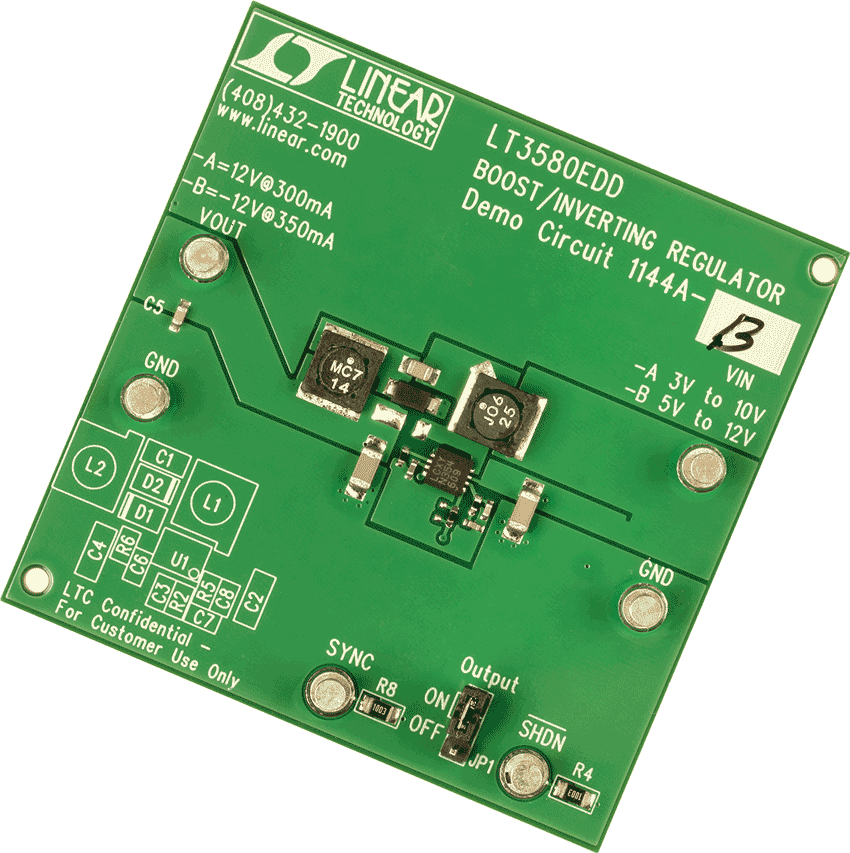

DC1144A-B Demo Board DC1144A-B Demo Board DC1144A-B Demo Board DC1144A-B Demo Board DC1144A-B Demo Board DC1144A-A - Schematic

参考电路

DE0 Nano SoC Dev Platform - Top View
Terasic DE0-Nano-SoC Kit / Atlas-SoC Kit 参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
DE-10 Nano Kit
Terasic DE10-Nano Kit 参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
Terasic DE0-Nano-SoC Kit / Atlas-SoC Kit
DE0 Nano SoC Dev Platform - Top View
DE0 Nano SoC Dev Platform - Bottom View
DE0 Nano SoC Block Diagram
DE0 Nano SoC Power Tree
Terasic DE10-Nano Kit
DE-10 Nano Kit
DE-10 Nano Kit Block Diagram
DE-10 Nano Power Tree
