LTC3115-1

推荐新设计使用

40V、2A、同步降压-升压型 DC/DC 转换器

数据手册 (Rev. E) 产品选型表

产品模型: 20

Viewing:

产品详情

宽V_IN范围：2.7V至40V
宽V_OUT范围：2.7V至40V
1A输出电流，V_IN ≥ 3.6V，V_OUT = 5V
输出电流：2A（降压操作模式下，V_IN≥ 6V）
可编程频率：100kHz至2MHz
可与外部时钟同步，频率高达2MHz
效率高达95%
无负载静态电流：30µA（突发工作模式(Burst Mode^®)下）

超低噪声升降压PWM
内部软启动
关断时电源电流：3µA
可编程输入欠压闭锁
小型4mm × 5mm × 0.75mm DFN封装
散热增强型20引脚TSSOP封装
AEC-Q100通过汽车应用认证

LTC3115-1 是一款高电压、单片式、同步降压-升压型 DC/DC 转换器。该器件的 2.7V 至 40V 宽输入和输出电压范围使其非常适合于众多的汽车及工业应用。一种专有的低噪声开关算法可在输入电压高于、低于、甚至等于输出电压的情况下优化效率，并确保操作模式之间的无缝转换。

可编程频率 PWM 模式操作提供了低噪声和高效率运作，并能使开关操作同步至一个外部时钟。该器件可支持高达 2MHz 的开关频率，以允许使用小值电感器，从而实现应用电路的小型化。引脚可选的突发模式操作减小了待机电流并提高了轻负载效率，再加上一个 3μA 的停机电流，使得 LTC3115-1 成为电池供电型应用的理想选择。这款器件的其他特点包括停机模式中的输出断接、短路保护和内部软起动功能。LTC3115-1 采用耐热性能增强型 16 引脚 4mm x 5mm x 0.75mm DFN 封装和 20 引脚 TSSOP 封装


	特性
LTC3115-1	-
LTC3115-2	针对面临快速(<1ms)输入电压瞬变的应用进行了优化

应用

24V / 28V 工业应用
汽车电源系统
电信、服务器和网络设备
FireWire 稳压器
多电源供电

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LTC3115EDHD-1#PBF	16-Lead DFN (5mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115EDHD-1#TRPBF	16-Lead DFN (5mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115EDHD-1#WPBF	16-Lead DFN (5mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115EDHD-1#WTRPBF	16-Lead DFN (5mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115EFE-1#PBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115EFE-1#TRPBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115EFE-1#WPBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115EFE-1#WTRPBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115HFE-1#PBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115HFE-1#TRPBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115IDHD-1#PBF	16-Lead DFN (5mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115IDHD-1#TRPBF	16-Lead DFN (5mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115IDHD-1#WPBF	16-Lead DFN (5mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115IDHD-1#WTRPBF	16-Lead DFN (5mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115IFE-1#PBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115IFE-1#TRPBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115IFE-1#WPBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115IFE-1#WTRPBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115MPFE-1#PBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3115MPFE-1#TRPBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

7月 31, 2020 - 20_0245 Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)
		PCN20_0245_Form Material_Report Delta Qualification Matrix Other Qualification Results Summary
LTC3115EDHD-1#PBF	量产
LTC3115EDHD-1#TRPBF	量产
LTC3115EFE-1#PBF	量产
LTC3115EFE-1#TRPBF	量产
LTC3115HFE-1#PBF	量产
LTC3115HFE-1#TRPBF	量产
LTC3115IDHD-1#PBF	量产
LTC3115IDHD-1#TRPBF	量产
LTC3115IDHD-1#WPBF	量产
LTC3115IDHD-1#WTRPBF	量产
LTC3115IFE-1#PBF	量产
LTC3115IFE-1#TRPBF	量产
LTC3115MPFE-1#PBF	量产
LTC3115MPFE-1#TRPBF	量产
4月 12, 2022 - 22_0081 Moisture Sensitivity Level Rating Change of LTC3114-1, LTC3115-1, LTC3115-2 with #W for LFCSP Package.
		PCN22_0081_Form Material_Report Delta Qualification Matrix
LTC3115EDHD-1#WPBF	量产
LTC3115EDHD-1#WTRPBF	量产
LTC3115IDHD-1#WPBF	量产
LTC3115IDHD-1#WTRPBF	量产
4月 6, 2022 - 22_0068 Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL
		PCN22_0068_Form Material_Report Delta Qualification Matrix
LTC3115EFE-1#PBF	量产
LTC3115EFE-1#TRPBF	量产
LTC3115HFE-1#PBF	量产
LTC3115HFE-1#TRPBF	量产
LTC3115IFE-1#PBF	量产
LTC3115IFE-1#TRPBF	量产
LTC3115MPFE-1#PBF	量产
LTC3115MPFE-1#TRPBF	量产

这是最新版本的数据手册

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

硬件生态系统

部分模型	产品周期	描述
PowerPath、理想二极管和负载开关 1
LTC4359	推荐新设计使用	具反向输入保护功能的理想二极管控制器
高压热插拔控制器 1
LTC4364	推荐新设计使用	具理想二极管的浪涌抑制器
硅振荡器 1
LTC6908		具扩频调制功能、采用电阻器设定频率的 SOT-23 封装振荡器
双电源监控器 1
LTC2960	推荐新设计使用	36V、纳安级电流、两输入电压监视器

工具及仿真模型

LTspice 3

LTspice中提供以下器件型号：

LTC3115-1
LTC3115-2

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

LTC3115-1 演示板 | 40V、2A 同步降压-升压型 DC/DC 转换器

立即购买更多内容

产品详情

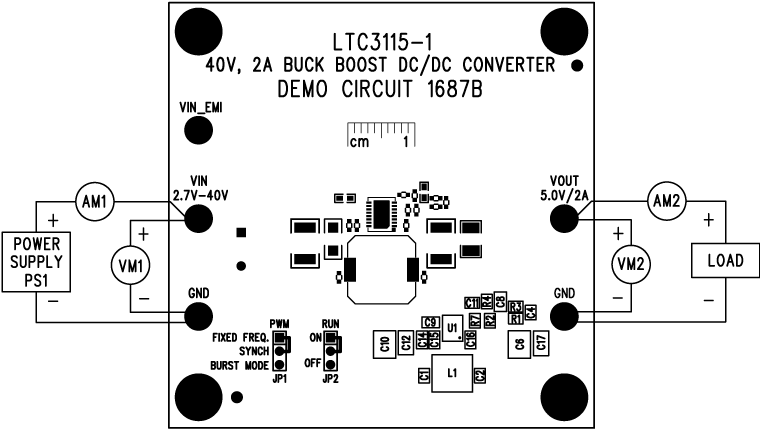

演示电路 1687B 采用了 LTC3115-1，后者是一款高电压单片同步降压-升压型转换器。

DC1687B 演示板具有两种用户可选的操作模式：突发模式 (Burst Mode^®) 操作和强制连续操作 (固定频率 PWM) (JP1)。还有一个准确的可编程 RUN 引脚，此引脚用于启用转换器 (JP2)。

DC1687B 在 2.7V 至 40V 的输入电压范围内工作。该演示板的设计将输出电压设定为 5V。LTC3115-1 采用专有的低噪声开关算法，可在输入电压高于、低于或等于输出电压的情况下优化效率，并确保在操作模式之间实现无缝转换。

该演示板被设置为在 PWM 模式中以 1MHz 的频率运行，从而优化小尺寸和高效操作。

该演示板还具有反馈 V_CC的任选配置，以提高某些 5V 输出应用的效率。对于 V_OUT 大于 20V 并需要短路保护的应用，还可在 SW2 和 VOUT 之间连接一个可选的肖特基二极管。有关这些选项的更多信息，请参阅数据手册。

LTC3115-1 数据手册提供了有关该器件工作原理、规格和应用的详细信息。应将数据手册与本快速入门指南配合起来阅读。

资料

DC1687B - Design Files
2019/5/24

DC1687B - Schematic
2019/5/24

DC1687B - Demo Manual
2019/5/24
