ADSP-SC59x/2159x SHARCシリーズがポートフォリオの性能を2倍に向上し、複雑なオーディオ・アプリケーション向けプラットフォームを実現

Reaching speeds of up to 1 GHz, the ADSP-2159x processors are members of the SHARC^® family of products. The ADSP-2159x processor is a dual-SHARC+^® core DSP that doubles the audio performance of its single-SHARC+ core ADSP-2156x predecessor while maintaining pin-compatibility to it in the BGA package, providing design scalability from 400 MHz (ADSP-21566) to 2 GHz (ADSP-21593).

The ADSP-2159x SHARC processors are members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices, Inc., Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performance audio/floating-point applications with large on-chip static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). New additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products.

By integrating a rich set of industry-leading system peripherals and memory (see Table 1 in the data sheet), the SHARC+ processor is the platform of choice for applications that require programmability similar to reduced instruction set computing (RISC), multimedia support, and leading edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.

APPLICATIONS

• Automotive:
  • audio amplifier, head unit, ANC/RNC, rear seat entertainment, digital cockpit, ADAS
• Consumer & Professional Audio:
  • speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays, headphones

Reaching speeds of up to 1 GHz, the ADSP-2159x processors are members of the SHARC^® family of products. The ADSP-2159x processor is a dual-SHARC+^® core DSP that doubles the audio performance of its single-SHARC+ core ADSP-2156x predecessor while maintaining pin-compatibility to it in the BGA package, providing design scalability from 400 MHz (ADSP-21566) to 2 GHz (ADSP-21593).

The ADSP-2159x SHARC processors are members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices, Inc., Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performance audio/floating-point applications with large on-chip static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). New additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products.

By integrating a rich set of industry-leading system peripherals and memory (see Table 1 in the data sheet), the SHARC+ processor is the platform of choice for applications that require programmability similar to reduced instruction set computing (RISC), multimedia support, and leading edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.

APPLICATIONS

• Automotive:
  • audio amplifier, head unit, ANC/RNC, rear seat entertainment, digital cockpit, ADAS
• Consumer & Professional Audio:
  • speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays, headphones

Reaching speeds of up to 1 GHz, the ADSP-SC59x processors are members of the SHARC^® family of products. The ADSP-SC59x processor is a dual-SHARC+^® core DSP that doubles the audio performance of its single-SHARC+ core ADSP-2156x predecessor and adds an integrated Arm Cortex-A5 core, also running at up to 1 GHz. The A5 processor, with FPU and Neon^® DSP extensions, handles additional real-time processing tasks and manages peripherals used to interface to time-critical data in audio applications. These interfaces include Gigabit Ethernet, USB High-Speed, CAN FD, and a rich variety of other connectivity options for a flexible and simplified system design.

The ADSP-SC59x SHARC processors are members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices, Inc., Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performance audio/floating-point applications with large on-chip static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). New additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products.

By integrating a rich set of industry-leading system peripherals and memory (see Table 1 in the data sheet), the SHARC+ processor is the platform of choice for applications that require programmability similar to reduced instruction set computing (RISC), multimedia support, and leading edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.

APPLICATIONS

• Automotive:
  • audio amplifier, head unit, ANC/RNC, rear seat entertainment, digital cockpit, ADAS
• Consumer & Professional Audio:
  • speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays, headphones

Reaching speeds of up to 1 GHz, the ADSP-SC59x processors are members of the SHARC^® family of products. The ADSP-SC59x processor is a dual-SHARC+^® core DSP that doubles the audio performance of its single-SHARC+ core ADSP-2156x predecessor and adds an integrated Arm Cortex-A5 core, also running at up to 1 GHz. The A5 processor, with FPU and Neon® DSP extensions, handles additional real-time processing tasks and manages peripherals used to interface to time-critical data in audio applications. These interfaces include Gigabit Ethernet, USB High-Speed, CAN FD, and a rich variety of other connectivity options for a flexible and simplified system design.

The ADSP-SC59x SHARC processors are members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices, Inc., Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performance audio/floating-point applications with large on-chip static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). New additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products.

By integrating a rich set of industry-leading system peripherals and memory (see Table 1 in the data sheet), the SHARC+ processor is the platform of choice for applications that require programmability similar to reduced instruction set computing (RISC), multimedia support, and leading edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.

APPLICATIONS

• Automotive:
  • audio amplifier, head unit, ANC/RNC, rear seat entertainment, digital cockpit, ADAS
• Consumer & Professional Audio:
  • speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays, headphones

Reaching speeds of up to 1 GHz, the ADSP-2159x processors are members of the SHARC^® family of products. The ADSP-2159x processor is a dual-SHARC+^® core DSP that doubles the audio performance of its single-SHARC+ core ADSP-2156x.

The ADSP-2159x SHARC processors are members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices, Inc., Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performance audio/floating-point applications with large on-chip static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). New additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products.

By integrating a rich set of industry-leading system peripherals and memory (see Table 1 in the data sheet), the SHARC+ processor is the platform of choice for applications that require programmability similar to reduced instruction set computing (RISC), multimedia support, and leading edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.

APPLICATIONS

• Automotive:
  • audio amplifier, head unit, ANC/RNC, rear seat entertainment, digital cockpit, ADAS
• Consumer & Professional Audio:
  • speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays, headphones

CrossCore Embedded Studioは、アナログ・デバイセズのBlackfin^®、SHARC^®、Arm^®の各プロセッサ・ファミリ向けに用意された、世界トップクラスの統合開発環境（IDE）です。このEclipse^™ベースのIDEは、アナログ・デバイセズの成熟した最新世代のコード作成ツールを採用しており、C/C++およびアセンブリ言語の編集、コード作成、デバッグを円滑にわかりやすくサポートします。

また、CrossCore Embedded Studioは、Blackfin開発者およびSHARC開発者に対し、ドライバ、サービス、アルゴリズム・ソフトウェア・モジュールについて高度に統合されたアドイン・サポートを提供します。そこには、オンチップおよびオフチップのペリフェラル、イーサネットおよびUSB用スタック、一般的なリアル・タイムのオペレーティング・システムやファイル・システムなどへのドライバ・サポートが含まれています。これによって、統合度の高いマルチコアの開発およびデバッグ・サポートを含む、使いやすい開発フレームワークがもたらされます。

FreeRTOSは、Real Time Engineers Ltdが提供する無償のスケーラブルなリアルタイム・オペレーティング・システムです。この製品によって、アナログ・デバイセズのADuCM302x、ADuCM4x5x、BF7xx、SC5xx（ARM Cortex-A5およびSHARC+コア）プロセッサ・ファミリに対するサポートがFreeRTOS製品にも付加されます。

FreeRTOSは組み込みシステム用に開発された、メモリ消費の少ないオペレーティング・システムです。タイマー、イベント、ミューテックス、セマフォ・タスク、セマフォなどの多くの一般的なオペレーティング・システム・コンセプトをサポートします。これらはすべて動的または静的に作成できます。プリエンプティブまたは協調型に設定できるスケジューラがあり、オプションでタイム・スライシング機能が付属しています。

FreeRTOSは使用料が無料で、GPLライセンス不要で提供されています。

アナログ・デバイセズのプロセッサ向けFreeRTOSは、CrossCore Embedded Studio（GCC経由）、Keil、IARの3種類の開発環境でサポートされています。

アナログ・デバイセズのプロセッサ向けFreeRTOSには、ADuCM302x、ADuCM4x5x、ADSP-BF7xx、ADSP-SC5xx（ARM Cortex-A5およびSHARC+コア）プロセッサ・ファミリをサポートするFreeRTOSコンテンツが追加されています。アナログ・デバイセズのプロセッサ向けFreeRTOSは、FreeRTOS製品の最上位に位置し、ADuCM3029、ADuCM3027、ADuCM4050 EZ-KIT、ADSP-BF7xx、ADSP-SC5xx（ARM Cortex-A5用とSHARC+コア用の両方）EZ-KITに対し、すぐに使えるデモ例が備わっています。

HCC EmbeddedのFATは、セクタベース・メディアのどのタイプともインターフェースできます。通常、これは、SD/MMCカード、コンパクト・フラッシュ・カード、USBメモリなどですが、論理セクタのアレイとして配列された任意のデバイスであっても構いません。

詳細については、HCC Embedded FATのページを参照してください。

革新的な設計アプローチにより、きわめて高いデータ転送レートが最小のシステム・リソース条件で実現されました。テストの結果、代表的なアプリケーション・シナリオで、パケット処理は比較対象とした組み込みスタックに比べ最大で4倍高速で、使用したROMは約14kBでした（LPC2468 MCUを使用した測定に基づく）。

RAM条件はアプリケーションのニーズによって大きく異なりますが、代表値としてはわずか12kBです。最小構成のUDPアプリケーションでは、ROMの使用量を5kB未満、RAMの使用量を数百バイト（およびネットワーク・バッファ）とすることが可能です。

詳細についてはHCC Embedded Networkingのページを参照してください。

このUSBホスト・スタックはスケーラブルです。多くのホスト・クラス・ドライバが含まれており、これにより組み込みホストは、メモリ、プリンタ、オーディオ・デバイス、ジョイスティック、仮想シリアル・ポート、ネットワーク・インターフェースなど、様々なUSBデバイスを制御できます。EHCI、OHCI、非標準の各USBホスト・コントローラに対応できます。

USBデバイス・スタックを使用することで、開発者は組み込みデバイスにUSBデバイスの機能を統合することができます。USBデバイス・スタックには多くのデバイス・クラス・ドライバがあり、メモリ、仮想シリアル・ポート、ジョイスティック、オーディオ・システム、またはネットワーク・カードなど、デバイスに複数の機能をもたらします。HCCは多くのUSBデバイス・コントローラを提供しています。

また、HCC Embeddedは、必要な機能をすべて備えたソフトウェアOTGスタックも提供しており、2つの接続デバイス間でどちらがホストとして動作するかを決定できるよう、SRPプロトコルやHNPプロトコルをサポートしています。

詳細については、HCC Embedded USBの概要ページを参照してください。

The EV-21593-EZKIT is a bundle comprised of the EV-21593-SOM System-on-Module (SOM) board and the EV-SOMCRR-EZKIT carrier board. Together, they form the EZ-KIT^® evaluation platform for the ADSP-SC594 SHARC+ audio processors, enabling low-cost evaluation and rapid prototyping of the ADSP-2159x Family (ADSP-21593/ADSP-21591). The EV-21593-SOM and EV-SOMCRR-EZKIT boards may also be purchased individually.

The EV-21593-EZKIT allows for fast prototyping of a wide range of applications, including immersive 3D sound and personal audio zones (PAZ), automotive active and road noise cancellation (ANC/RNC), voice-based user-interfaces and in-car communications (ICC), engine sound synthesis (ESS), and electric vehicle warning sound systems (EVWSS/AVAS). Additional applications include professional audio and soundbars / home AVRs (with 3D Object and Multi-Channel Audio) and enhanced conferencing systems. ADI also offers several software modules (e.g., AEC/NR, microphone beamforming, pitch shifting, harmonic generators, wave players etc.), as well as complete software solutions that can be licensed, where users can develop/evaluate their audio and voice processing applications. 3rd party surround sound solutions that can be licensed on ADI’s SHARC processor families are also available. Please visit ADI’s Software Solutions page for more information.

The EV-21593-EZKIT evaluation system includes a kit license of the CrossCore^® Embedded Studio (CCES) development tools, enabling developers to achieve faster time to market. The development environment aids advanced application code development and debug, such as:

• Create, compile, assemble, and link application programs written in C++, C, and assembly
• Load, run, step, halt, and set breakpoints in application programs
• Read and write data and program memory
• Read and write core and peripheral registers

The EV-SC594-EZKIT is a bundle comprised of the EV-SC594-SOM System-on-Module (SOM) board and the EV-SOMCRR-EZKIT carrier board. Together, they form the EZ-KIT^® evaluation platform for the ADSP-SC594 SHARC+ audio processors, enabling low-cost evaluation and rapid prototyping of the ADSP-SC59x Family (ADSP-SC592/ADSP-SC594). The EV-SC594-SOM and EV-SOMCRR-EZKIT boards may also be purchased individually.

The EV-SC594-EZKIT allows for fast prototyping of a wide range of applications, including immersive 3D sound and personal audio zones (PAZ), automotive active and road noise cancellation (ANC/RNC), voice-based user-interfaces and in-car communications (ICC), engine sound synthesis (ESS), and electric vehicle warning sound systems (EVWSS/AVAS). Additional applications include professional audio and soundbars / home AVRs (with 3D Object and Multi-Channel Audio) and enhanced conferencing systems. ADI also offers several software modules (e.g., AEC/NR, microphone beamforming, pitch shifting, harmonic generators, wave players etc.), as well as complete software solutions that can be licensed, where users can develop/evaluate their audio and voice processing applications. 3rd party surround sound solutions that can be licensed on ADI’s SHARC processor families are also available. Please visit ADI’s Software Solutions page for more information.

The EV-SC594-EZKIT evaluation system includes a kit license of the CrossCore^® Embedded Studio (CCES) development tools, enabling developers to achieve faster time to market. The development environment aids advanced application code development and debug, such as:

• Create, compile, assemble, and link application programs written in C++, C, and assembly
• Load, run, step, halt, and set breakpoints in application programs
• Read and write data and program memory
• Read and write core and peripheral registers

The EV-21593-SOM enables evaluation and rapid prototyping of designs featuring the ADSP-2159x Family (ADSP-21591/ADSP-21593) of SHARC audio processors. It provides an easy-to-use plug-n-play reference design with expansion capabilities to interface to custom hardware ahead of the release of the processor itself. When the EV-21593-SOM board is plugged into the EV-SOMCRR-EZKIT carrier board, the resulting EZ-KIT^® evaluation system (EV-21593-EZKIT) can be used for fast and easy evaluation of the processor core and system peripherals/interfaces.

The EV-21593-SOM enables rapid prototyping for a wide range of applications, including immersive 3D sound and personal audio zones (PAZ), automotive active and road noise cancellation (ANC/RNC), voice-based user-interfaces and in-car communications (ICC), engine sound synthesis (ESS) and electric vehicle warning sound systems (EVWSS/AVAS). Additional applications include professional audio and soundbars / home AVRs (with 3D Object and Multi-Channel Audio) and enhanced conferencing systems. ADI offers several software modules (e.g., AEC/NR, microphone beamforming, pitch shifting, harmonic generators, wave players etc.), as well as complete software solutions that can be licensed, where users can develop/evaluate their audio and voice processing applications. ADI also offers 3rd party surround sound solutions that can be licensed on ADI’s SHARC processor families. Please visit ADI’s Software Solutions page for more information.

The EV-21593-SOM module utilizes the CrossCore^® Embedded Studio (CCES) development tools to enable developers to achieve faster time to market. The development environment aids advanced application code development and debug, such as:

• Create, compile, assemble, and link application programs written in C++, C, and assembly
• Load, run, step, halt, and set breakpoints in application programs
• Read and write data and program memory
• Read and write core and peripheral registers

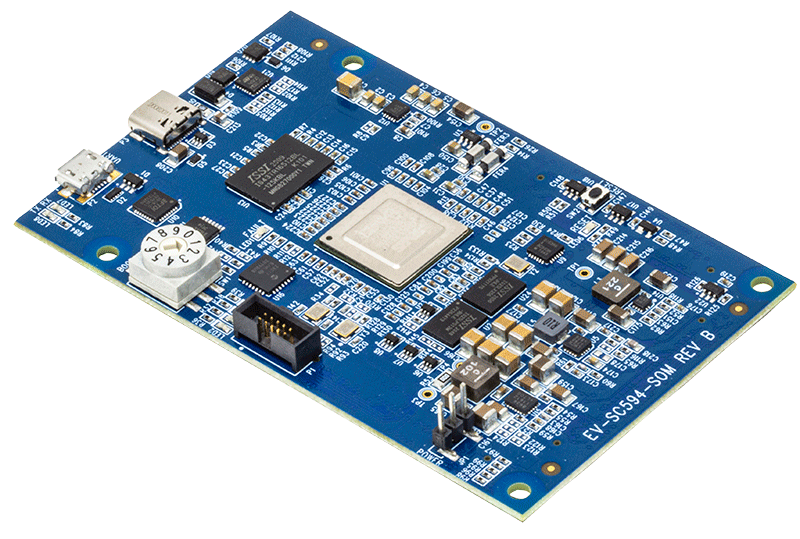

The EV-SC594-SOM enables evaluation and rapid prototyping of designs featuring the ADSP-SC59x Family (ADSP-SC592/ADSP-SC594) of SHARC audio processors. It provides an easy-to-use plug-n-play reference design with expansion capabilities to interface to custom hardware ahead of the release of the processor itself. When the EV-SC594-SOM board is plugged into the EV-SOMCRR-EZKIT carrier board, the resulting EZ-KIT^® evaluation system (EV-SC594-EZKIT) can be used for fast and easy evaluation of the processor core and system peripherals/interfaces.

The EV-SC594-SOM enables rapid prototyping for a wide range of applications, including immersive 3D sound and personal audio zones (PAZ), automotive active and road noise cancellation (ANC/RNC), voice-based user-interfaces and in-car communications (ICC), engine sound synthesis (ESS) and electric vehicle warning sound systems (EVWSS/AVAS). Additional applications include professional audio and soundbars / home AVRs (with 3D Object and Multi-Channel Audio) and enhanced conferencing systems. ADI offers several software modules (e.g., AEC/NR, microphone beamforming, pitch shifting, harmonic generators, wave players etc.), as well as complete software solutions that can be licensed, where users can develop/evaluate their audio and voice processing applications. ADI also offers 3rd party surround sound solutions that can be licensed on ADI’s SHARC processor families. Please visit ADI’s Software Solutions page for more information.

The EV-SC594-SOM module utilizes the CrossCore^® Embedded Studio (CCES) development tools to enable developers to achieve faster time to market. The development environment aids advanced application code development and debug, such as:

• Create, compile, assemble, and link application programs written in C++, C, and assembly
• Load, run, step, halt, and set breakpoints in application programs
• Read and write data and program memory
• Read and write core and peripheral registers
