製品概要
機能と利点

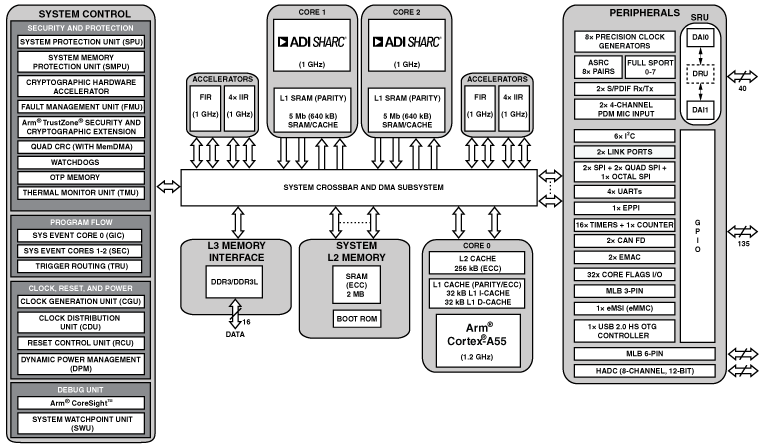

SHARC+ Core Infrastructure
- 1 GHz (max) Core clock frequency
- 640KB on-chip Level 1 (L1) SRAM memory (with parity) increases low latency performance
- 32-bit, 40-bit & 64-bit floating point support
- 32-bit fixed point
- Byte, short-word, word, long-word addressed
Arm Core Infrastructure
- 1.2 GHz Arm Cortex-A55 (with Neon/FPU)
- 32 kByte/32 kByte L1 Instr./Data Cache
- 256 kByte L2 Cache
Memory
- 2048 KB on-chip Level 2 (L2) SRAM with ECC protection - eliminates need for external memory in many use cases
- Level 3 (L3) interface optimized for low system power, providing 16-bit interface to DDR3 (supporting 1.35 V capable DDR3L devices)
16-bit DDR/DDR3L Memory Controller
- 1.35V support for DDR3L
Advanced Hardware Accelerators
- Enhanced FIR/IIR offload engines running at Core clock frequency for added processing power
- Security Crypto Engines with OTP
Powerful DMA System
Innovative Digital Audio Interface (DAI) includes:
- 8x Full SPORT interfaces w/TDM & I2S modes
- 2x S/PDIF Rx/Tx, 8 ASRC pairs
- 8x Precision Clock Generators
- 2x 4-channel PDM Mic Inputs
- 40 Buffers
Other Peripheral Connectivity / Interfaces
- 1x eMSI (SDIO/eMMC)
- 2x Quad SPI, 1x Octal SPI
- MLB 3-pin / 6-pin
- 6x I2C,3x UARTs
- 2x Link Ports
- 16x General Purpose Timer, 1x General Purpose Counter
- 3x Watchdog Timers
- ePPI
- USB 2.0 HS OTG Controller
- 10/100 EMAC
- 10/100/1000 EMAC w/AVB and 1588
- 2x CAN FD
- 8-ch 12bit Housekeeping ADC
- 135 GPIO pins, 40 DAI pins
- Thermal Sensor
Package
- 17mm x 17mm (0.8mm pitch) 400-ball CSP_BGA
Additional Features
- Security and Protection
- Crypto hardware accelerators
- Fast secure boot with IP protection
- Enhanced FIR and IIR accelerators running up to 1 GHz
- AEC-Q100 qualified for automotive applications
製品概要
Reaching speeds of up to 1 GHz, the ADSP-SC598/SC596/SC595 processors are members of the ADSP-SC59x SHARC® family of products. Containing the same dual-SHARC+® DSP core architecture as the ADSP-SC594/SC592/SC591, these processors upgrade the integrated Arm core to a Cortex-A55 running at up to 1.2 GHz. The A55 processor, with FPU and Neon® DSP extensions, handles additional real-time processing tasks and manages peripherals used to interface to time-critical data in audio applications. These interfaces include Gigabit Ethernet, USB High-Speed, CAN FD, and a rich variety of other connectivity options for a flexible and simplified system design.
The ADSP-SC59x SHARC processors are members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices, Inc., Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performance audio/floating-point applications with large on-chip static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). New additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products.
By integrating a rich set of industry-leading system peripherals and memory (see Table 1 in the data sheet), the SHARC+ processor is the platform of choice for applications that require programmability similar to reduced instruction set computing (RISC), multimedia support, and leading edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.
APPLICATIONS
- Automotive:
- audio amplifier, head unit, ANC/RNC, rear seat entertainment, digital cockpit, ADAS
- Consumer & Professional Audio:
- speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays, headphones
製品ライフサイクル
発売前
新たに発売予定の製品です。技術的な検証が継続中の場合もあります。数量が限られており、設計仕様は量産開始前に変更されることがあります。

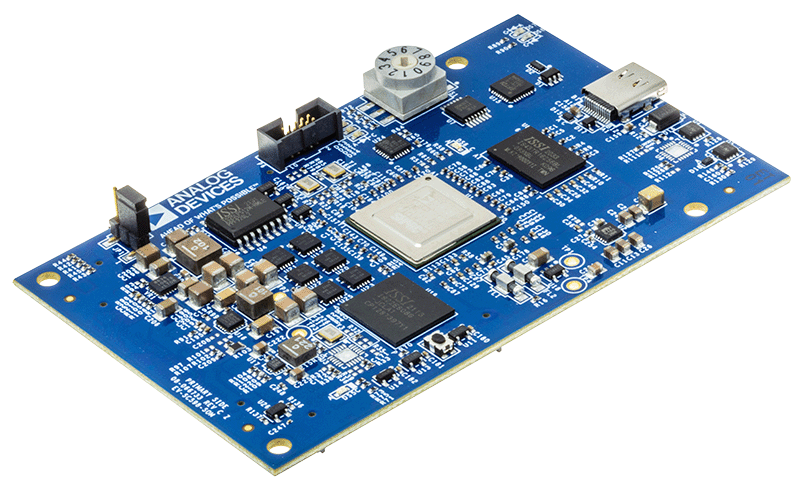

評価キット (1)
参考資料
-
EE-448: Safe Power-down Mechanisms for Digital Processors9/5/2023
-
EE447: Tips and Tricks Using the ADSP-SC59x/ADSP-2159x/ADSP-2156x Processor BootROM (Rev. 1)6/28/2023
-
• EE447 Source Code Examples for Boot Stream Work
ZIP -
EE-436: Using ADSP-SC59x/2159x High Performance FIR/IIR Accelerators (Rev. 2)5/4/2023
-
• EE436v02
ZIP -
EE-440: Estimating Power for SC596/SC598 SHARC+ Processors4/24/2023
-
• Power Calculator Tool
ZIP -
EE-434: ADSP-2159x/SC59x Board Design Guidelines for Dynamic Memory Controller4/13/2023
-
EE-445: ADSP-SC59x SHARC+ Processor System Optimization Techniques1/11/2023
-
• EE-445
ZIP -
EE-441: ADSP-SC596/SC598 Board Design Guidelines for Dynamic Memory Controller (Rev. 1)12/13/2022
-
EE-437: OSPI PHY Configuration and Training (Rev. 1)11/1/2022
-
EE-443: ADSP-SC595/SC596/SC598 Programming Guidelines for Dynamic Memory Controller10/31/2022
-
• ee443v01.zip
ZIP -
EE-433: Estimating Power for ADSP-2159x/SC59x SHARC+ Processors4/19/2022
-
• EE-433: Power Calculator Tool
ZIP -
EE-432: Boot Time Estimation for ADSP-SC59x/ADSP-2159x SHARC+ Processors8/25/2021
-
• EE-432: Code Example
ZIP -
EE-430: Migrating from ADSP-2156x to ADSP-SC59x Processors6/28/2021
-
ADSP-SC59x/ADSP-2159x Product Family6/1/2021
