製品概要
機能と利点
- 400MHz (max) Core clock frequency
- 640KB on-chip Level 1 (L1) SRAM memory (with parity) increases low latency performance
- 32-bit, 40-bit & 64-bit floating point support
- Byte, short-word, word, long-word addressed
- 256KB on-chip Level 2 (L2) SRAM with ECC protection - eliminates need for external memory in many use cases
- One Level 3 (L3) interface optimized for low system power, providing 16-bit interface to DDR3 (supporting 1.35 V capable DDR3L devices) SDRAM devices
- Enhanced FIR/IIR offload engines running at Core clock frequency for added processing power
- Security Crypto Engines with OTP
Innovative Digital Audio Interface (DAI) includes:
- 8x Full SPORT interfaces w/TDM & I2S modes
- 2x S/PDIF Rx/Tx, 8 ASRC pairs
- 4x Precision Clock Generators
- 24 Buffers
- 2x Quad SPI, 1x Octal SPI
- MLB 3-pin
- 4x I2C, 2x UARTs
- 6x General Purpose Timer, 1x General Purpose Counter
- 2x Watchdog Timers
- 2-ch 12bit Housekeeping ADCs
- 22 GPIO pins, 24 DAI pins
- Thermal Sensor
- 14mm x 14mm 120-lead LQFP_EP
- Security and Protection
- Crypto hardware accelerators
- Fast secure boot with IP protection
製品概要
Reaching speeds up to 1GHz, the ADSP-2156x processors are members of the SHARC® family of products. The ADSP-2156x processor is based on the SHARC+® single core. The ADSP-2156x SHARC processors are members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performance audio/floating-point applications with large on-chip static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). New additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products.
By integrating a rich set of industry-leading system peripherals and memory (see Table 1 on the datasheet), the SHARC+ processor is the platform of choice for applications that require programmability similar to RISC (reduced instruction set computing), multimedia support, and leading-edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, pro audio, and industrial-based applications that require high floating-point performance.
Applications
- Automotive:
- Audio Amplifier, Head Unit, Cockpit Domain Controller, Rear Seat Entertainment
- Consumer & Professional Audio:
- 3D Soundbar, Home AVR, Mixing Console, Next-gen Conferencing System
製品ライフサイクル
発売前
新たに発売予定の製品です。技術的な検証が継続中の場合もあります。数量が限られており、設計仕様は量産開始前に変更されることがあります。

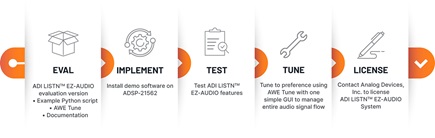

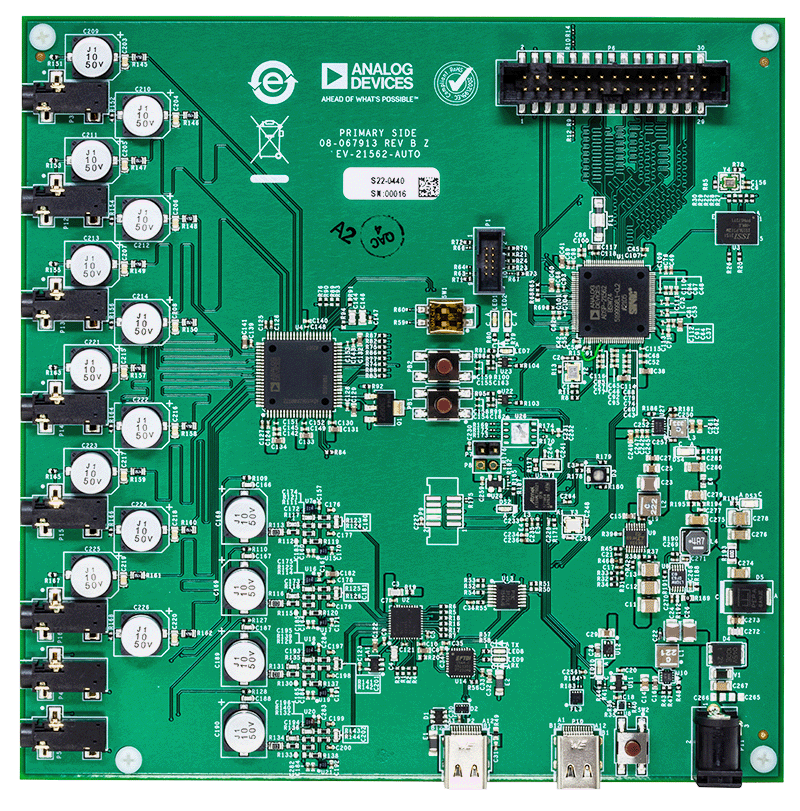

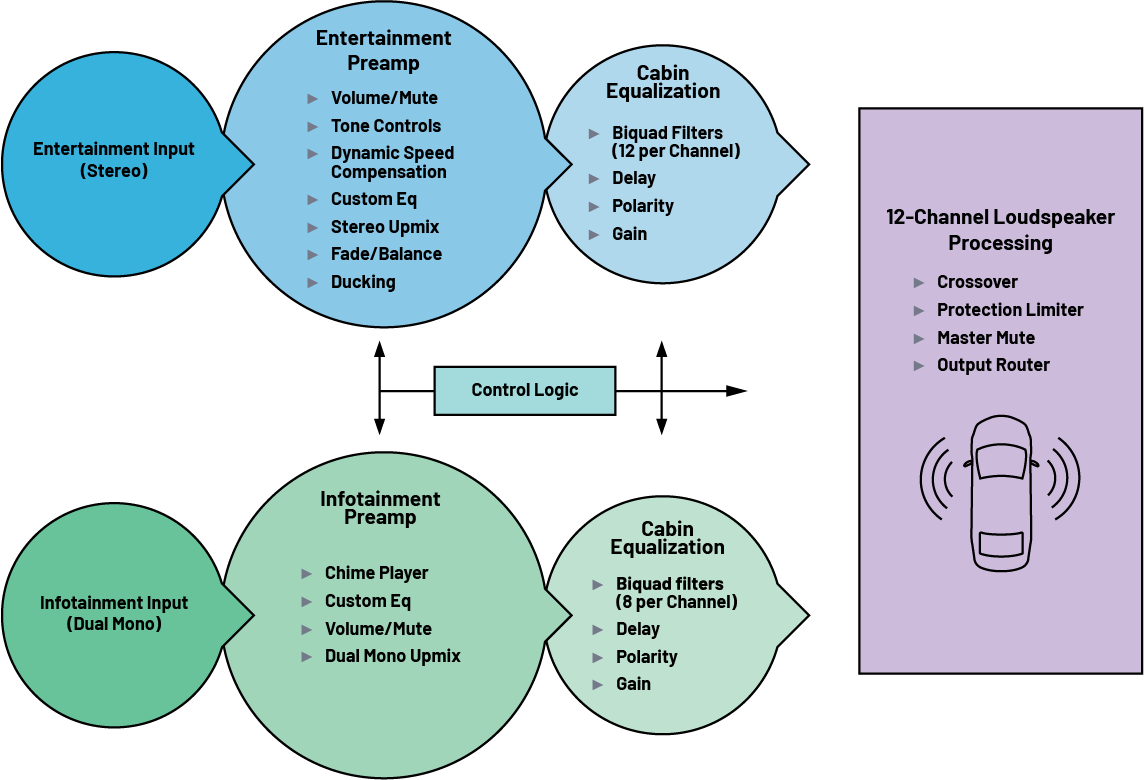

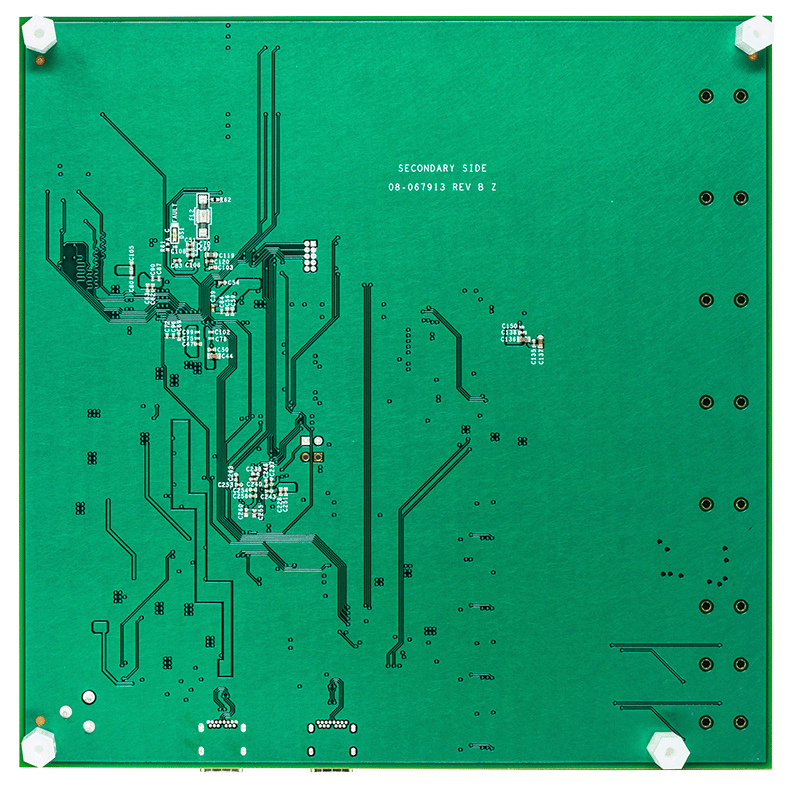

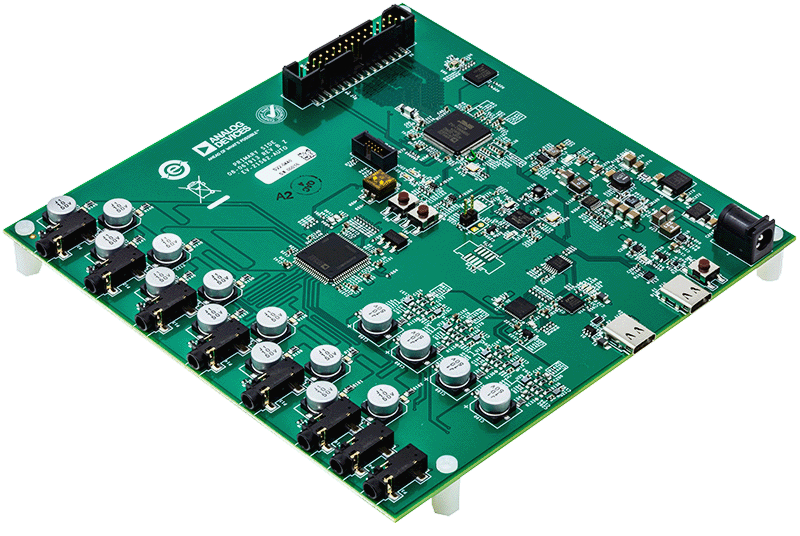

評価キット (1)
