数字模式发生器(DPG)高速DAC评估平台

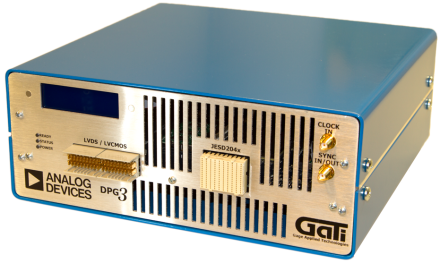

数字模式发生器(DPG)是一种台式仪器,用于将矢量驱动至ADI公司的高速数模转换器中。

控制器板

  • CMOS和LVDS电气标准,数据速率最高可达1.2 GSPS x 32位 = 38.4Gbps (LVDS)
  • 两个16位通道(CMOS和LVDS模式下)
  • 512 MB片上RAM,支持每个通道最高1.34亿样本
  • 支持交错式数据流
  • 高速矢量下载

  • CMOS and LVDS electrical standards, at data rates up to 1.2GSPS x 32-bits = 38.4Gbps (LVDS)
  • Two channels of 16-bits each (in both CMOS and LVDS modes)
  • 512MB on-board RAM, for up to 134 million samples per channel
  • Support for interleaved data streams
  • High-speed vector download

转接板

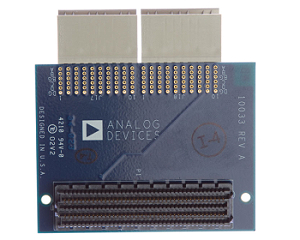

DAC Interposer
  • Connects ADI evaluation pinout to FMC interfaces
  • Low Pin Count (LPC) connector to connect with LPC or HPC ports
  • Compatible with DPG2 daughter boards
ADI设计销售的模式发生器和高速DAC评估板仅用于在实验室环境中,针对各种终端应用,对ADI高速DAC进行高效、全面的评估。模式发生器和/或高速DAC评估板的任何超出上述范围的应用或使用均不受ADI支持。
