LTM4638

20VIN、15A 降压型 DC/DC µModule 稳压器

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
特性
  • 在 <1cm2(单面 PCB)或 0.5cm2(双面 PCB)的空间内提供完整的解决方案

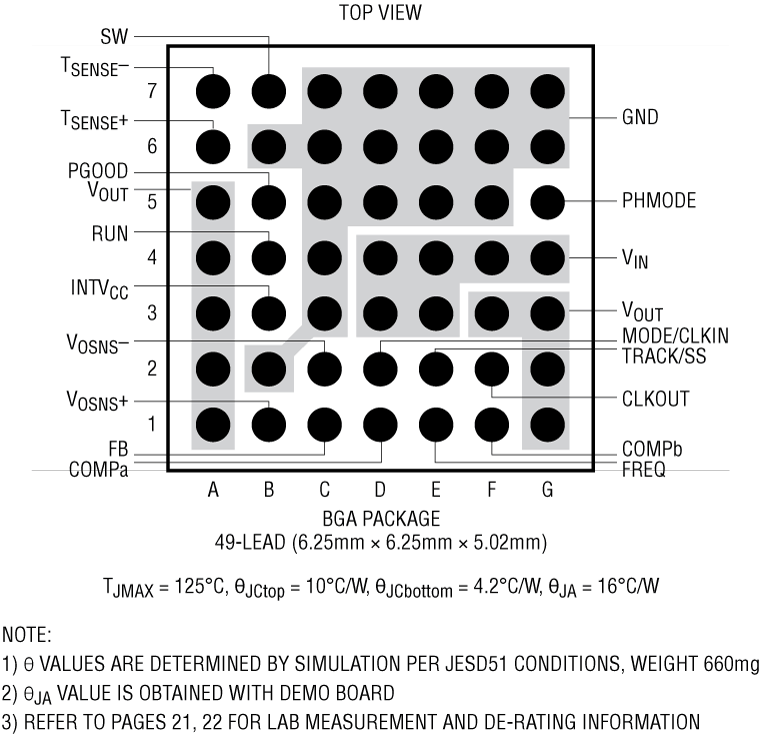

  • 6.25mm × 6.25mm × 5.02mm BGA 封装
  • 宽输入电压范围:3.1V 至 20V
  • 0.6V 至 5.5V 输出电压
  • 15A 直流输出电流
  • 整个线路、负载和温度范围内的最大总直流输出电压误差为 ±1.5%
  • 差分远程感应放大器
  • 电流模式控制,快速瞬态响应
  • 外部频率同步
  • 与多个 LTM4638 多相并联均流
  • 输出电压跟踪
  • 可选择的不连续模式
  • 电源正常指示器
  • 过压、过流和过热保护
更多细节
show more Icon

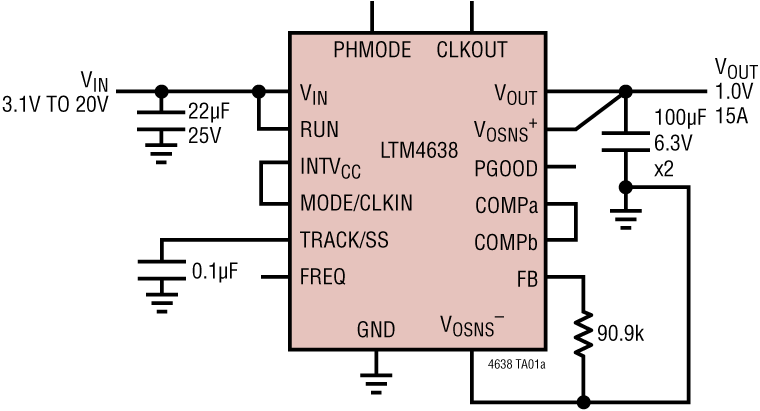

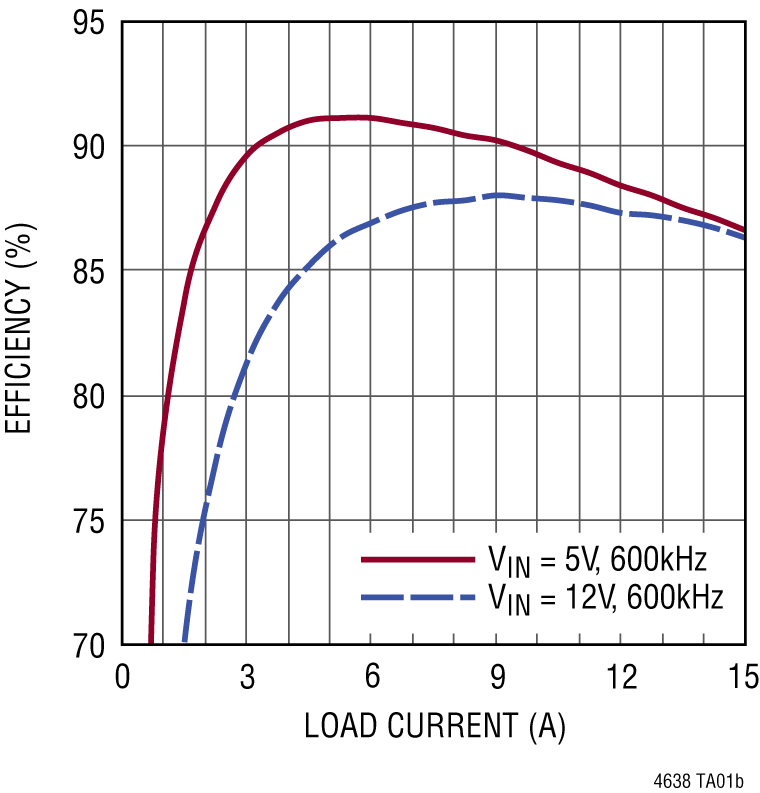

LTM4638 是一款完整的 15A 降压型开关模式 µModule (电源模块) 稳压器,其采用纤巧型 6.25mm × 6.25mm × 5.02mm BGA 封装。封装中内置了开关控制器、功率 FET、电感器和支持组件。LTM4638 的工作输入电压范围为 3.1V 至 20V,支持 0.6V 至 5.5V 的输出电压范围 (该范围由单个外部电阻器设定)。它的高效率设计可提供高达 15A 的连续输出电流。只需大容量的输入和输出电容器。

LTM4638 支持可选的不连续模式操作和用于电源轨排序的输出电压跟踪功能。该器件的高开关频率和电流模式控制可针对电压和负载变化实现非常快的瞬态响应,并不会牺牲稳定性。

故障保护功能包括过压、过流和过热保护。

LTM4638 可提供 SnPb 或符合 RoHS 指令的端子涂层。

应用

  • 电信、数据通信、网络和工业设备
  • 医疗诊断设备
  • 数据存储机架单元和板卡
  • 测试和调试系统

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

视频

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
LTM4638EY#PBF
  • HTML
  • HTML
LTM4638IY
  • HTML
  • HTML
LTM4638IY#PBF
  • HTML
  • HTML

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

9月 13, 2022

- 22_0193

Laser Top Mark Conversion for uModule COP and TMSV_COP Packages

LTM4638EY#PBF

量产

LTM4638IY

量产

LTM4638IY#PBF

量产

2月 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

9月 13, 2022

- 22_0193

arrow down

Laser Top Mark Conversion for uModule COP and TMSV_COP Packages

LTM4638EY#PBF

量产

LTM4638IY

量产

LTM4638IY#PBF

量产

2月 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

软件和型号相关生态系统

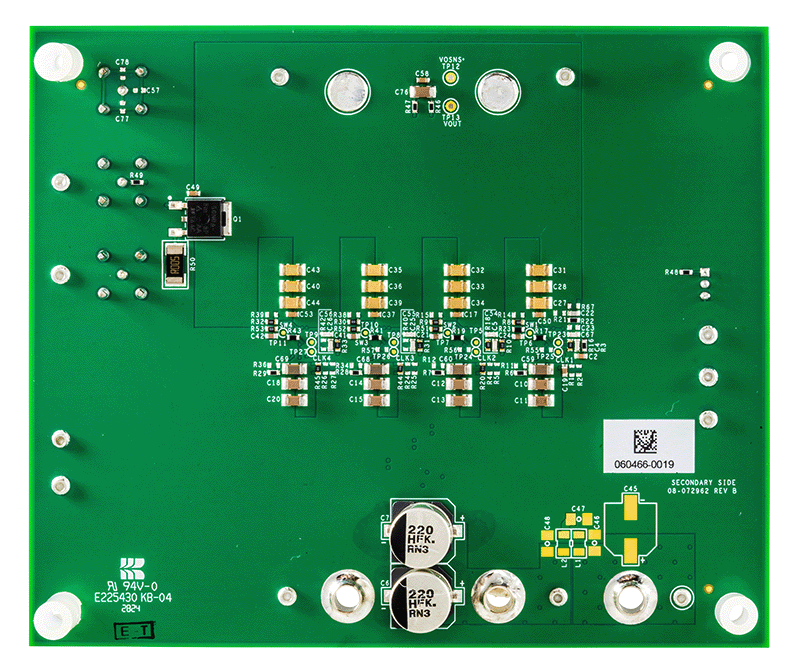

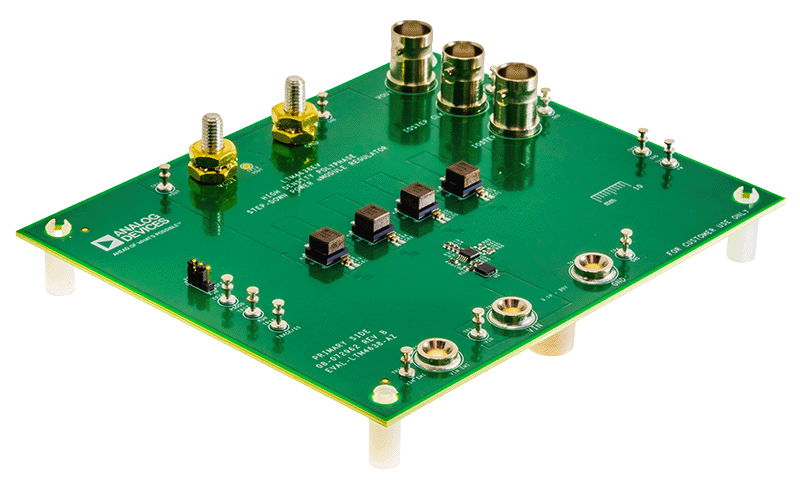

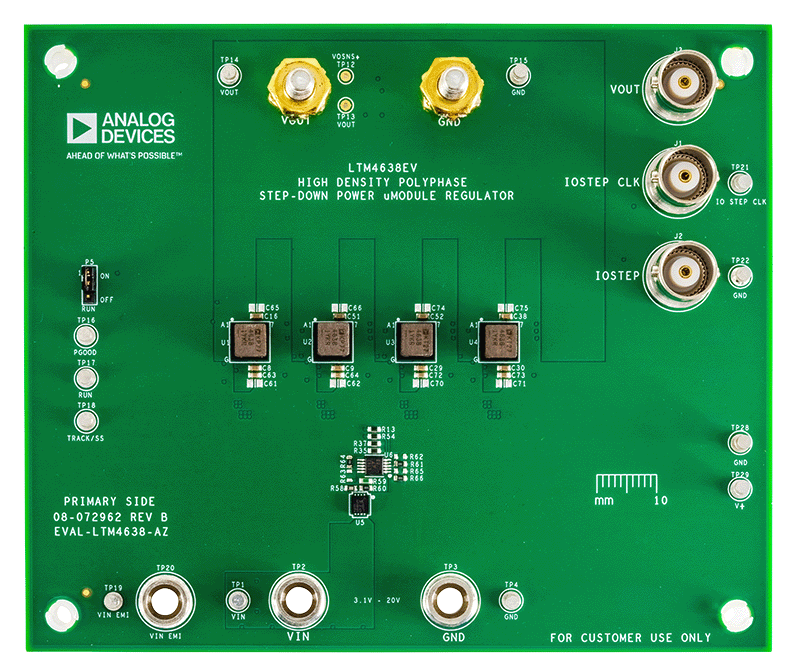

评估套件 2

reference details image

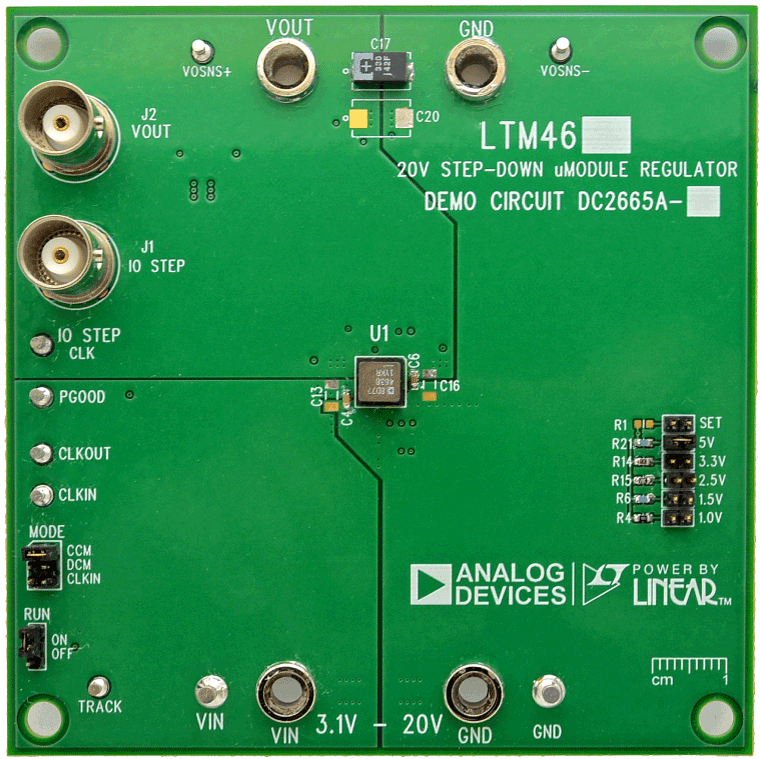

DC2665A-B

停产:LTM4638 | 20VIN、15A降压型µModule稳压器

zoom

DC2665A-B

停产:LTM4638 | 20VIN、15A降压型µModule稳压器

停产:LTM4638 | 20VIN、15A降压型µModule稳压器

产品详情

该评估板已停产且不再推荐使用。替代板为DC2665B-B

演示电路 2665A-B 采用 LTM4638 µModule® 稳压器,后者是高性能、高效率降压型稳压器。LTM4638 是一款完整的 DC/DC 负载点稳压器,采用耐热性能增强型 6.25mm × 6.25mm × 5.02mm BGA 封装。LTM4638 的工作输入电压范围为 3.1V 至 20V,能够提供高达 15A 的输出电流。输出电压可在 0.6V 至 5.5V 范围内编程,并可远端采样。堆叠式电感器设计可改善散热性能,并显著地缩减封装面积。通过 TRACK/SS 引脚可提供输出电压跟踪功能,用于进行电源轨排序。通过 SYNC/MODE 引脚可实现外部时钟同步。如欲在低负载电流下实现高效率,在对噪声不太敏感的应用中采用 MODE 跳线 (JP7) 选择 DCM 模式操作。在处理或修改 DC2665A-B 时,必须结合本演示手册阅读 LTM4638 数据手册。

reference details image

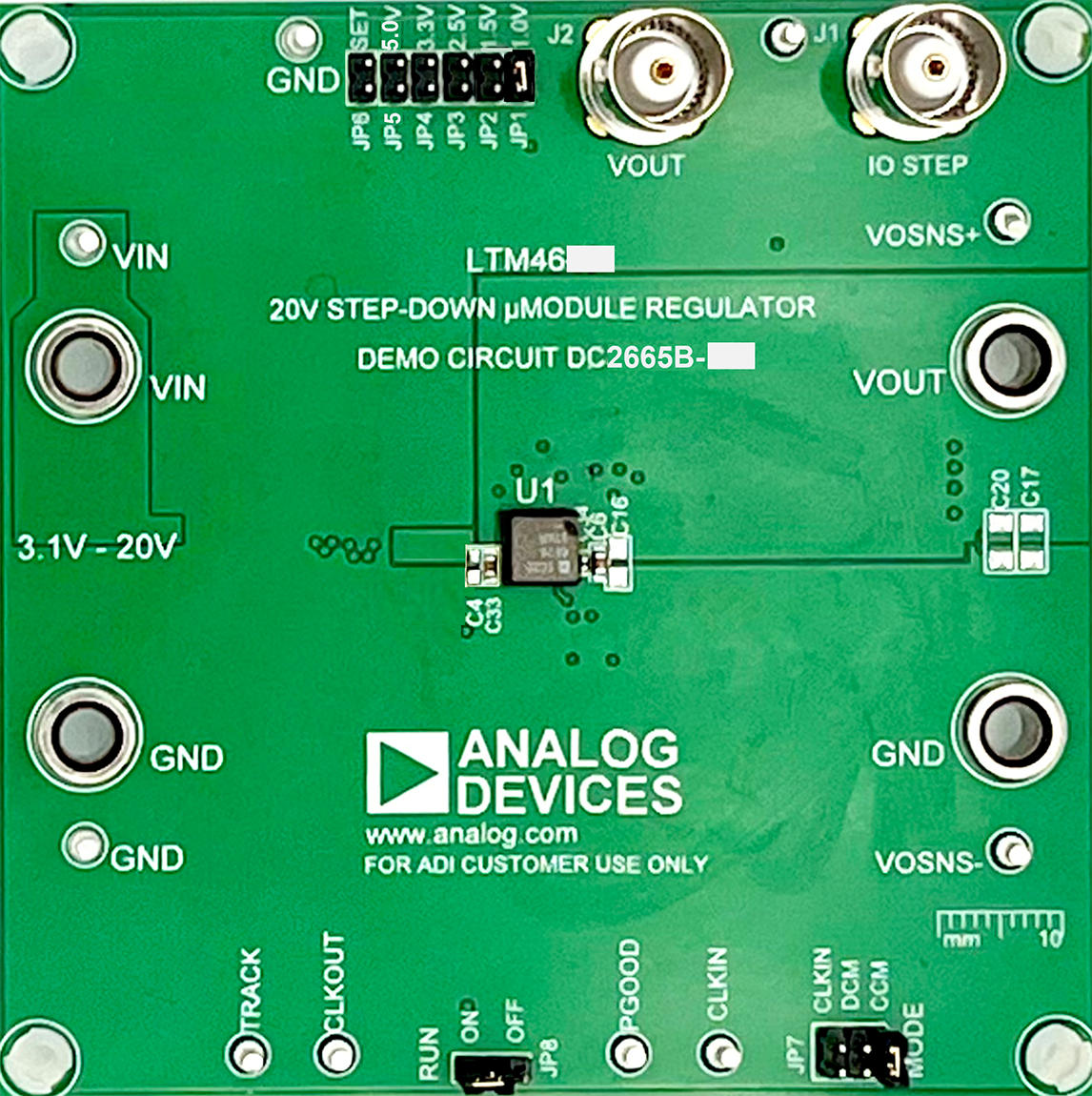

DC2665B-B

LTM4638 | 20VIN,15A 降压型 μModule 稳压器

zoom

DC2665B-B

LTM4638 | 20VIN,15A 降压型 μModule 稳压器

LTM4638 | 20VIN,15A 降压型 μModule 稳压器

产品详情

演示电路 2665B-B 采用 LTM4638 μModule® 稳压器,这是一款高性能、高效降压型稳压器。LTM4638 是一款完整的 DC/DC 负载点稳压器,采用耐热性能增强型 6.25mm × 6.25mm × 5.02mm BGA 封装。LTM4638 的工作输入电压范围为 3.1V 至 20V,能够提供高达 15A 的输出电流。输出电压可在 0.6V 至 5.5V 范围内编程,并可以远程检测。堆叠式电感器设计可改善散热性能,并显著降低封装面积。TRACK/SS 引脚提供输出电压跟踪,用于电源轨时序监控。通过 SYNC/MODE 引脚可以进行外部时钟同步。要在低负载电流下实现高效率,可以在噪声敏感度较低的应用中使用 MODE 跳线 (JP7) 选择不连续电流模式 (DCM) 操作。要处理或修改 DC2665B-B,请结合本演示手册阅读 LTM4638 数据手册。

工具及仿真模型 2

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器,为改善模拟电路的仿真提供增强功能和模型。

启动此部分的现成LTspice演示电路:

1步:下载并在计算机上安装LTspice

2步:单击下面的链接,下载演示电路。

3步:如果在单击以下链接之后LTspice未自动打开,可通过右击该链接并选择“目标另存为”来运行该仿真。将文件保存到计算机之后,请启动LTspice并从“文件”菜单中选择“打开”来打开演示电路。

参考电路 4

Stratix 10 GX PCIE FPGA Development Kit

zoomopens a dialog

Intel Stratix 10 FPGA PCIe Development Kit

Intel Stratix 10 FPGA PCIe Development Kit

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with Intel PSG to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
  • The validated power solutions include uModules power products that address time and space constraints while delivering high efficiency, reliability, and low noise.
  • The actual power tree represents the best solution at time of design.
  • A recommended power tree has also been included to present the ideal solution at time of Stratix 10 GX PCIe development kit release. An updated alternate version of the power tree represents the latest solutions available from Analog Devices. For many applications, an intermediate rail is not ideal, so recommendations an alternate power tree that allow for direct power conversion from 12V input is provided below.
查看参考设计详情 external link
Stratix 10 GX Signal Integrity Development Kit

zoomopens a dialog

Stratix 10 GX Signal Integrity Development Kit

特性和优点

  • Analog Devices has worked closely with Intel PSG to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
  • The validated power solutions include uModules power products that address time and space constraints while delivering high efficiency, reliability, and low noise.
  • The actual power tree represents the best solution at time of design.
  • A recommended power tree has also been included to present the ideal solution at time of Stratix 10 GX SI development kit release. An updated alternate version of the power tree represents the latest solutions available from Analog Devices. For many applications, an intermediate rail is not ideal, so recommendations for an alternate power tree that allows for direct power conversion from 12V input is provided below.
查看参考设计详情 external link

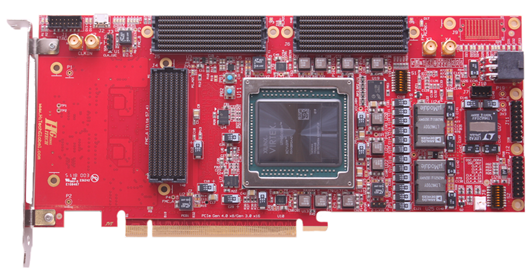

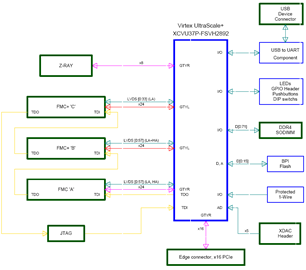

Xilinx VU37P Board

zoomopens a dialog

HTG-937: Xilinx Virtex UltraScale+ ™ VU37P/VU47P HBM Development Board

特性和优点

The HTG-937 provides access to large FPGA gate density and 8GB/16GB of high bandwidth memory. It is populated with the Xilinx Zynq Virtex Ultrascale VU37P, or VU47P. Analog Devices power solution on this platform is fully validated to meet the requirements of Xilinx Zynq Virtex Ultrascale FPGAs to ensure a robust power delivery solution.

DC/DC μModule regulators are used on the HTG-937 to power Xilinx FPGA and/or SoC rails as well as other system rails. These regulators are highly integrated solutions with built in controller, power FETs, inductors, and capacitors that simplify layout and provide robust power delivery performance.

We provide supporting documentation including power schematics, layout, LTpowerPlanner and applicable LTpowerPlay configuration files to enable you to validate the power solution for your application seamlessly.

查看参考设计详情 external link
HTG-AI & Prime PCIe Express Platform - Top View

Versal PRIME /AI PCI Express Platform

zoomopens a dialog

HTG-VSL1

Versal PRIME /AI PCI Express Platform

HTG-VSL1

参考设计

tooltip Info:参考设计
Versal PRIME /AI PCI Express Platform

特性和优点

  • Xilinx Versal AI Core and Prime series solves a broad range of industry-specific problems with performance and flexibility. Core use cases  include storage acceleration,  data center network acceleration, 5G xHaul and Passive optical networks.

  • The HTG-VSL1 AI Core and Prime PCIe express platform allows easy and versatile functional expansion through two Vita 57.4 compliant High-Pin-Count  FMC+ ports and one high-speed AcceleRate® port.

  • Analog Devices, Inc. supports power delivery solutions for the HTG-VSL1 for the Versal AI Core and Versal Prime PCIe express platform. DC/DC μModule regulators are used on the HTG-VSL1 to power Xilinx FPGA and/or SoC rails as well as other system rails. These regulators are highly integrated solutions with built in controller, power FETs, inductors, and capacitors that simplify layout and provide robust power delivery performance.

  • ADI provides supporting documentation including power schematics, layout, LTpowerPlanner® and applicable LTpowerPlay® configuration files to enable you to validate the power solution for your application seamlessly.

  • For a complete list power designs and use cases, please contact your local FAE.

  • Key Power DC DC Modules include:
    • LTM4700 is a Dual 50A or Single 100A μModule Regulator with Digital Power System Management, PMBus
    • LTM4638 is a 15A Step-Down DC/DC μModule Regulator
    • LTM4625 is a 5A Step-Down DC/DC μModule Regulator
    • LTM4632 is a Triple Output, Step-Down μModule Regulator for DDR-QDR4 Memory
    • LTC2937 is a Programmable Six Channel Sequencer and Voltage Supervisor with EEPROM
查看参考设计详情 external link
