Connected Motion Control Solutions
Connected Motion Control Solutions

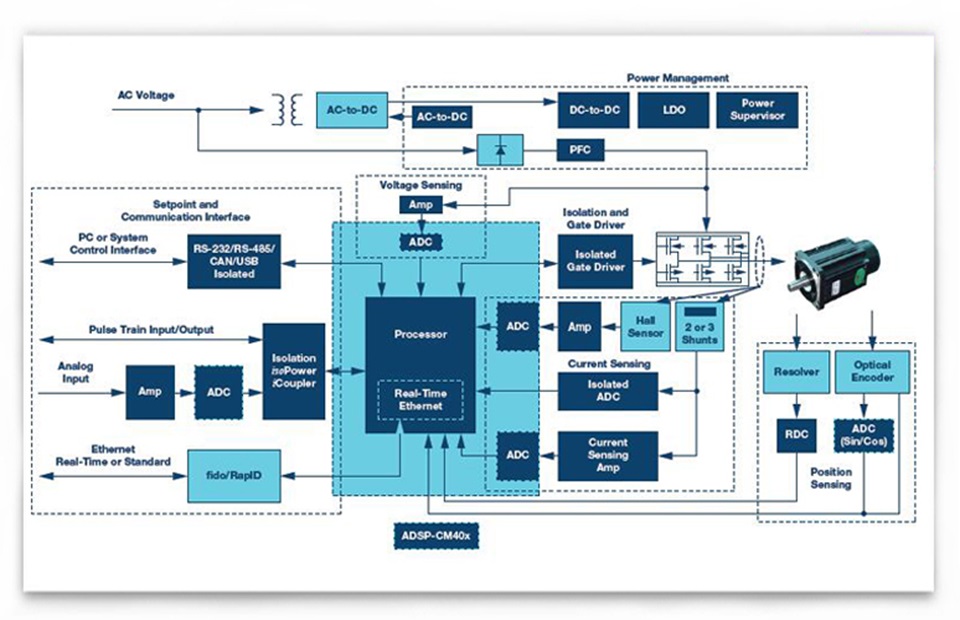

Analog Devices offers a complete motor control solutions portfolio including data converters, amplifiers, embedded processors, iCoupler® digital isolators, power management devices and the Real-time Ethernet solution. Enhanced performance and system integration enable innovative design topologies, which add value and help differentiate our customers' servo control systems.ADI servo drive solutions are associated with attaining the highest performance and accuracy in motion systems. These systems operates with high precision and where control of absolute position, along with optimum torque alignment, is required. Analog Devices offers a complete solution covering all key components in the signal chain.
ADI Offers
• High precision isolated Σ-Δ ADC for motor current and voltage sensing• Advanced IGBT/MOSFET Gate Driver with integrated protect functions
• Advanced digital isolator for IPM(Intelligent Power Module) PWM signals
• Motor control Mixed-Signal Control Processor with ARM Cortex-M4 and 16-Bit ADCs
• High speed RS485/422, CAN, USB, LVDS interface with isolation
• Real-time Ethernet switch with multi-protocol support
• RDC and AMR angle sensors
• Digital power factor correction controller
To Learn more about the comprehensive and flexible Analog Devices system solutions and main products,click here to get the complete solutions for free.
| Product Type | Current Sensing | Voltage Sensing | Position Sensing |
| Model |
Isolated ADCs AD7400A/AD7401A/ AD7402/AD7403/ AD7405 Amplifiers AD8418/AD8417/ AD8212/AD8479/AD8027 ADCs AD7266/AD7367 |
ADCs AD7266/AD7352/ AD7356/AD7903 Isolated ADCs AD7400A/AD7401A |
RDCs AD2S1205/AD2S1210 Amplifiers AD8662 Encoder ADCs AD7266/AD7264/ AD7903 |
| Product Type | Setpoint | Processors | Isolation and Gate Drivers |
| Model |
Amplifiers AD8676/AD8221/ AD8226/ADA4096-2 ADCs AD7680/AD7663/ AD7606-4 |
ADSP-CM408/ADSP-CM419 | Isolation ADuM1411/ADuM1311 Gate Drivers ADuM4223/ADuM3223/ ADuM7223/ ADuM4135/ADuM4136 DC-to-DC ADuM5000/ADuM6000 |
| Product Type | Current Sensing | Power Management | |
| Model |
RS-232 ADM3251E RS-485 ADM2486E/ADM2483E/ ADM2582E/ADM2587E/ ADM2682E/ADM2687E/ ADM2484E/ADM485E CAN ADM3053 USB ADuM4160 LVDS ADN4650 Real-Time Ethernet Switches fido5100/fido5200 |
Micropower Management Units ADP5134/ADP2119 Linear Regulators ADP151/ADP7102 Supervisory ADM6339/ADM13307/ADM708 DC-to-DC ADP1051 PFC ADP1047 |
Design Resources
- Support MATLAB® Simulink—complete scalability and flexibility
- High level, system block-level development with functional block definition
- Alignment with functionality of each element
- Complete flexibility of design flow and structure
- FOC, vector control, sensorless controllers, and standard motor control libraries
- Absolute encoder interface solutions
- Reference designs including PCB, SCH, documents, source code examples, and more
- MPC platform and EZ-KIT®
Third Party—Boston Engineering
- ADI servo development platform
Circuits from the Lab® Reference Circuits for Motor Control
Reference circuits are subsystem-level building blocks that have been engineered and tested for quick and easy system integration.
- A Novel Analog-to-Analog Isolator Using an Isolated Sigma-Delta Modulator, Isolated DC-to-DC Converter, and Active Filter — www.analog.com/en/CN0185
- High Current Driver for the AD2S1210 Resolver-to-Digital Reference Signal Output — analog.com/en/CN0192
- High Performance, 10-Bit to 16-Bit Resolver-to-Digital Converter — www.analog.com/en/CN0276
- High Voltage, High Precision Current Sensing with Output Level Shifting Using the AD8210Current Sense Amplifier and the AD8274 Difference Amplifier — CN0116
- 500 V Common-Mode Voltage Current Monitor — www.analog.com/en/CN0218
- H-Bridge Driver Circuit Using Isolated Half-Bridge Drivers — www.analog.com/en/CN0196
- More reference circuits are available at analog.com/circuits
- More Detail on ADI Motor Control Web Site: www.analog.com/circuits
EtherCAT Connected Motion Control Platform
- Complete SW framework for EtherCAT communication and multiaxis motion control
- Synchronization from network master to I/Os on slaves
- Support of all EtherCAT synchronization modes
- EtherCAT cycle time down to 100 μs
- Easy certification
- No royalties
- Tightly integrated solution
- Release is distributed through STARweb
- starweb.ad.analog.com/default/AES/latest/
- Get folder named: EtherCAT based connected motion (PROD)
- Available for ADI internal users
