Features and Benefits
- Low offset voltage: 100 µV maximum at VS = 5 V
- Low input bias current: 1 pA maximum
- Single-supply operation: 5 V to 16 V
- Low noise: 10 nV/√Hz
- Wide bandwidth: 4 MHz
- Unity-gain stable
- Small package options
- 3 mm × 3 mm 8-lead LFCSP
- 8-lead MSOP and narrow SOIC
- 14-lead TSSOP and narrow SOIC
The AD8661 / AD8662 / AD8664 are rail-to-rail output, single-supply amplifiers that use the Analog Devices, Inc., patented DigiTrim® trimming technique to achieve low offset voltage. The AD8661 / AD8662 / AD8664 series features extended operating ranges, with supply voltages up to 16 V. It also features low input bias current, wide signal bandwidth, and low input voltage and current noise.
The combination of low offset, very low input bias current, and a wide supply range makes these amplifiers useful in a wide variety of applications usually associated with higher priced JFET amplifiers. Systems using high impedance sensors, such as photodiodes, benefit from the combination of low input bias current, low noise, low offset, and wide bandwidth. The wide operating voltage range meets the demands of high performance analog-to-digital converters (ADCs) and digital-to-analog converters (DACs). Audio applications and medical monitoring equipment can take advantage of the high input impedance, low voltage, low current noise, and wide bandwidth.

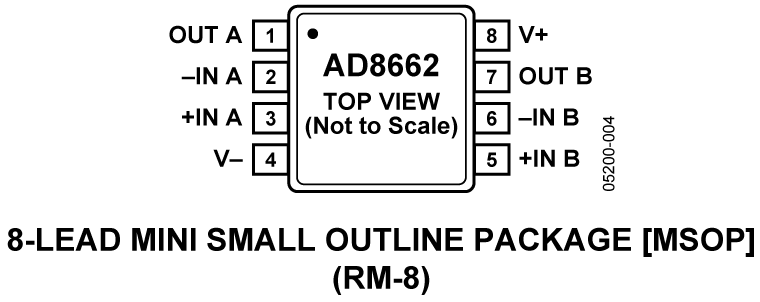

The single AD8661 is available in a narrow 8-lead SOIC package and a very thin, dual lead, 8-lead LFCSP. The AD8661 SOIC package is specified over the extended industrial temperature range of −40°C to +125°C. The AD8661 LFCSP is specified over the industrial temperature range of −40°C to +85°C. The AD8662 is available in a narrow 8-lead SOIC package and an 8-lead MSOP, both specified over the extended industrial temperature range of −40°C to +125°C. The AD8664 is available in a narrow 14-lead SOIC package and a 14-lead TSSOP, both with an extended industrial temperature range of −40°C to +125°C.
- Medical equipment
- Consumer audio
- Photodiode amplification
- ADC drivers
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The universal precision op amp evaluation boards have been designed and optimized for many circuit configurations allowing the users to best suit their applications. These boards are all RoHs compliant. See references below on what board to order by lead count and package.
- EVAL-PRAOPAMP-2CPZ (dual 8-lead LFCSP) CP-8
- EVAL-PRAOPAMP-2RMZ (dual 8-lead MSOP) RM-8
- EVAL-PRAOPAMP-2RZ (dual 8-lead SOIC) R-8
