ADUM1311

PRODUCTION

Triple-Channel Digital Isolators

Data Sheet (Rev. K) Product Selection Table

Part Models: 4
1ku List Price: Starting From $1.79

Viewing:

Part Details

Bidirectional communication
3 V/5 V level translation
Schmitt trigger inputs
High temperature operation: 105°C

Low Power Operation

5 V operation
1.7 mA per channel maximum @
0 Mbps to 2 Mbps
4.0 mA per channel maximum @
2 Mbps to 10 Mbps
3 V operation
1.0 mA per channel maximum @
0 Mbps to 2 Mbps
2.1 mA per channel maximum @
2 Mbps to 10 Mbps

Up to 10 Mbps data rate (NRZ)
Programmable default output state
High common-mode transient immunity: >25 kV/µs

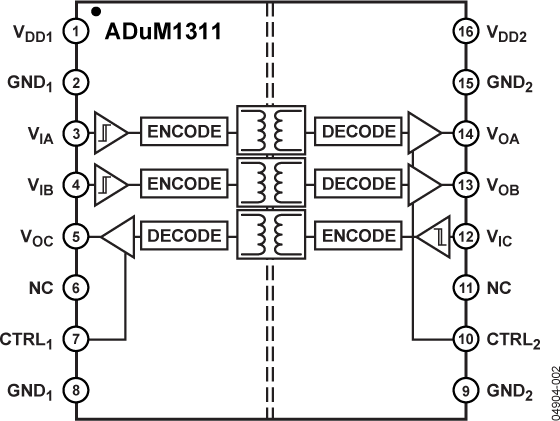

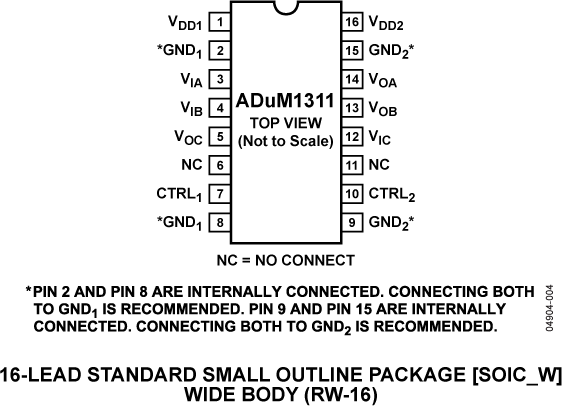

16-lead, RoHS-compliant, SOIC wide body package
8.1 mm external creepage

Safety and Regulatory Approvals

UL recognition: 2500 V rms for 1 minute per UL 1577
CSA Component Acceptance Notice #5A
VDE certificate of conformity
DIN V VDE V 0884-10
(VDE V 0884-10): 2006-12
V_IORM = 560 V peak working voltage

Part Models: 4
1ku List Price: Starting From $1.79

Documentation

Frequently Asked Question 1

FAQ 05/17/2017

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADUM1311ARWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM1311ARWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM1311BRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM1311BRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN
No Match Found
Sep 22, 2015 - 15_0135 Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli
		PCN15_0135_Form Material_Report Detailed Change Description Qualification Results Summary
ADUM1311ARWZ	PRODUCTION
ADUM1311ARWZ-RL	PRODUCTION
ADUM1311BRWZ	PRODUCTION
ADUM1311BRWZ-RL	PRODUCTION
May 15, 2014 - 14_0065 Datasheet Revision to iCoupler Digital Isolators UL 1577 Protection Level
		PCN14_0065_Form Material_Report Detailed Change Description
ADUM1311ARWZ	PRODUCTION
ADUM1311ARWZ-RL	PRODUCTION
ADUM1311BRWZ	PRODUCTION
ADUM1311BRWZ-RL	PRODUCTION
Feb 27, 2012 - 11_0066 Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.
		PCN11_0066_Form Material_Report Qualification Plan Summary Flow Chart
ADUM1311ARWZ	PRODUCTION
ADUM1311ARWZ-RL	PRODUCTION
ADUM1311BRWZ	PRODUCTION
ADUM1311BRWZ-RL	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
