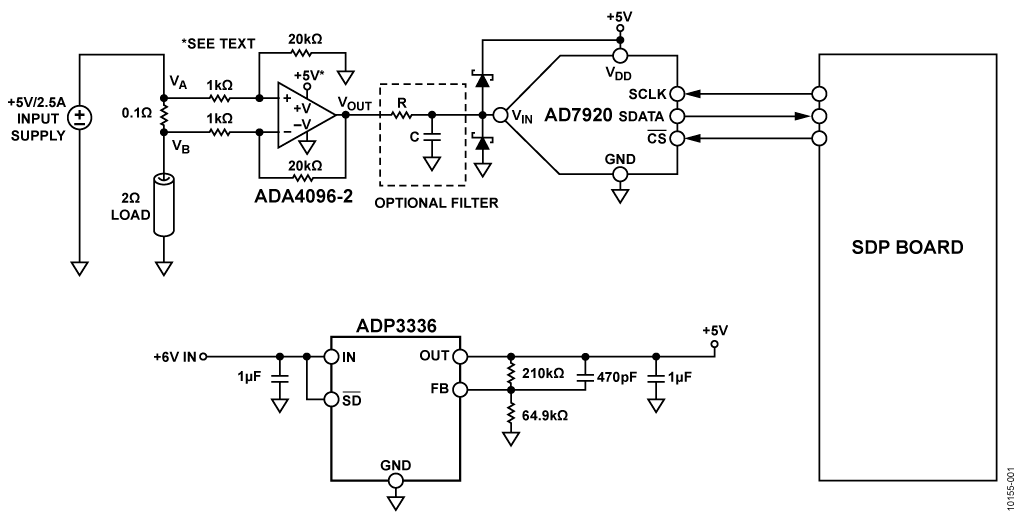

Circuit Note
CN | JP 1 View All

Overview

Features and Benefits

  • Input overvoltage protection, 32 V above and below the supply rails
  • No phase reversal for input voltage up to ±32 V beyond the power supply
  • Rail-to-rail input and output swing
  • Low power: 60 μA per amplifier typical
  • Unity-gain bandwidth
  • 800 kHz typical at VSY = ±15 V
  • 550 kHz typical at VSY = ±5 V
  • 465 kHz typical at VSY = ±1.5 V
  • Single-supply operation: 3 V to 30 V
  • Low offset voltage: 300 μV maximum
  • Large signal voltage gain: 120 dB typical
  • Unity gain stable
  • Qualified for automotive applications

Product Details

The ADA4096-2 dual and ADA4096-4 quad operational amplifiers feature micropower operation and rail-to-rail input and output ranges. The extremely low power requirements and guaranteed operation from 3 V to 30 V make these amplifiers perfectly suited to monitor battery usage and to control battery charging. Their dynamic performance, including 27 nV/√Hz voltage noise density, recommends them for battery-powered audio applications. Capacitive loads to 200 pF are handled without oscillation.

The ADA4096-2 and ADA4096-4 have overvoltage protection inputs and diodes that allow the voltage input to extend 32 V above and below the supply rails, making this device ideal for robust industrial applications. The ADA4096-2 and ADA4096-4 feature a unique input stage that allows the input voltage to exceed either supply safely without any phase reversal or latch-up; this is called overvoltage protection, or OVP.

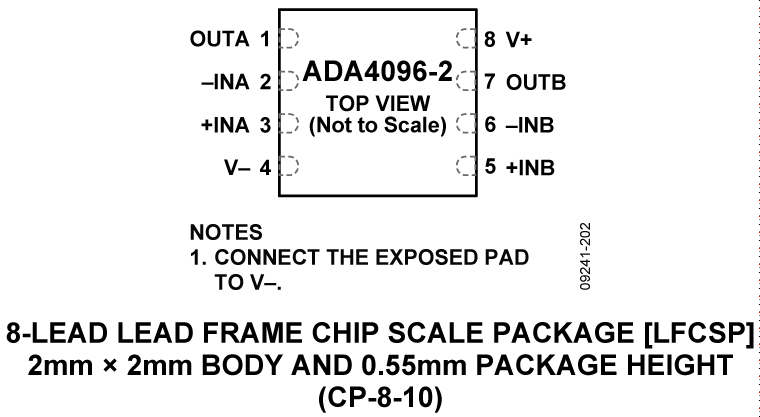

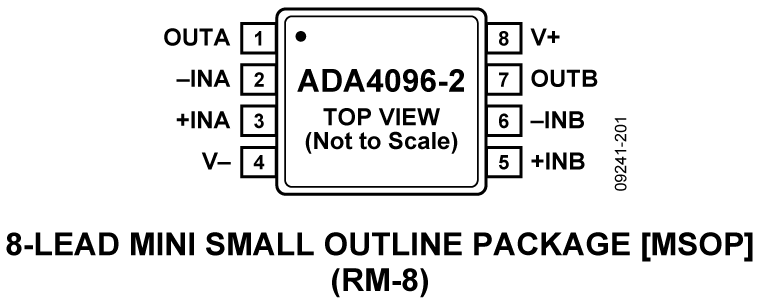

The dual ADA4096-2 is available in 8-lead LFCSP (2 mm × 2 mm) and 8-lead MSOP packages. The ADA4096-2 is available in 16-lead LFCSP (3 mm × 3 mm) and 14-lead TSSOP packages. The ADA4096-2W is qualified for automotive applications and is available in an 8-lead MSOP package.

The ADA4096-2 family is specified over the extended industrial temperature range of (−40°C to +125°C) and is part of the growing selection of 30 V, low power op amps from Analog Devices, Inc.

Applications

  • Battery monitoring
  • Sensor conditioners
  • Portable power supply controls
  • Portable instrumentation

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

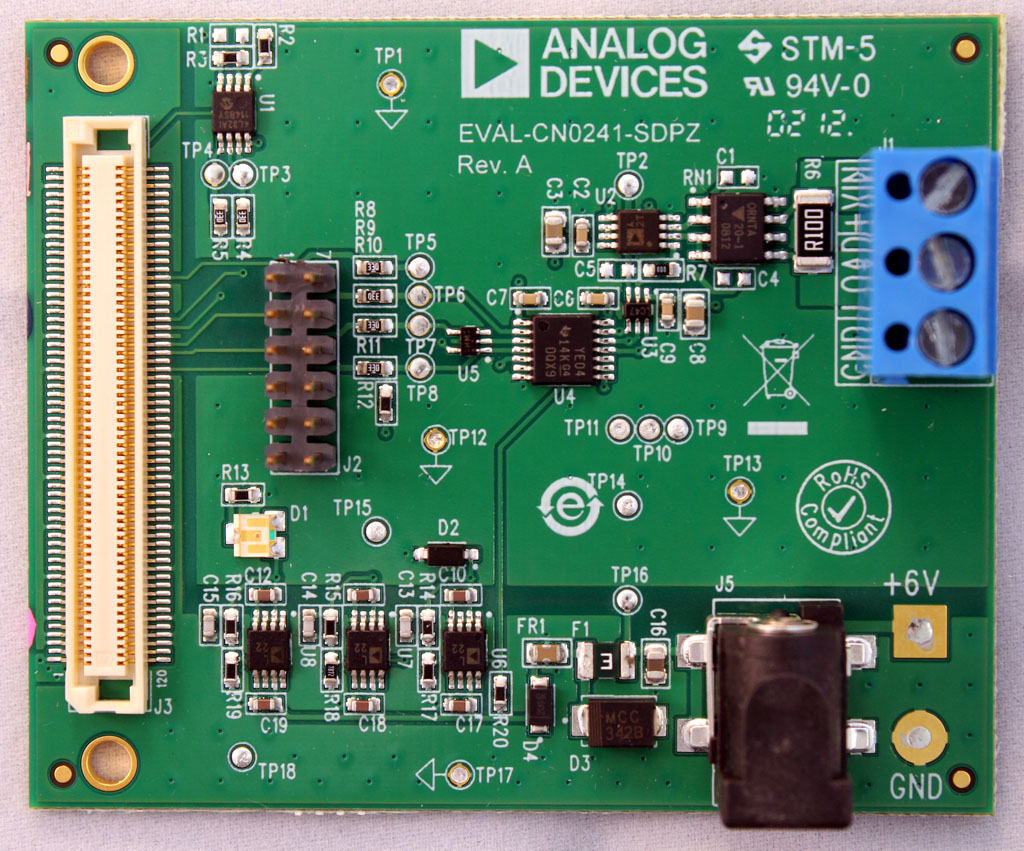

Evaluation Kits (1)

Documentation & Resources

  • View All (13)
  • Data Sheets (1)
  • Technical Books (1)
  • Tutorials (4)
  • Circuit Note (1)

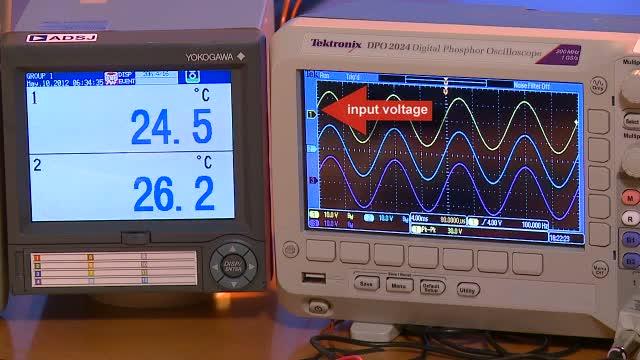

  • Videos (1)
  • Technical Articles (3)
  • Rarely Asked Questions (2)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    ADA4096

    SPICE Models

    Design Tools

    Analog Filter Wizard

    Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.

    Analog Photodiode Wizard

    Use Photodiode Wizard to design a transimpedance amplifier circuit to interface with a photodiode. Select a photodiode from the library included in the tool, or enter custom photodiode specifications. Quickly observe tradeoffs between Bandwidth, Peaking (Q), and ENOB/SNR. Modify circuit parameters, and immediately see results in plots for pulse response, frequency response, and noise gain.

    Reference Designs (2)

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    ADA4096-2ACPZ-R7 Material Declaration Reliability Data 8-Lead LFCSP (2mm x 2mm w/ EP)
    ADA4096-2ACPZ-RL Material Declaration Reliability Data 8-Lead LFCSP (2mm x 2mm w/ EP)
    ADA4096-2ARMZ Material Declaration Reliability Data 8-Lead MSOP
    ADA4096-2ARMZ-R7 Material Declaration Reliability Data 8-Lead MSOP
    ADA4096-2ARMZ-RL Material Declaration Reliability Data 8-Lead MSOP
    ADA4096-2WARMZ-R7 Material Declaration Reliability Data 8-Lead MSOP
    ADA4096-2WARMZ-RL Material Declaration Reliability Data 8-Lead MSOP
