ADUM3223

3 kV rms Isolated Precision Half-Bridge Driver, 4 A Output

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 12
1ku List Price Starting From $2.00
Features
  • 4 A peak output current
  • Working voltage
    • High-side or low-side relative to input: 537 V peak
    • High-side to low-side differential: 800 V peak
  • High frequency operation: 1 MHz maximum
  • 3.3 V to 5 V CMOS input logic
  • 4.5 V to 18 V output drive
  • UVLO at 2.5 V VDD1
    • ADuM3223A/ADuM4223A UVLO at 4.1 V VDD2
    • ADuM3223B/ADuM4223B UVLO at 7.0 V VDD2
    • ADuM3223C/ADuM4223C UVLO at 11.0 V VDD2
  • Precise timing characteristics
    • 54 ns maximum isolator and driver propagation delay
    • 5 ns maximum channel-to-channel matching
  • CMOS input logic levels
  • High common-mode transient immunity:>25 kV/μs
  • Enhanced system-level ESD performance per IEC 61000-4-x
  • High junction temperature operation: 125°C
  • Thermal shutdown protection
  • Default low output
  • Safety and regulatory approvals
    • ADuM3223 narrow-body, 16-lead SOIC
      • UL recognition per UL 1577
        • 3000 V rms for 1 minute SOIC long package
      • CSA Component Acceptance Notice 5A
      • VDE certificate of conformity
        • DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
        • VIORM = 560 V peak
  • Qualified for automotive applications


Additional Details
show more Icon

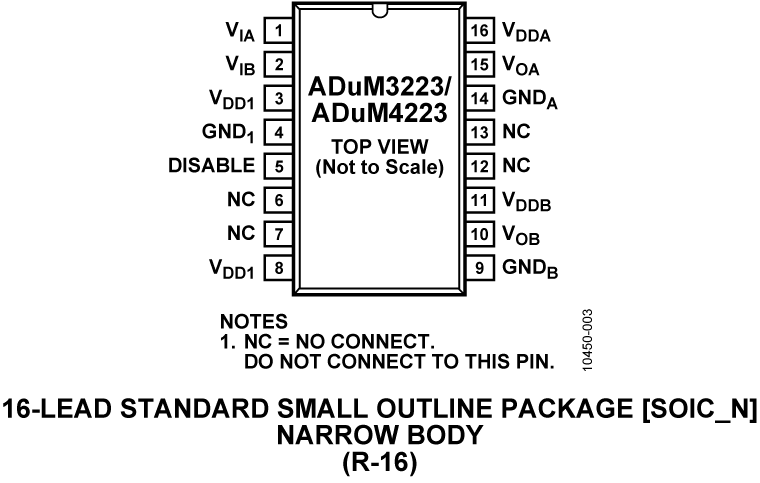

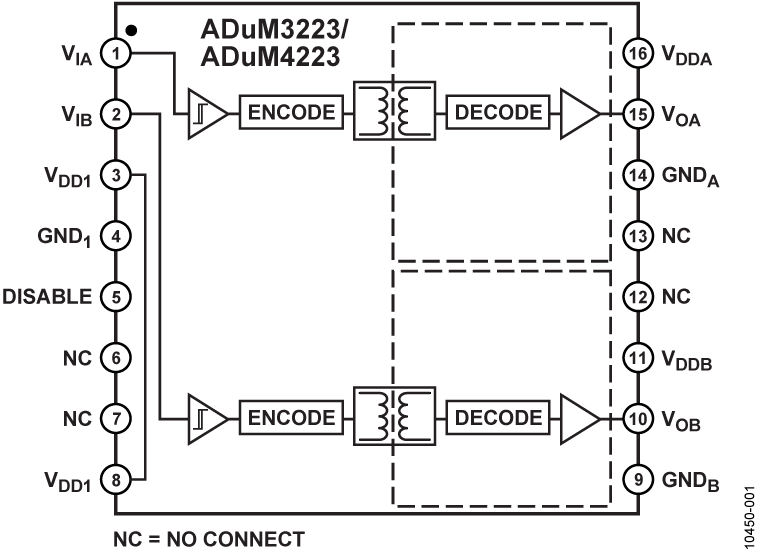

The ADuM3223/ADuM4223 are 4 A isolated, half-bridge gate drivers that employ the Analog Devices, Inc., iCoupler® technology to provide independent and isolated high-side and low-side outputs. The ADuM3223 provides 3000 V rms isolation in the narrow body, 16-lead SOIC package, and the ADuM4223 provides 5000 V rms isolation in the wide body, 16-lead SOIC package. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to the alternatives, such as the combination of pulse transformers and gate drivers.

The ADuM3223/ADuM4223 isolators each provide two independent isolated channels. They operate with an input supply ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems. In comparison to gate drivers employing high voltage level translation methodologies, the ADuM3223/ ADuM4223 offer the benefit of true, galvanic isolation between the input and each output. Each output may be continuously operated up to 537 V peak relative to the input, thereby supporting low-side switching to negative voltages. The differential voltage between the high-side and low-side may be as high as 800 V peak.

As a result, the ADuM3223/ADuM4223 provide reliable control over the switching characteristics of IGBT/MOSFET configurations over a wide range of positive or negative switching voltages.

Applications
  • Switching power supplies
  • Isolated IGBT/MOSFET gate drives
  • Industrial inverters
  • Automotive
Part Models 12
1ku List Price Starting From $2.00

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADUM3223ARZ
  • HTML
  • HTML
ADUM3223ARZ-RL7
  • HTML
  • HTML
ADUM3223BRZ
  • HTML
  • HTML
ADUM3223BRZ-RL7
  • HTML
  • HTML
ADUM3223CRZ
  • HTML
  • HTML
ADUM3223CRZ-RL7
  • HTML
  • HTML
ADUM3223WARZ
  • HTML
  • HTML
ADUM3223WARZ-RL7
  • HTML
  • HTML
ADUM3223WBRZ
  • HTML
  • HTML
ADUM3223WBRZ-RL7
  • HTML
  • HTML
ADUM3223WCRZ
  • HTML
  • HTML
ADUM3223WCRZ-RL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 11, 2017

- 17_0188

ADuM3223/ADuM3224 Die Revision + Test Platform Migration from Harris Tuvey to MPS Mess-& Prüfsysteme GmbH

ADUM3223ARZ

PRODUCTION

ADUM3223ARZ-RL7

PRODUCTION

ADUM3223BRZ

PRODUCTION

ADUM3223BRZ-RL7

PRODUCTION

ADUM3223CRZ

PRODUCTION

ADUM3223CRZ-RL7

PRODUCTION

ADUM3223WARZ

PRODUCTION

ADUM3223WARZ-RL7

PRODUCTION

ADUM3223WBRZ

PRODUCTION

ADUM3223WBRZ-RL7

PRODUCTION

ADUM3223WCRZ

PRODUCTION

ADUM3223WCRZ-RL7

PRODUCTION

Sep 22, 2015

- 15_0135

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM3223ARZ

PRODUCTION

ADUM3223ARZ-RL7

PRODUCTION

ADUM3223BRZ

PRODUCTION

ADUM3223BRZ-RL7

PRODUCTION

ADUM3223CRZ

PRODUCTION

ADUM3223CRZ-RL7

PRODUCTION

Dec 3, 2013

- 13_0310

ADUM3223 Die Revision

ADUM3223ARZ

PRODUCTION

ADUM3223ARZ-RL7

PRODUCTION

ADUM3223BRZ

PRODUCTION

ADUM3223BRZ-RL7

PRODUCTION

ADUM3223CRZ

PRODUCTION

ADUM3223CRZ-RL7

PRODUCTION

ADUM3223WARZ

PRODUCTION

ADUM3223WARZ-RL7

PRODUCTION

ADUM3223WBRZ

PRODUCTION

ADUM3223WBRZ-RL7

PRODUCTION

ADUM3223WCRZ

PRODUCTION

ADUM3223WCRZ-RL7

PRODUCTION

Dec 15, 2015

- 15_0135

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM3223WARZ

PRODUCTION

ADUM3223WARZ-RL7

PRODUCTION

ADUM3223WBRZ

PRODUCTION

ADUM3223WBRZ-RL7

PRODUCTION

ADUM3223WCRZ

PRODUCTION

ADUM3223WCRZ-RL7

PRODUCTION

Nov 6, 2013

- 13_0284

Change of Moisture Sensitivity Level Rating for Select iCoupler Products from MSL 1 to MSL 3

ADUM3223WARZ

PRODUCTION

ADUM3223WARZ-RL7

PRODUCTION

ADUM3223WBRZ

PRODUCTION

ADUM3223WBRZ-RL7

PRODUCTION

ADUM3223WCRZ

PRODUCTION

ADUM3223WCRZ-RL7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 11, 2017

- 17_0188

arrow down

ADuM3223/ADuM3224 Die Revision + Test Platform Migration from Harris Tuvey to MPS Mess-& Prüfsysteme GmbH

ADUM3223ARZ

PRODUCTION

ADUM3223ARZ-RL7

PRODUCTION

ADUM3223BRZ

PRODUCTION

ADUM3223BRZ-RL7

PRODUCTION

ADUM3223CRZ

PRODUCTION

ADUM3223CRZ-RL7

PRODUCTION

ADUM3223WARZ

PRODUCTION

ADUM3223WARZ-RL7

PRODUCTION

ADUM3223WBRZ

PRODUCTION

ADUM3223WBRZ-RL7

PRODUCTION

ADUM3223WCRZ

PRODUCTION

ADUM3223WCRZ-RL7

PRODUCTION

Sep 22, 2015

- 15_0135

arrow down

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM3223ARZ

PRODUCTION

ADUM3223ARZ-RL7

PRODUCTION

ADUM3223BRZ

PRODUCTION

ADUM3223BRZ-RL7

PRODUCTION

ADUM3223CRZ

PRODUCTION

ADUM3223CRZ-RL7

PRODUCTION

Dec 3, 2013

- 13_0310

arrow down

ADUM3223 Die Revision

ADUM3223ARZ

PRODUCTION

ADUM3223ARZ-RL7

PRODUCTION

ADUM3223BRZ

PRODUCTION

ADUM3223BRZ-RL7

PRODUCTION

ADUM3223CRZ

PRODUCTION

ADUM3223CRZ-RL7

PRODUCTION

ADUM3223WARZ

PRODUCTION

ADUM3223WARZ-RL7

PRODUCTION

ADUM3223WBRZ

PRODUCTION

ADUM3223WBRZ-RL7

PRODUCTION

ADUM3223WCRZ

PRODUCTION

ADUM3223WCRZ-RL7

PRODUCTION

Dec 15, 2015

- 15_0135

arrow down

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM3223WARZ

PRODUCTION

ADUM3223WARZ-RL7

PRODUCTION

ADUM3223WBRZ

PRODUCTION

ADUM3223WBRZ-RL7

PRODUCTION

ADUM3223WCRZ

PRODUCTION

ADUM3223WCRZ-RL7

PRODUCTION

Nov 6, 2013

- 13_0284

arrow down

Change of Moisture Sensitivity Level Rating for Select iCoupler Products from MSL 1 to MSL 3

ADUM3223WARZ

PRODUCTION

ADUM3223WARZ-RL7

PRODUCTION

ADUM3223WBRZ

PRODUCTION

ADUM3223WBRZ-RL7

PRODUCTION

ADUM3223WCRZ

PRODUCTION

ADUM3223WCRZ-RL7

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

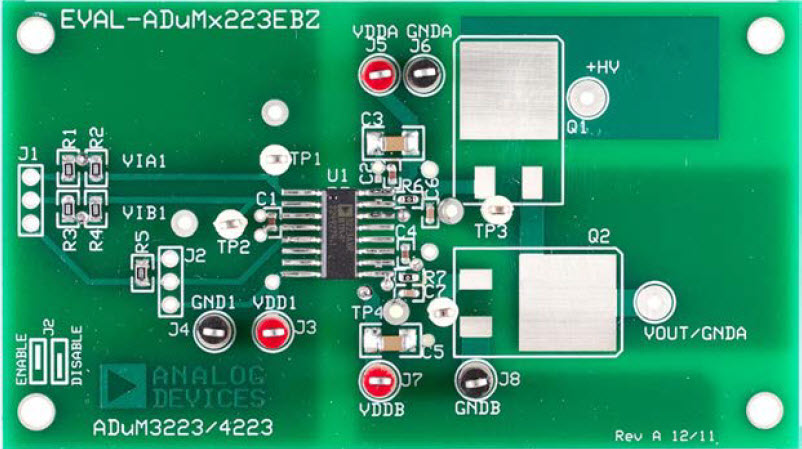

EVAL-ADuM3223-ADuM4223

Evaluation Board for ADuM3223 and ADuM4223

zoom

EVAL-ADuM3223-ADuM4223

Evaluation Board for ADuM3223 and ADuM4223

Evaluation Board for ADuM3223 and ADuM4223

Features and Benefits

  • 4 A peak output current
  • High frequency operation: 1 MHz maximum
  • CMOS input logic levels
  • 4.5 V to 18 V output drive
  • Supports TO-263 or TO-252 IGBT/MOSFETs
  • Bootstrap option

Product Detail

The EVAL-ADuM3223AEBZ and EVAL-ADuM4223AEBZ support the ADuM3223 and ADuM4223 isolated precision half-bridge drivers, respectively. Because the evaluation boards have footprints for IGBTs and MOSFETs in TO-263 or TO-252 packages, the ADuM3223 and ADuM4223 can be evaluated with many different power devices. The evaluation boards also allow the high-side supply to be bootstrapped to the low-side supply.


The ADuM3223A model represents a superset of the ADuM3223 models because it has the lowest minimum output voltage (4.5 V). The ADuM3223B and ADuM3223C models have minimum out-put voltages of 7.5 V and 11.5 V, respectively. In the same way, the ADuM4223A model represents a superset of the ADuM4223 models.


Complete information about the ADuM3223 and ADuM4223 is available in the ADuM3223/ADuM4223 data sheet, which should be consulted in conjunction with UG-368 when using the evaluation board.
