ADuM4136

PRODUCTION

Single-/Dual-Supply, High Voltage Isolated IGBT Gate Driver

Data Sheet (Rev. 0) Product Selection Table

Part Models: 4
1ku List Price: Starting From $2.64

Viewing:

Overview

4 A peak drive output capability
Output power device resistance < 1Ω
Desaturation protection
Isolated Fault output
Soft Shutdown on Fault
Isolated Fault and Ready functions
Low propagation delay 55 ns typical
Minimum pulse width: 50 ns
Operating temperature range: −40°C to +125°C
Output voltage range to 35 V
See data sheet for additional features

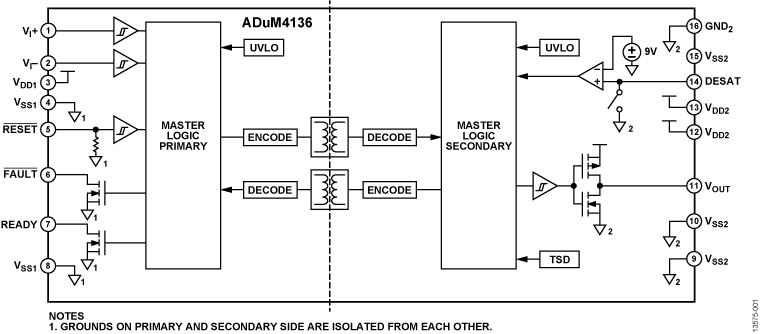

The ADuM4136 is a single-channel gate driver specifically optimized for driving insulated gate bipolar transistors (IGBTs). Analog Devices, Inc., iCoupler^® technology provides isolation between the input signal and the output gate drive.

Operation with unipolar or bipolar secondary supplies is possible, allowing negative gate drive if needed.

The Analog Devices chip scale transformers also provide isolated communication of control information between the high voltage and low voltage domains of the chip. Information on the status of the chip can be read back from dedicated outputs. Control of resetting the device after a fault on the secondary side is performed on the primary side of the device.

Integrated onto the ADuM4136 is a desaturation detection circuit that provides protection against high voltage short-circuit IGBT operation. The desaturation protection contains noise reducing features such as a 312 ns (typical) masking time after a switching event to mask voltage spikes due to initial turn-on. An internal 537 μA (typical) current source allows low device count, and the internal blanking switch allows the addition of an external current source if more noise immunity is needed.

The secondary UVLO is set to 12 V with common IGBT threshold levels taken into consideration.

Applications

MOSFET/IGBT gate drivers
Photovoltaic (PV) inverters
Motor drives
Power supplies

Part Models: 4
1ku List Price: Starting From $2.64

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

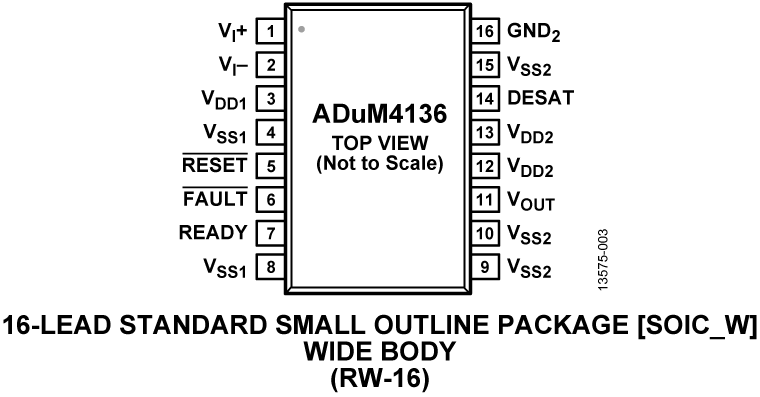

ADUM4136BRIZ	16-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM4136BRIZ-RL	16-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM4136BRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM4136BRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

ADUM4136

IBIS Model 1

ADuM4136 IBIS Model

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

ADuM4136 Evaluation Board

Buy Now View Details

Features and Benefits

4 A peak drive output capability
Output power device resistance: <1 Ω
Desaturation protection
- Isolated fault output
- Soft shutdown on fault
Isolated fault and ready functions
Low propagation delay 55 ns typical
Operating temperature range: −40°C to +125°C
Output voltage range to 35 V
Output and input undervoltage lockout (UVLO)
Pad placement for multiple switch types
Screw terminals for easy connectivity
Jumpered enable/disable

Product Details

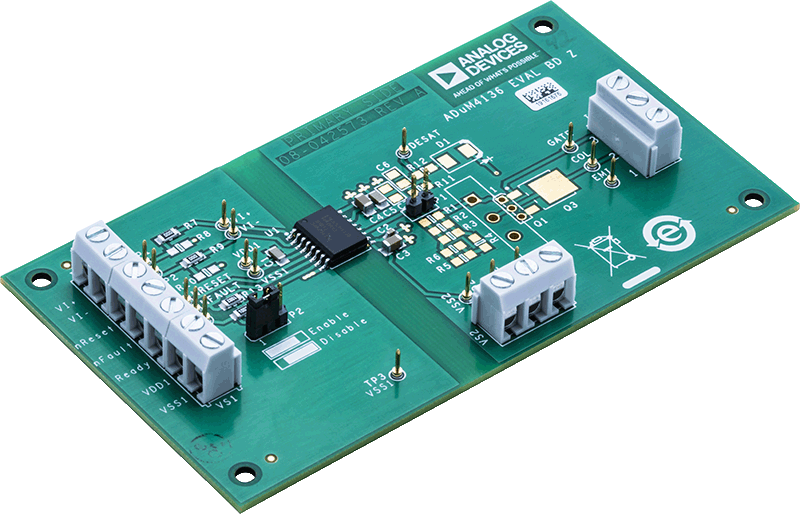

The EVAL-ADuM4136EBZ evaluation board supports the ADuM4136 single-channel gate driver, which is specifically optimized for driving insulated gate bipolar transistors (IGBTs). Analog Devices, Inc., iCoupler^® technology provides isolation between the input signal and the output gate driver.

The ADuM4136 provides operation with voltages of up to 35 V. With a dual-rail supply, the negative rail can go as low as −15 V, providing robust turn off of the IGBT.

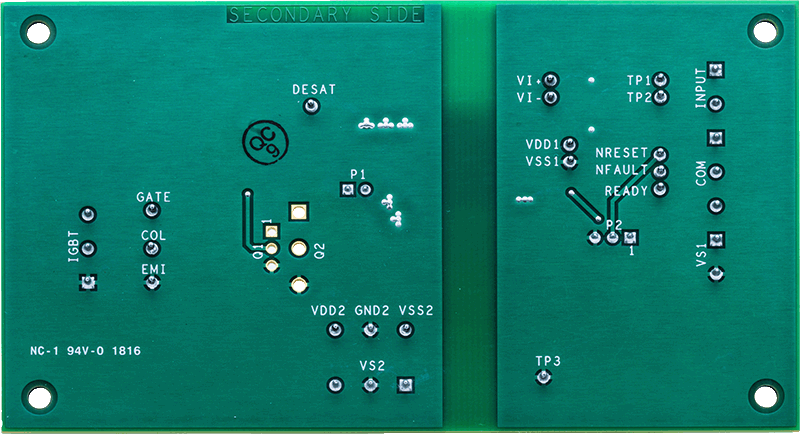

The EVAL-ADuM4136EBZ evaluation board facilitates testing of the desaturation circuitry with pads available for standard desaturation detection. The evaluation board has layout locations for three different types of discrete switches, allowing for a wide range of device testing. Screw terminals provide easy access to supplying the secondary side with either a single or dual supply.

For complete information about the ADuM4136, refer to the product data sheet that should be consulted in conjunction with user guide UG-1019 when using the evaluation board.

Resources

UG-1019: Evaluation Board for the ADuM4136 iCoupler, Dual-Supply, High Voltage, Isolated IGBT Gate Driver (Rev.0)
7/15/2016
