AD8212

High Voltage Current Shunt Monitor

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 6
1ku List Price Starting From $1.69
Features
  • Adjustable gain
  • High common-mode voltage range
    • 7 V to 65 V typical
    • 7 V to >500 V with external pass transistor
  • Current output
  • Integrated 5 V series regulator

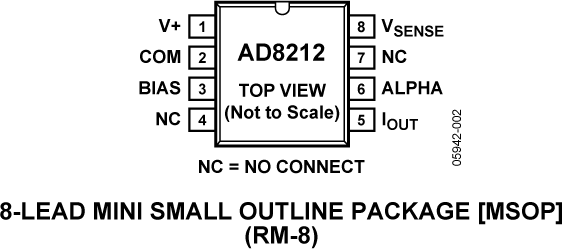

  • 8-lead MSOP package
  • Operating temperature range of −40°C to +125°C
Additional Details
show more Icon

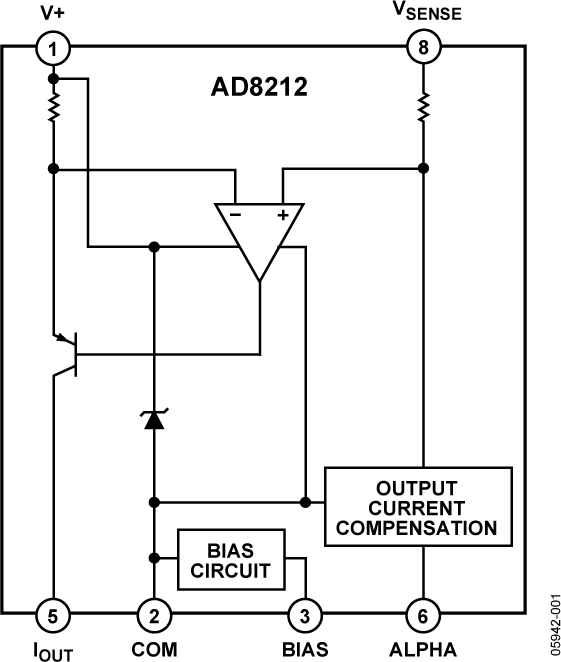

The AD8212 is a high common-mode voltage, current shunt monitor. It accurately amplifies a small differential input voltage in the presence of large common-mode voltages up to 65 V (>500 V with an external PNP transistor).

The AD8212 is ideal for current monitoring across a shunt resistor in applications controlling loads, such as motors and solenoids. The current output of the device is proportional to the input differential voltage. The user can select an external resistor to set the desired gain. The typical common-mode voltage range of the AD8212 is 7 V to 65 V.

Another feature of the AD8212 is high voltage operation, which is achieved by using an external high voltage breakdown PNP transistor. In this configuration, the common-mode range of the AD8212 is equal to the breakdown of the external PNP transistor. Therefore, operation at several hundred volts is easily achieved.

The AD8212 features a patented output base current compensation circuit for high voltage operation mode. This ensures that no base current is lost through the external transistor and excellent output accuracy is maintained regardless of common-mode voltage or temperature.

Applications

  • Current shunt measurement
  • Motor controls
  • DC-to-DC converters
  • Power supplies
  • Battery monitoring
  • Remote sensing
Part Models 6
1ku List Price Starting From $1.69

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD8212WYRMZ
  • HTML
  • HTML
AD8212WYRMZ-R7
  • HTML
  • HTML
AD8212WYRMZ-RL
  • HTML
  • HTML
AD8212YRMZ
  • HTML
  • HTML
AD8212YRMZ-R7
  • HTML
  • HTML
AD8212YRMZ-RL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 26, 2015

- 15_0176

Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines

AD8212WYRMZ

PRODUCTION

AD8212WYRMZ-R7

PRODUCTION

AD8212WYRMZ-RL

PRODUCTION

AD8212YRMZ

PRODUCTION

AD8212YRMZ-R7

PRODUCTION

AD8212YRMZ-RL

PRODUCTION

May 23, 2014

- 14_0014

ADI Corporate Obsolescence Notice-January 2014 (Standard Products)

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 26, 2015

- 15_0176

arrow down

Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines

AD8212WYRMZ

PRODUCTION

AD8212WYRMZ-R7

PRODUCTION

AD8212WYRMZ-RL

PRODUCTION

AD8212YRMZ

PRODUCTION

AD8212YRMZ-R7

PRODUCTION

AD8212YRMZ-RL

PRODUCTION

May 23, 2014

- 14_0014

arrow down

ADI Corporate Obsolescence Notice-January 2014 (Standard Products)

Software & Part Ecosystem

Software & Part Ecosystem

Reference Designs

Reference Designs 1

High Common-Mode Voltage Current Monitor

500 V Common-Mode Voltage Current Monitor

zoomopens a dialog

CN0218

500 V Common-Mode Voltage Current Monitor

CN0218

Circuits from the lab

tooltip Info:Circuits from the lab
500 V Common-Mode Voltage Current Monitor

Features and Benefits

  • 0 to 500 V common mode voltage
  • Single supply voltage
  • Galvanic isolation protects processor
  • Creates isolated supply for digital control
  • Unidirectional current monitor system
View Detailed Reference Design external link
