ADR381

2.048 V and 2.5 V Bandgap Voltage References

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.C)
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $0.92
Features
  • Initial accuracy: ±5 mV/±6 mV maximum
  • Initial accuracy error: ±0.24%/±0.24%
  • Low TCVOUT: 25 ppm/°C maximum
  • Load regulation: 70 ppm/mA
  • Line regulation: 25 ppm/V
  • Wide operating ranges
    2.4 V to 18 V for ADR380
    2.8 V to 18 V for ADR381
  • Low power: 120 μA maximum
  • High output current: 5 mA
  • Wide temperature range: −40°C to +85°C
  • Tiny 3-lead SOT-23 package with standard pinout
Additional Details
show more Icon
The ADR380 and ADR381 are precision 2.048 V and 2.500 V band gap voltage references featuring high accuracy, high stability, and low power consumption in a tiny footprint. Patented temperature drift curvature correction techniques minimize nonlinearity of the voltage change with temperature. The wide operating range and low power consumption make them ideal for 3 V to 5 V battery-powered applications.

The ADR380 and ADR381 are micropower, low dropout voltage (LDV) devices that provide a stable output voltage from supplies as low as 300 mV above the output voltage. They are specified over the industrial (−40°C to +85°C) temperature range. The ADR380/ADR381 are available in the tiny 3-lead SOT-23 package.

Show More Arrow image
file View Data Sheet (Rev.C)
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $0.92
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADR381

Documentation

3
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Frequently Asked Question
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

pdf

UPDATED 10/14/2010
English

ADR380/ADR381: Precision Low Drift 2.048 V/2.500 V SOT-23 Voltage Reference Data Sheet (Rev.C)

Open PDF File

redirect
316 kB
download

Download PDF

PDF Vector

pdf

UPDATED 09/03/2009
Japanese

ADR380/ADR381: SOT-23を採用した高精度低ドリフト、2.048/2.500V、リファレンス電圧 (Rev.B)

Open PDF File

redirect
629 kB
download

Download PDF

Frequently Asked Question

1

PDF Vector

HTML

UPDATED 03/14/2015
English
FAQ redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADR381ARTZ-R2 3-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADR381ARTZ-REEL7 3-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Positive Linear Regulators (LDO)1
LT3040
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

20V, 200mA, Ultralow Noise, Ultrahigh PSRR Precision DAC/Reference Buffer

Reference Designs

Reference Designs 2

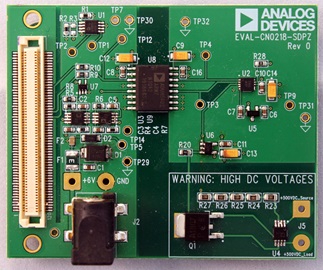

High Common-Mode Voltage Current Monitor

CN0218

500 V Common-Mode Voltage Current Monitor

zoomopens a dialog

CN0218

500 V Common-Mode Voltage Current Monitor

download icon

Download

 print icon

Print
CN0218

Circuits from the lab

tooltip Info:Circuits from the lab
500 V Common-Mode Voltage Current Monitor

Features and Benefits

  • 0 to 500 V common mode voltage
  • Single supply voltage
  • Galvanic isolation protects processor
  • Creates isolated supply for digital control
  • Unidirectional current monitor system
View Detailed Reference Design external link

Part Used 5

ADR381 reference design link

AD8605 reference design link

ADUM5402 reference design link

AD7171 reference design link

AD8212 reference design link

Design & Integration Tools

pdf icon

zip

CN0218 Design & Integration Files link icon

1033 kB

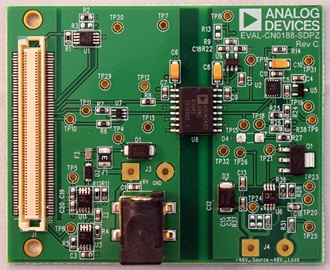

Low Side Current Monitor for Negative High Voltage Rails

CN0188

Low Cost, Level Shifted Low Side Current Monitor for Negative High Voltage Rails

zoomopens a dialog

CN0188

Low Cost, Level Shifted Low Side Current Monitor for Negative High Voltage Rails

download icon

Download

 print icon

Print
CN0188

Circuits from the lab

tooltip Info:Circuits from the lab
Low Cost, Level Shifted Low Side Current Monitor for Negative High Voltage Rails

Features and Benefits

  • 0 to -48 V common mode voltage
  • System accuracy better than 1%
  • Single system supply voltage
  • Galvanic isolation protects processor
  • Unidirectional current monitor system
View Detailed Reference Design external link

Part Used 4

ADR381 reference design link

ADUM5402 reference design link

ADA4051-2 reference design link

AD7171 reference design link

Design & Integration Tools

pdf icon

zip

CN0188 Design & Integration Files link icon

1055 kB

Reference Designs2

High Common-Mode Voltage Current Monitor

CN0218

500 V Common-Mode Voltage Current Monitor

Low Side Current Monitor for Negative High Voltage Rails

CN0188

Low Cost, Level Shifted Low Side Current Monitor for Negative High Voltage Rails
