AD8418

Bidirectional, Zero-Drift, Current Sense Amplifier

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.0)
Documentation View All Documentation
SPICE Model AD8418 SPICE Macro Model Download 2.65 KB
Part Models 6
1ku List Price Starting From $1.05
Features
  • Typical 0.1 μV/°C offset drift
  • Maximum ±400 μV voltage offset over full temperature range
  • 2.7 V to 5.5 V power supply operating range
  • Electromagnetic interference (EMI) filters Included
  • High common-mode input voltage range
    −2 V to +70 V operating
    −4 V to +85 V survival
  • Initial gain = 20 V/V
  • Wide operating temperature range:
    −40°C to +125°C
  • Bidirectional operation

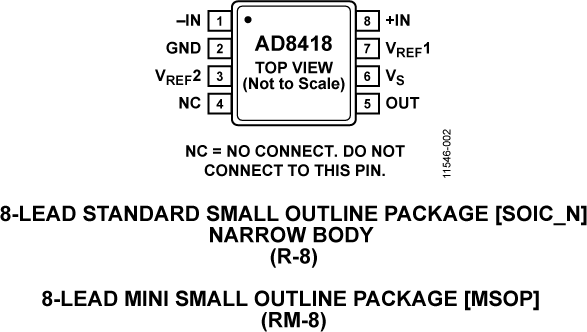

  • Available in 8-lead SOIC and 8-lead MSOP
  • Common-mode rejection ratio (CMRR): 86 dB, dc to 10 kHz
  • Qualified for automotive applications
Additional Details
show more Icon

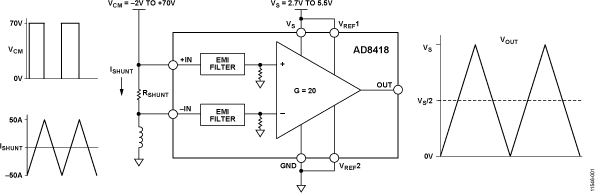

The AD8418 is a high voltage, high resolution current shunt amplifier. It features an initial gain of 20 V/V, with a maximum ±0.15% gain error over the entire temperature range. The buffered output voltage directly interfaces with any typical converter. The AD8418 offers excellent input common-mode rejection from −2 V to +70 V. The AD8418 performs bidirectional current measurements across a shunt resistor in a variety of automotive and industrial applications, including motor control, battery management, and solenoid control.

The AD8418 offers breakthrough performance throughout the −40°C to +125°C temperature range. It features a zero drift core, which leads to a typical offset drift of 0.1 μV/°C throughout the operating temperature range and the common-mode voltage range. The AD8418 is fully qualified for automotive applications and includes EMI filters and patented circuitry to enable output accuracy with pulse-width modulation (PWM) type input common-mode voltages. The typical input offset voltage is ±200 μV. The AD8418 is offered in 8-lead MSOP and SOIC packages.

Applications

  • High-side current sensing in
    Motor controls
    Solenoid controls
    Power management
  • Low-side current sensing
  • Diagnostic protection
