ADM2587E

2.5 kV Signal and Power Isolated, ±15 kV ESD Protected, Full/Half Duplex RS-485 Transceiver (500kbps)

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 2
1ku List Price Starting From $6.18
Features
  • Isolated RS-485/RS-422 transceiver, configurable as half or full duplex
  • isoPower integrated isolated dc-to-dc converter
  • ±15 kV ESD protection on RS-485 input/output pins
  • ADM2582E data rate: 16 Mbps
  • ADM2587E data rate: 500 kbps
  • 5 V or 3.3 V operation
  • See datasheet for additional features

Additional Details
show more Icon

The ADM2582E / ADM2587E are fully integrated signal and power isolated data transceivers with ±15 kV ESD protection and are suitable for high speed communication on multipoint transmission lines. The ADM2582E / ADM2587E include an integrated isolated dc-to-dc power supply, which eliminates the need for an external dc-to-dc isolation block.

They are designed for balanced transmission lines and comply with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E).

The devices integrate Analog Devices, Inc., iCoupler® technology to combine a 3-channel isolator, a three-state differential line driver, a differential input receiver, and Analog Devices isoPower dc-to-dc converter into a single package. The devices are powered by a single 5 V or 3.3 V supply, realizing a fully integrated signal and power isolated RS-485 solution.

The ADM2582E / ADM2587E driver has an active high enable. An active low receiver enable is also provided that causes the receiver output to enter a high impedance state when disabled.

The devices have current limiting and thermal shutdown features to protect against output short circuits and situations where bus contention may cause excessive power dissipation. The parts are fully specified over the industrial temperature range and are available in a highly integrated, 20-lead, wide-body SOIC package.

The ADM2582E / ADM2587E contain isoPower technology that uses high frequency switching elements to transfer power through the transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to Application Note AN-0971, Control of Radiated Emissions with isoPower Devices, for details on board layout considerations.

APPLICATIONS

  • Isolated RS-485/RS-422 interfaces
  • Industrial field networks
  • Multipoint data transmission systems
  • Part Models 2
    1ku List Price Starting From $6.18

    close icon
    Documentation

    Documentation

    Video

    Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
    ADM2587EBRWZ
    • HTML
    • HTML
    ADM2587EBRWZ-REEL7
    • HTML
    • HTML

    Filter by Model

    reset

    Reset Filters

    Part Models

    Product Lifecycle

    PCN

    Mar 13, 2024

    - 23_0069

    Qualification Notification of Alternate Wafer Fab Site at ADI Limerick for Select Isolator Products

    Jan 4, 2021

    - 20_0320

    Alternate Assembly Site of Select Isolator Products in SO Packages

    Sep 22, 2015

    - 15_0135

    Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

    Aug 15, 2013

    - 12_0157

    ADM2481, ADM2582E, ADM2587E, ADM2682E, ADM2687E, ADM3052, ADM3053, ADM3054 Minor Poly Mask Change

    ADM2587EBRWZ

    PRODUCTION

    ADM2587EBRWZ-REEL7

    PRODUCTION

    Feb 27, 2012

    - 11_0066

    Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.

    Aug 4, 2010

    - 10_0117

    Halogen Free Material Change for SOIC_W Products at Carsem

    ADM2587EBRWZ

    PRODUCTION

    ADM2587EBRWZ-REEL7

    PRODUCTION

    Filter by Model

    reset

    Reset Filters

    Part Models

    Product Lifecycle

    PCN

    Mar 13, 2024

    - 23_0069

    arrow down

    Qualification Notification of Alternate Wafer Fab Site at ADI Limerick for Select Isolator Products

    Jan 4, 2021

    - 20_0320

    arrow down
    Sep 22, 2015

    - 15_0135

    arrow down

    Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

    Aug 15, 2013

    - 12_0157

    arrow down

    ADM2481, ADM2582E, ADM2587E, ADM2682E, ADM2687E, ADM3052, ADM3053, ADM3054 Minor Poly Mask Change

    ADM2587EBRWZ

    PRODUCTION

    ADM2587EBRWZ-REEL7

    PRODUCTION

    Feb 27, 2012

    - 11_0066

    arrow down

    Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.

    Aug 4, 2010

    - 10_0117

    arrow down

    Halogen Free Material Change for SOIC_W Products at Carsem

    ADM2587EBRWZ

    PRODUCTION

    ADM2587EBRWZ-REEL7

    PRODUCTION

    Software & Part Ecosystem

    Software & Part Ecosystem

    Evaluation Kit

    Evaluation Kits 2

    reference details image

    EVAL-ADM2587E

    ADM2587E Evaluation Board: Raspberry Pi & Arduino Shields, 2-Layer Class A & 4-Layer Class B, & ISO RS-485 Repeater

    zoom

    EVAL-ADM2587E

    ADM2587E Evaluation Board: Raspberry Pi & Arduino Shields, 2-Layer Class A & 4-Layer Class B, & ISO RS-485 Repeater

    ADM2587E Evaluation Board: Raspberry Pi & Arduino Shields, 2-Layer Class A & 4-Layer Class B, & ISO RS-485 Repeater

    Features and Benefits

    • 2.5 kV rms power and signal isolated RS-485/RS-422 transceiver
    • PCB layout optimized for EN55022 radiated emissions according to the AN-1349 Application Note
    • ADM2587E passes EN55022 Class A (certification available)
    • 2-layer printed circuit board (PCB) layout that minimizes PCB material cost
    • Convenient connections for power and signal through screw terminal blocks
    • Configurable as half-duplex or full-duplex
    • 5 V or 3.3 V operation
    • Easily configurable through jumper connections
    • Test points for measuring all signals

    Product Detail

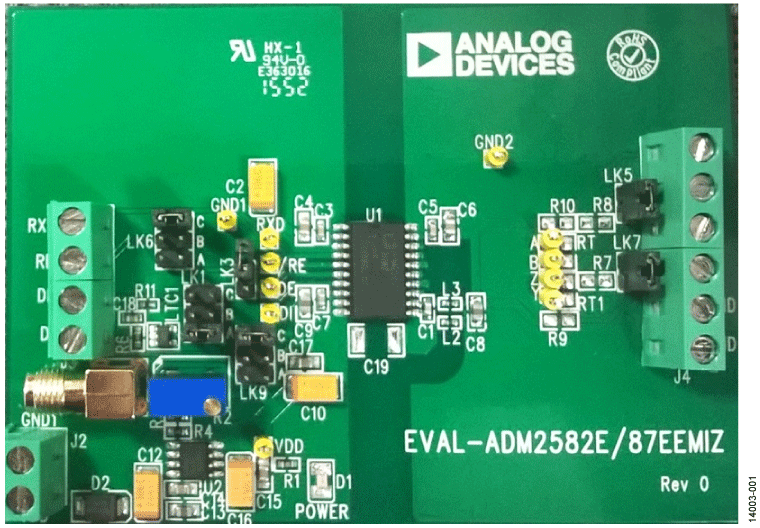

    The ADM2587E power and signal isolated RS-485 transceivers have two options for easy evaluation: the EVAL-ADM2587EEBZ 4-Layer EN55022 Class B Radiated Emissions Compliant Evaluation Board or the EVAL-ADM2587EEMIZ 2-Layer EN55022 Class A Radiated Emissions Compliant Evaluation Board. Both evaluation boards options are populated with an ADM2582E 20-lead wide-body SOIC component.

    The EVAL-ADM2587EEBZ evaluation board is designed to reduce emissions generated by the high frequency switching elements used by the isoPower® technology to transfer power through its transformer. The 4 layer board layout was generated using the guidelines provided in the AN-0971 Application Note, Recommendations for Control of Radiated Emissions with isoPower Devices. The EVAL-ADM2587EEBZ evaluation board was tested at an independent test facility. The evaluation board passed the IEC 61000-4-5 surge testing up to 2 kV.

    The EVAL-ADM2587EEMIZ is designed to reduce emissions generated by the high frequency switching elements used by the isoPower® technology to transfer power through the ADM2582E/ADM2587E integrated transformer. The 2 layer board layout is generated using the guidelines provided in the AN-1349 Application Note, PCB Implementation Guidelines to Minimize Radiated Emissions on the ADM2582E/ADM2587E RS-485/RS-422 Transceivers. The EVAL-ADM2582EEMIZ evaluation boards are tested and certified to pass EN55022 Class A.

    EVAL-EZLINX

    ezLINX™ iCoupler® Isolated Interface Development Environment

    zoom

    EVAL-EZLINX

    ezLINX™ iCoupler® Isolated Interface Development Environment

    ezLINX™ iCoupler® Isolated Interface Development Environment

    Features and Benefits

    • Plug and play system evaluation
    • Easy evaluation of 8 isolated Physical layer communication standards
    • Open source hardware
    • Open source software
    • iCoupler® and isoPower® technology
    • ADSP-BF548 Blackfin Processor running uCLinux
    • Sample PC application
    • Sample embedded uCLinux application

    Product Detail

    The ezLINX iCoupler® Isolated Interface Development Environment provides developers with a cost-effective, plug and play method for evaluation eight physical layer, digitally-isolated communication standards (USB, RS-422, RS-485, RS-232, CAN, SPI, I2C, and LVDS). The Blackfin® ADSP-BF548 processor is used to run the uCLinux operating system and allows for easy customization through the open source hardware and software platform. Development time is significantly reduced for embedded designers and system architects who are designing and evaluating isolated communication standards. The interfaces on ezLINX use ADI's isolated transceivers with integrated iCoupler® and isoPower® digital isolator technology.

    Tools & Simulations

    Tools & Simulations 1

    Reference Designs

    Reference Designs 1

    Isolated USB to FTDI Isolated RS-232/Isolated RS-485 Circuit

    Isolated USB to Isolated RS-485/Isolated RS-232 Interface
