ADUM3160

PRODUCTION

Full/Low Speed USB Digital Isolator

Data Sheet (Rev. D) Product Selection Table

Part Models: 4
1ku List Price: Starting From $4.02

Viewing:

Overview

USB 2.0 compatible
Low and full speed data rate: 1.5 Mbps and 12 Mbps
Bidirectional communication
4.5 V to 5.5 V V_BUS operation
- 7 mA maximum upstream supply current at 1.5 Mbps
- 8 mA maximum upstream supply current at 12 Mbps
- 2.3 mA maximum upstream idle current
Upstream short-circuit protection
Class 3A contact ESD performance per ANSI/ESD STM5.1-2007
High temperature operation: 105°C
High common-mode transient immunity: >25 kV/μs

16-lead SOIC wide body package
RoHS compliant
AEC-Q100 qualified for automotive applications
Safety and regulatory approvals
- UL 1577
  - V_ISO = 2500 VRMS for 1 minute
- IEC/EN/CSA 62368-1
- IEC/CSA 61010-1
- CQC GB4943.1
- DIN EN IEC 60747-17 (VDE 0884-17)
  - V_IORM = 645 V_PEAK

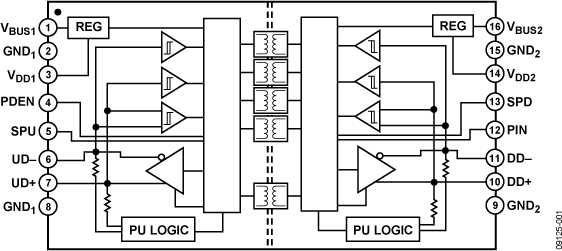

The ADuM3160 is a USB port isolator, based on Analog Devices, Inc., iCoupler^® technology. Combining high speed CMOS and monolithic air core transformer technology, this isolation component provides outstanding performance characteristics and is easily integrated with low and full speed USB-compatible peripheral devices.

Many microcontrollers implement USB so that it presents only the D+ and D− lines to external pins. This is desirable in many cases because it minimizes external components and simplifies the design; however, this presents particular challenges when isolation is required. Because the USB lines must switch between actively driving D+/D− and allowing external resistors to set the state of the bus, the ADuM3160 provides mechanisms for detecting the direction of data flow and control over the state of the output buffers. Data direction is determined on a packet-by-packet basis.

The ADuM3160 uses the edge detection based iCoupler technology in conjunction with internal logic to implement a transparent, easily configured, upstream-facing port isolator. Isolating the upstream port provides several advantages in simplicity, power management, and robust operation.

The isolator has propagation delay comparable to that of a standard hub and cable. It operates with the supply voltage on either side ranging from 3.0 V to 5.5 V, allowing connection directly to V_BUSx by internally regulating the voltage to the signaling level. The ADuM3160 provides isolated control of the pull-up resistor to allow the peripheral to control connection timing. The device draws low enough idle current that a suspend state is not required. A 5 kV, reinforced insulation version, the ADuM4160, is available.

Applications

USB peripheral isolation
Isolated USB hub

Part Models: 4
1ku List Price: Starting From $4.02

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADUM3160BRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM3160BRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM3160WBRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM3160WBRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Nov 24, 2025 - 25_0065 Update Data Sheet Regulatory Information for Select Isolated CAN, I2C, SPI, USB and RS-485 Products
		PCN25_0065_Form Material_Report Datasheet Specification Comparison
ADUM3160BRWZ	PRODUCTION
ADUM3160BRWZ-RL	PRODUCTION
Nov 2, 2015 - 15_0135 Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli
		PCN15_0135_Form Material_Report Detailed Change Description Qualification Results Summary
ADUM3160BRWZ	PRODUCTION
ADUM3160BRWZ-RL	PRODUCTION
Nov 6, 2013 - 13_0282 Change of Moisture Sensitivity Level Rating for Select iCoupler Products from MSL 1 to MSL 3
		PCN13_0282_Form Material_Report
ADUM3160BRWZ	PRODUCTION
ADUM3160BRWZ-RL	PRODUCTION
Feb 27, 2012 - 11_0066 Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.
		PCN11_0066_Form Material_Report Qualification Plan Summary Flow Chart
ADUM3160BRWZ	PRODUCTION
ADUM3160BRWZ-RL	PRODUCTION
Apr 27, 2016 - 15_0135 Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli
		PCN15_0135_Form Material_Report Qualification Results Summary Qualification Results Summary Detailed Change Description Qualification Results Summary
ADUM3160WBRWZ	PRODUCTION
ADUM3160WBRWZ-RL	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Evaluation Kits

ezLINX™ iCoupler® Isolated Interface Development Environment

Buy Now View Details

Features and Benefits

Plug and play system evaluation
Easy evaluation of 8 isolated Physical layer communication standards
Open source hardware
Open source software
iCoupler^® and isoPower^® technology
ADSP-BF548 Blackfin Processor running uCLinux
Sample PC application
Sample embedded uCLinux application

Product Details

The ezLINX^™ iCoupler^® Isolated Interface Development Environment provides developers with a cost-effective, plug and play method for evaluation eight physical layer, digitally-isolated communication standards (USB, RS-422, RS-485, RS-232, CAN, SPI, I²C, and LVDS). The Blackfin^® ADSP-BF548 processor is used to run the uCLinux operating system and allows for easy customization through the open source hardware and software platform. Development time is significantly reduced for embedded designers and system architects who are designing and evaluating isolated communication standards. The interfaces on ezLINX use ADI's isolated transceivers with integrated iCoupler^® and isoPower^® digital isolator technology.

Resources

ezLINX™ PCB Manufacturing Files
1/1/0001

ezLINX™ ADSP-BF548 uCLinux Kernel and Sample Application
1/1/0001

ezLINX™ Schematics
1/1/0001

ezLINX™ Bill of Materials
1/1/0001

ezLINX™ User Guide
1/1/0001

UG-400: ezLINX iCoupler Isolated Interface Development Environment Hardware User Guide
2/14/2015

UG-461: ezLINX iCoupler Isolated Interface Development Environment Software User Guide
2/14/2015

Software

ezLINX™ Sample PC Application Install
61.24 M

ezLINX USB Drivers
4.13 K

ezLINX™ Sample PC Application Source Code
112.66 M

Microsoft® Visual C#

EVAL-ADUM4160: USB Isolator Board for the ADuM3160 and ADuM4160

Buy Now View Details

Features and Benefits

Connect to systems through standard USB Type A and Type B connectors.
Draw power from the USB host or from an external 5.0 V or 3.3 V power supply.
Support isolated power for the downstream interface through an ADuM5000 isoPower^® dc-to-dc converter.
Support external downstream power from a 5 V or 3.3 V power supply.
Provide test points for all power and signal paths.
Support low and full speed communications.
Support enumeration control.
Support external electrostatic discharge (ESD) protection.
Support common-mode chokes in the xD+/xD− lines.
Support ferrite inductors in the VBUSx and GNDx lines.

Product Details

The evaluation board allows configuration of the features of the ADuM4160/ADuM3160 chip and provides support for a variety of possible power schemes. The evaluation board also allows common-mode voltages; however, it is not recommended for performing safety related testing, such as high voltage withstand testing. Perform this type of testing on the component level or on a production board.
