ADM3252E

PRODUCTION

Isolated, Dual Channel RS-232 Line Driver/Receiver

Data Sheet (Rev. A) Product Selection Table

Part Models: 1
1ku List Price: price unavailable

Viewing:

Overview

2.5 kV fully isolated (power and data) RS-232 transceiver
isoPower integrated, isolated dc-to-dc converter
Operational from single 3.3 V or 5 V supply
460 kbps data rate
2 × Tx and 2 × Rx channels
ESD protection on R_INx and T_OUTx pins
Contact discharge: ±8 kV
Air gap discharge: ±15 kV

0.1 μF charge pump capacitors
High common-mode transient immunity: >25 kV/μs
Operating temperature range: −40°C to +85°C

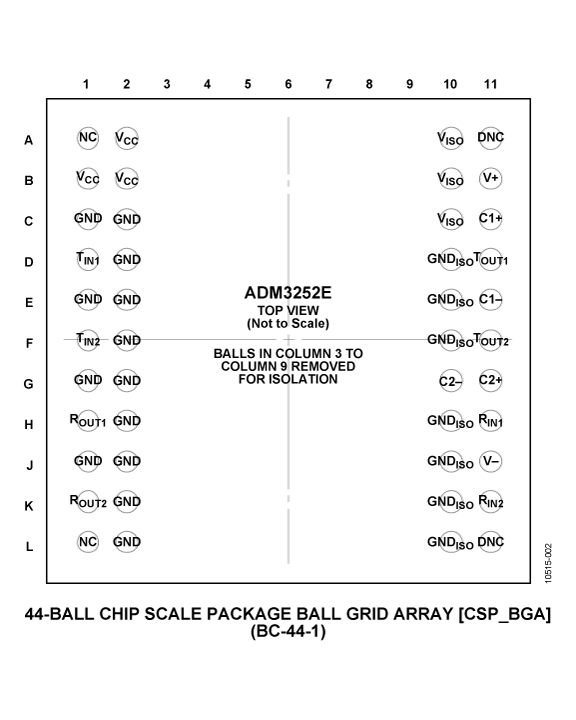

44-ball chip scale package ball grid array (CSP_BGA)
Meets EIA/TIA-232E specifications
See data sheet for additional features

The ADM3252E is a high speed, 2.5 kV fully isolated, dual-channel RS-232/V.28 transceiver device that is operational from a single 3.3 V or 5 V power supply. Because of high ESD protection on the R_IN1, R_IN2, T_OUT1, and T_OUT2 pins, the ADM3252E is ideally suited for operation in electrically harsh environments or where RS-232 cables are frequently plugged and unplugged.

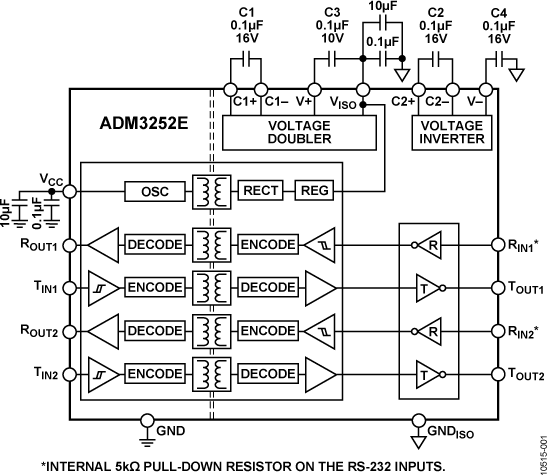

The ADM3252E provides four independent isolation channels using the integrated and isolated power of isoPower^™. There is no requirement to use a separate isolated dc-to-dc converter. Chip scale transformer iCoupler^® technology from Analog Devices, Inc., is used for both the isolation of the logic signals and the integrated dc-to-dc converter. The result is a total isolation solution.

isoPower^™ technology in the ADM3252E uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to Application Note AN-0971, Recommendations for Control of Radiated Emissions with isoPower Devices, for details on board layout considerations.

The ADM3252E conforms to the EIA/TIA-232E and ITU-T V.28 specifications and operates at data rates of up to 460 kbps. Four external 0.1 μF charge pump capacitors are used for the voltage doubler/inverter, permitting operation from a single 3.3 V or 5 V supply. The ADM3252E is available in a 44-ball, chip scale package ball grid array (CSP_BGA) and is specified over the −40°C to +85°C temperature range.

APPLICATIONS

Isolated RS-232 interface
High noise data communications
Industrial communications
Industrial/telecommunications diagnostic ports
Medical equipment

Part Models: 1
1ku List Price: price unavailable

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADM3252EABCZ	44-Ball CSPBGA (12mm x 12mm x 1.4mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Nov 27, 2015 - 15_0112 ADM3252E: Redesign of Isolated Power Die
		PCN15_0112_Form Material_Report Qualification Results Summary
ADM3252EABCZ	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Evaluation Kits

ezLINX™ iCoupler® Isolated Interface Development Environment

Buy Now View Details

Features and Benefits

Plug and play system evaluation
Easy evaluation of 8 isolated Physical layer communication standards
Open source hardware
Open source software
iCoupler^® and isoPower^® technology
ADSP-BF548 Blackfin Processor running uCLinux
Sample PC application
Sample embedded uCLinux application

Product Details

The ezLINX^™ iCoupler^® Isolated Interface Development Environment provides developers with a cost-effective, plug and play method for evaluation eight physical layer, digitally-isolated communication standards (USB, RS-422, RS-485, RS-232, CAN, SPI, I²C, and LVDS). The Blackfin^® ADSP-BF548 processor is used to run the uCLinux operating system and allows for easy customization through the open source hardware and software platform. Development time is significantly reduced for embedded designers and system architects who are designing and evaluating isolated communication standards. The interfaces on ezLINX use ADI's isolated transceivers with integrated iCoupler^® and isoPower^® digital isolator technology.

Resources

ezLINX™ PCB Manufacturing Files
1/1/0001

ezLINX™ ADSP-BF548 uCLinux Kernel and Sample Application
1/1/0001

ezLINX™ Schematics
1/1/0001

ezLINX™ Bill of Materials
1/1/0001

ezLINX™ User Guide
1/1/0001

UG-400: ezLINX iCoupler Isolated Interface Development Environment Hardware User Guide
2/14/2015

UG-461: ezLINX iCoupler Isolated Interface Development Environment Software User Guide
2/14/2015

Software

ezLINX™ Sample PC Application Install
61.24 M

ezLINX USB Drivers
4.13 K

ezLINX™ Sample PC Application Source Code
112.66 M

Microsoft® Visual C#

ADM3252E Evaluation board

Buy Now View Details

Features and Benefits

2.5 kV fully isolated (power and data) RS-232 transceiver
Convenient connections for power and signal via screw terminal blocks
3.3 V or 5 V operation
Test points for measuring all signals
All external components required included for correct operation

Product Details

The EVAL-ADM3252EEBZ evaluation board can be used for easy evaluation of the ADM3252E isolated RS-232 transceiver. Screw terminal blocks provide convenient connections for the power and signal connections. Test points are included on the power and signal lines on both sides of the isolation barrier. All required external components are included on the evaluation board.
