LTC3112

15V、2.5A 同步降压-升压型 DC/DC 转换器

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
产品模型 16
特性
  • 可在 VIN 高于、低于或等于 VOUT 的情况下获得稳压输出
  • 2.7V 至 15V 输入电压范围
  • 2.5V 至 14V 输出电压范围
  • 2.5A 连续输出电流:VIN ≥ 5V,VOUT = 5V,PWM 模式
  • 输出电流监视器

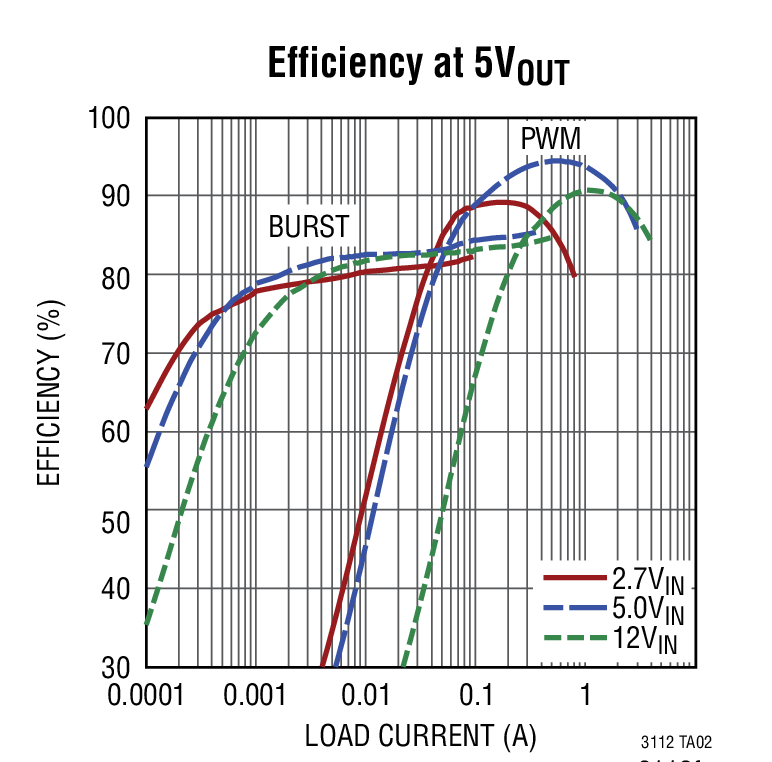

  • 效率高达 95%
  • 750kHz 开关频率,可同步范围为 300kHz 至 1.5MHz
  • 内部 N 沟道 MOSFET
  • 可选的突发模式 (Burst Mode®) 操作,IQ = 50μA
  • 停机电流 <1μA
  • 过压保护
  • 在停机模式中提供了输出断接
  • 内部软起动

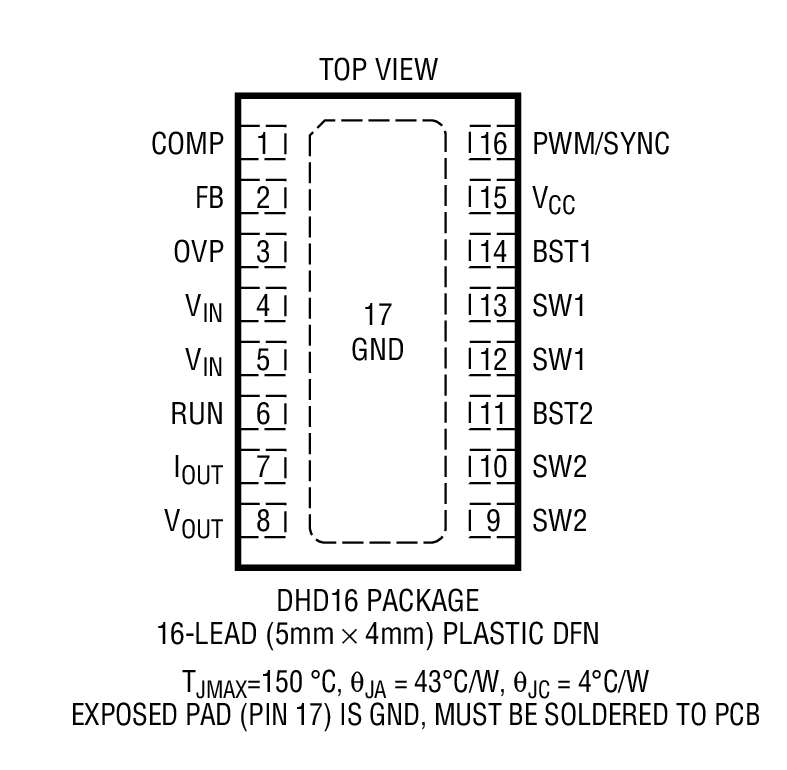

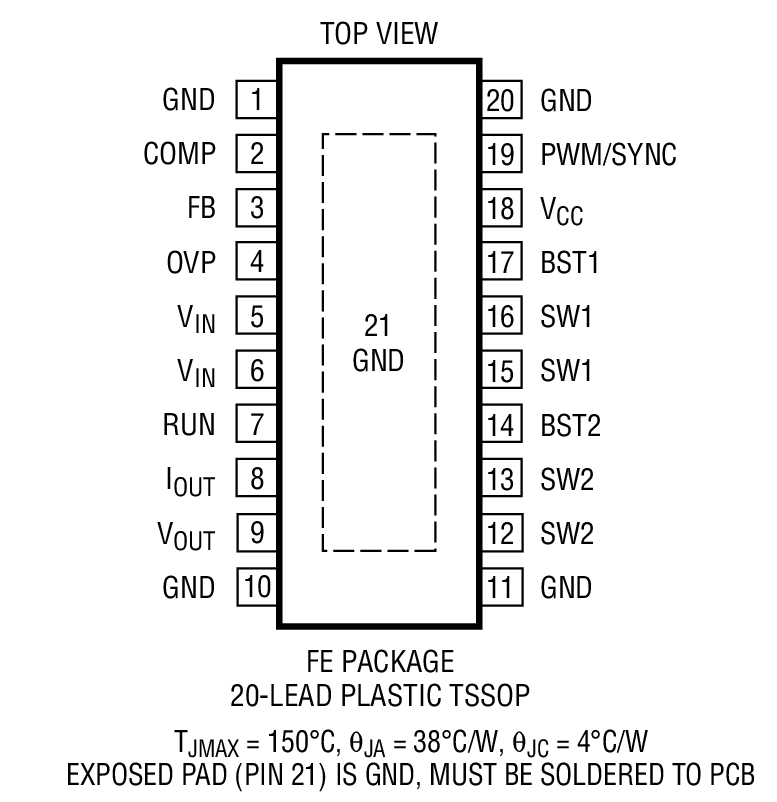

  • 小外形耐热性能增强型 16 引脚 (4mm x 5mm x 0.75mm) DFN 封装和 20 引脚 TSSOP 封装

更多细节
show more Icon

LTC®3112 是一款固定频率、同步降压-升压型 DC/DC 转换器,具有一个扩展的输入和输出范围。独特的四开关、单电感器架构提供了低噪声,并可在输入电压高于、低于或等于输出电压的情况下实现无缝运作。

LTC3112 具有一个 2.7V 至 15V 的输入范围,很适合于多种单节或多节电池、后备电容器或墙上适配器电源应用。低 RDS(ON) 内部 N 沟道 MOSFET 开关在具有较高负载电流要求的应用中实现了高效运作。

LTC3112 具有可选的 PWM 或突发模式操作能力、一个容易同步的振荡器以及停机模式中的输出断接功能。一个输出电流监视器电路使得能够对负载电流进行控制或测量。该器件的其他特点包括 <1μA 的停机电流、短路保护、软起动、电流限制和热停机功能。

LTC3112 采用 16 引脚 (4mm x 5mm x 0.75mm) DFN 封装和 20 引脚 TSSOP 封装。


Applications

  • 可从单节、两节或三节锂离子电池、后备电容器提供 3.3V 或 5V 输出
  • 手持式库存管理终端
  • RF 发送器
  • 12V 同步升压型转换器
  • 多电源输入系统
  • 具电流调节能力的 LED 照明
  • 12V 铅酸电池至 12V

产品模型 16

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
LTC3112EDHD#PBF
  • HTML
  • HTML
LTC3112EDHD#TRPBF
  • HTML
  • HTML
LTC3112EFE#PBF
  • HTML
  • HTML
LTC3112EFE#TRPBF
  • HTML
  • HTML
LTC3112HDHD#PBF
  • HTML
  • HTML
LTC3112HDHD#TRPBF
  • HTML
  • HTML
LTC3112HFE#PBF
  • HTML
  • HTML
LTC3112HFE#TRPBF
  • HTML
  • HTML
LTC3112IDHD#PBF
  • HTML
  • HTML
LTC3112IDHD#TRPBF
  • HTML
  • HTML
LTC3112IFE#PBF
  • HTML
  • HTML
LTC3112IFE#TRPBF
  • HTML
  • HTML
LTC3112MPDHD#PBF
  • HTML
  • HTML
LTC3112MPDHD#TRPBF
  • HTML
  • HTML
LTC3112MPFE#PBF
  • HTML
  • HTML
LTC3112MPFE#TRPBF
  • HTML
  • HTML

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

7月 31, 2020

- 20_0245

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC3112EDHD#PBF

量产

LTC3112EDHD#TRPBF

量产

LTC3112EFE#PBF

量产

LTC3112EFE#TRPBF

量产

LTC3112HDHD#PBF

量产

LTC3112HDHD#TRPBF

量产

LTC3112HFE#PBF

量产

LTC3112HFE#TRPBF

量产

LTC3112IDHD#PBF

量产

LTC3112IDHD#TRPBF

量产

LTC3112IFE#PBF

量产

LTC3112IFE#TRPBF

量产

LTC3112MPDHD#PBF

量产

LTC3112MPDHD#TRPBF

量产

LTC3112MPFE#PBF

量产

LTC3112MPFE#TRPBF

量产

4月 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3112EFE#PBF

量产

LTC3112EFE#TRPBF

量产

LTC3112HFE#PBF

量产

LTC3112HFE#TRPBF

量产

LTC3112IFE#PBF

量产

LTC3112IFE#TRPBF

量产

LTC3112MPDHD#PBF

量产

LTC3112MPDHD#TRPBF

量产

LTC3112MPFE#PBF

量产

LTC3112MPFE#TRPBF

量产

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

7月 31, 2020

- 20_0245

arrow down

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC3112EDHD#PBF

量产

LTC3112EDHD#TRPBF

量产

LTC3112EFE#PBF

量产

LTC3112EFE#TRPBF

量产

LTC3112HDHD#PBF

量产

LTC3112HDHD#TRPBF

量产

LTC3112HFE#PBF

量产

LTC3112HFE#TRPBF

量产

LTC3112IDHD#PBF

量产

LTC3112IDHD#TRPBF

量产

LTC3112IFE#PBF

量产

LTC3112IFE#TRPBF

量产

LTC3112MPDHD#PBF

量产

LTC3112MPDHD#TRPBF

量产

LTC3112MPFE#PBF

量产

LTC3112MPFE#TRPBF

量产

4月 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3112EFE#PBF

量产

LTC3112EFE#TRPBF

量产

LTC3112HFE#PBF

量产

LTC3112HFE#TRPBF

量产

LTC3112IFE#PBF

量产

LTC3112IFE#TRPBF

量产

LTC3112MPDHD#PBF

量产

LTC3112MPDHD#TRPBF

量产

LTC3112MPFE#PBF

量产

LTC3112MPFE#TRPBF

量产

软件和型号相关生态系统

评估套件 2

reference details image

AD-3DSMARTCAM1-PRZ

Smart Camera for 3D & 2D sensing

zoom

AD-3DSMARTCAM1-PRZ

Smart Camera for 3D & 2D sensing

Smart Camera for 3D & 2D sensing

特性和优点

  • 3D and 2D sensing
  • AI Edge processing capability
  • WiFi and Gigabit Ethernet connectivity
  • Open Source SDK with Windows and Linux support

产品详情

The AD-3DSMARTCAM1-PRZ is a 2D & 3D machine vision solution with AI edge processing capabilities. It can be used for implementing advanced machine vision applications for different industry segments including logistics, robotics, agriculture and people activity monitoring.

An open-source SDK that accompanies the hardware platform enables configuring the camera and extracting depth, IR and RGB data from the camera on the host system of your choice. Windows and Linux support are built into the SDK as well as sample code and wrappers for various languages including Python, C/C++ and MATLAB. The SDK also integrates with 3rd party technologies like OpenCV, Open3D and RoS.

APPLICATIONS

  • Logistics
  • Robotics
  • Agriculture
  • Building Management
  • People Activity Monitoring
Specification Table
Camera
3D ToF sensor FoV 90x60, Range: 4m, Resolution 640x480 @ 30fps
RGB sensor FoV 128x68, Range 6m, Resolution 1920x1080 @ 30fps
Connectivity
WiFi 802.11a/b/g/n/ac, 867Mbps with dual stream in 802.11n, 2x2 Access Points with MIMO standard
Ethernet (optional) 1xRJ45 10M/100M/1G self-adaptive Ethernet port
Bluetooth 5.0 Bluetooth Class 1 or Class2 transmitter operation, Adaptive frequency hopping
Power supply
External power 12V DC @ 2A
Power over Ethernet (optional) PoE+ IEEE802.3-2012, max 20W
Operating Conditions
Temperature Range -25C to 60C
Operating Class IP66
Computing Resources
CPU Quad-core ARM A57 @ 1.43 GHz
GPU 128-core Maxwell
Memory 4 GB 64-bit LPDDR4 25.6 GB/s
Storage 16GB eMMC
Certifications
Safety, EMC, Environment Eye safe and conforms to necessary regional standards
reference details image

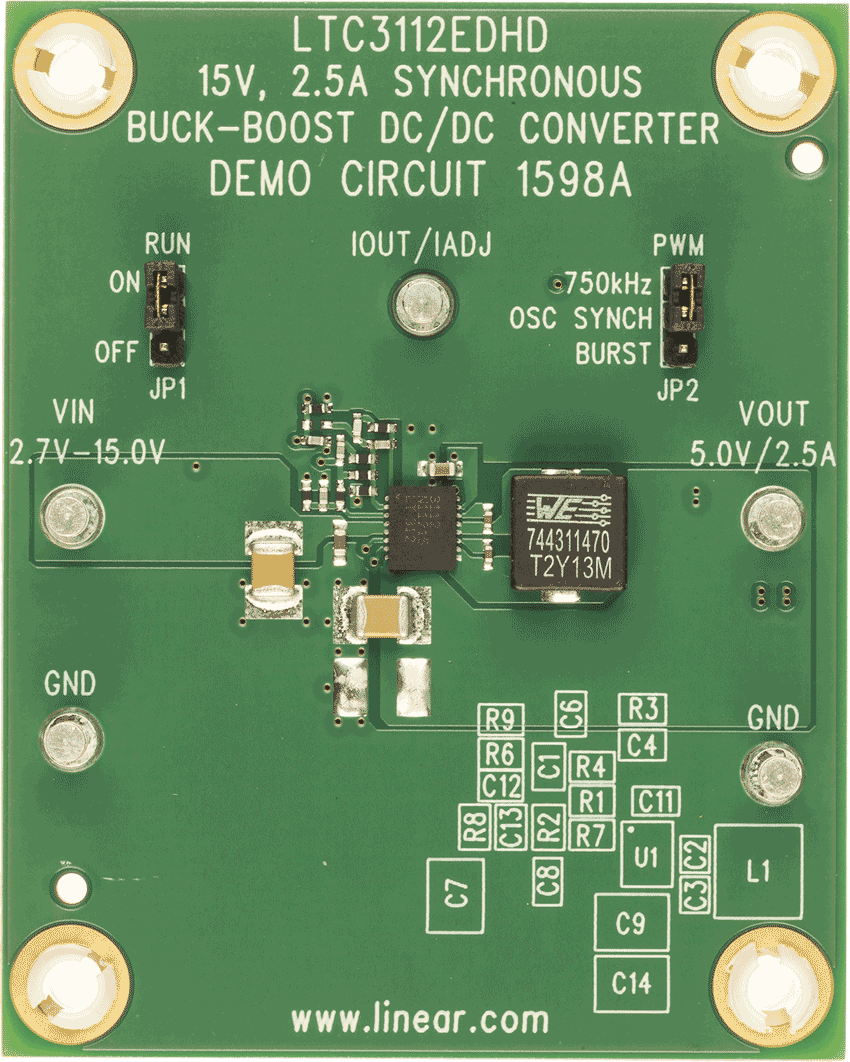

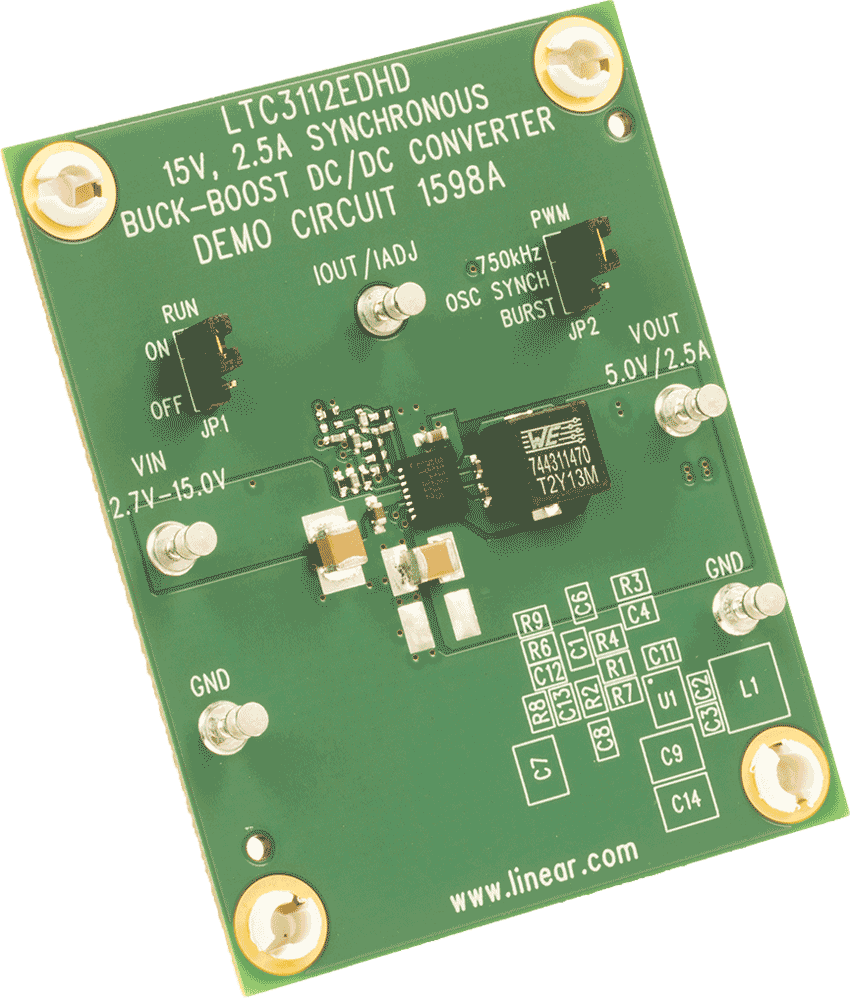

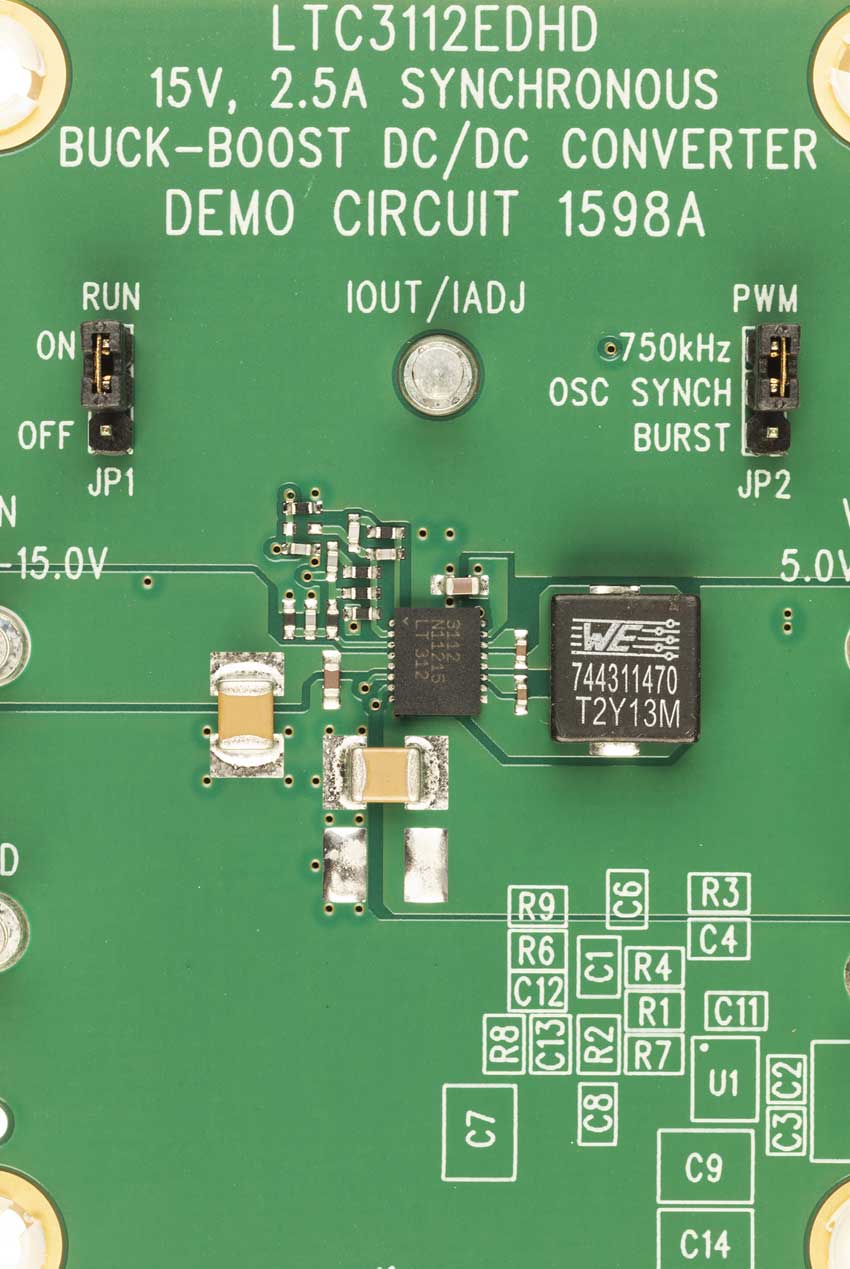

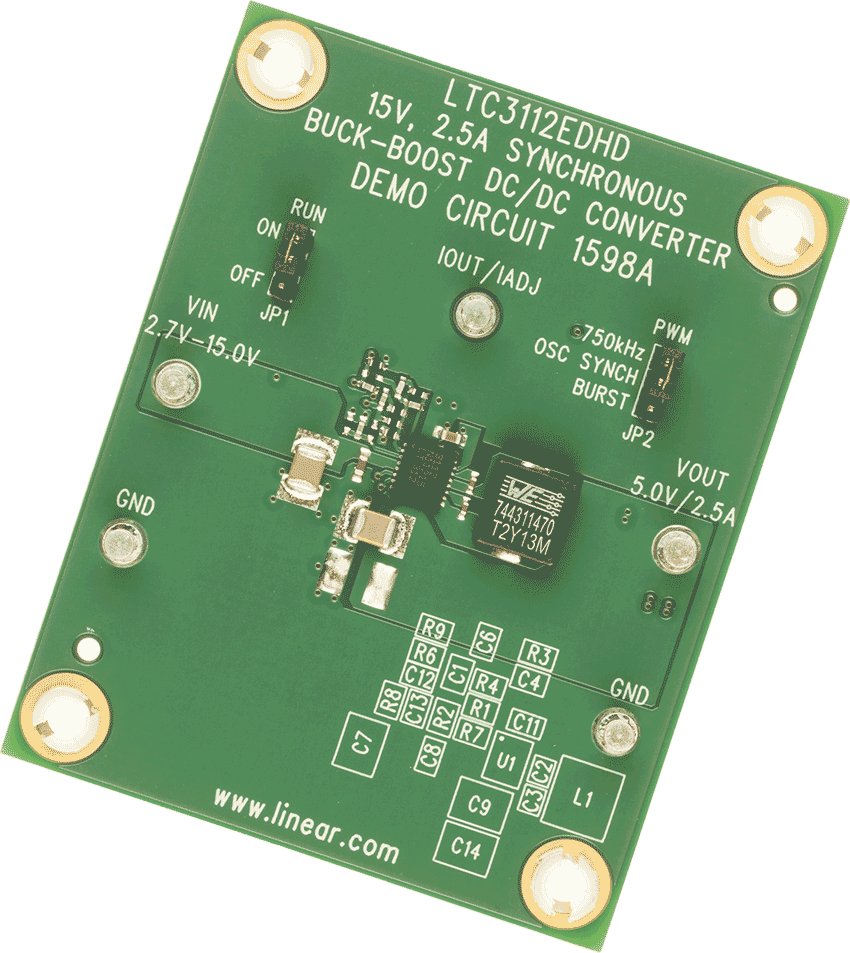

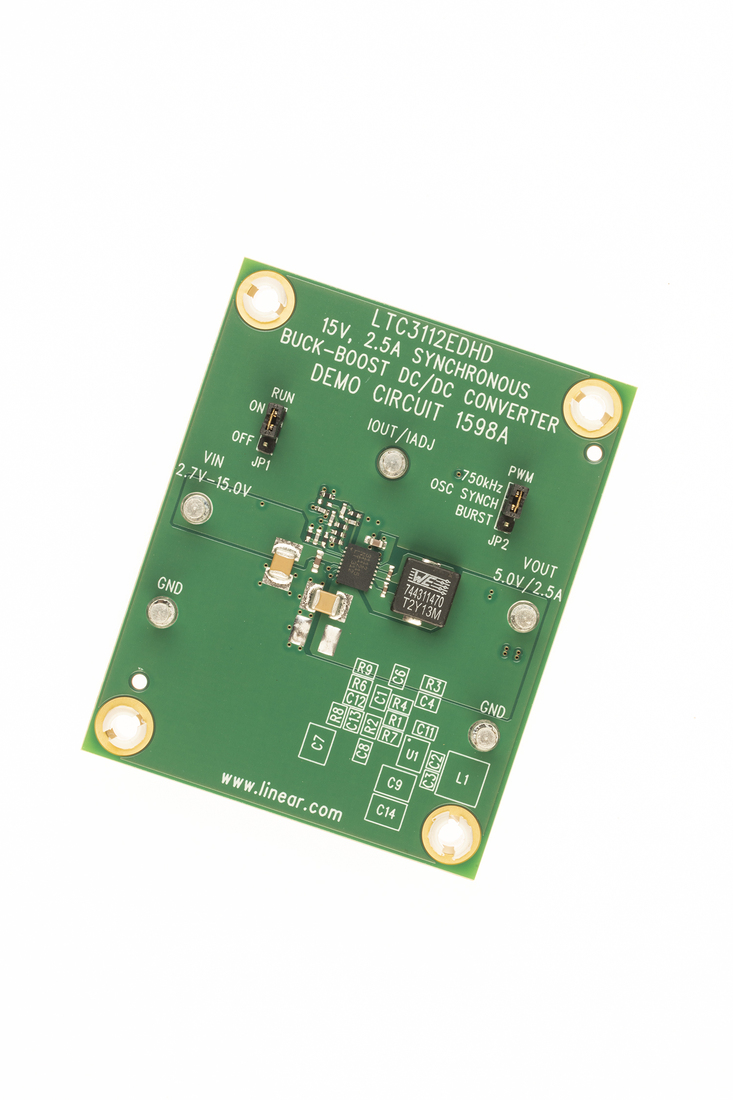

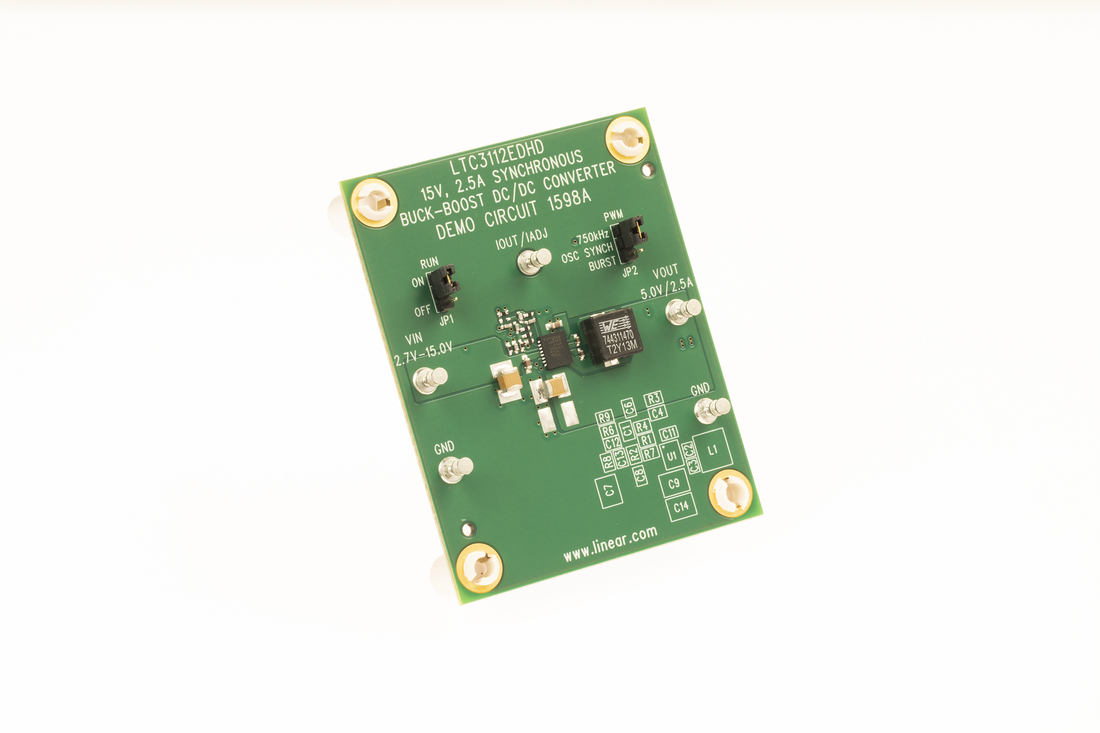

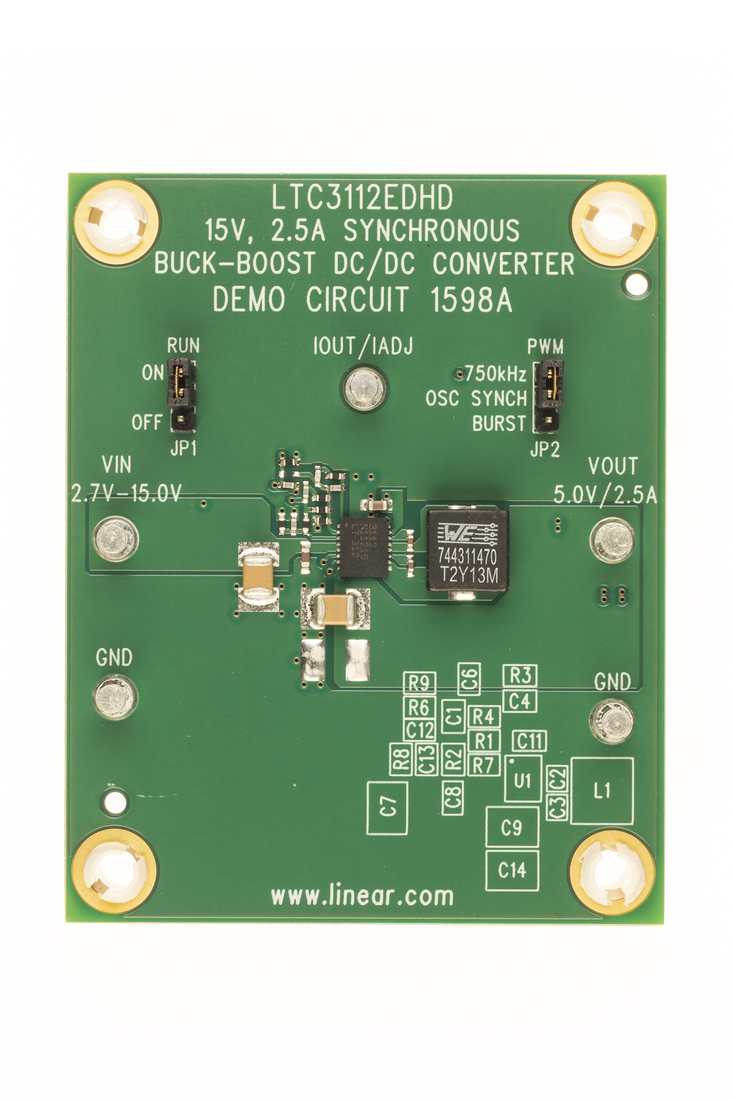

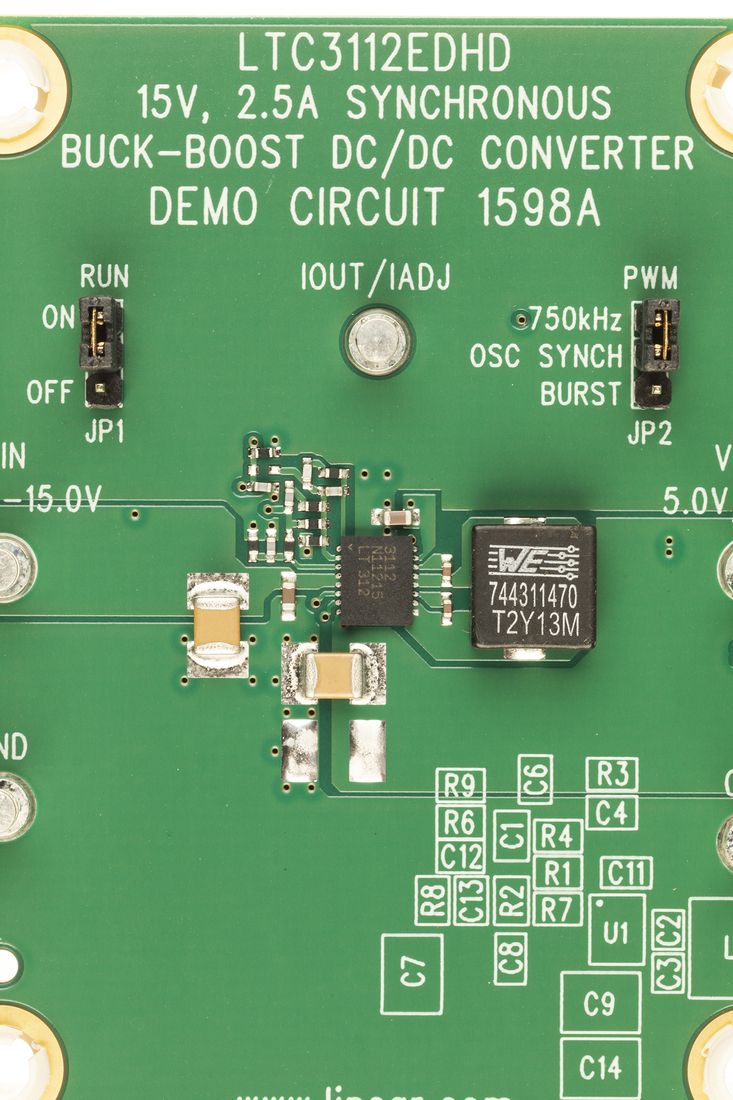

DC1598A

LTC3112EDHD Demo Board

zoom

DC1598A

LTC3112EDHD Demo Board

产品详情

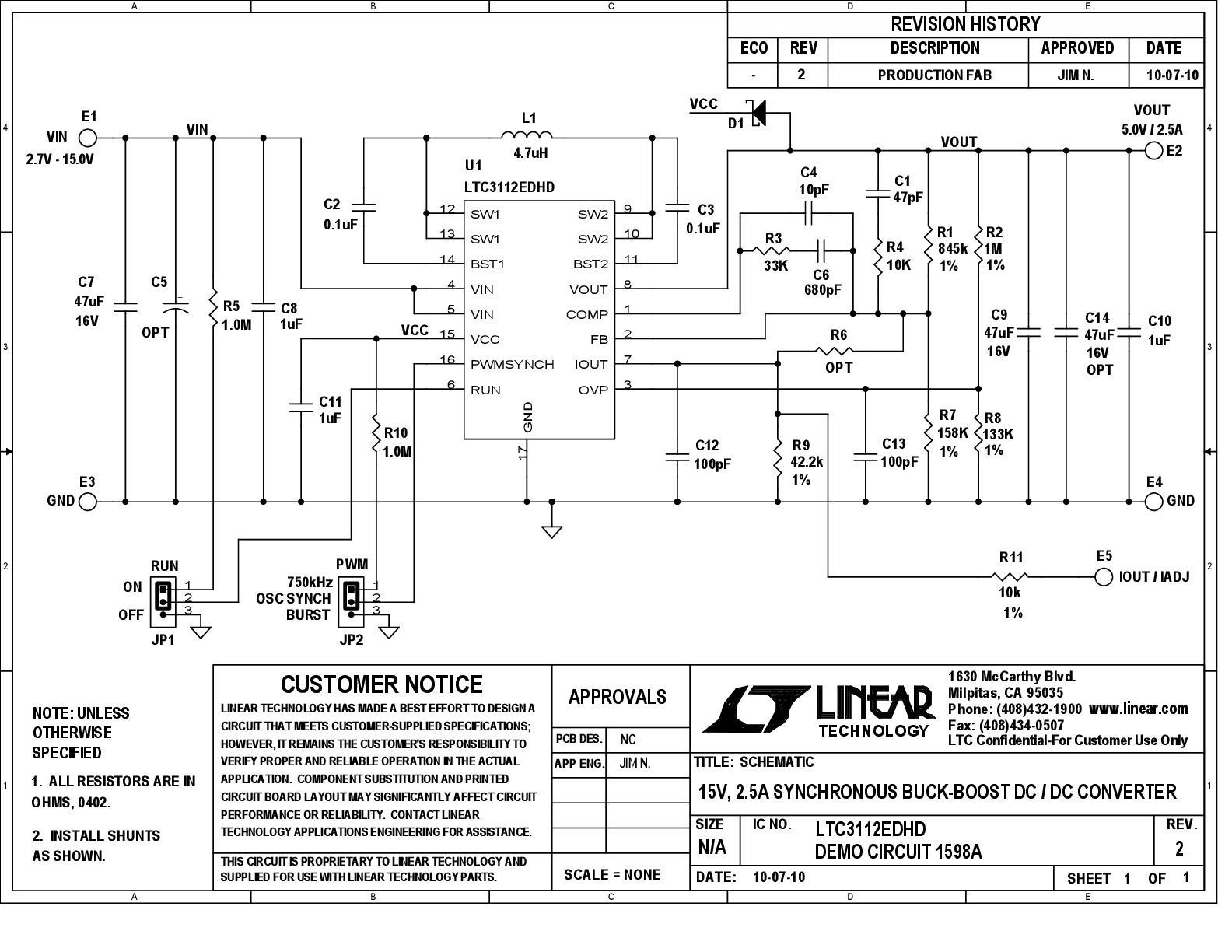

Demonstration Circuit 1598A is a fixed frequency synchronous buck-boost converter with an extended input and output range. The unique 4-switch, single inductor architecture provides low noise and seamless operation from input voltages above, below, or equal to the output voltage.


The LTC3112 features selectable PWM or Burst Mode operation, and an easily synchronizable oscillator. An output current monitor allows the load current to be controlled or monitored. The LTC3112 operates with a 2.7V to 15V input voltage range and a VOUT range from 2.5V to 14V. The demonstration board has been designed to operate with VIN from 2.7V to 15V and an output current up to 2.5A. For VIN < 5V, IOUT capability is reduced. VOUT is set to 5.0V.
