ADUM5401

量产

集成DC/DC转换器的四通道2.5 kV隔离器（3/1通道方向性）

数据手册 (Rev. E) 产品选型表

产品模型: 8

Viewing:

产品详情

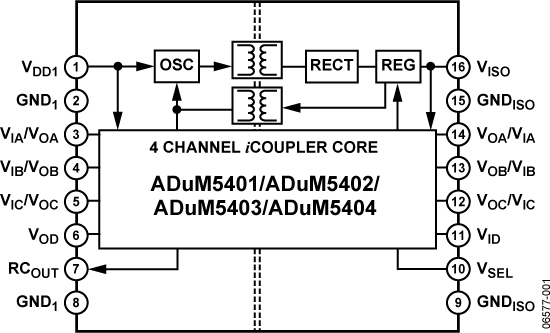

集成isoPower 的隔离式DC/DC转换器
3.3 V或5.0 V调节输出
最高500 mW输出功率
四个DC至25 Mbps (NRZ)信号隔离通道
16引脚SOIC封装，爬电距离为7.6 mm
工作温度最高可达：105°C（最大值）
高共模瞬变抗扰度：>25 kV/μs

安全和法规认证
- UL认证
  - 1分钟2500 V rms，符合UL 1577标准
- CSA元件验收通知5A
- VDE合格证书
  - IEC 60747-5-2 (VDE 0884, Part 2)
  - V_IORM = 560 V峰值
- CQC认证符合GB4943.1-2011

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

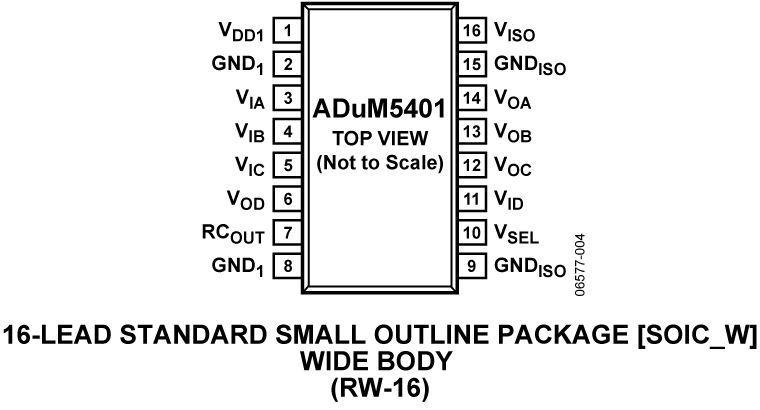

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
ADUM5401ARWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM5401ARWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM5401CRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM5401CRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM5401WCRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM5401WCRWZ-1	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM5401WCRWZ-1RL	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM5401WCRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

6月 15, 2016 - 15_0135 Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli
		PCN15_0135_Form Material_Report Qualification Results Summary Qualification Results Summary Detailed Change Description Qualification Results Summary
ADUM5401ARWZ	量产
ADUM5401ARWZ-RL	量产
ADUM5401CRWZ	量产
ADUM5401CRWZ-RL	量产
ADUM5401WCRWZ
ADUM5401WCRWZ-1	量产
ADUM5401WCRWZ-1RL	量产
ADUM5401WCRWZ-RL
2月 27, 2012 - 11_0066 Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.
		PCN11_0066_Form Material_Report Qualification Plan Summary Flow Chart
ADUM5401ARWZ	量产
ADUM5401ARWZ-RL	量产
ADUM5401CRWZ	量产
ADUM5401CRWZ-RL	量产
ADUM5401WCRWZ
ADUM5401WCRWZ-RL
3月 17, 2011 - 10_0245 ADuM520x / ADuM540x Die and Data Sheet Revisions
		PCN10_0245_Form Material_Report Reliability Report Reliability Report
ADUM5401ARWZ	量产
ADUM5401ARWZ-RL	量产
ADUM5401CRWZ	量产
ADUM5401CRWZ-RL	量产
5月 30, 2012 - 12_0124 ADuM5401W, ADuM5402W, ADuM5403W Data Sheet Specification Change
		PCN12_0124_Form Material_Report
ADUM5401WCRWZ
ADUM5401WCRWZ-RL
8月 27, 2012 - 11_0066 Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.
		PCN11_0066_Form Material_Report Flow Chart Qualification Plan Summary
ADUM5401WCRWZ-1	量产
ADUM5401WCRWZ-1RL	量产
