Premium Audio Amplifier Solutions

Premium audio amplifiers play an important role in the processing and routing of audio-centric signals to various Class-D amplifiers, subwoofers, and remote tuners in a vehicle. Premium audio amplifiers add extra audio functionality to existing infotainment systems, so designers can service premium vehicle trims without needing to upgrade the performance of the primary head unit.

In this respect, Analog Devices’ SHARC^® digital signal processors (DSPs) offer a truly scalable solution with pin compatibility across multiple generations. This allows system architects to select a processor based on the exact performance requirements needed by the audio amplifier for a given vehicle trim.

Value and Benefits

We focus on advanced, premium audio, voice, and acoustic solutions with a broad and scalable portfolio of audio processors, A²B audio connectivity products, vibration sensors, and power management. Our high performance audio digital signal processors (including SHARC & SigmaDSP^®) and audio connectivity solutions deliver advanced applications, including 3D surround sound, audio zoning, sound synthesis, ANC/RNC, ultrawideband AEC/NR, microphone beamforming, in-car communications, and more. Our SigmaStudio^® tool delivers a GUI-based system for audio configuration, algorithm development, and audio tuning.

Offering high integration, our automotive power solutions are capable of powering multiple voltage rails, while running off the battery with a single IC. Packed with the latest technology, they offer high efficiency to drive power density, reduce thermal considerations, and minimize the number of external components and BOM cost.

Enable high integration

Drive power density

Minimize BOM cost

Signal Chains

(2)

< Prev

Next >

Software

SigmaStudio®

Graphical development tool for programming, development, and tuning software for ADI DSP audio processors and A²B^® transceivers. X +

SigmaStudio®

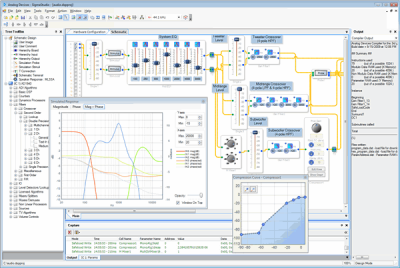

The SigmaStudio^® graphical development tool is the programming, development, and tuning software for the SigmaDSP^® and SHARC^® audio processors and A²B^® transceivers. Familiar audio processing blocks can be wired together as in a schematic, and the compiler generates DSP-ready code and a control surface for setting and tuning parameters. This tool allows engineers with no DSP code writing experience to easily implement a DSP into their design and yet is still powerful enough to satisfy the demands of experienced DSP designers. SigmaStudio links with both Analog Devices evaluation boards and production designs to provide full in-circuit real-time IC control.

SigmaStudio includes an extensive library of algorithms to perform audio processing such as filtering, mixing, and dynamics processing, as well as basic low-level DSP functions and control blocks. Advanced record-side processing algorithms such as Enhanced Stereo Capture and wind noise detection are included in the standard libraries. Plug-in algorithms from Analog Devices and 3rd party partners can be added to SigmaStudio's drag-and-drop library.

Along with its graphical DSP signal flow development, SigmaStudio also includes other features to speed up the design cycle from product concept to release. SigmaStudio includes tools for intuitively setting control registers, calculating tables of filter coefficients, visualizing filter magnitude and phase responses, generating C header files, and sequencing a series of controls to ease your transition from SigmaStudio to system implementation on your microcontroller.

View Detailed Information View Pricing

Applicable Parts

AD2431

Automotive Audio Bus (A²B) Transceiver

AD2432

Automotive Audio Bus A²B Transceiver

AD2433

Automotive Audio Bus A²B Transceiver

AD2435

Automotive Audio Bus A²B Transceiver

AD2429

A²B Main 4xPDM XCVR w I²S/TDM

AD2428

A²B Main/Subordinate 4xPDM XCVR w I²S/TDM

AD2427

A²B Mid-Line Subordinate 4xPDM XCVR

AD2426

A²B Last-in-Line Subordinate 4xPDM XCVR

AD2420

A²B Last-in-Line Subordinate 2xPDM XCVR

ADAU7118

8 Channel, PDM to I²S/TDM Converter

ADSP-SC589

Dual-core SHARC+ and ARM Cortex-A5 SOC, dual DDR, 2xEthernet, 2xUSB, SDIO, PCIe, 529-cspBGA

ADSP-SC587

Dual-core SHARC+ and ARM Cortex-A5 SOC, dual DDR, 2xEthernet, 2xUSB, SDIO, 529-cspBGA

ADSP-SC584

Dual-core SHARC+ and Arm Cortex-A5 SOC, DDR, Ethernet, USB, 349-cspBGA

ADSP-SC583

Dual-core SHARC+ and ARM Cortex-A5 SOC, DDR, Ethernet, USB, 349-cspBGA

ADSP-SC582

Single-core SHARC+ and ARM Cortex-A5 SOC, DDR, Ethernet, USB, 349-cspBGA

ADSP-21587

Dual-core SHARC+ DSP, dual DDR, 529-cspBGA

ADSP-21584

Dual-core SHARC+ DSP, DDR, 349-cspBGA
