ADSP-21362

High Performance 32-Bit Floating-Point SHARC Processor for Automotive Audio

Production

Top

Overview

Features and Benefits
Product Details

Features and Benefits

333MHz /1.8 GFLOPs SIMD SHARC core supporting IEEE 32-bit floating-point, 40-bit floating-point and 32-bit fixed-point data types
25 zero-overhead DMA channels
Digital Audio Interface (DAI) enabling user-definable access to peripherals including an S/PDIF Tx/Rx, 8-channel asynchronous sample rate converter, and Data Transmission Content Protection hardware accelerator

6 serial ports (SPORTs) supporting I²S, left-justified sample pair, and TDM modes
2 SPI-compatible ports supporting master and slave modes
16 Pulse Width Modulation (PWM) channels
3 full-featured timers
136-ball MBGA and 144-Ld LQFP E-Pad
package options
Commercial and Industrial temperature ranges

Product Details

The third generation of SHARC^® Processors, which includes the ADSP-21261, ADSP-21262, ADSP-21266, ADSP-21267, ADSP-21363, ADSP-21364, ADSP-21365, and ADSP-21366, offers increased performance, audio and application-focused peripherals, and memory configurations capable of supporting surround-sound decoder algorithms. All devices are pin-compatible and completely code-compatible with all prior SHARC Processors. These members of the SHARC Processor family are based on a single-instruction, multiple-data (SIMD) core, which supports both 32-bit fixed-point and 32-/40-bit floating-point arithmetic formats making them particularly suitable for high-performance audio applications.

The ADSP-21362 offers the highest performance – 333 MHz/2 GFLOPs -- within the third generation SHARC Processor family. This level of performance makes the ADSP-21362 particularly well suited to address the increasing requirements of the professional and automotive audio market segments. In addition to its higher core performance, the ADSP-21362 includes additional value-added peripherals such as an S/PDIF transmitter/receiver, 8-channel asynchronous sample rate converter, and a hardware Digital Transmission Content Protection (DTCP) encryption/decryption block.

Third generation SHARC Processors also integrate application-specific peripherals designed to simplify hardware design, minimize design risks, and ultimately reduce time to market. Grouped together, and broadly named the Digital Audio Interface (DAI), these functional blocks may be connected to each other or to external pins via the software-programmable Signal Routing Unit (SRU). The SRU is an innovative architectural feature that enables complete and flexible routing amongst DAI blocks. Peripherals connected through the SRU include but are not limited to serial ports, SPI ports, S/PDIF Tx/Rx, DTCP Accelerator, and an 8-Channel asynchronous sample rate converter block.

Product Categories

Processors and Microcontrollers
- SHARC Audio Processors/SoCs

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (3)

EVAL-SHAUDIO-EZEXT

The SHARC Audio extender board is a low-cost, plug-on extender for EZ-Boards. This extender extends the capabilities of the SHARC evaluation system by providing three AD1939 audio codecs and providing 24 channels of analog audio out, 12 channels of analog audio in. For information about compatible EZ-Board products, see the processors family's Software and Tools page.

EVAL-BFSHUSB-EZEXT

The USB extender board is a low-cost, plug-on extender for EZ-Boards. This extender extends the capabilities of the evaluation system by providing a connection between the asynchronous memory bus of the Blackfin or SHARC processor and a USB 2.0 device. For information about compatible EZ-Board products, see the processors family's Software and Tools page.

EVAL-21364-EZLITE

The ADSP-21364 EZ-Kit Lite evaluation hardware provides a low-cost hardware solution for evaluating the ADSP-21362, ADSP-21363, ADSP-21364, ADSP-21365, and ADSP-21366 SHARC processor family.

EVAL-SHAUDIO-EZEXT

View Detailed Evaluation Kit Information

The SHARC Audio EZ-Extender provides users the ability to evaluate audio application on the ADSP-214xx EZ-Board/ EZ-KIT Lite. Software examples are provided in the latest update of VisualDSP++.

The EZ-Extender consists of three Analog Devices AD1939 audio codecs and provides 24 channels of analog audio out, 12 channels of analog audio in. The primary codec operates in both in I2S and TDM mode and can run at sample rates of 48, 96, or 192 KHz. The other two codec are configured to operate in Dual Line TDM mode. The three codecs together can operate in dual line TDM mode for 24 analog channels out and 12 analog channels in at a sample rate of 192KHz.

The audio input and output is available via multiple RCA connectors. A group of switches are available if a user should decide to evaluate the audio codec inputs and outputs in a differential mode. (NOTE: DB25 to XLR cables are not supplied with the EZ-Extender).

Ordering Information:
Part number: ADZS-SHAUDIO-EZEXT

CROSSCORE^® Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support

Features & Benefits

Analog audio interface
- AD1939 – three Analog Devices 192 kHz audio codecs
- 24 channels of audio out (twelve stereo channels)
- Twelve channels of audio in (six stereo channels)
- TDM and I2S modes at 48 KHz, 96 KHz, and 192 KHz sample rates
Single-ended input/output
- Three RCA phono jack inputs (4 x 1)
- Three RCA phono jack outputs (4 x 2)
Differential input/output
- Two DB25 connector inputs
- Three DB25 connector outputs

Resources

SHARC^® Audio EZ-Extender^® Manual (Rev. 1.1)

PDF

617 kB

EVAL-BFSHUSB-EZEXT

View Detailed Evaluation Kit Information

The Blackfin SHARC USB EZ-Extender plugs onto the expansion interface of the ADSP-BF518F and ADSP-21469 EZ-Board and EZ-KIT Lite’s. The EZ-Extender aids the design and prototyping phases of the processor targeted applications and extends the capabilities of the evaluation system by providing a connection between the asynchronous memory bus of the Blackfin/SHARC processor and a USB 2.0 device.

Ordering Information:
Part number: ADZS-BFSHUSB-EZEXT

CROSSCORE^® Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support

Features & Benefits

ADSP-21469: 176-pin LQFP package, 25 MHz CLKIN oscillator
ADSP-21479: 196-pin BGA package, 16.625 MHz CLKIN oscillator
ADSP-21489: 176-pin LQFP package, 25 MHz CLKIN oscillator
Flash Memory: 4 M x 8-bit, Numonyx
SDRAM Memory: 16Mb x16 bit, Micron MT48LC16M16A2P-6A
Asynch SRAM: 1M x16 bit, ISSI IS61WV102416BLL-10TLI
SPI Memory: 16 Mbit
Analog Audio: AD1939 Codec
SPDIF: RCA phone jacks
Temp Sensor: ADM1032 Two Wire Sensor
UART: ADM3202 RS-232 line driver/receiver
Power Supply: 5V @ 3.6 Amps
LEDs: 10 LEDs: 1 power (green), 1 board reset (red), and 8 general purpose (amber)
Push Buttons: (5) push buttons: (1) reset, (2) connected to DAI, (2). IRQ/Flag
SHARC Expansion Interface II: AMI, Flags/IRQs, DAI, DPI, PWR_IN, 3.3V, GND
Other Features: Standalone Debug Agent Interface, RTC (Real Time Clock) implementation, Shift Register Interface, MP JTAG IN and OUT Connectors, 0-ohm resistors for DSP current measurement, CE compliant

Resources

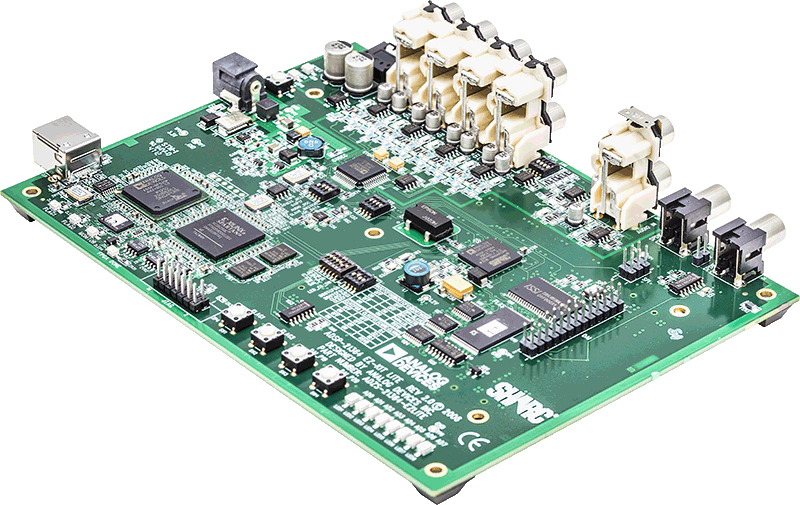

EVAL-21364-EZLITE

View Detailed Evaluation Kit Information

The ADSP-21364 EZ-KIT Lite provides developers with a cost-effective method for initial evaluation of the ADSP-21364 SHARC^® Processor architecture via a USB-based, PC-hosted tool set. With this EZ-KIT Lite, users can learn more about Analog Devices’ (ADI’s) ADSP-21364 hardware and software development and quickly prototype a wide range of applications.

The EZ-KIT Lite includes an ADSP-21364 SHARC Processor desktop evaluation board along with an evaluation suite of the VisualDSP++^® development and debugging environment including the C/C++ compiler, assembler, and linker. The evaluation suite of VisualDSP++ is designed to be used with the EZ-KIT Lite only.

Part Number:
ADZS-21364-EZLITE

Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support

Features & Benefits

ADSP-21262 SHARC^® Processor
1M x 8-bit FLASH memory
512K x 8-bit SRAM
512 Kbit SPI^® FLASH memory
AD1835A: 2 ADC, 8 DAC, 96 kHz, 24-Bit Sigma Delta Codec
USB-based debugger interface

Resources

ADSP-21364 EZ-KIT Lite^® Evaluation System Manual (Rev. 3.3)

PDF

2077 kB

Documentation & Resources

Data Sheets

ADSP-21362/ADSP-21363/ADSP-21364/ADSP-21365/ADSP-21366 SHARC Processors (Rev. J)
4/25/2008

PDF

692 kB

Application Notes

EE-112: Class Implementation in Analog C++
11/14/2016

PDF

31 K
EE-356: Emulator and Evaluation Hardware Troubleshooting Guide for CCES Users (Rev. 2)
2/14/2015

PDF

779 K
• EE-356: Associated Files

ZIP
EE-355: Expert In-Circuit FLASH Programmer for SHARC® Processors (Rev. 1)
8/20/2012

PDF

1045 kB
• EE-355: Code Example (Rev 1, 08/2012)

ZIP
EE-243: Using the Expert DAI for SHARC® Processors (Rev. 7)
7/6/2010

PDF

337 kB
• EE-243: Code example (Rev 7, 06/2010)

ZIP
EE-345: Boot Kernel Customization and Firmware Upgradeability on SHARC Processors® (Rev. 1)
10/6/2009

PDF

331 kB
• EE-345: Code example (Rev 1, 10/2009)

ZIP
EE-332: Cycle Counting and Profiling (Rev. 2)
8/18/2009

PDF

142 kB
• EE-332: Code example

ZIP
EE-322: Expert Code Generator for SHARC® Processors (Rev. 5)
6/15/2009

PDF

742 kB
• EE-322: Code Example (Rev 5, 01/2012)

ZIP
EE-340: Connecting SHARC^® and Blackfin^® Processors over SPI (Rev. 1)
5/8/2009

PDF

209 kB
• EE-340: Code example

ZIP
EE-320: Implementing an Ogg Vorbis Decoder on SHARC® Processors (Rev. 1)
6/26/2008

PDF

731 kB
• EE-320: Code example (Rev 1, 06/2008)

ZIP
EE-323: Implementing Dynamically Loaded Software Modules (Rev. 1)
3/8/2008

PDF

0
• EE-323: Associated Code

ZIP
EE-330: Windows Vista Compatibility in VisualDSP++ 5.0 Development Tools (Rev. 1)
8/31/2007

PDF

276 kB
EE-266: Programming S/PDIF on ADSP-2136x and ADSP-21371 SHARC® Processors (Rev. 2)
8/28/2007

PDF

1147 kB
• EE-266: Code example (Rev 2, 08/2007)

ZIP
EE-231: In-Circuit Programming of an SPI Flash with SHARC® Processors (Rev. 2)
8/27/2007

PDF

74 kB
• EE-231: Code example (Rev 2, 08/2007)

ZIP
EE-328: Migrating from ADSP-2106x/2116x to ADSP-2126x/2136x/2137x SHARC® Processors (Rev. 1)
7/27/2007

PDF

101 kB
EE-175: Emulator and Evaluation Hardware Troubleshooting Guide for VisualDSP++ Users (Rev. 14)
5/21/2007

PDF

183 kB
• EE-175: Associated Files

ZIP
EE-56: Tips and Tricks on SHARC® EPROM and Host Boot Loader (Rev. 3)
3/7/2007

PDF

108 kB
EE-84: External Port DMA Modes of Operation for SHARC Processors (Rev. 2)
3/2/2007

PDF

99K
• EE-84: Code Example (Rev 2, 2/2007)

ZIP
EE-223: In-Circuit Flash Programming on SHARC® Processors (Rev. 2)
2/23/2007

PDF

258 kB
• EE-223: Code Example (Rev 2, 02/2007)

ZIP
EE-253: Power Bypass Decoupling of SHARC® Processors (Rev. 1)
12/5/2006

PDF

354 kB
EE-296: Using the UART Port Controller on SHARC® Processors (Rev. 2)
11/22/2006

PDF

114 kB
EE-295: Implementing Delay Lines on SHARC® Processors (Rev. 1)
11/15/2006

PDF

0 kB
• EE-295: Code Example (Rev 1, 10/2006)

ZIP
EE-305: Designing and Debugging Systems with SHARC Processors (Rev. 1)
11/15/2006

PDF

151 kB
EE-290: Managing the Core PLL on SHARC® Processors (Rev. 5)
7/12/2006

PDF

409 kB
• EE-290: Code Example (Rev 5, 03/2012)

ZIP
EE-277: Estimating Power for the ADSP-21362 SHARC® Processors (Rev. 1)
3/9/2006

PDF

130 kB
EE-220: Using External Memory with Third Generation SHARC® Processors and the Parallel Port (Rev. 2)
8/10/2005

PDF

80 kB
EE-270: Extended-Precision Fixed-Point Arithmetic on SIMD SHARC® Processors (Rev. 1)
7/8/2005

PDF

86 kB
• EE-270 Software Code

ZIP
EE-264: Interfacing MultiMediaCard™ with ADSP-2126x SHARC® Processors (Rev. 1)
5/6/2005

PDF

975 kB
• EE-264 Software Code

ZIP
EE-268: Programming Asynchronous Sample Rate Converters on ADSP-2136x SHARC® Processors (Rev. 1)
4/28/2005

PDF

2688 kB
• EE-268 Software Code (04/2005)

ZIP
EE-230: Code Overlays on the Third Generation SHARC® Family of Processors (Rev. 2)
4/13/2005

PDF

77 kB
• EE-230 Software Code (4/2005)

ZIP
EE-267: Implementing In-Place FFTs on SISD and SIMD SHARC® Processors (Rev. 1)
4/4/2005

PDF

32 kB
• EE-267 Software Code

ZIP
EE-261: Understanding Jitter Requirements of PLL-Based Processors (Rev. 1)
2/15/2005

PDF

90 kB
EE-260: Interfacing AD7865 Parallel ADCs to ADSP-2136x SHARC® Processors (Rev. 1)
12/17/2004

PDF

500 kB
• EE-260 Software Code

ZIP
EE-254: Interfacing ADSP-21365 SHARC® PDAP to ADSP-BF533 Blackfin® EBIU (Rev. 1)
11/18/2004

PDF

81 kB
• EE-254 Software Code

ZIP
EE-248: Interfacing AD7676 ADCs to ADSP-21365 SHARC® Processors (Rev. 1)
10/12/2004

PDF

307 kB
• EE-248 Software Code

ZIP
EE-202: Using the Expert Linker for Multiprocessor LDFs (Rev. 3)
9/15/2004

PDF

1186 kB
• EE-202 Software Code

ZIP
EE-232: Configuring the Signal Routing Unit of ADSP-2126x SHARC® DSPs (Rev. 1)
2/18/2004

PDF

70 kB
EE-189: Link Port Tips & Tricks For ADSP-2106x & ADSP-2116x SHARC® DSPs
10/27/2003

PDF

105 kB
EE-191: Implementing a Glueless UART Using The SHARC® DSP SPORTs
5/21/2003

PDF

174 kB
• EE-191 Software Code

ZIP
EE-177: SHARC® SPI Slave Booting (Rev. 3)
5/2/2003

PDF

43 kB
• EE-177: Code Example (Rev 3, 01/2007)

ZIP
EE-68: Analog Devices JTAG Emulation Technical Reference (Rev. 10)
12/20/2002

PDF

293 kB
EE-128: DSP in C++: Calling Assembly Class Member Functions From C++
9/18/2002

PDF

172 kB
EE-69: Understanding and Using Linker Description Files on SHARC Processors (Rev. 2)
9/17/2002

PDF

88 kB
• EE-69: Code Example (Rev 2, 01/2007)

ZIP
EE-110: A Quick Primer on ELF and DWARF File Formats
5/17/2000

PDF

19 kB
EE-104: Setting Up Streams with the VisualDSP Debugger
11/5/1999

PDF

120 kB
• EE-104 Software Code

ZIP

User Guides

SHARC^® Audio EZ-Extender^® Manual (Rev. 1.1)
11/11/2009

PDF

617 kB
Blackfin^®/SHARC^® USB EZ-Extender^® Manual (Rev. 1.1)
5/7/2009

PDF

359 kB
SHARC^® USB EZ-Extender^® Manual (Rev. 2.1)
7/26/2006

PDF

222 kB
SHARC^® EZ-Extender^® Manual (Rev. 3.1)
7/26/2006

PDF

235 kB

Processor Manuals

SHARC Processors: Manuals
9/10/2015
Getting Started with SHARC
2/14/2015
SHARC^® Processor Programming Reference (Includes ADSP-2136x, ADSP-2137x, and ADSP-214xx Processors) (Rev. 2.4)
3/14/2007

PDF

5387 kB
Documentation Errata
ADSP-2136x SHARC^® Processor Hardware Reference (includes the ADSP-21362/ADSP-21363/ADSP-21364/ADSP-21365/ADSP-21366 processors) (Rev. 2.1)
11/15/2005

PDF

8397 kB

Software Manuals

VisualDSP++^® 5.0 Assembler and Preprocessor Manual (Rev. 3.4)
11/15/2009

PDF

3197 kB
VisualDSP++^® 5.0 C/C++ Compiler Manual for SHARC^® Processors (Rev. 1.5)
11/13/2009

PDF

2277 kB
Documentation Errata
VisualDSP++^® 5.0 Loader and Utilities Manual (Rev. 2.5)
11/13/2009

PDF

2246 kB
Documentation Errata
VisualDSP++^® 5.0 Licensing Guide (Rev. 1.4)
11/13/2009

PDF

392 kB
VisualDSP++^® 5.0 Kernel (VDK) Users Guide (Rev. 3.5)
11/13/2009

PDF

2401 kB
VisualDSP++^® 5.0 Linker and Utilities Manual (Rev. 3.5)
11/13/2009

PDF

2290 kB
VisualDSP++^® 5.0 Run-Time Library Manual for SHARC^® Processors (Rev. 1.5)
11/12/2009

PDF

2298 kB
VisualDSP++^® 5.0 Users Guide (Rev. 3.0)
12/9/2007

PDF

2738 kB
VisualDSP++^® 5.0 Quick Installation Reference Card (Rev. 3.1)
8/30/2007

PDF

91 kB
VisualDSP++^® 5.0 Getting Started Guide (Rev. 3.0)
8/30/2007

PDF

2035 kB
Documentation Errata
VisualDSP++^® 5.0 Product Release Bulletin (Rev. 3.0)
8/30/2007

PDF

774 kB

Emulator Manuals

ICE-1000/ICE-2000 Emulator User’s Guide (Rev. 1.2)
6/3/2014

PDF

321 kB
HPUSB, USB, and HPPCI Emulator User’s Guide (Rev. 3.2)
11/11/2009

PDF

746 kB
ICE-100B Emulator User’s Guide (Rev. 1.1)
11/11/2009

PDF

348 kB

Integrated Circuit Anomalies

ADSP-21362 SHARC Anomaly List for Revisions 0.2, 0.4 (Rev. K)
12/13/2006

PDF

162 K

Product Highlight

SHARC Processor Family
9/21/2010

PDF

1836 kB

Software & Systems Requirements

Overview

Features and Benefits

Product Details

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Production

Evaluation Kits (3)

EVAL-SHAUDIO-EZEXT

EVAL-BFSHUSB-EZEXT

EVAL-21364-EZLITE

EVAL-SHAUDIO-EZEXT

Features & Benefits

Resources

EVAL-BFSHUSB-EZEXT

Features & Benefits

Resources

EVAL-21364-EZLITE

Features & Benefits

Resources

Documentation & Resources

Software & Systems Requirements

Software & Tools Anomalies

Software and Tools Anomalies Search

Code Examples

ADSP-2136x Application Code Examples - Single Channel

Single-Channel Block FIR

Single-Channel Complex Block FIR

Single-Channel Complex Vector Add

Single-Channel Complex Vector DOT Product

Single-Channel Complex Vector Multiply Accumulate

Single-Channel Complex Vector Multiply

Single-Channel Complex Vector RAD2 FFT

Single-Channel Complex Vector RAD4 FFT

Single-Channel Matrix by Matrix

Single-Channel Matrix by Vector

Single-Channel Real Rad2 FFT

Single-Channel Single Sample FIR

Single-Channel Vector Maximum

ADSP-2136x Application Code Examples - Multi Channel

Multi-Channel Complex Rad4 FFT

Multi-Channel Divide

Multi-Channel FIR Broadcast Coeff

Multi-Channel FIR Multi Coeff

Multi-Channel IIR Broadcast Coeff

Multi-Channel IIR Multi Coeff

Multi-Channel Inverse Square Root

Multi-Channel Matrix

Software Development Tools

CrossCore® Embedded Studio

SigmaStudio®

Tools & Simulations

IBIS Models

Design Tools

BSDL Model Files

Support & Discussions

adsp-21362 Discussions

CrossCore^® Embedded Studio
