Features
- 150MHz (6.67 ns) SIMD SHARC Core, capable of 900MFLOPS peak performance
- Code compatible with all SHARC Processors
- Supports IEEE-compatible 32-bit floating-point, 40-bit floating-point and 32-bit fixed-point data types
- 1Mbit on-chip dual-ported SRAM; 3Mbits mask-programmable ROM
- 4 independent Serial Ports - Supports: Standard DSP Serial mode, I2S mode, Left Justified Sample pair mode and TDM mode
- 18 Zero-overhead DMA channels
- SPI compatible interface and a 16-bit Parallel Port
- Digital Audio Interface (DAI)
- Software configurable PLL providing many multiplier ratios
- Four timers: 1 core and 3 general purpose timers
- 136-ball BGA (12mm × 12mm) and 144-lead LQFP (20mm × 20mm) packages available in Commercial and Industrial temp ranges
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADSP-21261 is the lowest cost member of the third-generation of SHARC® programmable digital signal processors. A range of cost-sensitive applications such as voice recognition, medical appliances, measurement devices, high-quality audio, and automotive entertainment systems will benefit from the ADSP-21261’s integration of large on-chip memory and diverse set of peripherals.
The ADSP-21261 is well suited for use in cost sensitive, signal processing applications.
The ADSP-21261 is based on the SHARC (SIMD) core that supports execution of 32-bit fixed-point and 32/40-bit floating-point arithmetic formats. With its core running at 150MHz (6.67 ns instruction cycle time), the ADSP-21261 is capable of executing complex Fast Fourier Transform (FFT) operations—1024-point complex FFT in 61us. The processor’s single-instruction, multiple data (SIMD) mode effectively doubles the processor performance.
The ADSP-21261 offers a high level of integration, including 1 Mbit of on-chip dual-ported SRAM and 3Mbits of mask programmable ROM memory. This large on-chip dual-ported memory enables sustained processor and I/O performance without the need for external memory. System I/O is achieved through four full-duplex serial ports, four timers, a 16-bit parallel port, a serial peripheral interface (SPI), 18 zero-overhead Direct Memory Access (DMA) channels delivering fast data transfers without processor intervention and an innovative Digital Audio Interface (DAI) which provides the user complete software control through its Signal Routing Unit (SRU).
Digital Audio Interface (DAI) for Simplified I/O System Development
The ADSP-21261 utilizes the Digital Audio Interface (DAI), an architecture that enables complete software programmability of various on-chip peripherals. The flexibility and ease-of-use of the SHARC programming model, combined with the DAI, allow manufacturers to deploy one hardware configuration into multiple product offerings with different I/O requirements.
Connections are made using the flexible Signal Routing Unit (SRU), a matrix routing group of pins that provides configurable and flexible connectivity between all DAI components and the SRU. The peripherals connected through the DAI are: a precision clock generator (PCG), an input data port (IDP), four SPORTS (serial ports), six flag inputs, six flag outputs, three timers and the SRU. The IDP provides an additional input path to the DSP core, configurable as 8 channels of receive serial data or as 7 channels of receive serial data and a single channel of up to a 20-bit wide parallel data. This level of integration enables the designer to take full advantage of a wide variety of peripherals without sacrificing the overall system performance.
CROSSCORE Development Tools
All 3rd Generation SHARC Processors are supported by ADI’s CROSSCORE brand of award winning development tools. The CROSSCORE components include the VisualDSP++™ software development environment, EZ-KIT Lite™ evaluation systems, and emulators.
VisualDSP++ is an integrated software development environment, allowing for fast and easy development, debug, and deployment. The EZ-KIT Lite evaluation system provides an easy way to investigate the power of the ADI family of processors and begin to develop applications. Emulators are available for PCI and USB host platforms for rapid on-chip debugging. Additional development tools and algorithms are available from an extensive third-party development community.
Note: The functional block diagram is available in the data sheet.
3
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADSP-21261
Documentation
Filters
1 Applied
-
All
-
Application Note
-
Processor Manual
-
Legacy Emulator Manual
-
User Guide
-
Emulator Manual
-
Product Highlight
-
Data Sheet
-
Integrated Circuit Anomaly
-
Software Manual
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
1
Application Note
53
142 kB
306 kB
Processor Manual
4
HTML
HTML
HTML
Legacy Emulator Manual
1
User Guide
8
Emulator Manual
6
Product Highlight
2
1836 kB
1737 kB
Integrated Circuit Anomaly
1
Software Manual
11
Documentation
Data Sheet 1
User Guide 4
Application Note 43
EE-110: A Quick Primer on ELF and DWARF File Formats
EE-216: Estimating Power Dissipation for ADSP-21262S SHARC® DSPs
EE-322: Expert Code Generator for SHARC® Processors (Rev.5)
EE-332: Cycle Counting and Profiling (Rev.2)
EE-356: Emulator and Evaluation Hardware Troubleshooting Guide for CCES Users (Rev.2)
EE-128: DSP in C++: Calling Assembly Class Member Functions From C++
EE-208: Considering the ADSP-21262 SHARC® DSP
EE-355: Expert In-Circuit FLASH Programmer for SHARC® Processors (Rev.1)
EE-305: Designing and Debugging Systems with SHARC Processors (Rev.1)
EE-250: Estimating Power Dissipation for Industrial Grade ADSP-21262 SHARC® Processors (Rev.1)
EE-175: Emulator and Evaluation Hardware Troubleshooting Guide for VisualDSP++ Users (Rev.14)
EE-270: Extended-Precision Fixed-Point Arithmetic on SIMD SHARC® Processors (Rev.1)
EE-330: Windows Vista Compatibility in VisualDSP++ 5.0 Development Tools (Rev.1)
EE-69: Understanding and Using Linker Description Files on SHARC Processors (Rev.2)
EE-202: Using the Expert Linker for Multiprocessor LDFs (Rev.3)
EE-220: Using External Memory with Third Generation SHARC® Processors and the Parallel Port (Rev.2)
EE-243: Using the Expert DAI for SHARC® Processors (Rev.7)
EE-261: Understanding Jitter Requirements of PLL-Based Processors (Rev.1)
EE-56: Tips and Tricks on SHARC® EPROM and Host Boot Loader (Rev.3)
EE-253: Power Bypass Decoupling of SHARC® Processors (Rev.1)
EE-255: Porting PC-Based MP3 Player Software to ADSP-21262 SHARC® Processors (Rev.1)
EE-177: SHARC® SPI Slave Booting (Rev.3)
EE-104: Setting Up Streams with the VisualDSP Debugger
EE-295: Implementing Delay Lines on SHARC® Processors (Rev.1)
EE-189: Link Port Tips & Tricks For ADSP-2106x & ADSP-2116x SHARC® DSPs
EE-290: Managing the Core PLL on SHARC® Processors (Rev.5)
EE-191: Implementing a Glueless UART Using The SHARC® DSP SPORTs
EE-279: Interfacing NAND Flash Memory with ADSP-2126x SHARC® Processors (Rev.1)
EE-231: In-Circuit Programming of an SPI Flash with SHARC® Processors (Rev.2)
EE-323: Implementing Dynamically Loaded Software Modules (Rev.1)
EE-222: Interfacing the ADSP-21262 SHARC EZ-KIT Lite Boards to High-Speed Converter Evaluation Boards (Rev.1)
EE-328: Migrating from ADSP-2106x/2116x to ADSP-2126x/2136x/2137x SHARC® Processors (Rev.1)
EE-267: Implementing In-Place FFTs on SISD and SIMD SHARC® Processors (Rev.1)
EE-264: Interfacing MultiMediaCard™ with ADSP-2126x SHARC® Processors (Rev.1)
EE-223: In-Circuit Flash Programming on SHARC® Processors (Rev.2)
EE-246: Interfacing AD7276 High-Speed Data Converters to ADSP-21262 SHARC® Processors (Rev.1)
EE-345: Boot Kernel Customization and Firmware Upgradeability on SHARC Processors® (Rev.1)
EE-68: Analog Devices JTAG Emulation Technical Reference (Rev.10)
EE-112: Class Implementation in Analog C++
EE-230: Code Overlays on the Third Generation SHARC® Family of Processors (Rev.2)
EE-219: Connecting Character LCD Panels to ADSP-21262 SHARC® DSPs (Rev.1)
EE-340: Connecting SHARC® and Blackfin® Processors over SPI (Rev.1)
EE-232: Configuring the Signal Routing Unit of ADSP-2126x SHARC® DSPs (Rev.1)
Processor Manual 3
Product Highlight 1
Software Manual 11
VisualDSP++® 5.0 Users Guide (Rev.3.0)
VisualDSP++® 5.0 Quick Installation Reference Card (Rev.3.1)
VisualDSP++® 5.0 C/C++ Compiler Manual for SHARC® Processors (Rev.1.5)
VisualDSP++® 5.0 Licensing Guide (Rev.1.4)
VisualDSP++® 5.0 Loader and Utilities Manual (Rev.2.5)
VisualDSP++® 5.0 Product Release Bulletin (Rev.3.0)
VisualDSP++® 5.0 Assembler and Preprocessor Manual (Rev.3.4)
VisualDSP++® 5.0 Getting Started Guide (Rev.3.0)
VisualDSP++® 5.0 Run-Time Library Manual for SHARC® Processors (Rev.1.5)
VisualDSP++® 5.0 Kernel (VDK) Users Guide (Rev.3.5)
VisualDSP++® 5.0 Linker and Utilities Manual (Rev.3.5)
Emulator Manual 3
Integrated Circuit Anomaly 1
Legacy Emulator Manual 1
Legacy Evaluation Kit Manual 2
Product Highlight 1
Product Selection Guide 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADSP-21261SKBCZ150 |
136-Ball CSPBGA (12mm x 12mm)
|
|
|
| ADSP-21261SKSTZ150 |
144-Lead LQFP (20mm x 20mm)
|
|
- ADSP-21261SKBCZ150
- Pin/Package Drawing
-
136-Ball CSPBGA (12mm x 12mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADSP-21261SKSTZ150
- Pin/Package Drawing
-
144-Lead LQFP (20mm x 20mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 18, 2010
- 07_0093
Conversion to Laser Mark for all ADSPXXXX, ADSSTXXXX, and PC Audio Codecs Ink on Plastic Encapsulated Parts
ADSP-21261SKBCZ150
PRODUCTION
ADSP-21261SKSTZ150
PRODUCTION
Oct 18, 2016
- 16_0034
Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin
Jan 5, 2009
- 07_0077
Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 18, 2010
- 07_0093
Conversion to Laser Mark for all ADSPXXXX, ADSSTXXXX, and PC Audio Codecs Ink on Plastic Encapsulated Parts
Oct 18, 2016
- 16_0034
Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin
Jan 5, 2009
- 07_0077
Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages
Software & Part Ecosystem
Software & Tools Anomaly
Software Development Tools
SigmaStudio®
Looking for Evaluation Software? You can find it here
Evaluation Kits 4
EVAL-21262-EZEXT
SHARC EZ-Extender for Analog Devices ADSP-21262 EZ-KIT Lite
Features and Benefits
- ADSP-21262 SHARC® Processor
- 1M x 8-bit Flash memory
- AD1835A 2 ADC, 8 DAC, 96 kHZ, 24-Bit Sigma Delta Codec
- 4x2 RCA jack for 4 channels of stereo audio output
- 512K x 8-bit SRAM
- 512 Kbit SPI Flash memory
- 1x2 RCA jack for 1 channel of stereo audio input
- Headphone jack (connected to 1 of the stereo outputs)
Product Detail
Applications and information about the use and connection of the various interfaces on the SHARC EZ-Extender are available from Analog Devices.
Part Number
ADZS-21262-1-EZEXT
Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support
For additional information, contact your local Analog Devices Sales Office or Distributor.
Resources

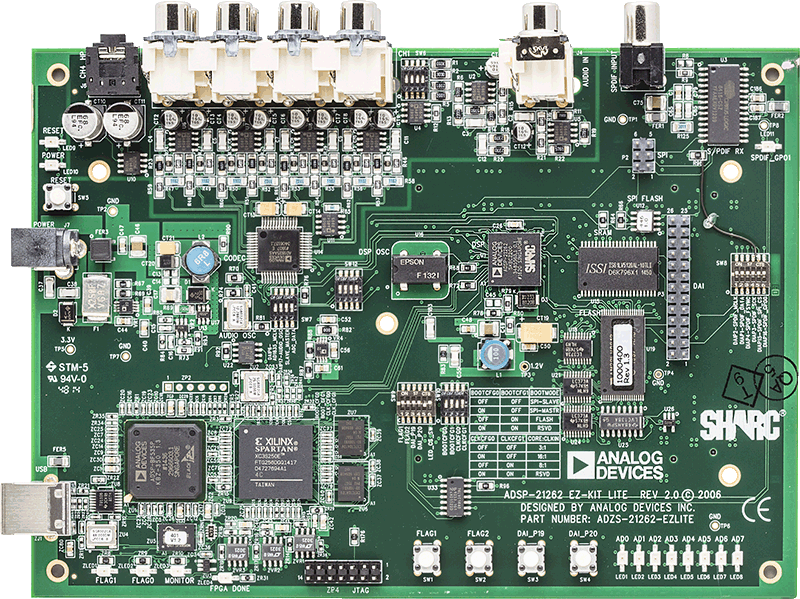

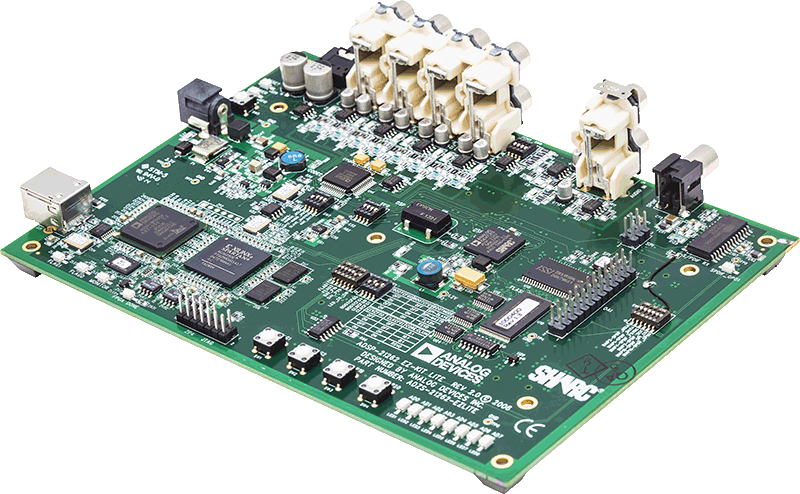

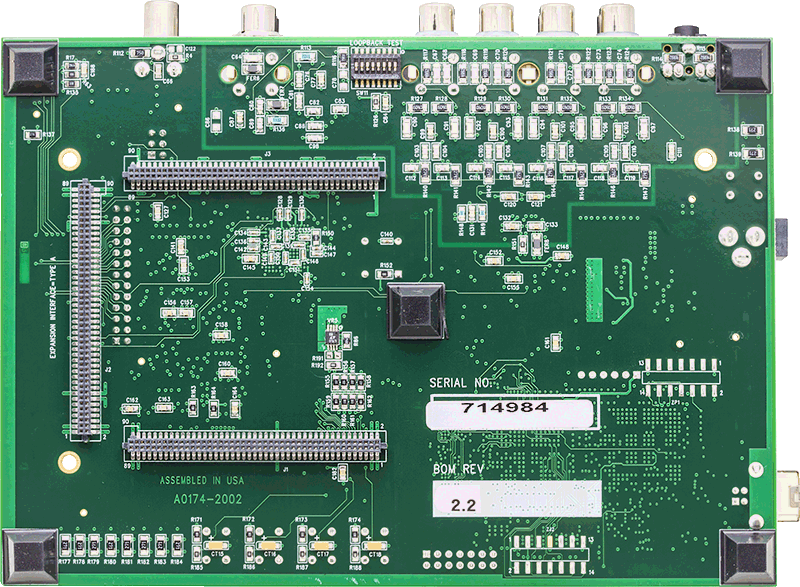

EVAL-21262-EZLITE
The ADSP-21262 EZ-Kit Lite evaluation hardware provides a low-cost hardware solution for evaluating the ADSP-2126x SHARC processor family.
Features and Benefits
- ADSP-21262 SHARC® Processor
- 1M x 8-bit Flash memory
- AD1835A: 2 ADC, 8 DAC, 96 kHz, 24-Bit Sigma Delta Codec
- 4x2 RCA jack for 4 channels of stereo audio output
- 512K x 8-bit SRAM
- 512 Kbit SPI Flash memory
- 1x2 RCA jack for 1 channel of stereo audio input
- Headphone jack (connected to 1 of the stereo outputs)
Product Detail
The EZ-KIT Lite includes an ADSP-21262 Processor desktop evaluation board along with an evaluation suite of the VisualDSP++ development and debugging environment with the C/C++ compiler, assembler, and linker. VisualDSP++ development and debugging software, along with the USB-based debugger interface, enables users to perform standard debugging functions (such as read and write memory, read and write registers, load and execute executables, set and clear breakpoints, and single-step assembly, C, and C++ source code).
Part Number:
ADZS-21262-EZLITE
Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support
Resources
EVAL-BFSHUSB-EZEXT
The USB extender board is a low-cost, plug-on extender for EZ-Boards. This extender extends the capabilities of the evaluation system by providing a connection between the asynchronous memory bus of the Blackfin or SHARC processor and a USB 2.0 device. For information about compatible EZ-Board products, see the processors family's Software and Tools page.
Features and Benefits
- ADSP-21469: 176-pin LQFP package, 25 MHz CLKIN oscillator
- ADSP-21479: 196-pin BGA package, 16.625 MHz CLKIN oscillator
- ADSP-21489: 176-pin LQFP package, 25 MHz CLKIN oscillator
- Flash Memory: 4 M x 8-bit, Numonyx
- SDRAM Memory: 16Mb x16 bit, Micron MT48LC16M16A2P-6A
- Asynch SRAM: 1M x16 bit, ISSI IS61WV102416BLL-10TLI
- SPI Memory: 16 Mbit
- Analog Audio: AD1939 Codec
- SPDIF: RCA phone jacks
- Temp Sensor: ADM1032 Two Wire Sensor
- UART: ADM3202 RS-232 line driver/receiver
- Power Supply: 5V @ 3.6 Amps
- LEDs: 10 LEDs: 1 power (green), 1 board reset (red), and 8 general purpose (amber)
- Push Buttons: (5) push buttons: (1) reset, (2) connected to DAI, (2). IRQ/Flag
- SHARC Expansion Interface II: AMI, Flags/IRQs, DAI, DPI, PWR_IN, 3.3V, GND
- Other Features: Standalone Debug Agent Interface, RTC (Real Time Clock) implementation, Shift Register Interface, MP JTAG IN and OUT Connectors, 0-ohm resistors for DSP current measurement, CE compliant
Product Detail
Ordering Information:
Part number: ADZS-BFSHUSB-EZEXT
CROSSCORE® Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support
Resources
EVAL-SHAUDIO-EZEXT
The SHARC Audio extender board is a low-cost, plug-on extender for EZ-Boards. This extender extends the capabilities of the SHARC evaluation system by providing three AD1939 audio codecs and providing 24 channels of analog audio out, 12 channels of analog audio in. For information about compatible EZ-Board products, see the processors family's Software and Tools page.
Features and Benefits
- Analog audio interface
- AD1939 – three Analog Devices 192 kHz audio codecs
- 24 channels of audio out (twelve stereo channels)
- Twelve channels of audio in (six stereo channels)
- TDM and I2S modes at 48 KHz, 96 KHz, and 192 KHz sample rates
- Single-ended input/output
- Three RCA phono jack inputs (4 x 1)
- Three RCA phono jack outputs (4 x 2)
- Differential input/output
- Two DB25 connector inputs
- Three DB25 connector outputs
Product Detail
The SHARC Audio EZ-Extender provides users the ability to evaluate audio application on the ADSP-214xx EZ-Board/ EZ-KIT Lite. Software examples are provided in the latest update of VisualDSP++.
The EZ-Extender consists of three Analog Devices AD1939 audio codecs and provides 24 channels of analog audio out, 12 channels of analog audio in. The primary codec operates in both in I2S and TDM mode and can run at sample rates of 48, 96, or 192 KHz. The other two codec are configured to operate in Dual Line TDM mode. The three codecs together can operate in dual line TDM mode for 24 analog channels out and 12 analog channels in at a sample rate of 192KHz.
The audio input and output is available via multiple RCA connectors. A group of switches are available if a user should decide to evaluate the audio codec inputs and outputs in a differential mode. (NOTE: DB25 to XLR cables are not supplied with the EZ-Extender).
Ordering Information:
Part number: ADZS-SHAUDIO-EZEXT
CROSSCORE® Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support
Resources
Evaluation Kits4
Tools & Simulations 2
SHARC Processors Software and Tools
BSDL Model File 3
BSDL Model File
