ADSP-21371
High-Performance 32-bit Floating-Point SHARC Processor for Automotive Audio
Show More
Not the part you were looking for?
2
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- High performance 32-bit/40-bit floating point processor optimized for high performance audio processing
- On-chip memory, ADSP-21375—0.5M bits of on-chip SRAM and 2M bits of on-chip mask-programmable ROM
- Single-instruction, multiple-data (SIMD) computational architecture
- On-chip memory, ADSP-21371—1M bits of on-chip SRAM and 4M bits of on-chip mask-programmable ROM
- See datasheet for additional features
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

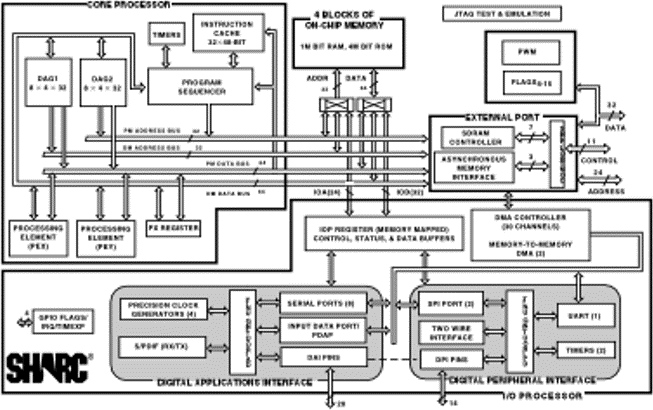

The third generation of SHARC® Processors, which includes the ADSP-21375 and ADSP-21371, offers increased performance, audio and application-focused peripherals, and memory configurations capable of supporting surround-sound decoder algorithms. All devices are pin-compatible and completely code-compatible with other SHARC Processors such as the ADSP-21367 and ADSP-21369. These members of the SHARC Processor family are based on a single-instruction, multiple-data (SIMD) core, which supports both 32-bit fixed-point and 32-/40-bit floating-point arithmetic formats making them particularly suitable for high-performance audio applications.
The ADSP-21371 offers a high performance at a very low cost 266 MHz/1596 MFLOPs -- within the third generation SHARC Processor family. This level of performance makes the ADSP-21371 particularly well suited to address the increasing requirements of the professional and automotive audio market segments while maintaining a low cost. In addition to its higher core performance, the ADSP-21371 includes additional value-added peripherals such as an S/PDIF transmitter/receiver. The ADSP-21371 also provides a direct interface to synchronous SDRAMs with a 32-bit interface that operates at 133 MHz.
Third generation SHARC Processors also integrate application-specific peripherals designed to simplify hardware design, minimize design risks, and ultimately reduce time to market. Grouped together, and broadly named the Digital Audio Interface (DAI), these functional blocks may be connected to each other or to external pins via the software-programmable Signal Routing Unit (SRU). The SRU is an innovative architectural feature that enables complete and flexible routing amongst DAI blocks. Peripherals connected through the SRU include but are not limited to serial ports, SPI ports, and S/PDIF Tx/Rx.
DEDICATED AUDIO COMPONENTS
- ADSP-21371—S/PDIF-compatible digital audio receiver/transmitter
- ADSP-21371—8 dual data line serial ports that operate at up to 33 Mbps on each data line — each has a clock, frame sync, and two data lines that can be configured as either a receiver or transmitter pair
- 16 PWM outputs configured as four groups of four outputs
- ROM-based security features include JTAG access to memory permitted with a 64-bit key Protected memory regions that can be assigned to limit access under program control to sensitive code
- PLL has a wide variety of software and hardware multiplier/divider ratios
- Available in a 208-lead LQFP_EP package
2
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADSP-21371
Documentation
Filters
1 Applied
-
All
-
Application Note
-
Processor Manual
-
User Guide
-
Emulator Manual
-
Product Highlight
-
Data Sheet
-
Integrated Circuit Anomaly
-
Software Manual
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
2
Application Note
51
142 kB
306 kB
Processor Manual
6
User Guide
9
Emulator Manual
6
Product Highlight
2
1836 kB
1737 kB
Integrated Circuit Anomaly
2
Software Manual
11
Documentation
Data Sheet 1
User Guide 5
Application Note 40
EE-110: A Quick Primer on ELF and DWARF File Formats
EE-322: Expert Code Generator for SHARC® Processors (Rev.5)
EE-332: Cycle Counting and Profiling (Rev.2)
EE-356: Emulator and Evaluation Hardware Troubleshooting Guide for CCES Users (Rev.2)
EE-355: Expert In-Circuit FLASH Programmer for SHARC® Processors (Rev.1)
EE-305: Designing and Debugging Systems with SHARC Processors (Rev.1)
EE-175: Emulator and Evaluation Hardware Troubleshooting Guide for VisualDSP++ Users (Rev.14)
EE-84: External Port DMA Modes of Operation for SHARC Processors (Rev.2)
EE-270: Extended-Precision Fixed-Point Arithmetic on SIMD SHARC® Processors (Rev.1)
EE-318: Estimating Power Dissipation for ADSP-21371 SHARC® Processors (Rev.1)
EE-330: Windows Vista Compatibility in VisualDSP++ 5.0 Development Tools (Rev.1)
EE-69: Understanding and Using Linker Description Files on SHARC Processors (Rev.2)
EE-202: Using the Expert Linker for Multiprocessor LDFs (Rev.3)
EE-243: Using the Expert DAI for SHARC® Processors (Rev.7)
EE-261: Understanding Jitter Requirements of PLL-Based Processors (Rev.1)
EE-56: Tips and Tricks on SHARC® EPROM and Host Boot Loader (Rev.3)
EE-296: Using the UART Port Controller on SHARC® Processors (Rev.2)
EE-253: Power Bypass Decoupling of SHARC® Processors (Rev.1)
EE-177: SHARC® SPI Slave Booting (Rev.3)
EE-329: Running FAT16 File Systems and DOS Commands on SHARC® Processors (Rev.1)
EE-104: Setting Up Streams with the VisualDSP Debugger
EE-266: Programming S/PDIF on ADSP-2136x and ADSP-21371 SHARC® Processors (Rev.2)
EE-260: Interfacing AD7865 Parallel ADCs to ADSP-2136x SHARC® Processors (Rev.1)
EE-285: Migrating from ADSP-21065L to ADSP-21375 SHARC® Processors (Rev.2)
EE-189: Link Port Tips & Tricks For ADSP-2106x & ADSP-2116x SHARC® DSPs
EE-290: Managing the Core PLL on SHARC® Processors (Rev.5)
EE-286: Interfacing SDRAM Memories to SHARC® Processors (Rev.5)
EE-191: Implementing a Glueless UART Using The SHARC® DSP SPORTs
EE-231: In-Circuit Programming of an SPI Flash with SHARC® Processors (Rev.2)
EE-323: Implementing Dynamically Loaded Software Modules (Rev.1)
EE-313: Land Pattern Compatibility Between 28x28 MQFP and LQFP Packages (Rev.1)
EE-328: Migrating from ADSP-2106x/2116x to ADSP-2126x/2136x/2137x SHARC® Processors (Rev.1)
EE-267: Implementing In-Place FFTs on SISD and SIMD SHARC® Processors (Rev.1)
EE-264: Interfacing MultiMediaCard™ with ADSP-2126x SHARC® Processors (Rev.1)
EE-223: In-Circuit Flash Programming on SHARC® Processors (Rev.2)
EE-345: Boot Kernel Customization and Firmware Upgradeability on SHARC Processors® (Rev.1)
EE-68: Analog Devices JTAG Emulation Technical Reference (Rev.10)
EE-112: Class Implementation in Analog C++
EE-340: Connecting SHARC® and Blackfin® Processors over SPI (Rev.1)
EE-232: Configuring the Signal Routing Unit of ADSP-2126x SHARC® DSPs (Rev.1)
Processor Manual 4
Product Highlight 1
Software Manual 11
VisualDSP++® 5.0 Users Guide (Rev.3.0)
VisualDSP++® 5.0 Quick Installation Reference Card (Rev.3.1)
VisualDSP++® 5.0 C/C++ Compiler Manual for SHARC® Processors (Rev.1.5)
VisualDSP++® 5.0 Licensing Guide (Rev.1.4)
VisualDSP++® 5.0 Loader and Utilities Manual (Rev.2.5)
VisualDSP++® 5.0 Product Release Bulletin (Rev.3.0)
VisualDSP++® 5.0 Assembler and Preprocessor Manual (Rev.3.4)
VisualDSP++® 5.0 Getting Started Guide (Rev.3.0)
VisualDSP++® 5.0 Run-Time Library Manual for SHARC® Processors (Rev.1.5)
VisualDSP++® 5.0 Kernel (VDK) Users Guide (Rev.3.5)
VisualDSP++® 5.0 Linker and Utilities Manual (Rev.3.5)
Emulator Manual 3
Integrated Circuit Anomaly 1
Product Highlight 1
Product Selection Guide 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADSP-21371BSWZ-2B |
208-Lead LQFP (28mm x 28mm w/ EP)
|
|
|
| ADSP-21371KSWZ-2B |
208-Lead LQFP (28mm x 28mm w/ EP)
|
|
- ADSP-21371BSWZ-2B
- Pin/Package Drawing
-
208-Lead LQFP (28mm x 28mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADSP-21371KSWZ-2B
- Pin/Package Drawing
-
208-Lead LQFP (28mm x 28mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Oct 18, 2016
- 16_0034
Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin
ADSP-21371BSWZ-2B
PRODUCTION
ADSP-21371KSWZ-2B
PRODUCTION
Jun 18, 2010
- 07_0093
Conversion to Laser Mark for all ADSPXXXX, ADSSTXXXX, and PC Audio Codecs Ink on Plastic Encapsulated Parts
ADSP-21371BSWZ-2B
PRODUCTION
ADSP-21371KSWZ-2B
PRODUCTION
Jan 5, 2009
- 07_0077
Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages
ADSP-21371BSWZ-2B
PRODUCTION
ADSP-21371KSWZ-2B
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Oct 18, 2016
- 16_0034
Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin
ADSP-21371BSWZ-2B
PRODUCTION
ADSP-21371KSWZ-2B
PRODUCTION
Jun 18, 2010
- 07_0093
Conversion to Laser Mark for all ADSPXXXX, ADSSTXXXX, and PC Audio Codecs Ink on Plastic Encapsulated Parts
Jan 5, 2009
- 07_0077
Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages
ADSP-21371BSWZ-2B
PRODUCTION
ADSP-21371KSWZ-2B
PRODUCTION
Software & Part Ecosystem
Evaluation Kits 3
EVAL-BFSHUSB-EZEXT
The USB extender board is a low-cost, plug-on extender for EZ-Boards. This extender extends the capabilities of the evaluation system by providing a connection between the asynchronous memory bus of the Blackfin or SHARC processor and a USB 2.0 device. For information about compatible EZ-Board products, see the processors family's Software and Tools page.
Features and Benefits
- ADSP-21469: 176-pin LQFP package, 25 MHz CLKIN oscillator
- ADSP-21479: 196-pin BGA package, 16.625 MHz CLKIN oscillator
- ADSP-21489: 176-pin LQFP package, 25 MHz CLKIN oscillator
- Flash Memory: 4 M x 8-bit, Numonyx
- SDRAM Memory: 16Mb x16 bit, Micron MT48LC16M16A2P-6A
- Asynch SRAM: 1M x16 bit, ISSI IS61WV102416BLL-10TLI
- SPI Memory: 16 Mbit
- Analog Audio: AD1939 Codec
- SPDIF: RCA phone jacks
- Temp Sensor: ADM1032 Two Wire Sensor
- UART: ADM3202 RS-232 line driver/receiver
- Power Supply: 5V @ 3.6 Amps
- LEDs: 10 LEDs: 1 power (green), 1 board reset (red), and 8 general purpose (amber)
- Push Buttons: (5) push buttons: (1) reset, (2) connected to DAI, (2). IRQ/Flag
- SHARC Expansion Interface II: AMI, Flags/IRQs, DAI, DPI, PWR_IN, 3.3V, GND
- Other Features: Standalone Debug Agent Interface, RTC (Real Time Clock) implementation, Shift Register Interface, MP JTAG IN and OUT Connectors, 0-ohm resistors for DSP current measurement, CE compliant
Product Detail
Ordering Information:
Part number: ADZS-BFSHUSB-EZEXT
CROSSCORE® Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support
Resources
EVAL-SHAUDIO-EZEXT
The SHARC Audio extender board is a low-cost, plug-on extender for EZ-Boards. This extender extends the capabilities of the SHARC evaluation system by providing three AD1939 audio codecs and providing 24 channels of analog audio out, 12 channels of analog audio in. For information about compatible EZ-Board products, see the processors family's Software and Tools page.
Features and Benefits
- Analog audio interface
- AD1939 – three Analog Devices 192 kHz audio codecs
- 24 channels of audio out (twelve stereo channels)
- Twelve channels of audio in (six stereo channels)
- TDM and I2S modes at 48 KHz, 96 KHz, and 192 KHz sample rates
- Single-ended input/output
- Three RCA phono jack inputs (4 x 1)
- Three RCA phono jack outputs (4 x 2)
- Differential input/output
- Two DB25 connector inputs
- Three DB25 connector outputs
Product Detail
The SHARC Audio EZ-Extender provides users the ability to evaluate audio application on the ADSP-214xx EZ-Board/ EZ-KIT Lite. Software examples are provided in the latest update of VisualDSP++.
The EZ-Extender consists of three Analog Devices AD1939 audio codecs and provides 24 channels of analog audio out, 12 channels of analog audio in. The primary codec operates in both in I2S and TDM mode and can run at sample rates of 48, 96, or 192 KHz. The other two codec are configured to operate in Dual Line TDM mode. The three codecs together can operate in dual line TDM mode for 24 analog channels out and 12 analog channels in at a sample rate of 192KHz.
The audio input and output is available via multiple RCA connectors. A group of switches are available if a user should decide to evaluate the audio codec inputs and outputs in a differential mode. (NOTE: DB25 to XLR cables are not supplied with the EZ-Extender).
Ordering Information:
Part number: ADZS-SHAUDIO-EZEXT
CROSSCORE® Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support
Resources
EVAL-21371-EZLITE
The ADSP-21371 EZ-Kit Lite evaluation hardware provides a low-cost hardware solution for evaluating the ADSP-21371 and ADSP-21375 SHARC processor family.
Product Detail
The ADSP-21371 EZ-KIT Lite® provides developers with a cost-effective method for initial evaluation of the ADSP-2137x SHARC® Processors via a USB-based, PC-hosted tool set. With this EZ-KIT Lite, users can learn more about the Analog Devices (ADI) ADSP-2137x hardware and software development tools, and quickly prototype a wide range of applications.
The EZ-KIT Lite includes an ADSP-21371 SHARC Processor desktop evaluation board along with an evaluation suite of the VisualDSP++® development and debugging environment, including the C/C++ compiler, assembler, and linker. The evaluation suite of VisualDSP++ is designed to be used with the EZ-KIT Lite only.
Part Number:
ADZS-21371-EZLITE
Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support
Resources
