ADSP-21584

Dual-core SHARC+ DSP, DDR, 349-cspBGA

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 6
1ku List Price Starting From $26.86

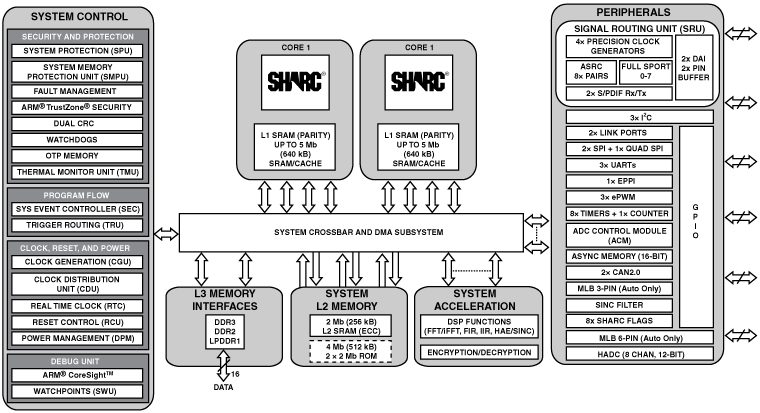

Features
  • 500 MHz (3.0 GFLOPS) per core
  • 5Mbits/640KB L1 memory/core with parity
    • Optional cache/SRAM mode
  • 32-bit, 40-bit & 64-bit floating point support
Shared System Memory
  • 256KB L2 SRAM with ECC protection
One Speed Memory Controller
  • DDR3-900, DDR2-800 & LPDDR (16-bit)
Advanced Hardware Accelerators
  • FFT/iFFT (20 GFLOPS, 5usec per 1K-pt FFT)
  • FIR/IIR and SINC Filters, ASRC
  • Security Crypto Engines with OTP
Packaging
  • 19mm x 19mm BGA  (0.8mm pitch)
  • Commercial, Industrial & Automotive
  • Up to 8x Full SPORT interfaces (w/ TDM & I2S modes)
  • S/PDIF Tx/Rx, 8x ASRC pairs, PCG
  • 2x Dual-SPI and 1x QuadSPI (w/ direct  execution)
  • MLB 3/6-pin (Auto devices only)
  • 3x I2C and 3x UARTs (w/ Flow Control)
  • Enhanced Parallel Peripheral Interface
    • For video I/O or parallel converter interface
  • 2x Link Ports (bi-directional, 8-bit, up to 150MB/sec)
  • 3x Enhanced PWM,  ADC Control Module (ACM)
  • 8x GP Timer, 1x GP Counter, WDT and RTC
  • Up to 80 GPIO (mux’ed w/ other interfaces)
  • 8-ch 12-bit 1MSPS Housekeeping ADC
  • Thermal Sensor

Additional Details
show more Icon

The ADSP-21584 processor is part of the new, high-performance, power-efficient, real-time series that delivers greater than 24 giga-floating-point operations per second using two enhanced SHARC+® cores and advanced DSP accelerators (FFT, FIR, IIR). The ADSP-SC58x and ADSP-2158x series consume less than 2 watts, making the new processor line-up more than 5x more power efficient than previous SHARC products. This advantage provides industry leading digital signal processing performance for applications where thermal management sets the limit for power consumption, or where the higher costs and lower reliability of fans cannot be tolerated.  Applications include automotive, consumer and professional audio, multi-axis motor control, and energy distribution systems.

The ADSP-2158x family is designed for applications where a DSP co-processor is exclusively needed and includes two SHARC+ cores and a peripheral set matched to a DSP core.

The new, code-compatible, enhanced SHARC+ core features clock-rate and power-efficiency improvements and adds instruction/data cache options, native double-precision floating-point support, and a number of other new instructions. Designed for low-power and using a low-leakage CMOS process, the ADSP-SC58x/2158x families deliver 500 MHz with 105°C environments in mind and provide a roadmap to future implementations at higher performance. More than 1.5 Mbytes of fast on-chip SRAM and a DDR3/2/LP interface aid efficient real-time performance while the memory subsystem includes major enhancements with advanced DMA engines for simultaneous data transfer.

With software IP protection a growing industry security concern, ARM® TrustZone® security and an onboard crypto hardware accelerators are included. For applications where reliability is a critical requirement, memory parity and error-correction hardware provide higher data integrity. The overall integration and low-power features offered by the new ADSP-SC58x and ADSP-2158x series deliver significant BOM and board area savings and provide lower design complexity and reduced time to market for today’s complex applications.

The ADSP-SC58x/2158x  is supported by ADI’s award winning Crosscore®  Embedded Studio development tool suite, providing design engineers with interactive, real-time development tools that help optimize their design and speed time to market.

Additionally, ADI and Micrium have collaborated to offer µC/OS-II® & µC/OS-III® real-time kernels on SHARC+.

The compatible ADSP-SC584 EZ-KIT-Lite development board and ICE-1000/2000 emulators facilitate the creation, test, and debug of advanced applications. Working in tandem with CrossCore Embedded Studio, the emulators provide state-of-the-art support for all JTAG-compliant Analog Devices processors now utilizing CoreSightfrom ARM.

Part Models 6
1ku List Price Starting From $26.86

close icon

Documentation

Technical Documents 22
show more Icon

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADSP-21584BBCZ-4A
  • HTML
  • HTML
ADSP-21584BBCZ-5A
  • HTML
  • HTML
ADSP-21584CBCZ-4A
  • HTML
  • HTML
ADSP-21584CBCZ-5A
  • HTML
  • HTML
ADSP-21584KBCZ-4A
  • HTML
  • HTML
ADSP-21584KBCZ-5A
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 7, 2023

- 23_0102

Alternate Test Site for Products Using The 349-Ball CSP_BGA Package.

ADSP-21584BBCZ-4A

PRODUCTION

ADSP-21584BBCZ-5A

PRODUCTION

ADSP-21584CBCZ-4A

PRODUCTION

ADSP-21584CBCZ-5A

PRODUCTION

ADSP-21584KBCZ-4A

PRODUCTION

ADSP-21584KBCZ-5A

PRODUCTION

Feb 20, 2019

- 19_0030

Die Revision for ADSP-SC58x & ADSP-2158x SHARC Processors

ADSP-21584BBCZ-4A

PRODUCTION

ADSP-21584BBCZ-5A

PRODUCTION

ADSP-21584CBCZ-4A

PRODUCTION

ADSP-21584CBCZ-5A

PRODUCTION

ADSP-21584KBCZ-4A

PRODUCTION

ADSP-21584KBCZ-5A

PRODUCTION

Dec 21, 2018

- 18_0142

Data sheet changes for ADSP-SC582,SC583,SC584,SC587,SC589,21583,21584,21587

ADSP-21584BBCZ-4A

PRODUCTION

ADSP-21584BBCZ-5A

PRODUCTION

ADSP-21584CBCZ-4A

PRODUCTION

ADSP-21584CBCZ-5A

PRODUCTION

ADSP-21584KBCZ-4A

PRODUCTION

ADSP-21584KBCZ-5A

PRODUCTION

Jul 20, 2017

- 17_0106

Data Sheet corrections for ADSP-2158x and ADSP-SC58x Products

ADSP-21584BBCZ-4A

PRODUCTION

ADSP-21584CBCZ-4A

PRODUCTION

ADSP-21584KBCZ-4A

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 7, 2023

- 23_0102

arrow down

Alternate Test Site for Products Using The 349-Ball CSP_BGA Package.

ADSP-21584BBCZ-4A

PRODUCTION

ADSP-21584BBCZ-5A

PRODUCTION

ADSP-21584CBCZ-4A

PRODUCTION

ADSP-21584CBCZ-5A

PRODUCTION

ADSP-21584KBCZ-4A

PRODUCTION

ADSP-21584KBCZ-5A

PRODUCTION

Feb 20, 2019

- 19_0030

arrow down

Die Revision for ADSP-SC58x & ADSP-2158x SHARC Processors

ADSP-21584BBCZ-4A

PRODUCTION

ADSP-21584BBCZ-5A

PRODUCTION

ADSP-21584CBCZ-4A

PRODUCTION

ADSP-21584CBCZ-5A

PRODUCTION

ADSP-21584KBCZ-4A

PRODUCTION

ADSP-21584KBCZ-5A

PRODUCTION

Dec 21, 2018

- 18_0142

arrow down

Data sheet changes for ADSP-SC582,SC583,SC584,SC587,SC589,21583,21584,21587

ADSP-21584BBCZ-4A

PRODUCTION

ADSP-21584BBCZ-5A

PRODUCTION

ADSP-21584CBCZ-4A

PRODUCTION

ADSP-21584CBCZ-5A

PRODUCTION

ADSP-21584KBCZ-4A

PRODUCTION

ADSP-21584KBCZ-5A

PRODUCTION

Jul 20, 2017

- 17_0106

arrow down

Data Sheet corrections for ADSP-2158x and ADSP-SC58x Products

ADSP-21584BBCZ-4A

PRODUCTION

ADSP-21584CBCZ-4A

PRODUCTION

ADSP-21584KBCZ-4A

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 3

reference details image

ADZS-SC584-EZLITE

ADSP-SC584 Evaluation Hardware for the ADSP-SC58x/ADSP-2158x SHARC Family (349-ball CSPBGA)

zoom

ADZS-SC584-EZLITE

ADSP-SC584 Evaluation Hardware for the ADSP-SC58x/ADSP-2158x SHARC Family (349-ball CSPBGA)

ADSP-SC584 Evaluation Hardware for the ADSP-SC58x/ADSP-2158x SHARC Family (349-ball CSPBGA)

Features and Benefits

  • ADSP-SC584 349-pin 19x19mm BGA
  • 2Gb DDR3 Memory
  • 128 Mb SPI Flash
  • Ethernet (10/100 &  GigE)
  • ADAU1977 quad ADC
  • ADAU1979 quad ADC
  • ADAU1962A 12 channel 24-bit DAC
  • AD2410 Automotive Audio Bus (A2B)
  • SPDIF in/out, optical & coax
  • UART
  • 2 CAN transceivers + RJ11 connectors
  • USB OTG
  • HADC
  • EI3 Expansion Interface
  • EZLITE includes ICE-1000 JTAG emulator and a permanent CrossCore® Embedded Studio license for use with the EZLITE via ICE-1000



Product Detail

The ADSP-SC584 EZ-KIT Lite and EZ-Board® are evaluation systems for the ADSP-SC58x family of SHARC® processors. The ADSP-SC584 processor is based on the SHARC+ core dual processor with the arm® Cortex-A5 processor core and is designed for a wide array of markets, from automotive and pro-audio to industrial-based applications that require high floating-point performance. The EZ-Board is shipped with all of the necessary hardware—you can start the evaluation immediately. The package contains the standalone evaluation board, CE-approved power supply, and USB cable. The EZ-KIT Lite® version ships with two 180 day licenses for CrossCore® Embedded Studio (CCES) and the ICE-1000 emulator, while the EZ-Board version requires the customer to provide an ICE-1000 or ICE-2000 emulator.

Expansion Interface III connectors are provided for interfacing with additional extender boards to provide LCD, camera, video, and audio. Traditional mechanical switches for changing the board's factory setup have been removed in favor of I2C controlled software switches. The only remaining mechanical switches are the boot mode switch, JTAG configuration switches, and push buttons.

The evaluation board is designed to be used in conjunction with the CrossCore® Embedded Studio (CCES) development tools to test capabilities of the ADSP-SC58x processors. The development environment aids advanced application code development and debug, such as:

  • Create, compile, assemble, and link application programs written in C++, C, and assembly
  • Load, run, step, halt, and set breakpoints in application programs
  • Read and write data and program memory
  • Read and write core and peripheral registers
reference details image

EMULATOR-ADSP

Low Cost ICE-1000 and High Performance ICE-2000 USB-based JTAG Emulators

zoom

EMULATOR-ADSP

Low Cost ICE-1000 and High Performance ICE-2000 USB-based JTAG Emulators

Low Cost ICE-1000 and High Performance ICE-2000 USB-based JTAG Emulators

Features and Benefits

  • JTAG/SWD support for Blackfin, Blackfin+, SHARC and multi-core SHARC+ with ARM
  • Plug-n-Play, USB 2.0 compliant
  • USB bus-powered device
  • Windows® 8.1, Window 7 compatible
  • Multiple processor I/O voltage support: 1.8V, 2.5V, and 3.3V
  • Multiprocessor support
  • JTAG/SWD clock operation of 5 MHz on the ICE-1000
  • JTAG/SWD clock operation up to 46 MHZ on the ICE-2000
  • Multi-colored LED for enhanced status indication
  • Software controlled target reset to support remote debug

Product Detail

The Analog Devices ICE-1000 and ICE-2000 emulators facilitate the creation, test, and debug of advanced applications on Analog Devices Processors and DSPs. Working in tandem with the CrossCore® Embedded Studio development environment, these emulators provide state-of-the-art support for all JTAG-compliant Analog Devices processors.

New debug feature added for the ICE-1000/ICE-2000:


  • Coresight Serial Wire Debug (SWD)
reference details image

HDMI Audio EI3 EZ-Extender

The HDMI Audio EI3 EZ-Extender is a low-cost, plug-on extender for EZ-KITs that support the Expansion Interface 3 (EI3) specification. This board extends the capabilities of the evaluation system by providing a connection to three analog audio codecs along with an HDMI transmitter/receiver. For information about compatible EZ-KIT products, see the processors family's Software and Tools page.

zoom

HDMI Audio EI3 EZ-Extender

The HDMI Audio EI3 EZ-Extender is a low-cost, plug-on extender for EZ-KITs that support the Expansion Interface 3 (EI3) specification. This board extends the capabilities of the evaluation system by providing a connection to three analog audio codecs along with an HDMI transmitter/receiver. For information about compatible EZ-KIT products, see the processors family's Software and Tools page.

The HDMI Audio EI3 EZ-Extender is a low-cost, plug-on extender for EZ-KITs that support the Expansion Interface 3 (EI3) specification. This board extends the capabilities of the evaluation system by providing a connection to three analog audio codecs along with an HDMI transmitter/receiver. For information about compatible EZ-KIT products, see the processors family's Software and Tools page.

Features and Benefits

  • Analog audio interface
    • AD1939 – three Analog Devices 192 kHz audio codecs
    • 24 channels of audio out (twelve stereo channels)
    • Twelve channels of audio in (six stereo channels)
    • TDM and I2S modes at 48 kHz, 96 kHz, and 192 kHz sample rates
  • HDMI Interface
    • ADV7625 HDMI Transmitter/Receiver
    • 8 channels of HD audio from HDMI (7.1 surround sound)
    • 4 HDMI Inputs and 2 HDMI outputs
  • Single-ended input/output
    • Twelve RCA phono jack inputs
    • Twenty four RCA phono jack outputs
  • IR Interface
    • HDMI CEC/remote control support

Product Detail

The HDMI Audio EI3 EZ-Extender is a separately sold daughter board that plugs onto the expansion interface III of the EZ-Board evaluation platform. The daughter board aids the design and prototyping phases of HDMI HD audio decode/encode applications. The board extends the capabilities of the evaluation system by providing a connection to three analog audio codecs along with an HDMI transmitter/receiver.


The HDMI Audio EI3 EZ-Extender’s analog audio interface is comprised of three Analog Devices AD1939 multichannel audio codecs. The AD1939 is a high performance, single-chip codec featuring four analog-to-digital converters (ADCs) for audio input and eight digital-to-analog converters (DACs) for audio output. This translates to twelve channels of audio in and twenty four channels of audio out. The codec/extender can input and output data at a sample rate of up to 192 kHz on all channels.


This HDMI Audio EI3 EZ-Extender connects with the Expansion Interface 3 (EI3) which gives the user more available signals on the interface connectors and a reduction in size over the previous EI2 specification. Software examples are provided to demonstrate the functionality of the devices on the Extender Board.
