LTC3605A

量产

20V、5A、同步降压型稳压器

数据手册 产品选型表
产品模型
4
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 高效率：达 96%
  • 5A 输出电流
  • 4V 至 20V VIN 范围
  • 集成型 N 沟道功率 MOSFET (70mΩ 顶端和 35mΩ 底端)
  • 可调频率范围：800kHz 至 4MHz
  • 多相 (PolyPhase®) 操作 (多达 12 相)
  • 输出跟踪
  • 0.6V ±1% 基准准确度
  • 电流模式操作以实现卓越的电压和负载瞬态响应
  • 停机模式吸收少于 15µA 电源电流
  • LTC3605：15V 绝对最大 VIN
  • LTC3605A：22V 绝对最大 VIN
  • LTC3605A 与 LTC3605 引脚兼容
  • 采用 24 引脚 (4mm x 4mm) QFN 封装
LTC3605A
20V、5A、同步降压型稳压器

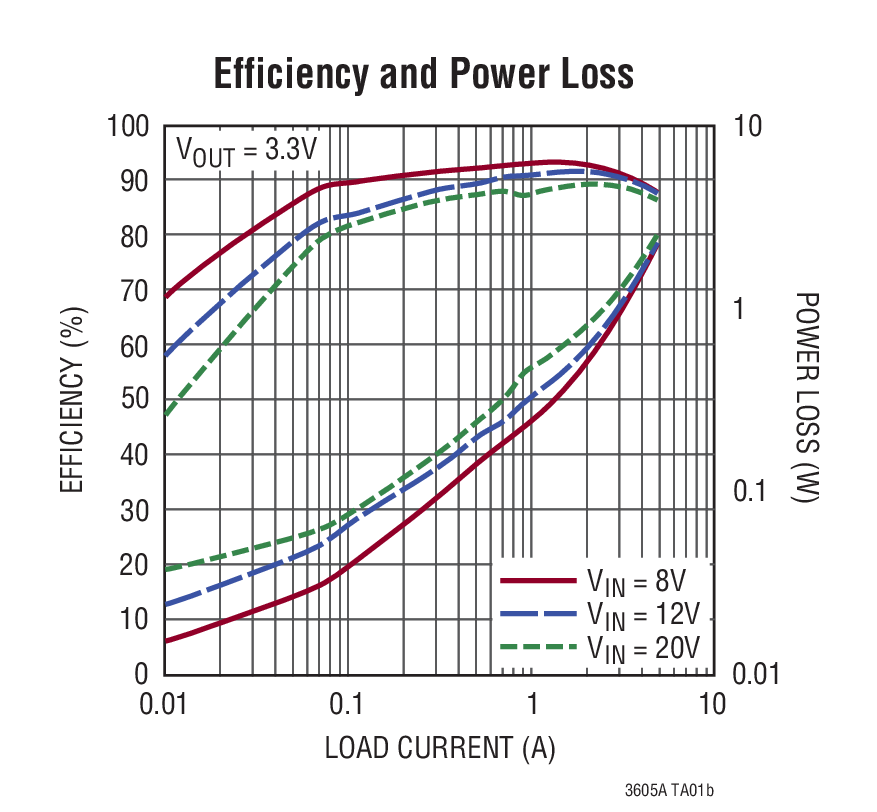

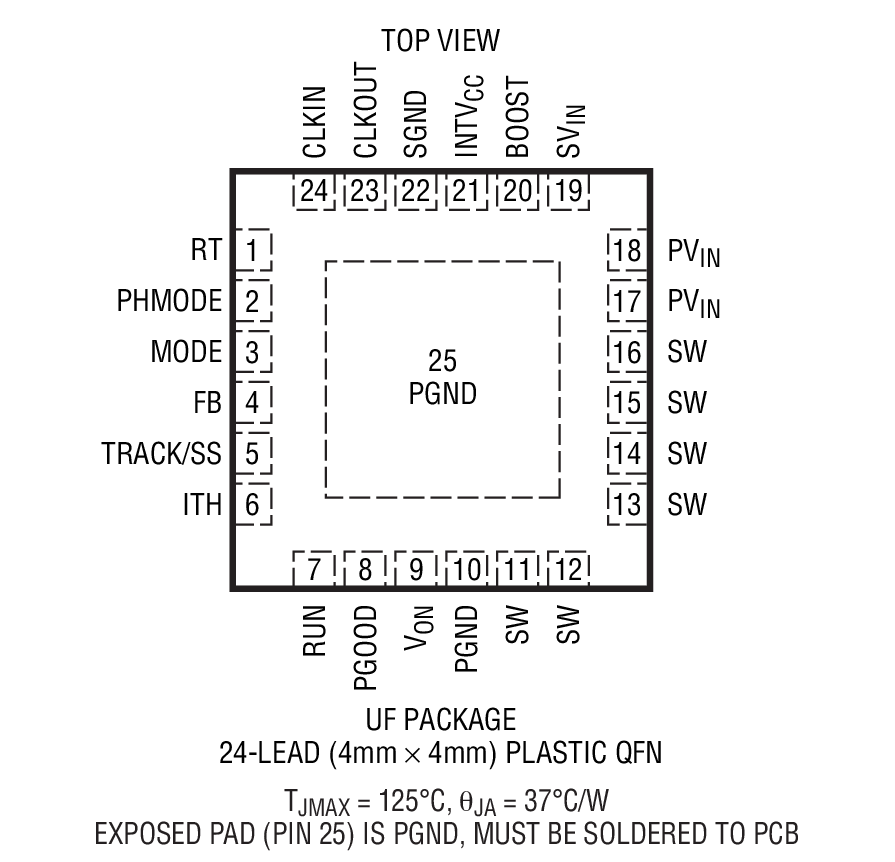

High Efficiency 1MHz, 5A Step-Down Regulator Efficiency and Power Loss Product Package 1
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

可靠性数据 1

用户手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

硬件生态系统

部分模型 产品周期 描述
硅振荡器 1
LTC6909
量产 采用扩频调制、可提供 1 至 8 个输出的多相硅振荡器
浪涌抑制器、过压和过流保护 1
LT4363
推荐新设计使用 具电流限制功能的高电压浪涌抑制器
数字电源系统管理器 1
LTC2974
推荐新设计使用 具有精确输出电流的4通道PMBus电源系统管理器
双电源监控器 1
LTC2960
推荐新设计使用 36V、纳安级电流、两输入电压监视器
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

LTspice 2

LTspice中提供以下器件型号：

  • LTC3605
  • LTC3605A

LTpowerCAD 1

LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

LTpowerCAD

LTpowerCAD®是一种电源设计程序，它选择功率级元件，提供详细效率信息，显示快速环路波特图稳定性和负载瞬态分析，并可导出至LTspice进行仿真。

评估套件

eval board

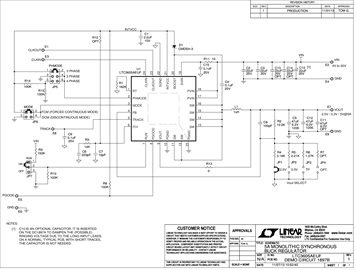

schematic 1
DC1897B

LTC3605A Demo Board | 4V to 20V Input, VOUT = 2.5V/3.3V/5V/Adj at 5A

立即购买 更多内容

产品详情

Demonstration circuit 1897 is a step-down converter, using the LTC3605A monolithic synchronous buck regulator. The DC1897B has a maximum input voltage of 20V, and is capable of delivering up to 5A of output current at a minimum input voltage of 4V. The output voltage of the DC1897B can be set as low as 0.6V, the reference voltage of the LTC3605A. It has a jumper that allows the output to be set at 2.5V, 3.3V or 5V. The LTC3605A has a phase-lock-loop circuit, allowing high current multiphase operation of several DC1897Bs in parallel.



DC1897B
LTC3605A Demo Board | 4V to 20V Input, VOUT = 2.5V/3.3V/5V/Adj at 5A

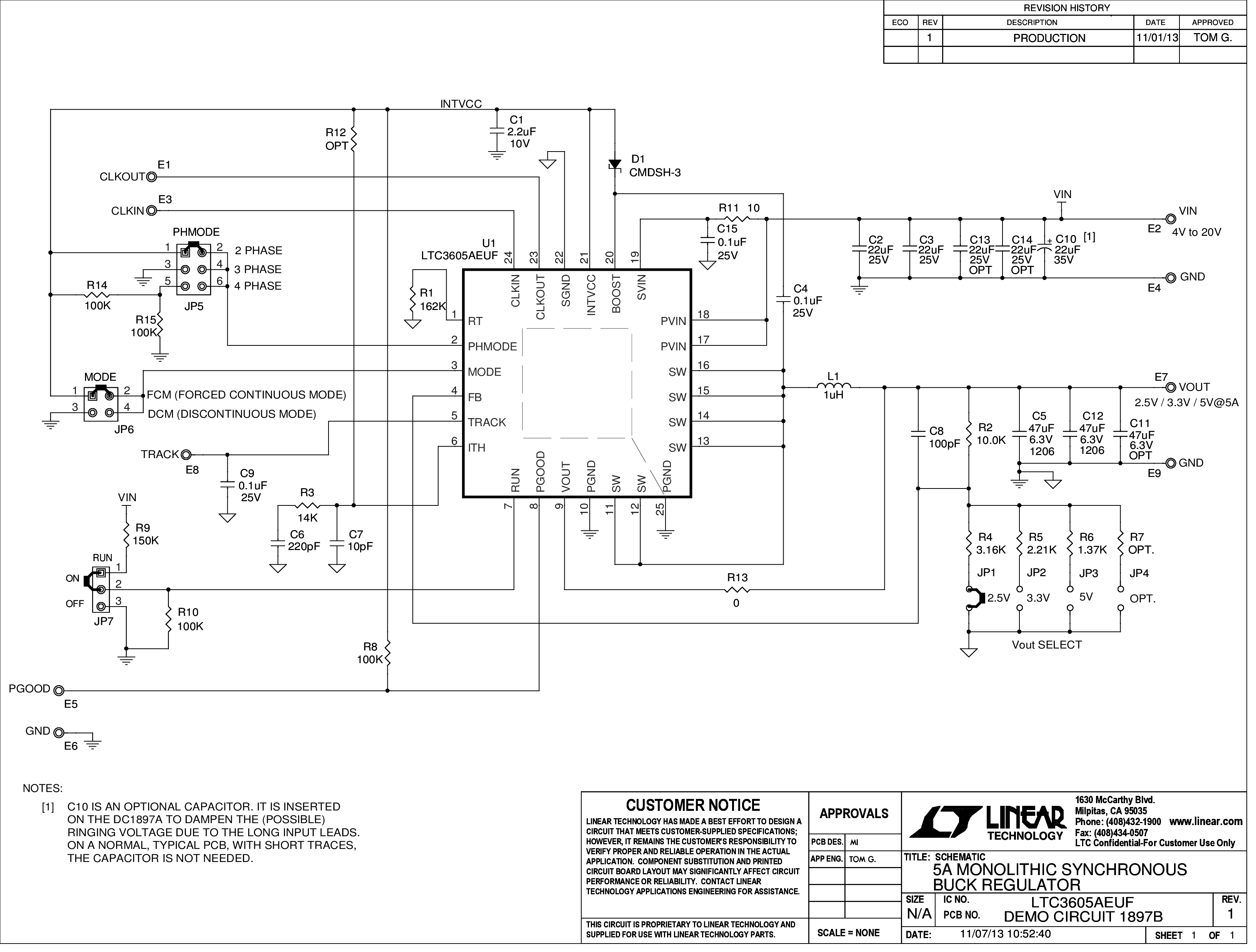

DC1897B - Schematic

参考电路

T1023RDB Dev Kit
T1023RDB Dev Kit

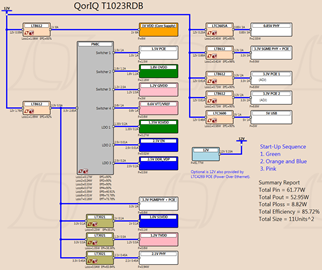

QorIQ T1023 Power Tree
NXP (Freescale) QorIQ T1023RDB 参考设计

查看参考设计详情

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
Monolithic Power Tree Solution for the ZU7 FPGA
Monolithic Power Tree Solution for the ZU7 FPGA
uModule Power Tree for the ZU7 FPGA
ZCU104 参考设计

Zynq UltraScale+ MPSoC ZCU104 Paper Reference Design

查看参考设计详情

特性和优点

  • The ZCU104 Evaluation Kit enables designers to jumpstart designs for embedded vision applications such as surveillance, Advanced Driver Assisted Systems (ADAS), machine vision, Augmented Reality (AR), drones and medical imaging.

  • The ADI Power delivery solutions support multiple reference designs using DC/DC module and monolithic solutions. ADI offers several options for powering the Zu7 FPGA.

  • Our module-based solutions combine a small footprint, while maximizing efficiency and tight regulation. Our monolithic based solutions support a lower cost optimized power delivery solution for mass production.

  • ADI provides supporting documentation to enable you to validate the power solution for your application seamlessly.

  • For a complete list power designs and use cases, please contact your local FAE.

  • Please refer to the circuit descriptions below that best support your design.
NXP (Freescale) QorIQ T1023RDB
T1023RDB Dev Kit
QorIQ T1023 Power Tree
ZCU104
Zynq UltraScale+ MPSoC ZCU104 Paper Reference Design
Monolithic Power Tree Solution for the ZU7 FPGA
uModule Power Tree for the ZU7 FPGA
