ADI Renewable Energy—Energy Storage Solutions
ADI Renewable Energy—Energy Storage Solutions
ADI, with its excellent system grade signal processing experience and products of diverse variety, offers developers solutions for energy storage solution. ADI solutions offer a series of products in related applications, such as battery monitor, gate drivers, processors, signal isolation products, etc.
ADI offers:
- High performance, high reliability isolated gate driver
- High performance, high reliability battery monitor
- Isolation products with magnetic isolation technology, widely-tested in the industry
- Power management, sampling, and signal conditioning, signal processor

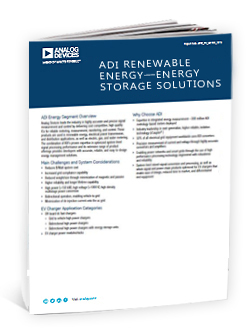

To Learn more about the comprehensive and flexible Analog Devices system solutions and main products,click here to get the complete solutions for free.

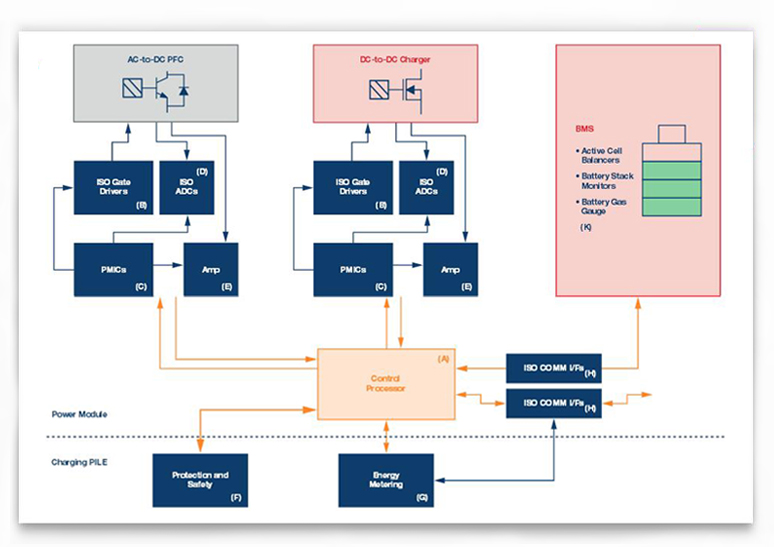

| Product Type | (A) Control Processor | (B) Isolated Gate Drivers | (C) Power Managements ICs |
| Model |
ADSP-CM411F/ADSP-CM412F/ ADSP-CM413F/ADSP-CM416F/ ADSP-CM417F/ADSP-CM418F/ ADSP-CM419F |
ADuM4135/ADuM4136/ ADuM4120/ADuM4121/ ADuM3223/ADuM4223/ ADuM7223 |
LT3999/LT3580/ LTM8023/LTM8022/ LTM8032/LTM8031/ADP2443/ ADP1621/ADP1720/ ADuM3070/ADuM6000 |
| Product Type | (D) ADC /en/ Voltage Reference | (E) Signal Conditioning | (F) Protection /en/ Safety |
| Model |
ADR441/ADR34xx/ AD7401A/AD7403 |
ADA4077-2/OP2177/ AD8066 |
AD7616/AD7091R/ AD8604/ADA4666/ AD8607/ADA4528/ AD8639/AD7606/ AD7607/AD7266/ AD7265 |
| Product Type | (G) Energy Metering | (H) Communication Interfaces | (K) Battery Management |
| Model |
ADE7953/ADE7880 | ADM3251E/ADM3252E/ ADM101E/ADM3101E/ ADM3053E/ADM3054/ ADM2481/ADM2483/ ADM2484E/ADM2486/ ADM2490E/ADM2491E/ ADM2587E |
Battery Gas Gauge LTC4150/LTC2941/ LTC2942/LTC2943/LTC2944 Active Cell Balance LTC3300/LTC3305/LT8584 Battery Stack Monitor LTC6801/LTC6802/ LTC6803/LTC6804/ LTC6811/LTC6820 Wireless Battery Management LTC6811 /en/ LTC5800 |
Reference Design and Demo Boards
Circuits From the Lab® Reference Circuits for Energy Management- 500 V Common-Mode Voltage Current Monitor (CN-0218) — www.analog.com/en/cn-0218
Technical Articles/Application Notes
- Recommendations for Control of Radiated Emissions with isoPower Devices (AN-0971) — www.analog.com/en/AN-0971
- Wiki Links— wiki.analog.com
- ADuM4135 gate driver module (Microsemi)— wiki.analog.com/resources/eval/eval-microsemi-sic-module
SOH\SOC Estimation Techniques and Algorithm
A Closer Look at State of Charge (SOC) and State of Health (SOH) Estimation Techniques for Batteries
Design Tools/Forums
- ADI's Fastest and Most Accurate DC-to-DC Power Management Design Tool (ADIsimPower™) — www.analog.com/en/ADIsimPower
- Online Technical Support Community (EngineerZone®) — ez.analog.com
- ADSP-CM41x EZ-Board® and EZ-Kit Lite® Evaluation Hardware — www.analog.com/en/cm419f-ez
If You Need More ADI Energy Applications and Products Information, Please Visit：www.analog.com/en/solar-inverters
