ADM101E

Craft Port™ Tiny RS-232 Transceiver to Portable Applications

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.B)
Documentation View All Documentation
IBIS Model ADM101E IBIS Model Download 53.86 KB
Part Models 7
1ku List Price Starting From $1.22
Features
  • 460 kbit/s Transmission Rate
  • Single 5 V Power Supply
  • Compatible with RS-232 Input/Output Levels
  • 0.1 µF Charge Pump Capacitors
  • One Driver and One Receiver
  • On-Board DC-DC Converter
  • ±4.2 V Output Swing with 5 V Supply
  • Low Power BiCMOS: 500 µA ICC
  • Ultralow Power (1 µA) Shutdown Mode
  • 10-Lead µSOIC Package
Additional Details
show more Icon

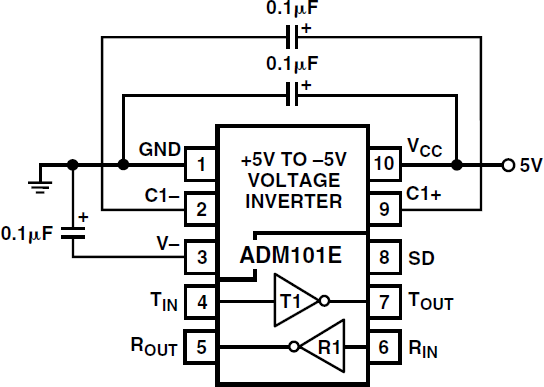

The ADM101E is a single channel RS-232 driver and receiver in the Analog Devices Craft Port series, designed to operate from a single, 5 V supply. A highly efficient charge-pump voltage inverter generates an on-chip –5 V supply, which eliminates the need for a negative power supply for the driver and permits RS-232 compatible output levels to be developed using charge pump capacitors as small as 0.1 μF.

A shutdown input disables the charge pump and puts the device into a low power shutdown mode, in which the current consumption is typically less than 1 μA. The transmitter is disabled during shutdown but the receiver remains functional. Craft Port is a trademark of Analog Devices, Inc. An epitaxial BiCMOS construction minimizes power consumption to 3 mW and also guards against latch-up. Overvoltage protection is provided allowing the receiver inputs to withstand continuous voltages in excess of ±30 V. In addition, all I-O pins have ESD protection to levels greater than 15 kV.

The ADM101E is available in a 10-lead μSOIC package, which makes it ideal for serial communications in small, portable applications such as palmtop computers and mobile telephones, where a full, RS-232 serial interface is not required, but compact size and low power drain are paramount.

Show More Arrow image
file View Data Sheet (Rev.B)
Documentation View All Documentation
IBIS Model ADM101E IBIS Model Download 53.86 KB
Part Models 7
1ku List Price Starting From $1.22
