ADM3101E
±15 kV ESD Protected, 3.3 V Single-Channel RS-232 Line Driver/Receiver
Top
Overview
Features and Benefits
- 460 kbps data rate
- 1 Tx and 1 Rx
- Meets EIA/TIA-232E specifications
- 0.1 μF charge pump capacitors
- Contact discharge: ±8 kV
- Air gap discharge: ±15 kV
Product Details
The ADM3101E is a high speed, single-channel RS-232/ITU-T V.28 transceiver interface device that operates from a single 3.3 V power supply. Low power consumption makes it ideal for battery-powered portable instruments.
The ADM3101E conforms to the EIA/TIA-232E and ITU-T V.28 specifications and operates at data rates up to 460 kbps.
All RS-232 (TOUT and RIN) and CMOS (TIN and ROUT) inputs and outputs are protected against electrostatic discharges (up to ±15 kV ESD protection).
This device is ideally suited for operation in electrically harsh environments, or where RS-232 cables are frequently being plugged/unplugged with the ±15 kV ESD protection of the I/O pins of the ADM3101E.

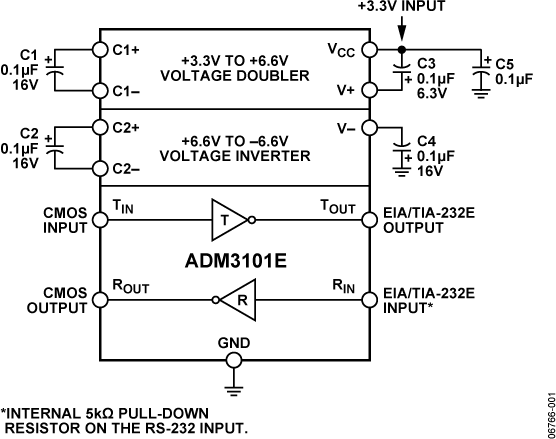

Four external 0.1 μF charge pump capacitors are used for the voltage doubler/inverter, permitting operation from a single 3.3 V supply.
The ADM3101E is available in both a 12-lead LFCSP and 16-lead QSOP, specified over the −40°C to +85°C temperature range.
APPLICATIONS
- General-purpose RS-232 data links
- Industrial/telecommunications diagnostics ports
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| ADM3101EACPZ-250R7 | Material Declaration | Reliability Data | 12-Lead LFCSP (3mm x 3mm x 0.75mm) | |
| ADM3101EACPZ-REEL | Material Declaration | Reliability Data | 12-Lead LFCSP (3mm x 3mm x 0.75mm) | |
| ADM3101EARQZ | Material Declaration | Reliability Data | 16-Lead QSOP | |
| ADM3101EARQZ-REEL | Material Declaration | Reliability Data | 16-Lead QSOP | |
| Wafer Fabrication Data |
