ADM2490E

5 kV Signal Isolated, High Speed (16 Mbps), ESD Protected, Full Duplex RS-485 Transceiver

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.A)
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $2.91
Features
  • Isolated, full-duplex RS-485/RS-422 transceiver
  • ±8 kV ESD protection on RS-485 input/output pins
  • 16 Mbps data rate
  • Complies with ANSI TIA/EIA-485-A-1998 and ISO 8482: 1987(E)
  • Suitable for 5 V or 3 V operation (VDD1)
  • High common-mode transient immunity: >25 kV/μs
  • Receiver has open-circuit, fail-safe design
  • 32 nodes on the bus
  • Thermal shutdown protection
  • Safety and regulatory approvals
    • UL recognition: 5000 V rms isolation voltage for 1 minute per UL 1577
    • VDE certificate of conformity
      • DIN EN 60747-5-2 (VDE 0884-10 Part 2): 2003-01
      • DIN EN 60950 (VDE 0805): 2001-12; EN 60950: 2000
      • VIORM = 848 V peak
  • Operating temperature range: −40°C to +105°C
  • Wide body, 16-lead SOIC package
Additional Details
show more Icon

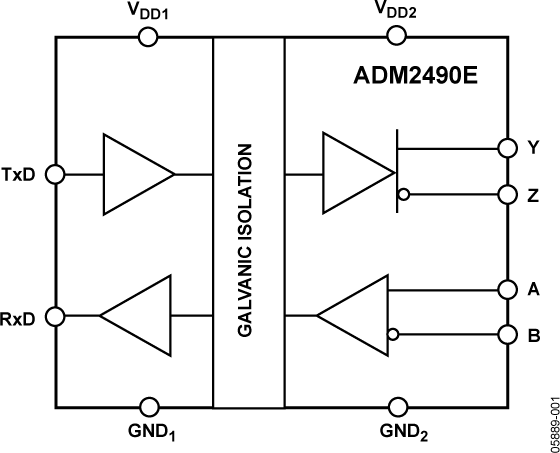

The ADM2490E is an isolated data transceiver with ±8 kV ESD protection that is suitable for high speed, full-duplex communication on multipoint transmission lines. It is designed for balanced transmission lines and complies with ANSI TIA/EIA-485-A-1998 and ISO 8482: 1987(E). The device employs Analog Devices, Inc., iCoupler® technology to combine a 2-channel isolator, a three-state differential line driver, and a differential input receiver into a single package.

The differential transmitter outputs and receiver inputs feature electrostatic discharge circuitry that provides protection to ±8 kV using the human body model (HBM). The logic side of the device can be powered with either a 5 V or a 3 V supply, whereas the bus side requires an isolated 5 V supply.

The device has current-limiting and thermal shutdown features to protect against output short circuits and situations where bus contention could cause excessive power dissipation.

The ADM2490E is available in a wide body, 16-lead SOIC package and operates over the −40°C to +105°C temperature range.

Applications

  • Isolated RS-485/RS-422 Interfaces
  • Industrial Field Networks
  • INTERBUS
  • Multipoint Data Transmission Systems
Show More Arrow image
file View Data Sheet (Rev.A)
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $2.91
