ADM3054

5 kV rms Signal Isolated High Speed CAN Transceiver with Bus Protection

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.D)
Documentation View All Documentation
IBIS Model ADM3054 IBIS Model Download B
Part Models 3
1ku List Price Starting From $2.59
Features
  • 5 kV rms signal isolated CAN transceiver
  • 5 V or 3.3 V operation on VDD1
  • 5 V operation on VDD2
  • VDD2SENSE to detect loss of power on VDD2
  • Complies with ISO 11898 standard
  • High speed data rates of up to 1 Mbps
  • Short-circuit protection on CANH and CANL against shorts to power/ground in 24 V systems
  • Unpowered nodes do not disturb the bus
  • Connect 110 or more nodes on the bus
  • Thermal shutdown protection
  • High common-mode transient immunity: >25 kV/μs
  • Safety and regulatory approvals
    • UL recognition
      • 5000 V rms for 1 minute per UL 1577
    • VDE Certificates of Conformity
      • DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12
      • VIORM = 846 V peak
  • Industrial operating temperature range: −40°C to +125°C
  • Wide-body, 16-lead SOIC package
  • Qualified for automotive applications
Additional Details
show more Icon

The ADM3054 is a 5 kV rms signal isolated controller area network (CAN) physical layer transceiver. The ADM3054 complies with the ISO 11898 standard.

The device employs Analog Devices, Inc., iCoupler® technology to combine a 3-channel isolator and a CAN transceiver into a single package. The logic side of the device is powered with a single 3.3 V or 5 V supply on VDD1 and the bus side uses a single 5 V supply on VDD2 only. Loss of power on the bus side (VDD2) can be detected by an integrated VDD2SENSE signal.

The ADM3054 creates an isolated interface between the CAN protocol controller and the physical layer bus. It is capable of running at data rates of up to 1 Mbps.

The device has integrated protection on the bus pins, CANH and CANL against shorts to power/ground in 24 V systems.

The device has current-limiting and thermal shutdown features to protect against output short circuits and situations where the bus might be shorted to ground or power terminals. The part is fully specified over the industrial temperature range and is available in a 16-lead, wide-body SOIC package.

Applications

  • CAN data buses
  • Industrial field networks
Show More Arrow image
file View Data Sheet (Rev.D)
Documentation View All Documentation
IBIS Model ADM3054 IBIS Model Download B
Part Models 3
1ku List Price Starting From $2.59
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADM3054

Documentation

11
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Safety and Regulatory Compliance
  • User Guide
  • Application Note
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 10/31/2011
English

ADM3054: 5 kV rms Signal Isolated High Speed CAN Transceiver with Bus Protection Data Sheet (Rev.D)

Open PDF File

redirect
439.47 K
download

Download PDF

Safety and Regulatory Compliance

2

PDF Vector

HTML

UPDATED 01/28/2016
English
Safety and Regulatory Compliance Information redirect icon

PDF Vector

HTML

UPDATED 01/28/2016
Japanese
安全規格認証や適合の取得状況 redirect icon

User Guide

1

PDF Vector

pdf

UPDATED 01/06/2012
English
UG-358: Evaluation Board for the ADM3054 5 kV rms Signal Isolated High Speed CAN Transceiver with Bus Protection redirect icon

185 kB

download

Download PDF

Application Note

7

PDF Vector

HTML

UPDATED 02/07/2014
English
AN-1176: Component Footprints and Symbols in the Binary .Bxl File Format redirect icon

PDF Vector

HTML

UPDATED 02/07/2014
Chinese
AN-1176: 二进制.Bxl文件格式的元件尺寸和符号 redirect icon

PDF Vector

HTML

UPDATED 10/01/2017
English
AN-1123: Controller Area Network (CAN) Implementation Guide redirect icon

PDF Vector

HTML

UPDATED 10/01/2017
Chinese
AN-1123:控制器局域网(CAN)实施指南 redirect icon

PDF Vector

HTML

UPDATED 10/01/2017
Japanese
AN-1123: CAN（コントローラ・エリア・ネットワーク）の実装ガイド redirect icon

PDF Vector

HTML

UPDATED 03/01/2015
English
AN-1179: Junction Temperature Calculation for Analog Devices RS-485/RS-422, CAN, and LVDS/M-LVDS Transceivers redirect icon

PDF Vector

HTML

UPDATED 03/01/2015
Japanese
AN-1179: アナログ・デバイセズの RS-485/RS-422、CAN、およびLVDS/M-LVDS トランシーバーのジャンクション温度算出 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Technical Documents 6
show more Icon

Data Sheet 1

ADM3054: 5 kV rms Signal Isolated High Speed CAN Transceiver with Bus Protection Data Sheet (Rev.D)

User Guide 1

UG-358: Evaluation Board for the ADM3054 5 kV rms Signal Isolated High Speed CAN Transceiver with Bus Protection

Application Note 3

AN-1176: Component Footprints and Symbols in the Binary .Bxl File Format
AN-1123: Controller Area Network (CAN) Implementation Guide
AN-1179: Junction Temperature Calculation for Analog Devices RS-485/RS-422, CAN, and LVDS/M-LVDS Transceivers

Safety and Regulatory Compliance 1

Safety and Regulatory Compliance Information

Safety and Regulatory Compliance 1

Safety and Regulatory Compliance Information

Solutions Bulletin & Brochure 1

Low Noise Isolated CAN FD Transceivers for Higher Data Rates and Low Loop Delays

Product Selection Guide 1

Digital Isolation and Interface Technology Selection Guide

Analog Dialogue 1

Configure Controller Area Network (CAN) Bit Timing to Optimize Performance

Webcast 1

Designing High Reliability Components in Airborne Systems

Video

1

Thumbnail Image

Video

2020-10-28

01:00

Protect your Innovations: from High Precision to High Power

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADM3054BRWZ 16-Lead SOIC Wide external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM3054BRWZ-RL7 16-Lead SOIC Wide external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM3054WBRWZ-RL7 16-Lead SOIC Wide external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 13, 2024

- 23_0069

Qualification Notification of Alternate Wafer Fab Site at ADI Limerick for Select Isolator Products

ADM3054BRWZ

PRODUCTION

ADM3054BRWZ-RL7

PRODUCTION

ADM3054WBRWZ-RL7

PRODUCTION

pdf

PCN23_0069_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

pdf

Qualification Results Summary

external-icon

Oct 31, 2017

- 17_0200

Moisture Sensitivity Level Rating Change for Select iCoupler Products - ADM3052/ADM3053/ADM3054

ADM3054BRWZ

PRODUCTION

ADM3054BRWZ-RL7

PRODUCTION

ADM3054WBRWZ-RL7

PRODUCTION

pdf

PCN17_0200_Form

external-icon

xls

Material_Report

Download

Sep 22, 2015

- 15_0135

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADM3054BRWZ

PRODUCTION

ADM3054BRWZ-RL7

PRODUCTION

pdf

PCN15_0135_Form

external-icon

xls

Material_Report

Download

Detailed Change Description

pdf

Qualification Results Summary

external-icon

Feb 19, 2015

- 15_0032

Isolator die for RS-485 and CAN Transceiver Products Alternate Fabrication Foundry at ADI, Limerick, Ireland

ADM3054BRWZ

PRODUCTION

ADM3054BRWZ-RL7

PRODUCTION

ADM3054WBRWZ-RL7

PRODUCTION

pdf

PCN15_0032_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Detailed Change Description

external-icon

Aug 15, 2013

- 12_0157

ADM2481, ADM2582E, ADM2587E, ADM2682E, ADM2687E, ADM3052, ADM3053, ADM3054 Minor Poly Mask Change

ADM3054BRWZ

PRODUCTION

ADM3054BRWZ-RL7

PRODUCTION

pdf

PCN12_0157_Form

external-icon

xls

Material_Report

Download

Feb 27, 2012

- 11_0066

Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.

ADM3054BRWZ

PRODUCTION

ADM3054BRWZ-RL7

PRODUCTION

pdf

PCN11_0066_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Plan Summary

external-icon

pdf

Flow Chart

external-icon

Jun 15, 2016

- 15_0135

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADM3054WBRWZ-RL7

PRODUCTION

pdf

PCN15_0135_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Qualification Results Summary

external-icon

Detailed Change Description

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 13, 2024

- 23_0069

arrow down

Qualification Notification of Alternate Wafer Fab Site at ADI Limerick for Select Isolator Products

ADM3054BRWZ

PRODUCTION

ADM3054BRWZ-RL7

PRODUCTION

ADM3054WBRWZ-RL7

PRODUCTION

pdf

PCN23_0069_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

pdf

Qualification Results Summary

external-icon
Oct 31, 2017

- 17_0200

arrow down

Moisture Sensitivity Level Rating Change for Select iCoupler Products - ADM3052/ADM3053/ADM3054

ADM3054BRWZ

PRODUCTION

ADM3054BRWZ-RL7

PRODUCTION

ADM3054WBRWZ-RL7

PRODUCTION

pdf

PCN17_0200_Form

external-icon

xls

Material_Report

Download
Sep 22, 2015

- 15_0135

arrow down

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADM3054BRWZ

PRODUCTION

ADM3054BRWZ-RL7

PRODUCTION

pdf

PCN15_0135_Form

external-icon

xls

Material_Report

Download
Detailed Change Description

pdf

Qualification Results Summary

external-icon
Feb 19, 2015

- 15_0032

arrow down

Isolator die for RS-485 and CAN Transceiver Products Alternate Fabrication Foundry at ADI, Limerick, Ireland

ADM3054BRWZ

PRODUCTION

ADM3054BRWZ-RL7

PRODUCTION

ADM3054WBRWZ-RL7

PRODUCTION

pdf

PCN15_0032_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Detailed Change Description

external-icon
Aug 15, 2013

- 12_0157

arrow down

ADM2481, ADM2582E, ADM2587E, ADM2682E, ADM2687E, ADM3052, ADM3053, ADM3054 Minor Poly Mask Change

ADM3054BRWZ

PRODUCTION

ADM3054BRWZ-RL7

PRODUCTION

pdf

PCN12_0157_Form

external-icon

xls

Material_Report

Download
Feb 27, 2012

- 11_0066

arrow down

Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.

ADM3054BRWZ

PRODUCTION

ADM3054BRWZ-RL7

PRODUCTION

pdf

PCN11_0066_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Plan Summary

external-icon

pdf

Flow Chart

external-icon
Jun 15, 2016

- 15_0135

arrow down

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADM3054WBRWZ-RL7

PRODUCTION

pdf

PCN15_0135_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Qualification Results Summary

external-icon
Detailed Change Description

pdf

Qualification Results Summary

external-icon

Software & Part Ecosystem

Parts Product Life Cycle Description
ADM3056E
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

5.7 kV rms, 849 VPEAK Working Voltage, Signal Isolated CAN-FD Transceiver

Evaluation Kits 1

reference details image

EVAL-ADM3054

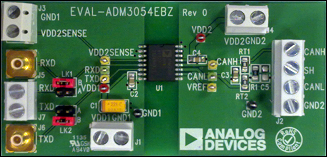

ADM3054EBZ Evaluation Board

zoom

EVAL-ADM3054

ADM3054EBZ Evaluation Board

download icon

Download

 print icon

Print
EVAL-ADM3054
ADM3054EBZ Evaluation Board

Features and Benefits

  • Easy evaluation of the ADM3054 controller area network (CAN) transceiver
  • Isolated ground planes (logic side and bus side)
  • Convenient connections through screw terminal blocks:
    3.3V or 5V power on the logic side (VDD1)
    5V power on the bus side (VDD2)
    Ground on logic side (GND1) and bus side (GND2)
    Logic signals RXD, TXD, VDD2SENSE
    Cable shield and bus signals CANH and CANL
  • Jumper selectable SMB jack inputs for RXD and TXD
  • Test points for measuring all signals
  • Termination resistors (2 × 30 Ω) with common mode filter


Buy Now View Details

Product Detail

The EVAL-ADM3054EBZ allows quick and easy evaluation of the ADM3054 isolated CAN transceiver. The evaluation board allows all of the input and output functions to be exercised without the need for external components. Screw terminal blocks provide convenient connections for logic signals and power. The main device on the evaluation board, the ADM3054, is a controller area network (CAN) physical layer transceiver with integrated digital isolation, allowing a protocol layer CAN controller to access the physical layer bus. The ADM3054 complies with the ISO 11898 standard. It is capable of running at data rates of up to 1 Mbps. The evaluation board has separate ground and power planes for the logic side and the bus side. This allows evaluation of the isolation capability of the ADM3054, which employs Analog Devices, Inc., iCoupler® technology to combine a 3-channel isolator and a CAN transceiver into a single, 16-lead wide body SOIC package. The power is isolated between a single 3.3 V or 5 V supply on VDD1, the logic side, and a single 5 V supply provided on VDD2, the bus side. Loss of power on the bus side (VDD2) can be detected by an integrated VDD2SENSE signal.

Resources

pdf icon

pdf

UG-358: Evaluation Board for the ADM3054 5 kV rms Signal Isolated High Speed CAN Transceiver with Bus Protection Download

185 kB

Show More Arrow image

Evaluation Kits1

evaluation kit item images

EVAL-ADM3054

ADM3054EBZ Evaluation Board

Recently Viewed

Part Details
Documentation
Software & Part Ecosystem
Evaluation Kit
Tools & Simulations
Latest Discussions
