LTC4217

推荐新设计使用

2A 集成热插拔控制器

数据手册产品选型表

产品模型: 14

Viewing:

产品详情

小占板面积
33mΩ MOSFET 和R_SENSE
宽工作电压范围：2.9V 至 26.5V
可调、准确度达 5% 的电流限值
电流和温度监视器输出
过热保护
故障之前的可调电流限制定时器
电源良好和故障输出
可调浪涌电流控制
2% 准确度的欠压和过压保护
与 LTC4232 引脚兼容 (仅限 DFN 封装)
采用 20 引脚 TSSOP 和 16 引脚 5mm x 3mm DFN 封装

参考资料

数据手册 1

LTC4217: 2A Integrated Hot Swap Controller Data Sheet 04/01/2016

可靠性数据 1

R536 Reliability Data 03/26/2018

用户手册 1

DC1051A - Demo Manual 05/07/2013

设计笔记 1

Design Note 466: Hot Swap Controller, MOSFET and Sense Resistor Are Integrated in a 5mm × 3mm DFN for Accurate Current Limit and Load Current Monitoring in Tight Spaces 06/01/2009

技术文章 2

Compact No R_SENSE Controllers Feature Fast Transient Response and Regulate to Low V_OUT from Wide Ranging V_IN 06/01/2009

Improve Hot Swap Performance and Save Design Time with Hot Swap Controller that Integrates 2A MOSFET and Sense Resistor 06/01/2009

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LTC4217CDHC#PBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4217CDHC#TRPBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4217CDHC-12#PBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4217CDHC-12#TRPBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4217CFE#PBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4217CFE#TRPBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4217HFE#PBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4217HFE#TRPBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4217IDHC#PBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4217IDHC#TRPBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4217IDHC-12#PBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4217IDHC-12#TRPBF	16-Lead DFN (5mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4217IFE#PBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4217IFE#TRPBF	20-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN
未找到匹配项目
4月 6, 2022 - 22_0068 Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL
		PCN22_0068_Form Material_Report Delta Qualification Matrix
LTC4217CFE#PBF	量产
LTC4217CFE#TRPBF	量产
LTC4217HFE#PBF	量产
LTC4217HFE#TRPBF	量产
LTC4217IFE#PBF	量产
LTC4217IFE#TRPBF	量产

这是最新版本的数据手册

硬件生态系统

部分模型	产品周期	描述
低压热插拔控制器 2
LTC4218	推荐新设计使用	热插拔控制器
LTC4232	推荐新设计使用	5A 集成型热插拔控制器

工具及仿真模型

LTspice 2

LTspice中提供以下器件型号：

LTC4217
LTC4217-12

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

schematic 1

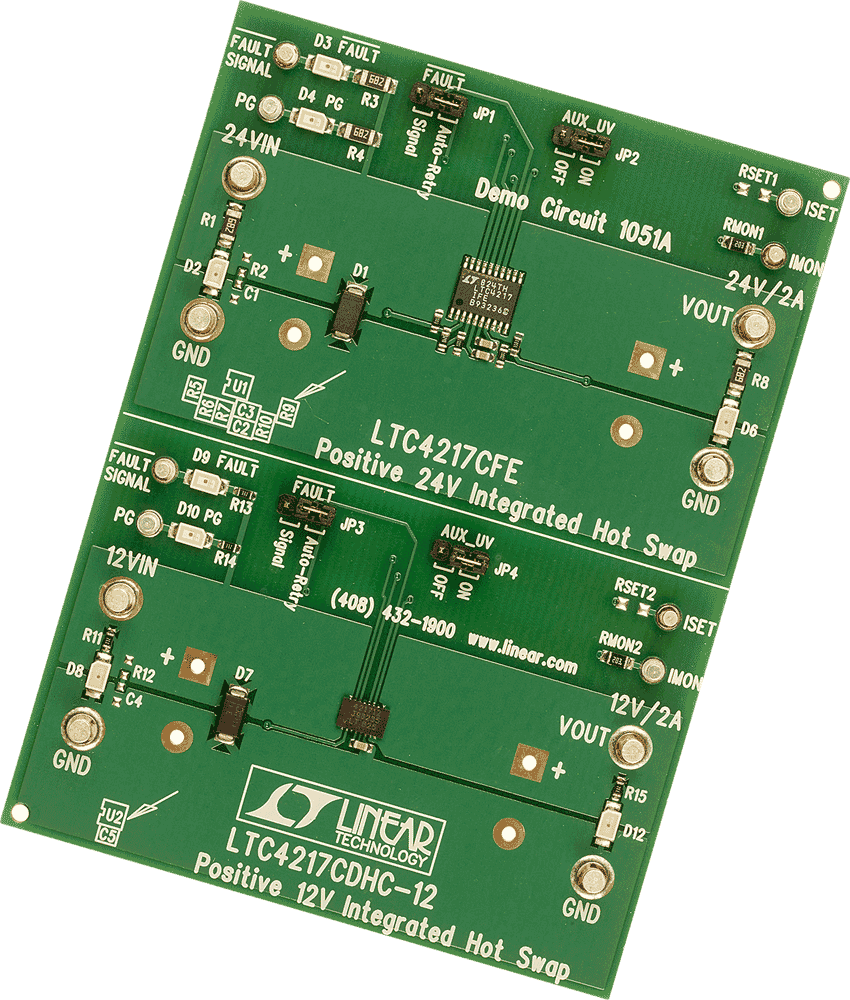

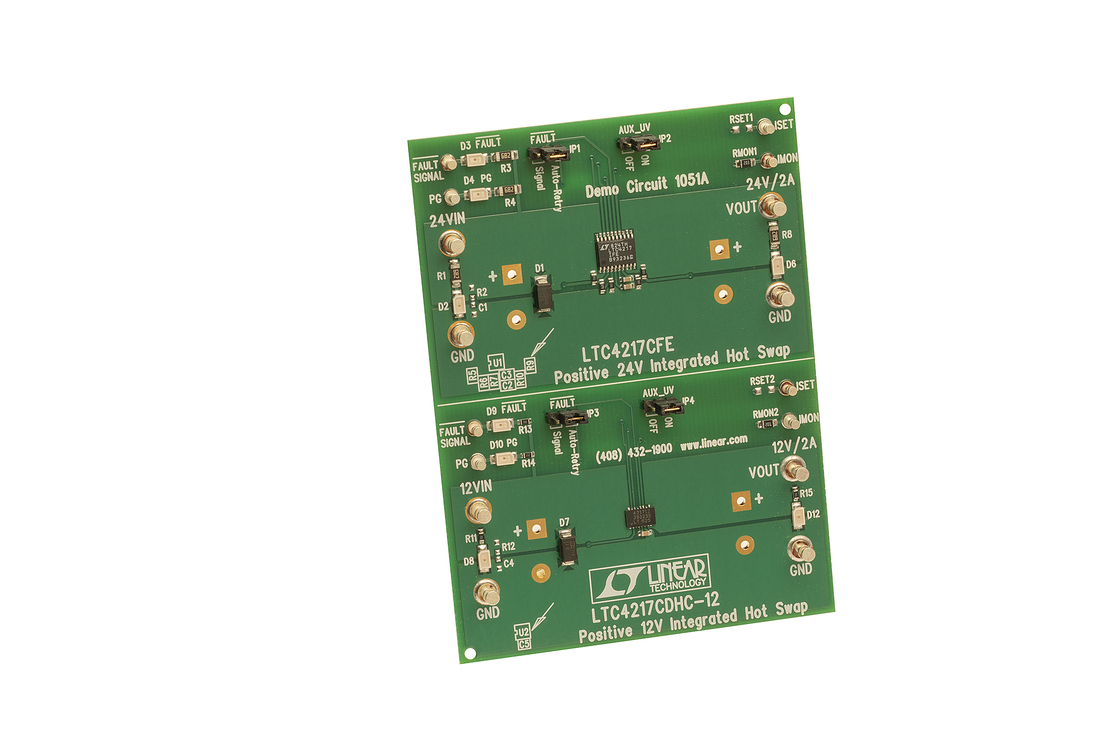

LTC4217 Demo Board | 12V and 24V, 2A Integrated Hot Swap Circuits

立即购买更多内容

产品详情

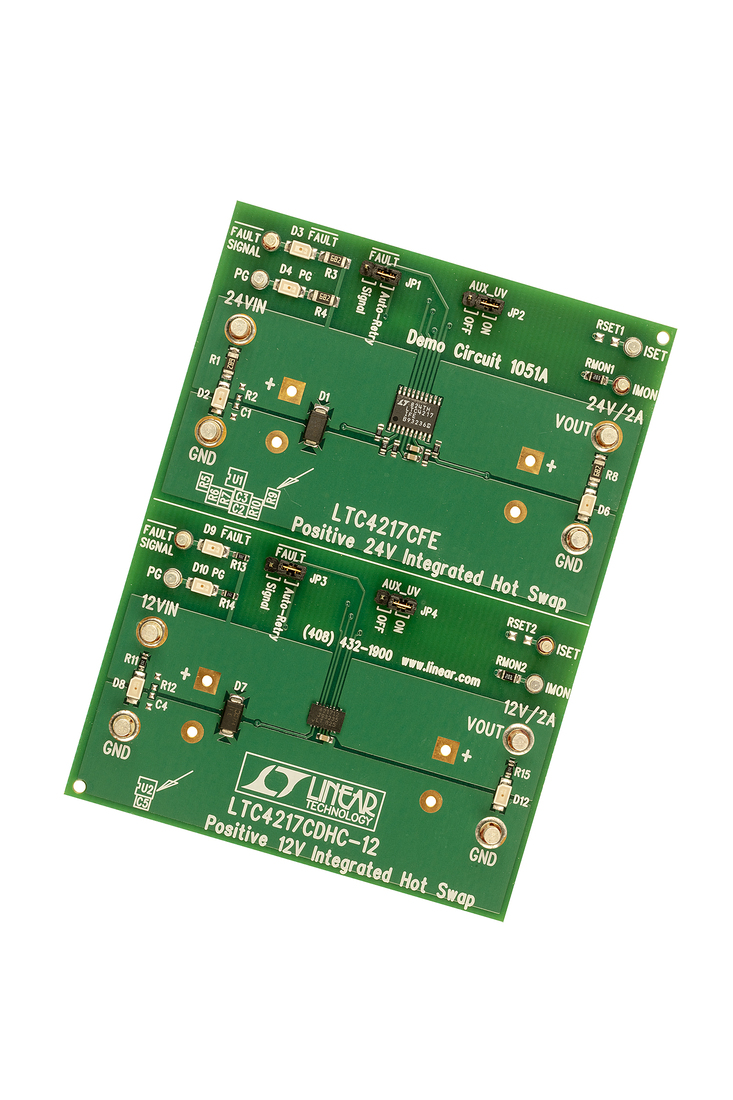

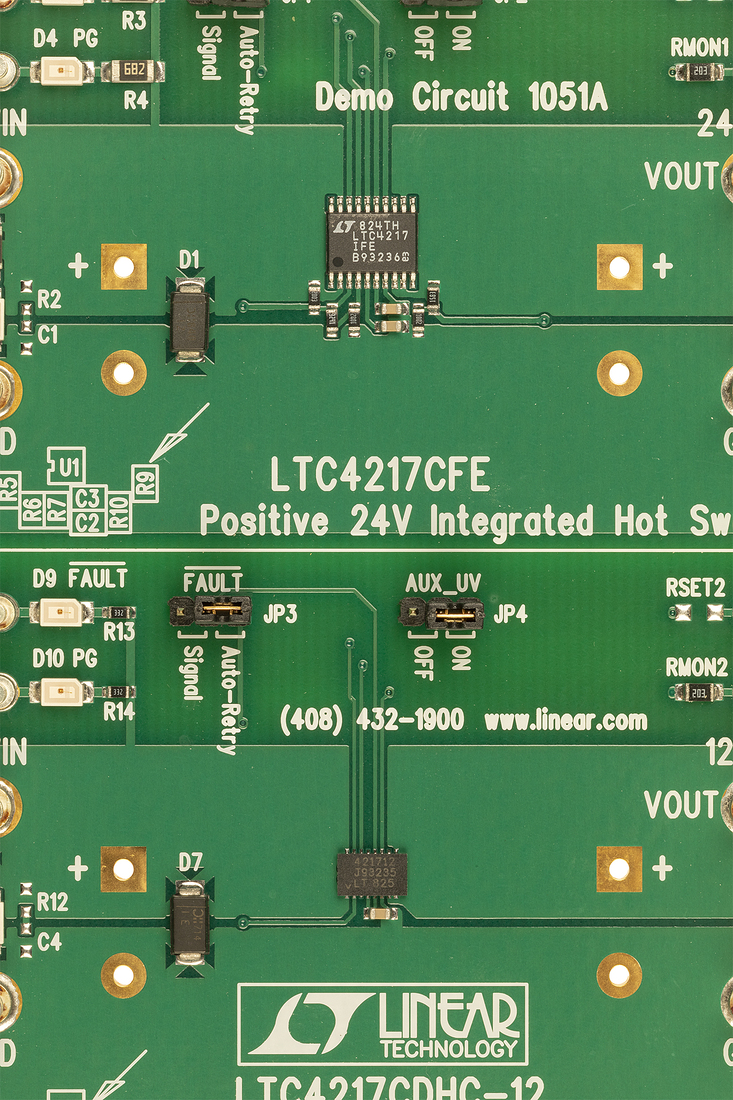

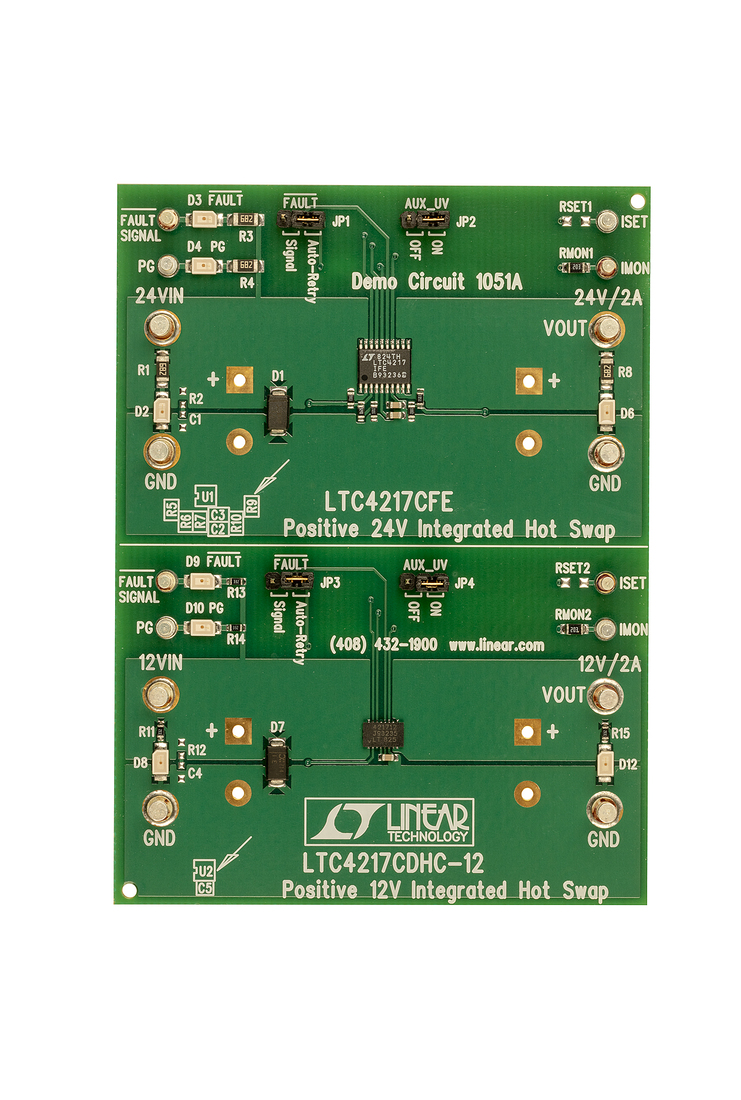

DC1051A: Demo Board for the LTC4217 2A Integrated Hot Swap Controller.

资料

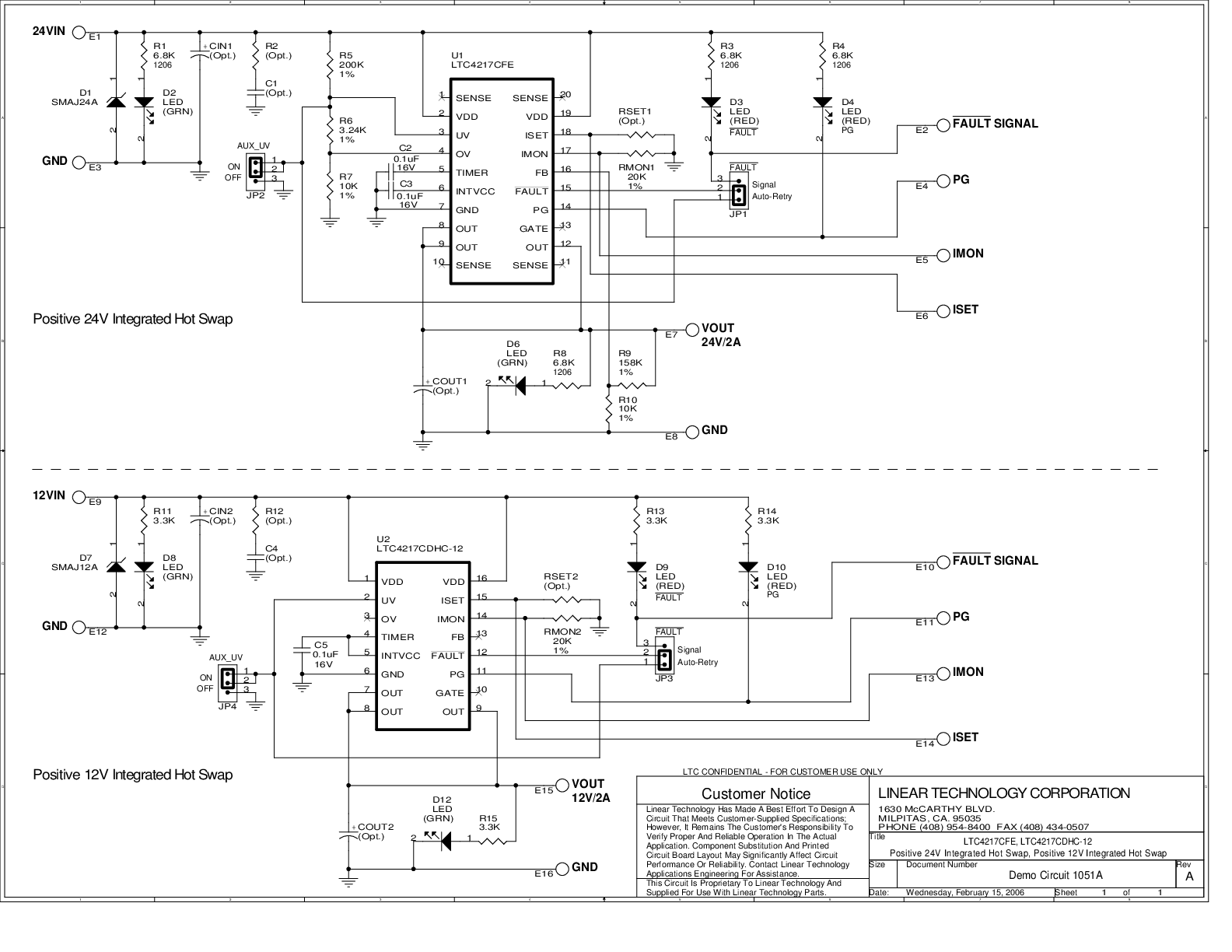

DC1051A - Schematic
