LTC9111

工业 SPoE PD Controller

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
产品详情
特性
  • 符合 IEEE 802.3cg 标准
  • 宽输入电压范围:2.3V 至 60V
  • 支持串行通信分类协议 (SCCP)
  • 唤醒签名
  • 集成 3.5V 待机稳压器
  • 分类时最高 150μA 的电流
  • 为极性校正驱动低端桥 MOSFET
  • 增强外部 N 通道 MOSFET 的电荷泵
  • 引脚可编程类配置

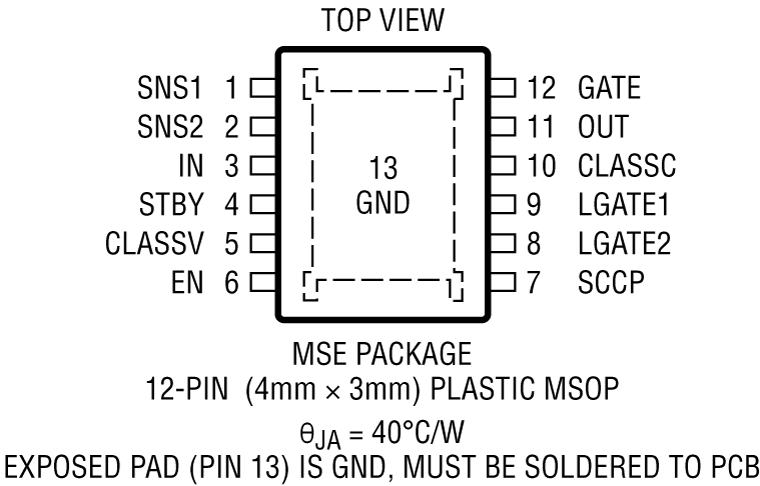

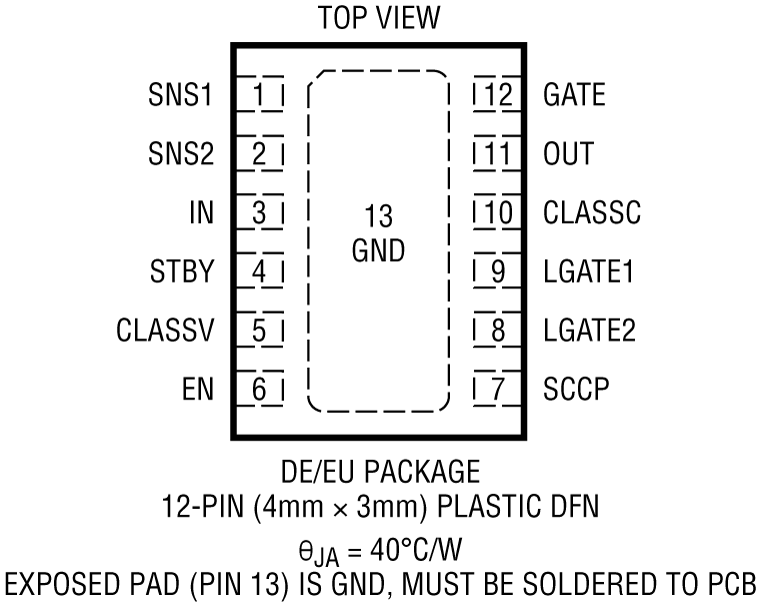

  • 采用 12 引脚 MSOP 和 DFN 4mm × 3mm 封装
更多细节
show more Icon

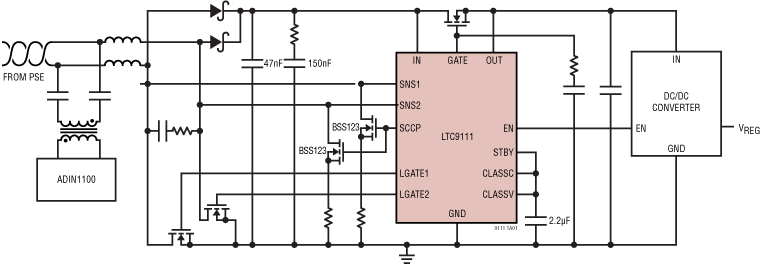

LTC9111 是一款符合 IEEE 802.3cg 标准的单对以太网供电受电设备 (PD) 控制器。2.3V 至 60V 的宽工作范围与极性校正相结合,使 LTC9111 特别适合楼宇及工厂自动化应用中基于分类的系统。

基于 SCCP 的分类可确保供电设备 (PSE) 仅在连接有效的 PD 时提供全工作电压。LTC9111 在分类时利用微功耗操作最大限度降低存储电容器的要求,可驱动两个外部 N 通道 MOSFET 开关。外部 N 通道 MOSFET 开关在分类和出现浪涌时从连接器隔离输出电容。当 PD 输入电压超过所配置类的 ON 电压阈值时或经过强制延迟后,电压监控器可启用外部 MOSFET。在控制的 GATE 引脚斜升后,EN 输出会发生断言。输入电压降至所配置类的关闭电压阈值以下时会禁用 MOSFET。LTC9111 利用 1.6V 的低启动电压为极性校正驱动一对外部低端 N 通道 MOSFET,可减少功率损耗。

应用

  • 楼宇自动化
  • 工厂自动化
  • 安防系统
  • 交通控制系统

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

视频

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
LTC9111RDE#PBF
  • HTML
  • HTML
LTC9111RDE#TRPBF
  • HTML
  • HTML
LTC9111RMSE#PBF
  • HTML
  • HTML
LTC9111RMSE#TRPBF
  • HTML
  • HTML
软件和型号相关生态系统

软件和型号相关生态系统

评估套件

评估套件 2

reference details image

AD-SWIOT1L-SL

Software-configurable Analog and Digital I/O with 10BASE-T1L Evaluation and Development Platform

zoom

AD-SWIOT1L-SL

Software-configurable Analog and Digital I/O with 10BASE-T1L Evaluation and Development Platform

Software-configurable Analog and Digital I/O with 10BASE-T1L Evaluation and Development Platform

特性和优点

  • Allows prototyping of intelligent, secure, and connected process control devices
  • Ultimate flexibility in I/O interface configurability through software
  • Embedded processing for implementing self-capable edge devices
  • Long-range single-pair 10BASE-T1L Ethernet interface
  • Power delivery via the 10BASE-T1L interface or from a field supply enabling both low and high power applications
  • Fully isolated design for safe operation
  • Industry standard form factor compatible with DIN rail mounts

产品详情

The AD-SWIOT1L-SL provides a complete software and hardware platform for prototyping intelligent, secure, network capable field devices.

The design incorporates the AD74413R Quad-Channel, Software Configurable Input and Output and the MAX14906 Quad-Channel Industrial Digital Output/Digital Input ICs, allowing the multiplexing of several analog and digital functions on four channels which can be independently configurable through software to act as:

  • voltage output / input
  • current output / input
  • digital input / output
  • RTD measurement

A 10 Mbps single-pair Ethernet link, using the ADIN1110 10BASE-T1L MAC/PHY, enables remote data acquisition and device configuration. The 10BASE-T1L interface can also be used for powering the system via the Single-pair Power over Ethernet (SPoE) technology using the LTC9111 Powered Device (PD) controller. This way, power and data for the system is provided over the same cable to significantly simplify the cabling infrastructure and cost.

For applications requiring high current capabilities, the system can be powered from an external 24 V supply and up to 1.2 A can be output on any of the channels configured as digital outputs. The power supply solution also includes the ADP1032 high performance, isolated micropower management unit (PMU) to provide power and digital control for software configurable I/O devices in one of the most compact formats. The LT8304 Micropower No-Opto Isolated Flyback Converter completes the power tree to provide isolated power to the digital part of the design.

The on-board MAX32650 Ultralow Power ARM® Cortex®-M4 Microcontroller exposes all the necessary debug and programming features to enable a complete software development experience with the system. It is coupled with a 1 Gb (128 MB) external RAM and a 64 Mb (8 MB) external flash memory to meet the most demanding applications and provide the flexibility to implement any protocol stack. Security features are enabled by the MAXQ1065 security coprocessor.

The system is accompanied by an open-source software stack and associated collateral, enabling a complete experience from evaluation and prototyping all the way to production firmware and applications development. An external programmer such as the MAX32625PICO MAXDAP Programming Adapter, or any other similar programmer supporting the SWD interface, is required to enable firmware programming and debug. The system’s firmware is based on Analog Devices’ open-source no-OS framework which includes all the tools required for embedded code development and debugging as well as libraries enabling host-side connectivity for system configuration and data transfer over the UART or the 10BASE-T1L interfaces. A PC application with a user-friendly graphical interface is provided to enable easy system configuration and displaying the acquired data in different ways.

Specifications
I/O
Channels 4 Software Configurable IO channels
Digital input Type 1 and 3, or Type 2
Digital output High-Side (HS) Switch or Push-Pull (PP) Driver
Analog input Voltage (0 V to 10 V), Current (0 mA to 25 mA)
Analog output Voltage (0 V to 11 V), Current (0 mA to 25 mA)
RTD measurements 2-wire RTD (0 Ω to 1 MΩ)
Computing Resources
CPU MAX32650 Ultra-Low-Power Arm Cortex-M4
with FPU-Based Microcontroller (MCU) with 3 MB Flash and 1MB SRAM
Memory 1 Gb RAM
Storage 64 Mb QSPI Flash
Connectivity
Ethernet 10BASE-T1L
Power Supply
External power 24 DC @ 6A
Power over Ethernet SPoE class 12
Operating Conditions
Temperature range -25°C to 60°C
reference details image

EVAL-SPoE-KIT-AZ

SPoE 评估套件

zoom

EVAL-SPoE-KIT-AZ

SPoE 评估套件

产品详情

EVAL-SPoE-KIT-AZ 是一款 IEEE 802.3cg、单对、以太网供电 (SPoE) 评估套件。该套件具有 LTC4296-1、五端口 SPoE 供电设备 (PSE) 控制器和 LTC9111、SPoE 受电设备 (PD),用于评估 IEEE 802.3cg 10 至 15 类 SPoE 电源。ADIN1100、10BASE-T1L PHY 提供系统以太网数据。

参考电路

参考电路 1

Figure 1. CN0575 Simplified Block Diagram

10BASE-T1L Field Device Development Platform with Class 12 and 13 SPoE

zoomopens a dialog

CN0575

10BASE-T1L Field Device Development Platform with Class 12 and 13 SPoE

CN0575

参考设计

tooltip Info:参考设计
10BASE-T1L Field Device Development Platform with Class 12 and 13 SPoE

特性和优点

  • Data and Power Delivery using Single Pair Power over Ethernet
  • Power Class 12 and 13 Delivery Capable
  • Supports Longer Distances up to 1 km
  • Provides Speeds up to 10 MBPS
  • Works with Existing Software Stacks like PROFINET, EtherCat, MOD-BUS, and others
查看参考设计详情 external link
