LTM4740

推荐用于新设计

15VIN, Single 15A Step-Down μModule Regulator with PMBus

数据手册 (Rev. 0) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • Complete Solution in <1cm2 (Single-Sided PCB) or 0.5cm2 (Dual-Sided PCB)
  • PMBus Telemetry of Output Current, Output Voltage, Input Voltage, and Junction Temperature
  • Pin-to-Pin Compatible with LTM4739
  • Input Voltage Range: 3V to 15V
  • Output Voltage Range: 0.4V to 5.5V
  • Adjustable Reference Voltage: 0.4V to 0.8V (Default 0.5V)
  • 90% Full-Load Efficiency from 12VIN to 1.5VOUT at 15A
  • ±1% Maximum DC Output Error Over Temperature
  • Wide Frequency Range: 500kHz to 2MHz
  • Internal Compensation
  • Power Good Indicator
  • Constant Frequency Peak Current Mode Control
  • Differential Remote Sense
  • Single-Phase Point-of-Load Operation
  • 49-Lead 6.25mm × 6.25mm × 5.07mm BGA Package

The LTM4740 is a complete 15A step-down switchingmode power μModule® (micromodule) regulator with a PMBus interface in a tiny 6.25mm × 6.25mm × 5.07mm Ball Grid Array (BGA) package. The package includes the switching controller, the power MOSFETs, an inductor, and the supporting components. Operating over an input voltage range of 3V to 15V, the LTM4740 supports an output voltage range of 0.4V to 5.5V. Its highefficiency design delivers up to 15A of continuous output current. Only bulk input and output capacitors are needed. The switching frequency of the LTM4740 can be configured from 500kHz to 2MHz to provide the capability of optimizing the design in terms of size and performance. Pin-compatible with LTM4739, which is a 10A μModule regulator with PMBus. Therefore, one layout could fit different power-level requests with flexibility. The LTM4740 has an optional BIAS input pin, allowing connection from a 2.8V to 5.5V bias input supply for optimized efficiency. Operation settings and configurable features can be selected by connecting two pin-strap resistors from the PGMn pins to ground and then adjusted using PMBus commands. The LTM4740 has multiple protections, including positive and negative overcurrent (POC/NOC), output overvoltage (OV), and overtemperature (OT) to ensure a robust design. It is available with a RoHS-compliant terminal finish.

APPLICATIONS

  • Data Center Power, Servers, and Storage
  • Telecom, Networking, and Industrial Equipment
  • Point-of-Load (POL) Voltage Regulators
LTM4740
15VIN, Single 15A Step-Down μModule Regulator with PMBus
LTM4740 Typical Application LTM4740 Efficiency LTM4740 Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-LTM4740-AZ

LTM4740: 15VIN, Single 15A Step-Down μModule Regulator with PMBus

立即购买 更多内容

特性和优点

  • Complete Single-Phase Point-of-Load (POL) Solution.
  • 87.8% Full-Load Efficiency from 12VIN to 1VOUT at 15A.
  • PMBus Telemetry of Output Current, Reference Voltage, Input Voltage, and Junction Temperature.

产品详情

The EVAL-LTM4740-AZ evaluation board features the LTM®4740: a complete, high-efficiency, high-power-density, single 15A DC-to-DC step-down power μModule® (micromodule) regulator with power management bus (PMBus) interface. The LTM4740 is available in a 49-lead 6.25mm × 6.25mm × 5.07mm ball grid array (BGA) package. Read the LTM4740 data sheet before using or making any hardware changes to the EVAL-LTM4740-AZ evaluation board.

The EVAL-LTM4740-AZ input voltage range is 3V to 15V, and the output voltage range is 0.4V to 5.5V. The maximum load current is 15A. The output voltage is adjusted through the feedback resistor divider or the PMBus VOUT_COMMAND (the factory default output voltage is 1V). The switching frequency range is 500kHz to 2MHz (factory default frequency is 500kHz), configured through the pin-strap resistor at the PGM1 or with PMBus commands. The resistor value at the PGM1 pin is also used to adjust the control loop compensation parameters. The resistor value at the PGM0 pin is used to configure the positive overcurrent (POC) protection triggering level and the factory-default PMBus address (0x39h). The factory default POC protection sets the peak inductor current limit to 20A. At a high ambient temperature, the current output may need to be derated (refer to the LTM4740 data sheet for more details).

The onboard 12-pin connector, the I2C/PMBus/System management bus (SMBus) DC1613A dongle controller, and the LTpowerPlay® development tool provide an easy way to communicate and program the EVAL-LTM4740-AZ evaluation board.
EVAL-LTM4740-AZ
LTM4740: 15VIN, Single 15A Step-Down μModule Regulator with PMBus

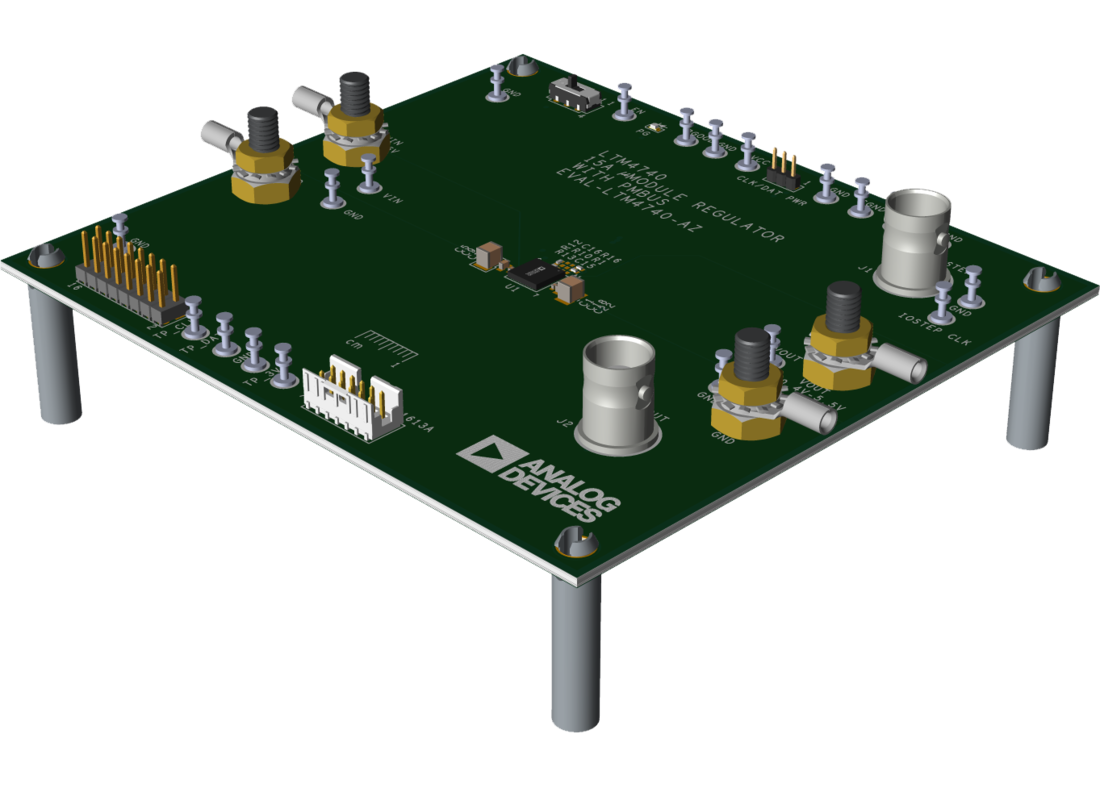

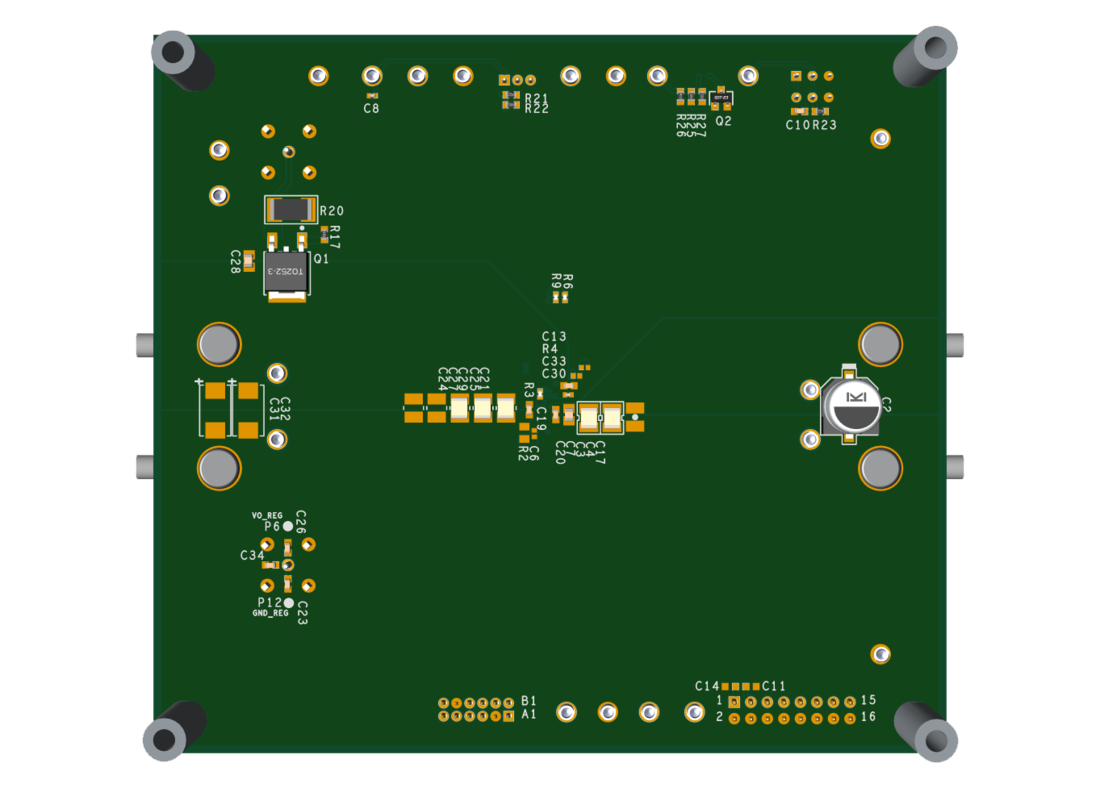

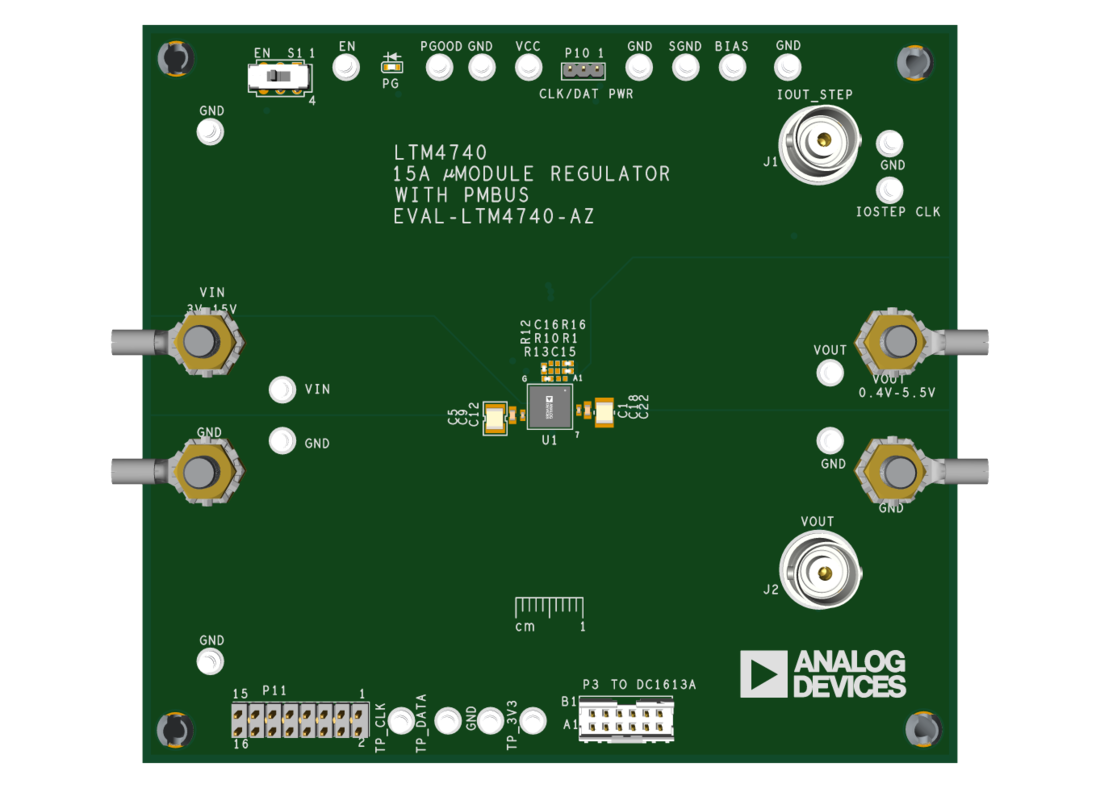

EVAL-LTM4740-AZ Evaluation Board Angel View EVAL-LTM4740-AZ Evaluation Board Top View EVAL-LTM4740-AZ Evaluation Board Bottom View
