LTM8060

推荐用于新设计

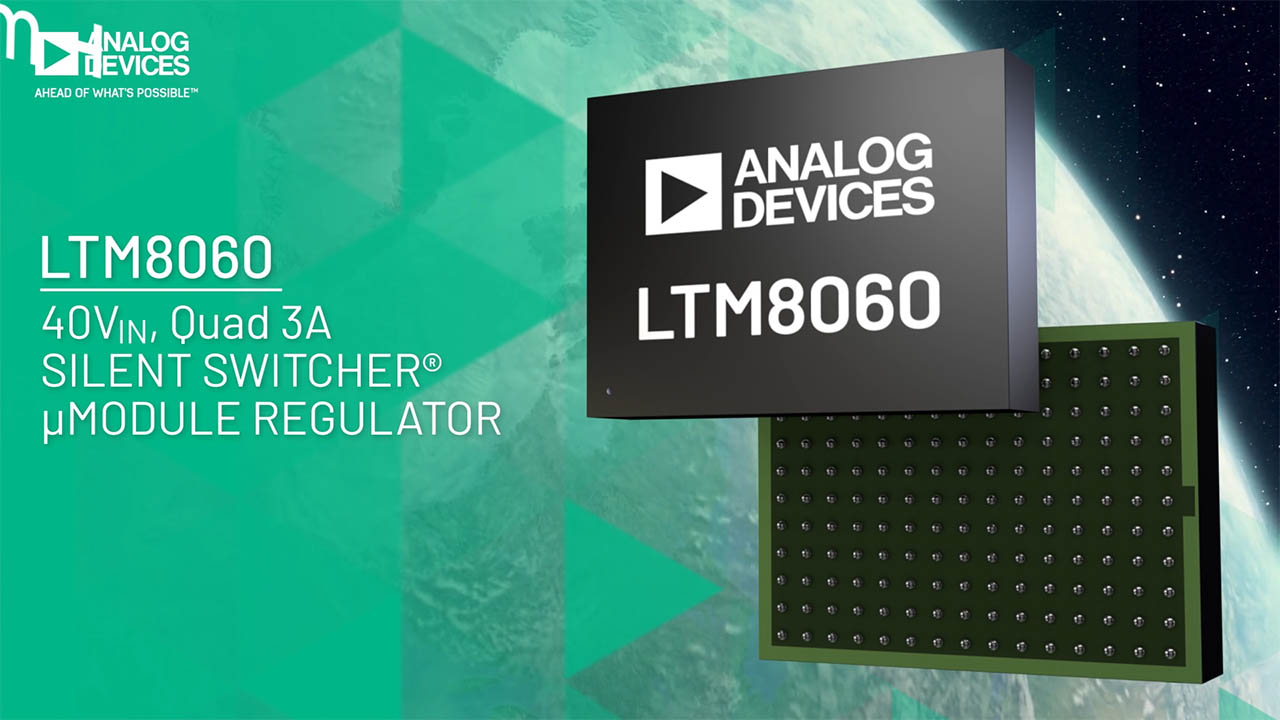

具有可配置3A输出阵列的四通道40VIN Silent Switcher μModule稳压器

数据手册 (Rev. E) 产品选型表
Viewing:
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

概述

  • 四个完整的降压型开关电源
  • 低噪声 Silent Switcher® 架构
  • 符合 CISPR22 B级和CISPR25 5级标准
  • 宽输入电压范围：3V 至 40V
  • 宽输出电压范围：0.8V 至 8V
  • 12VIN、3.3VOUT、TA = 85°C 时，每通道的连续输出电流为 3A
  • 12VIN、3.3VOUT、fSW = 2MHz、TA = 60°C 时，每通道的连续输出电流为 4A
  • 多相或多 μModule 并联，可增加输出电流
  • 低热阻，θJA = 8.4°C/W, θJCtop = 5.0°C/W, θJCbot = 1.8°C/W
  • 可选的开关频率：200kHz 至 3MHz
  • 紧凑型封装
LTM8060
具有可配置3A输出阵列的四通道40VIN Silent Switcher μModule稳压器
LTM8060 Application Circuit LTM8060 Pin Configuration LTM8060 Performance Graph
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

硬件生态系统

部分模型 产品周期 描述
LTM8051
推荐用于新设计 具有可配置1.2A输出阵列的四通道40VIN Silent Switcher μModule稳压器
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

LTspice

LTspice中提供以下器件型号：

  • LTM8060
  • LTM8060F

LTpowerCAD

LTpowerCAD中提供以下器件的设计工具：

  • LTM8060
  • LTM8060F
LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

eval board
schematic 1
schematic 2
schematic 3
DC2820A

LTM8060 | 四通道 40VIN、3A 降压型 Silent Switcher μModule 稳压器

立即购买 更多内容

产品详情

演示电路2820A内置LTM8060 μModule®稳压器，这是一款四通道输出高性能降压型Silent Switcher®μModule稳压器，采用耐热性能增强型11.9mm × 16mm × 3.32mm BGA封装。DC2820A具有5.4V至40V的宽工作输入电压范围。输出轨配置为5V、3.3V、1.5V、1.2V，并且电阻可编程范围为0.8V至8V。每个输出可以提供高达3A的电流，并且相位也可以并联在一起，以满足更高的轨电流要求。LTM8060是一款完整的多输出DC/DC负载稳压器，外形紧凑，它仅需几个输入和输出电容器以及电阻器来设置输出电压和工作频率。TRSS引脚提供输出电压跟踪，用于电源轨时序监控。SYNC引脚提供外部时钟同步，CLKOUT引脚提供附加相位的可选同步。为了降低噪声，可通过SYNC引脚编程进行扩频操作。在处理或修改演示电路2820A之前，必须结合DC2820A演示手册阅读LTM8060数据手册。

eval board
schematic 4
schematic 5
schematic 6
schematic 7
schematic 8
schematic 9
schematic 10
ADXBAND16EBZ

16Tx/16Rx Direct X-Band Sampled Phased-Array/RADAR/SATCOM Development Platform

立即购买 更多内容

特性和优点

  • Transmit and receive frequency X band: 8GHz to 12GHz
  • Direct sampling in L, S, and C bands with capacitor rotation
  • Multichannel, wideband system development platform for the AD9084
  • Mates with Xilinx VCU118 evaluation board (must be purchased separately)
  • 16× RF receive channels (32× digital receive channels)
    • Total 16× 4GSPS to 20GSPS ADC channels
    • 48× digital downconverters (DDCs) and complex NCOs
    • 16× programmable finite impulse response filters (pFIRs)
    • 16× complex finite impulse response filters (CFIRs)
  • Complete power management solution for all domains
  • Single 12V supply voltage for easy power management
  • Board size: 221mm × 158mm (8.9” × 6.2”)

产品详情

This user guide serves as the main source of information for system engineers and software developers using the ADXBAND16EBZ. This platform contains four AD9084 software-defined, direct sampling mixed-signal front end (MxFE), including an RF front end, clocking, and power circuitry. Common target applications are phased array radars, electronic warfare, and ground-based SATCOM. The receive and transmit RF front ends have bypass configurations that allow customized frequency ranges of less than 8GHz up to 18GHz.

The ADXBAND16EBZ highlights a complete system solution. This platform is intended as a testbed for demonstrating multichip synchronization as well as the implementation of system-level calibrations and signal processing algorithms. The system is designed to mate with a Xilinx VCU118 evaluation board, which features the Virtex UltraScale+ XCVU9P field-programmable gate array (FPGA), with provided reference software, hardware design language (HDL) code, and MATLAB system-level interfacing.

A 16 transmit and 16 receive calibration board (ADXBAND16EBZCAL) can be used to develop system-level calibration algorithms to demonstrate power-up phase determinism. The calibration board demonstrates combined-channel dynamic range, spurious, and phase noise improvements that can also be controlled via a MATLAB add-on when connected to the peripheral module (PMOD) interface of the VCU118.

APPLICATIONS

  • Phased-array, radar, electronic warfare, and satellite communications (SATCOM)
  • Communications infrastructure (multiband and mmWave 5G)
  • Electronic test and measurement
DC2820A
LTM8060 | 四通道 40VIN、3A 降压型 Silent Switcher μModule 稳压器

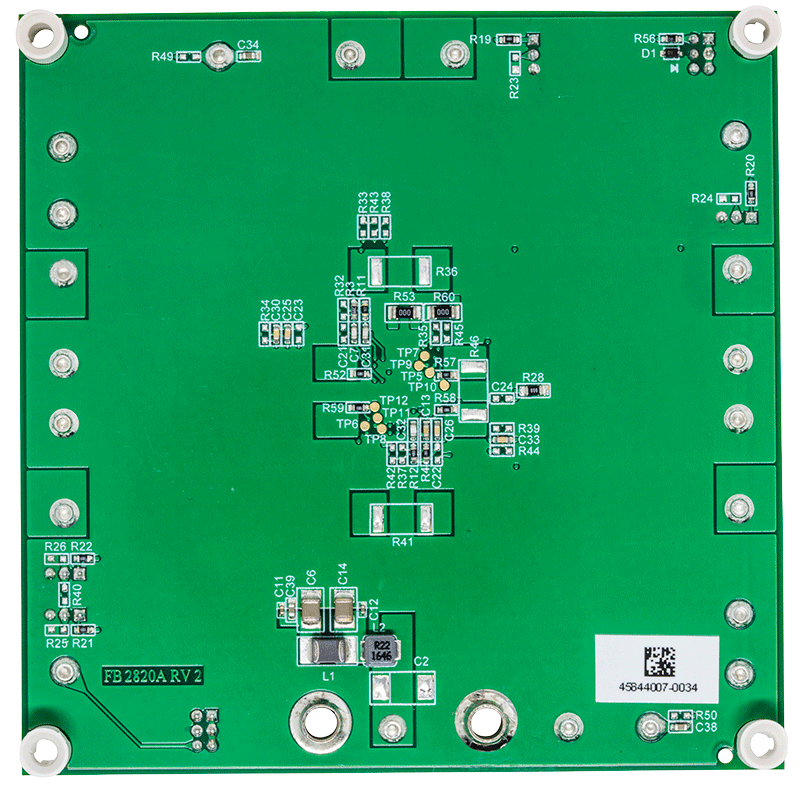

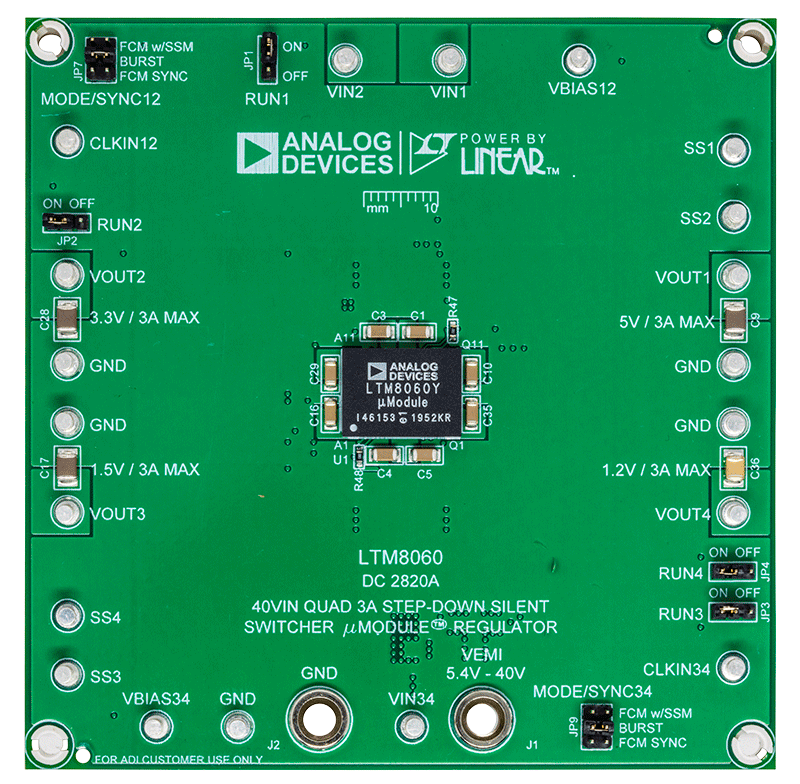

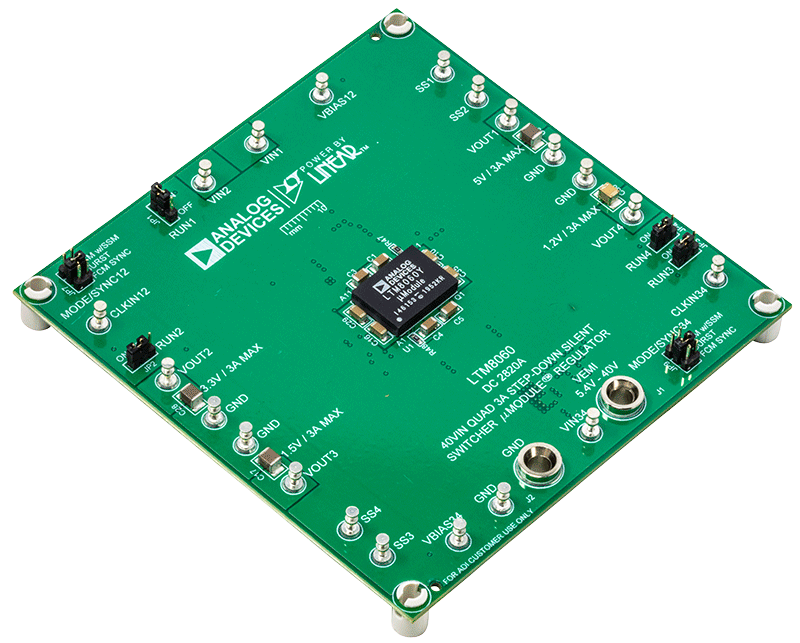

DC2820A Evaluation Board DC2820A Evaluation Board - Top View DC2820A Evaluation Board - Bottom View
ADXBAND16EBZ
16Tx/16Rx Direct X-Band Sampled Phased-Array/RADAR/SATCOM Development Platform
ADXBAND16EBZ Top Angle Evaluation Board ADXBAND16EBZ Top Evaluation Board ADXBAND16EBZ Bottom Evaluation Board ADXBAND16EBZ Bottom Angle Evaluation Board ADXBAND16EBZ-CAL Top Angle Evaluation Board ADXBAND16EBZ-CAL Top Evaluation Board ADXBAND16EBZ-CAL Bottom Evaluation Board
