Features and Benefits

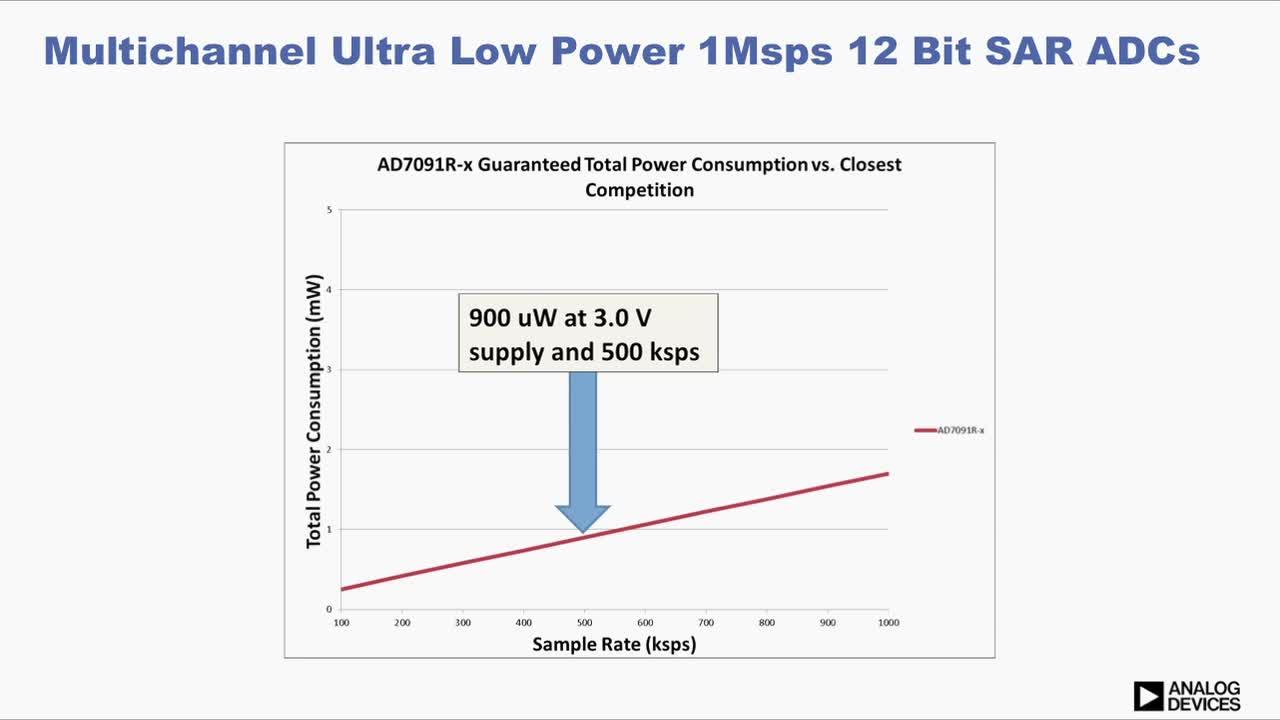

- Ultralow system power
- Flexible power/throughput rate management
- Programmable ALERT interrupt pin
- High performance
- 1 MSPS throughput with no latency/pipeline delay
- SNR: 70 dB typical at 10 kHz input frequency
- THD: −80 dB typical at 10 kHz input frequency
- INL: ±0.7 LSB typical, ±1.0 LSB maximum
- Small system footprint
- On-chip accurate 2.5 V reference, 5 ppm/°C typical drift
- MUXOUT/ADCIN to allow single buffer amplifier
- Daisy-chain mode

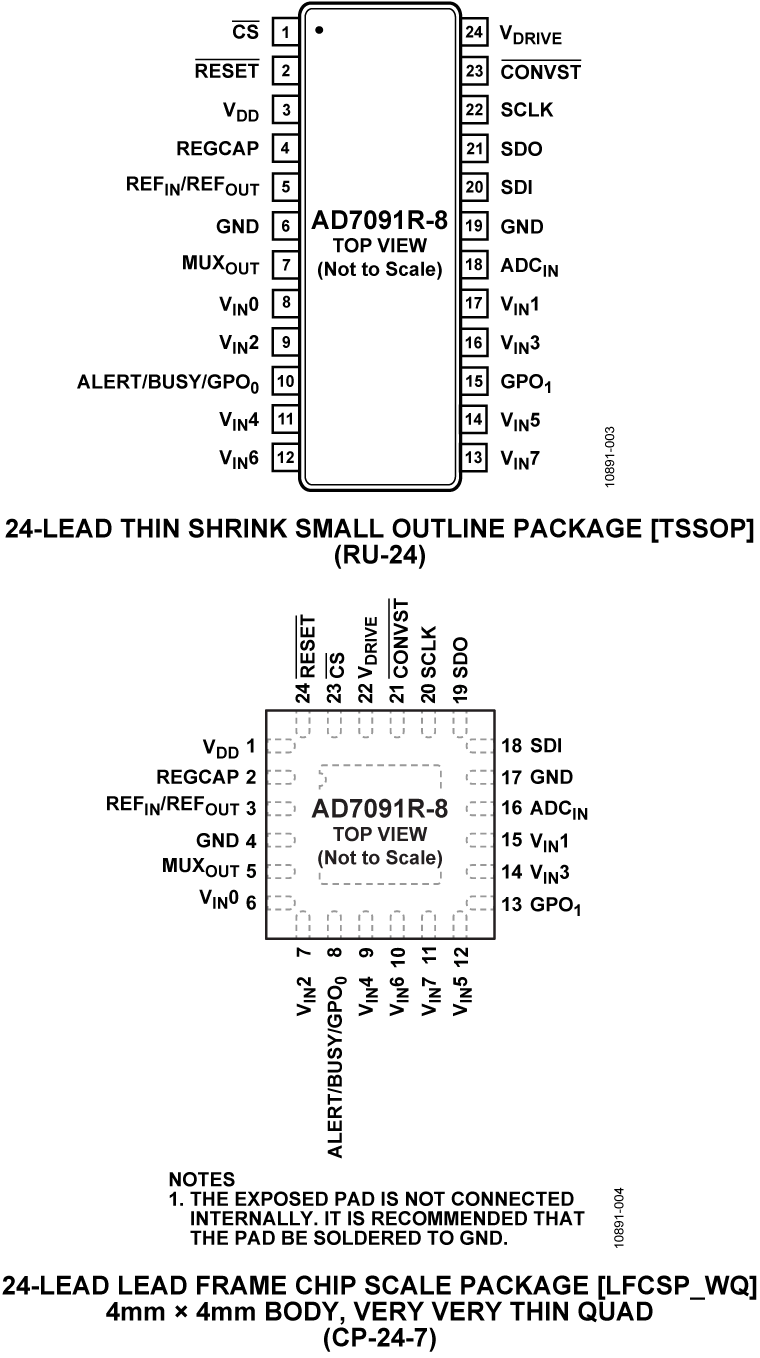

- 16-lead, 20-lead, and

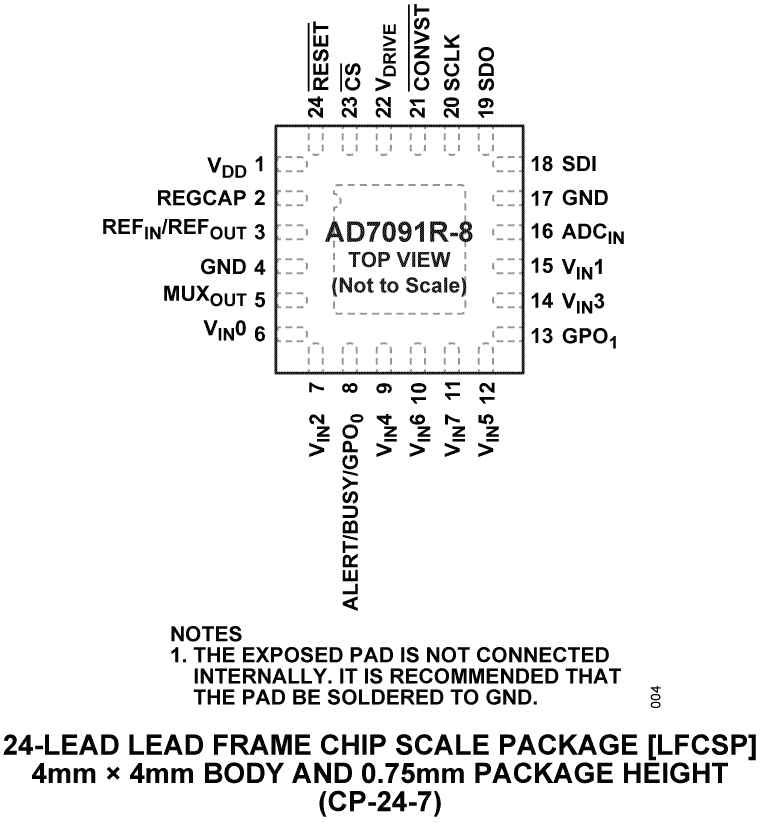

24-lead 4 mm × 4 mm LFCSP packages

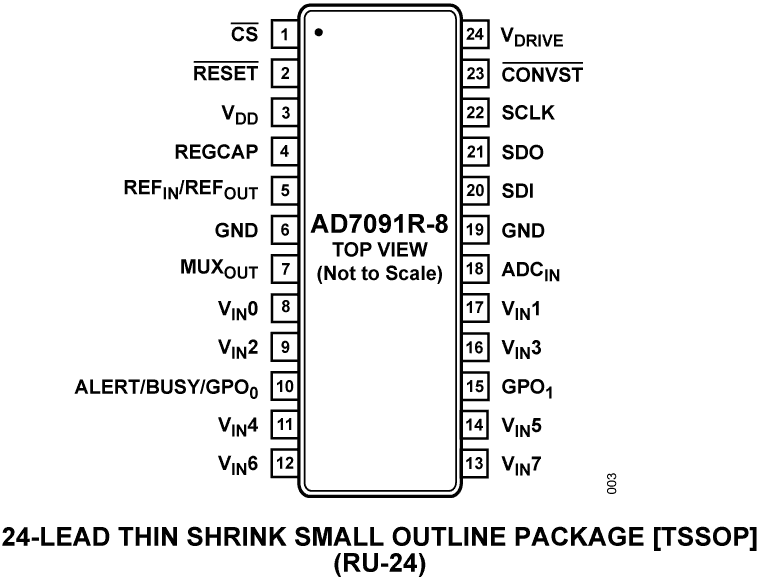

- 16-lead, 20-lead, and 24-lead TSSOP packages
- See data sheet for additional features.
The AD7091R-2 / AD7091R-4 / AD7091R-8 family is a multichannel 12-bit, ultralow power, successive approximation analog-to-digital converter (ADC) that is available in two, four, or eight analog input channel options. The AD7091R-2 / AD7091R-4 / AD7091R-8 operate from a single 2.7 V to 5.25 V power supply and are capable of achieving a sampling rate of 1 MSPS.

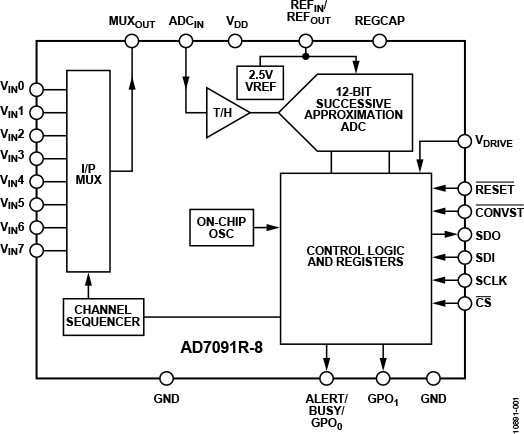

The AD7091R-2 / AD7091R-4 / AD7091R-8 family offers up to eight single-ended analog input channels with a channel sequencer that allows a preprogrammed selection of channels to be converted sequentially. The AD7091R-2 / AD7091R-4 / AD7091R-8 also feature an on-chip conversion clock, an on-chip accurate 2.5 V reference, and a high speed serial interface.
The AD7091R-2 / AD7091R-4 / AD7091R-8 have a serial port interface (SPI) that allows data to be read after the conversion while achieving a 1 MSPS throughput rate. The conversion process and data acquisition are controlled using the CONVST pin.
The AD7091R-2 / AD7091R-4 / AD7091R-8 use advanced design techniques to achieve ultralow power dissipation at high throughput rates. They also feature flexible power management options. An on-chip configuration register allows the user to set up different operating conditions. These include power management, alert functionality, busy indication, channel sequencing, and general-purpose output pins. The MUXOUT and ADCIN pins allow signal conditioning of the multiplexer output prior to acquisition by the ADC.
- Battery powered systems
- Personal digital assistants
- Medical instruments
- Mobile communications
- Instrumentation and control systems
- Data acquisition systems
- Optical sensors
- Diagnostic/monitoring functions
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The EVAL-AD7091R-2SDZ, EVAL-AD7091R-4SDZ, and EVAL-AD7091R-8SDZ are full featured evaluation boards designed to allow the user to easily evaluate all features of the AD7091R-2/ AD7091R-4/ AD7091R-8 family of analog-to-digital converters (ADCs). The evaluation board can be controlled via the SDP connector (J13). The SDP board ( EVAL-SDP-CB1Z) allows the evaluation board to be controlled through the USB port of a PC using the evaluation board software available for download from the product page.
On-board components include: the AD8031 high speed precision rail-to-rail op amp, the AD8032 high speed precision rail-to-rail dual op amp, the ADP3303 high accuracy 200 mA low dropout linear regulator, and the REF193 3.0 volt precision micropower, low dropout, low voltage reference.
- EVAL-SDP-CB1Z (must be ordered separately) includes a USB cable
- Signal source
- PC running Windows XP SP2, Windows Vista, or Windows 7 with USB 2.0 port
Features & Benefits
- Full featured evaluation board for the AD7091R-2/AD7091R-4/AD7091R-8 family
- On-board power supplies
- Standalone capability
- System demonstration platform (SDP) compatible ( EVAL-SDP-CB1Z)
- PC software for control and data analysis (download from product page)
Documentation & Resources
SAR ADC & Driver Quick-Match Guide9/13/2013
Tools & Simulations
AD7091R-8 Companion Parts
Recommended Driver Amplifiers
- For low frequency and low bias current: ADA4627-1, ADA4637-1, AD8610.
- For high frequency, low noise, low distortion: ADA4899-1, ADA4897-1, AD8021.
- For precision, low power, rail-to-rail output: ADA4841-1, ADA4896-2, AD8031.
Recommended External References
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|AD7091R-8BCPZ||Material Declaration||Reliability Data||24-Lead LFCSP (4mm x 4mm w/ EP)|
|AD7091R-8BCPZ-RL7||Material Declaration||Reliability Data||24-Lead LFCSP (4mm x 4mm w/ EP)|
|AD7091R-8BRUZ||Material Declaration||Reliability Data||24-Lead TSSOP|
|AD7091R-8BRUZ-RL7||Material Declaration||Reliability Data||24-Lead TSSOP|
