LTM8053

40V_IN、3.5A/6A 降压型超低噪声开关稳压器 μModule 稳压器

英文数据手册

Rev. D

推荐新设计使用

顶部

替代器件

LTM8003

40V_IN、3.5A 降压型 Silent Switcher μModule 稳压器

概览

优势和特点
产品详情

优势和特点

完整的降压型开关模式电源
低噪声 Silent Switcher^® 架构
宽输入电压范围：3.4V 至 40V
宽输出电压范围：0.97V 至 15V
在 12V_IN、5V_OUT、T_A = 85°C 情况下，连续输出电流为 3.5A
6A峰值输出电流
可通过并联以增加输出电流
可选的开关频率：200kHz 至 3MHz
符合 RoHS 标准的纤巧、扁平 6.25mm x 9mm x 3.32mm BGA 封装

产品详情

LTM^®8053 是一款 40V_IN、3.5A 连续电流、6A 峰值降压 µModule^®（电源模块）稳压器。封装中包含开关控制器、电源开关、电感和所有支持元件。输入电压范围为3.4V 至 40V，LTM8053 支持 0.97V 至 15V 的输出电压范围和 200 kHz 至 3MHz 的开关频率范围，各范围分别通过单个电阻进行设置。完成设计只需要输入和输出滤波电容器。LTM8053-1 可在强制连续模式下工作。

薄型封装可以利用 PC 板底部上的未用空间，实现负载调整的高密度点。LTM8053 采用散热增强型、紧凑注塑球栅阵列(BGA)封装，适用于通过标准表贴设备的自动化组装。LTM8053 符合 RoHS 标准。

应用

汽车电池调节
便携式产品电源
分布式电源调整
工业电源
壁式变压器调整

产品分类

电源管理
- µModule 降压型稳压器
- 高输入电压降压稳压器

领域

类似器件点击在参数搜索中查看所有

产品生命周期推荐新设计使用

本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。

评估套件 (2)

QUAD-MxFE Platform

16Tx/16Rx Direct L/S/C-Band Sampled Phased-Array/RADAR/EW/SATCOM Development Platform

DC1934A

LTM8053 Demo Board | Buck μModule Regulator, 5.6V ≤ V_IN ≤ 40V, V_OUT = 5V @ 3.5A

QUAD-MxFE Platform

查看此评估套件详细信息

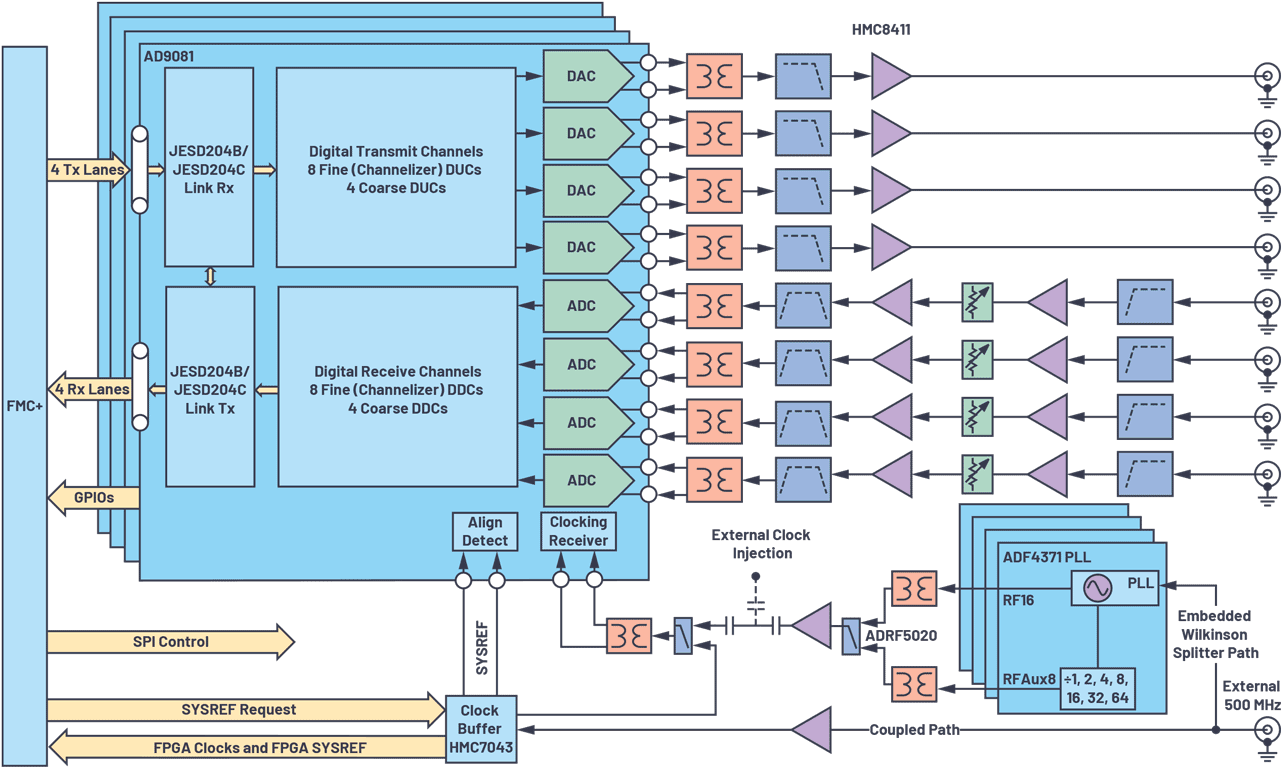

The Quad-MxFE System Development Platform contains four MxFE® software defined, direct RF sampling transceivers, as well as associated RF front-ends, clocking, and power circuitry. The target application is phased array radars, electronic warfare, and ground-based SATCOM, specifically a 16 transmit/16 receive channel direct sampling phased array at L/S/C band (0.1 GHz to ~5GHz). The Rx & Tx RF front-end has drop-in configurations that allow for customized frequency ranges, depending on the user’s application.

The Quad-MxFE System Development Platform highlights a complete system solution. It is intended as a testbed for demonstrating multi-chip synchronization as well as the implementation of system level calibrations, beamforming algorithms, and other signal processing algorithms. The system is designed to mate with a VCU118 Evaluation Board from Xilinx®, which features the Virtex® UltraScale+™ XCVU9P FPGA, with provided reference software, HDL code, and MATLAB system-level interfacing.

In addition to the Quad-MxFE Digitizing Card, the kit also contains a 16Tx / 16Rx Calibration Board that is used to develop system-level calibration algorithms, or otherwise more easily demonstrate power-up phase determinism in situations pertinent to their own use case. The Calibration Board also allows the user to demonstrate combined-channel dynamic range, spurious, and phase noise improvements and can also be controlled via a free MATLAB add-on when connected to the PMOD interface of the VCU118.

The system can be used to enable quick time-to-market development programs for applications like:

ADEF (Phased-Array, RADAR, EW, SATCOM)
Communications Infrastructure (Multiband 5G and mmWave 5G)
Electronic Test and Measurement

优势和特点

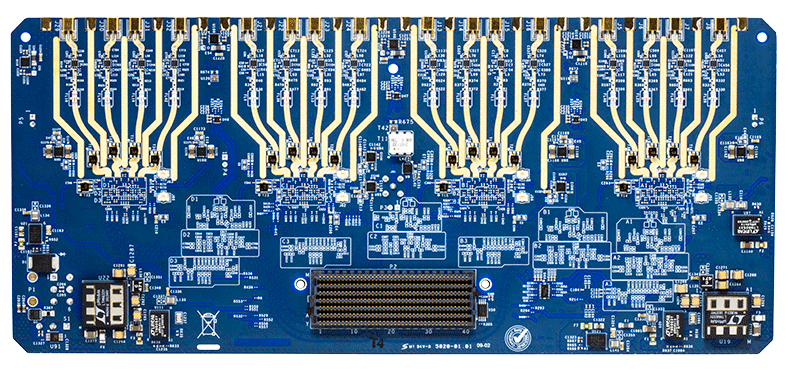

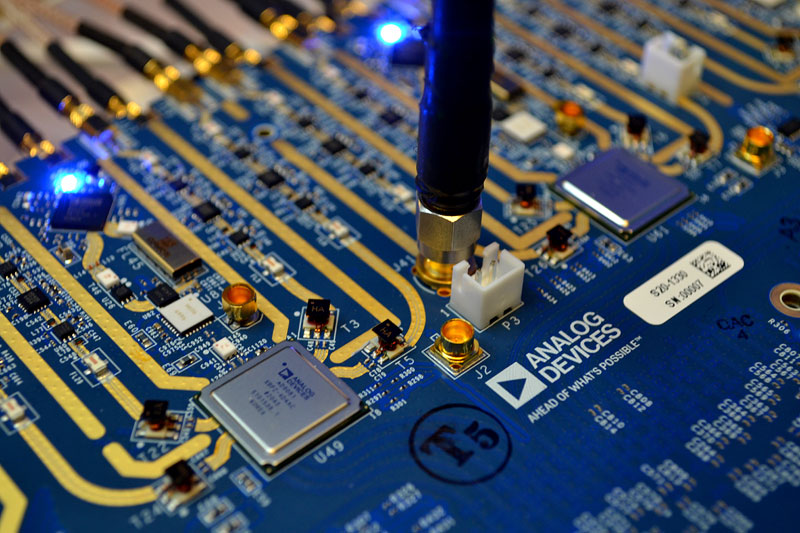

Quad-MxFE Digitizing Card

Multi-Channel, Wideband System Development Platform Using MxFE
Mates With Xilinx VCU118 Evaluation Board (Not Included)
16x RF Receive (Rx) Channels (32x Digital Rx Channels)
- Total 16x 1.5GSPS to 4GSPS ADC
- 48x Digital Down Converters (DDCs), Each Including Complex Numerically-Controlled Oscillators (NCOs)
- 16x Programmable Finite Impulse Response Filters (pFIRs)
16x RF Transmit (Tx) Channels (32x Digital Tx Channels)
- Total 16x 3GSPS to 12GSPS DAC
- 48x Digital Up Converters (DUCs) , Each Including Complex Numerically-Controlled Oscillators (NCOs)
Flexible Rx & Tx RF Front-Ends
- Rx: Filtering, Amplification, Digital Step Attenuation for Gain Control
- Tx: Filtering, Amplification
On-Board Power Regulation from Single 12V Power Adapter (Included)
Flexible Clock Distribution
- On-Board Clock Distribution from Single External 500MHz Reference
- Support for External Converter Clock per MxFE

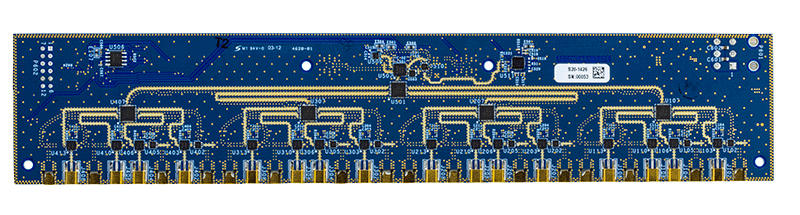

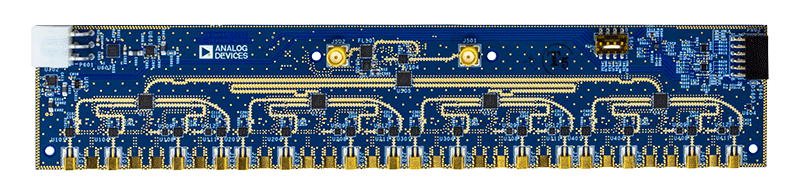

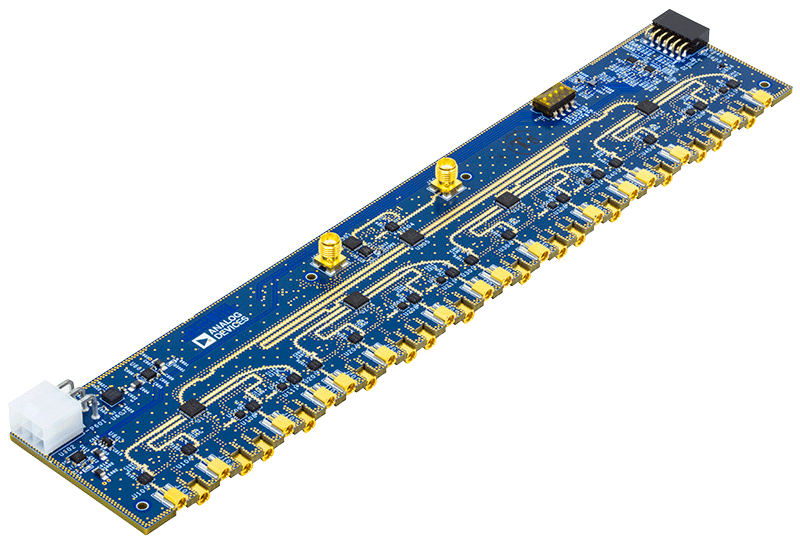

16Tx / 16Rx Calibration Board

Mates to Quad-MxFE Digitizing Card & VCU118 PMOD Interface (Cable Included)
Provides Both Individual Adjacent Channel Loopback and Combined Channel Loopback Options
Combined Tx Channels Out Via SMA Option
Combined Rx Channels In Via SMA Option
On-Board Log Power Detectors With AD5592R Output To VCU118 Over PMOD
On-Board Power Regulation from Single 12V Power Adapter (Included)

Software Features and Benefits
Easy Control Tools and Platform Interfaces to Simplify Software Framework Developments:

IIO Oscilloscope GUI
MATLAB Add-Ons & Example Scripts
Example HDL Builds including JESD204b/JESD204c Bring-Up
Embedded Software Solutions for Linux and Device Drivers
MATLAB System Applications GUI

Software Reference Design Examples for ADEF Applications to Reduce Prototyping Time:

Multi-Chip Synchronization for Power-Up Phase Determinism
System-Level Amplitude/Phase Alignment Using NCOs
Low-Latency ADC-to-DAC Loopback Bypassing JESD Interface
pFIR Control for Broadband Channel-to-Channel Amplitude/Phase Alignment
Fast-Frequency Hopping
Calibration Board MATLAB Driver File
FPGA Programming MATLAB Script

软件

Quad-MxFE Software Quick Start Guide

DC1934A

查看此评估套件详细信息

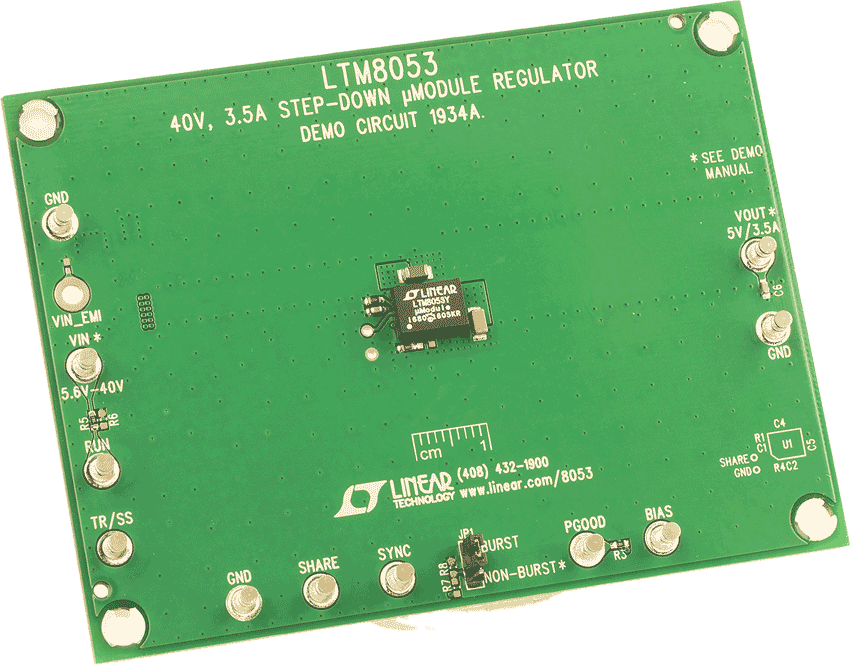

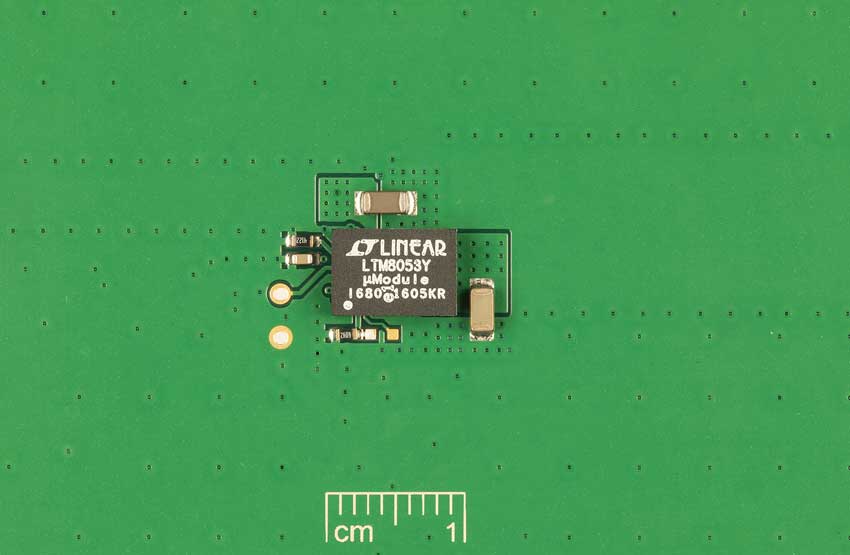

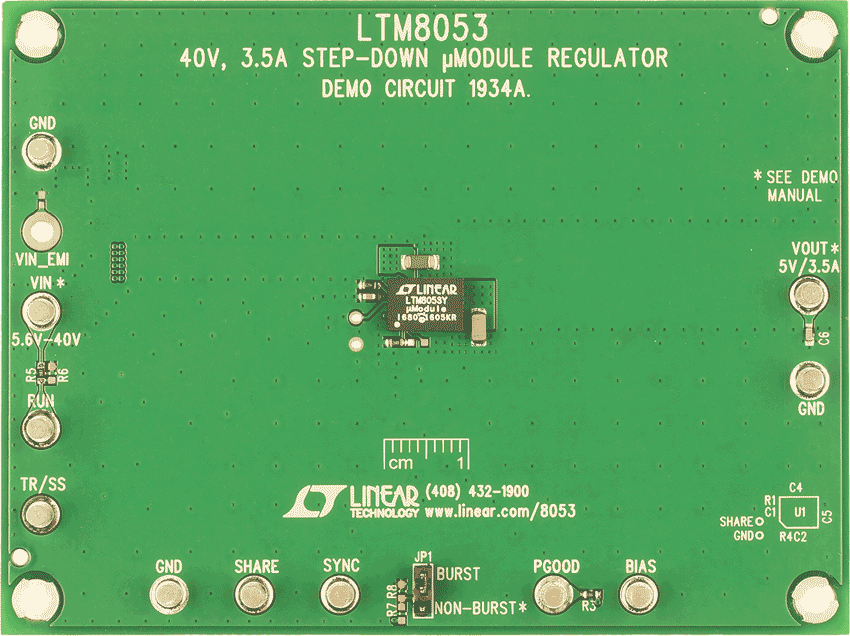

演示电路1934A是一款40V、3.5A降压型μModule®稳压器，内置LTM8053。该演示板设计提供5V输出和5.6V至40V的输入。宽输入范围支持各种输入源，如汽车电池和工业电源。只需修改相应的电阻和/或电容，即可在DC1934A上更改LTM8053的用户可调功能，如输出电压、开关频率、软启动和电源良好。两个或多个LTM8053可以并联在一起均分负载电流。
