ADP125

使用外部分压器的5.5V输入、500 mA、低静态电流、CMOS线性调节器

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
产品详情
特性
  • 输入电压范围:2.3 V至5.5 V
  • 最大输出电流:500 mA
  • 固定和可调输出电压版本
  • 初始精度:1%
  • 提供多达31种固定输出电压选项:1.75 V至3.3 V
  • 可调输出电压范围:0.8 V至5.0 V
  • 极低压差:130 mV
  • 低静态电流:45 μA
  • 低关断电流:< 1 μA
  • 出色的PSRR性能:60 dB (100 kHz)
  • 出色的负载/线路瞬态响应
  • 欲了解更多特性,请参考数据手册

更多细节
show more Icon
ADP124/ADP125均为低静态电流、低压差线性调节器,采用2.3 V至5.5 V输入电压工作,提供高达500 mA的输出电流。驱动500 mA负载时压差仅为130 mV;低压差特性不仅可提高功效,而且能使器件在较宽的输入电压范围工作。

500 mA负载时静态电流低至210 μA,因此ADP124/ADP125非常适合电池供电的便携式设备使用。ADP124可提供1.75 V至3.3 V范围内的31种固定输出电压。ADP125是ADP124的可调版本,可通过外部分压器在0.8 V至5.0 V范围内设置输出电压。ADP124/ADP125经过专门设计,利用1 μF小陶瓷输入和输出电容便可稳定工作,适合高性能、空间受限应用的要求。

ADP124/ADP125具有内部软启动功能,启动时间恒定为350 μs。短路保护和热过载保护电路可以防止器件在不利条件下受损。ADP124/ADP125采用8引脚裸露焊盘MSOP封装。与标准MSOP封装相比,裸露焊盘MSOP封装热阻(θJA)更低。凭借低热阻封装,ADP124/ADP125可以满足多种便携式应用的需求,同时还能较大幅度地限制结温升高。

应用
  • 数码相机和音频设备
  • 便携式电池供电设备
  • 自动抄表(AMR)仪表
  • GPS和定位管理单元
  • 医疗仪器
  • 负载点电源

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
ADP125ACPZ-R7
  • HTML
  • HTML
ADP125ARHZ
  • HTML
  • HTML
ADP125ARHZ-R7
  • HTML
  • HTML

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

8月 8, 2022

- 22_0192

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

10月 18, 2016

- 16_0036

Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products

8月 6, 2014

- 13_0244

Assembly and Test Transfer of Select 2x2 and 1.6x1.6 mm Mini-LFCSP Products to STATS ChipPAC China

1月 5, 2015

- 14_0246

Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

8月 8, 2022

- 22_0192

arrow down

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

10月 18, 2016

- 16_0036

arrow down

Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products

8月 6, 2014

- 13_0244

arrow down

Assembly and Test Transfer of Select 2x2 and 1.6x1.6 mm Mini-LFCSP Products to STATS ChipPAC China

1月 5, 2015

- 14_0246

arrow down

Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices

软件和型号相关生态系统

软件和型号相关生态系统

评估套件

评估套件 1

工具和仿真

工具及仿真模型 2

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器,为改善模拟电路的仿真提供增强功能和模型。

参考电路

参考电路 4

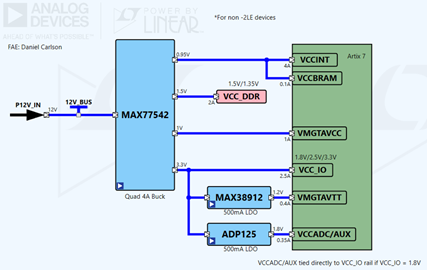

Artix 7 – Single Stage Power Solution

zoomopens a dialog

xilinx-artix-7

xilinx-artix-7

参考设计

tooltip Info:参考设计

特性和优点

  • Xilinx Artix 7™ Artix™-7 devices provide high performance-per-watt fabric, transceiver line rates, DSP processing, and AMS integration in a cost-optimized FPGA. This family is the best value for a variety of cost and power-sensitive applications including software-defined radio, machine vision cameras, and low-end wireless backhaul.
  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
  • Our reference designs are supported by an intuitive design tool set and IP
  • ADI provides supporting documentation including LTpowerPlanner and applicable LTpowerPlay configuration files to enable you to validate the power solution for your application seamlessly. Our team can provide samples and/or evaluation boards for quick validation that can speed time to market in the most complex applications.
  • For a complete list  power designs and use cases, please contact your local FAE.

Key power regulators are used for this device as follows:

  • MAX77542
  • MAX38912
  • ADP125
查看参考设计详情 external link
Artix US+ Rail Consolidation – Minimum Rails (AU10P/15P) Power Tree

Minimum Rails for AU10/15P and AU20/25P - Non-Hardware Verified Design

zoomopens a dialog

artix-ultrascale

Minimum Rails for AU10/15P and AU20/25P - Non-Hardware Verified Design

artix-ultrascale

参考设计

tooltip Info:参考设计
Minimum Rails for AU10/15P and AU20/25P - Non-Hardware Verified Design

特性和优点

  • Xilinx Artix® UltraScale+ devices are the industry’s only cost-optimized FPGAs based on an advanced, production-proven 16nm architecture for best-in-class performance/watt.

  • Analog Devices, Inc. supports power delivery solutions for the Artix Ultrascale+ low-cost designs. Monolithic solutions are used to power Xilinx FPGA and/or SoC rails as well as other system rails. These regulators are highly integrated discrete solutions optimized for cost, efficiency and footprint.

  • ADI provides supporting documentation including power schematics, layout, LTpowerPlanner® and applicable LTpowerPlay® configuration files to enable you to validate the power solution for your application seamlessly.

  • For a complete list power designs and use cases, please contact your local FAE.

  • Key Power for full management devices are used as follows:

    • LTC3307A
    • LTC3309A
    • ADP125
    • LTC3617 (Optional DDR)
    • LTC3618
    • ADM1186 (Optional Monitoring & Sequencing)
查看参考设计详情 external link

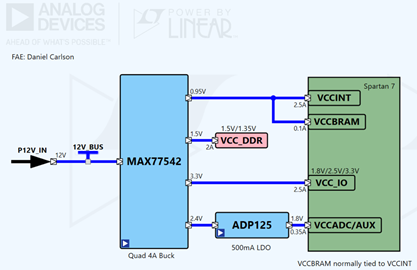

Xilinx Spartan 7

zoomopens a dialog

xilinx-spartan-7

xilinx-spartan-7

参考设计

tooltip Info:参考设计

特性和优点

  • Spartan™ 7 devices offers exceptional performance per watt, along with small form factor packaging to meet the most stringent requirements.  These devices are ideally suited for industrial, consumer, and automotive applications including any-to-any connectivity, sensor fusion, and embedded vision.
  • Analog Devices has worked closely Xilinx to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
  • ADI provides supporting documentation including LTpowerPlanner and applicable LTpowerPlay configuration files to enable you to validate the power solution for your application seamlessly. For a complete list  power designs and use cases, please contact your local FAE.

Key power regulators are used for this device as follows:

  • MAX77542
  • ADP125
查看参考设计详情 external link

使用部分 2

Versal HBM Diagram

zoomopens a dialog

xilinx-minimum-rails

xilinx-minimum-rails

参考设计

tooltip Info:参考设计

特性和优点

  • The Versal HBM series features heterogeneous integration of fast memory, secure connectivity, and adaptive compute to eliminate processing and memory bottlenecks for memory-bound, compute-intensive workloads such as machine learning, database acceleration, next-generation firewalls, and advanced network testers. Analog Devices has worked closely AMD to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
  • ADI provides supporting documentation including LTpowerPlanner and applicable LTpowerPlay configuration files to enable you to validate the power solution for your application seamlessly. For a complete list  power designs and use cases, please contact your local local FAE.
  • ADI has also completed a complete power evaluation report for Mid-High Voltage rails. For a complete report please submit your interest here.

Key power regulators are used for this device as follows:

  • LTC3888-1
  • LTC7051
  • LTC3633A
  • LTC7200S
  • LTC7151S
  • LT8652
  • ADP125
  • LTC3617 (Optional)
  • LTC3618 (Optional)
查看参考设计详情 external link
