LTC7051

RECOMMENDED FOR NEW DESIGNS

SilentMOS Smart Power Stage in 5mm × 8mm LQFN

Data Sheet (Rev. C) Product Selection Table
Viewing:

Overview

  • 140A Peak Output Current
  • SilentMOS™ Smart Power Stage
    • Utilizes Low EMI/EMC Silent Switcher®2 Architecture
    • Ultra-Low SW-Voltage Overshoot
    • Frequency Up to 2MHz
  • VIN Up to 14V
  • Up to 94% Efficiency at 1MHz with 1.8VOUT
  • Integrated Boost Diode and Capacitors and Power Switches
  • Accurate Switch Current Monitoring
  • Power MOSFET Overcurrent Protection
  • Input Overvoltage and Bias Undervoltage Protection
  • 3.3V/5V Compatible Tri-State PWM Input Thermal Monitor with Overtemperature Flag
  • 5mm × 8mm LQFN Package
LTC7051
SilentMOS Smart Power Stage in 5mm × 8mm LQFN

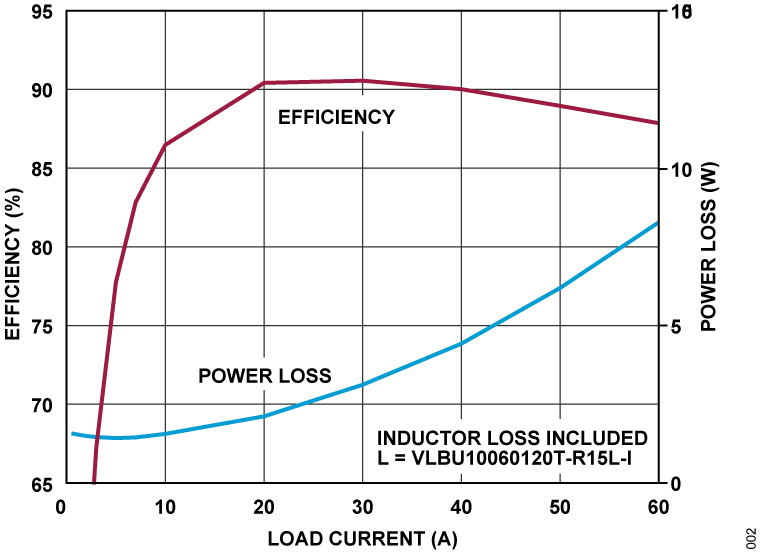

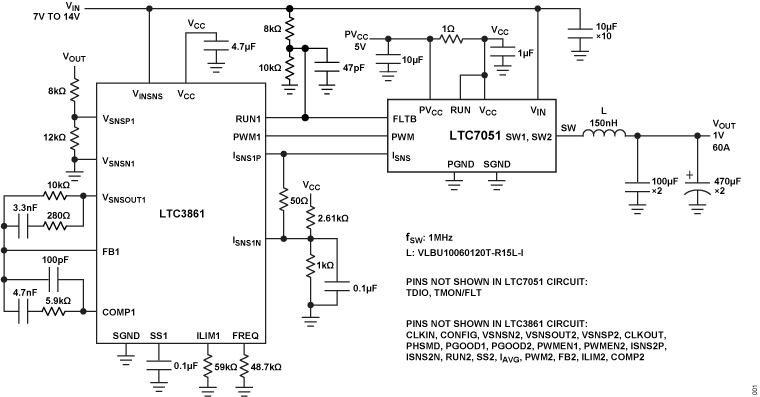

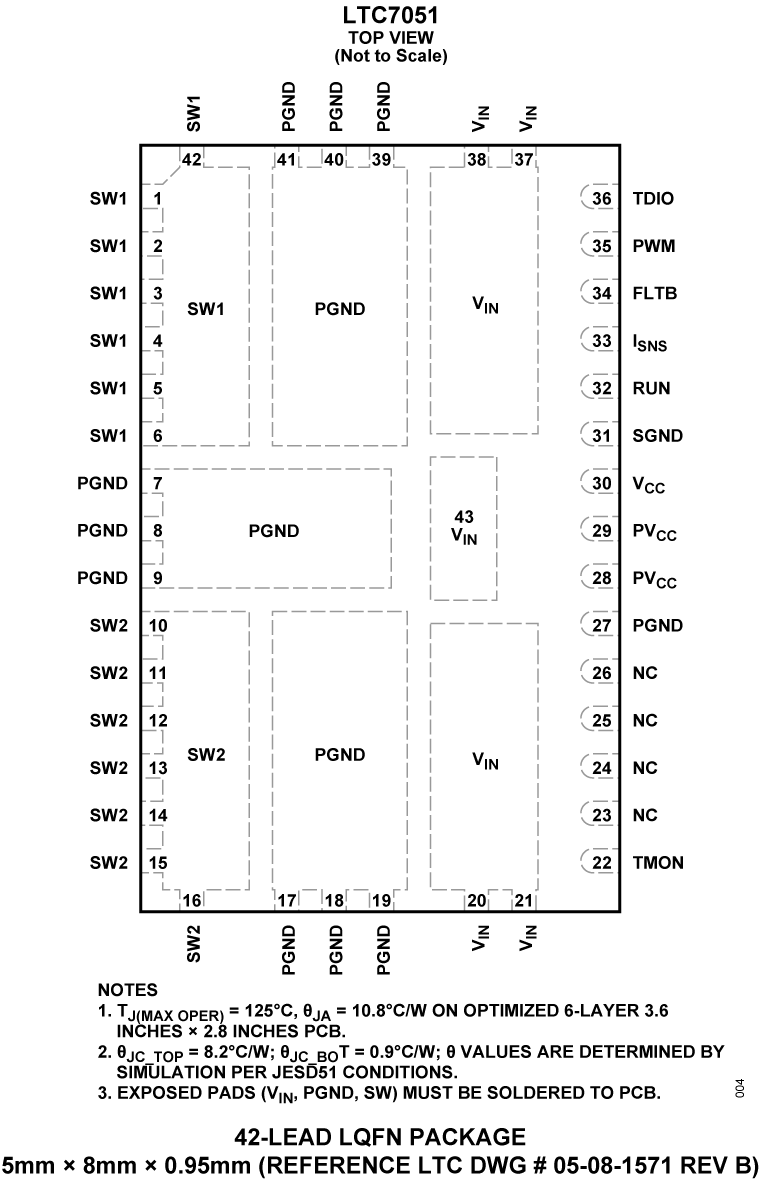

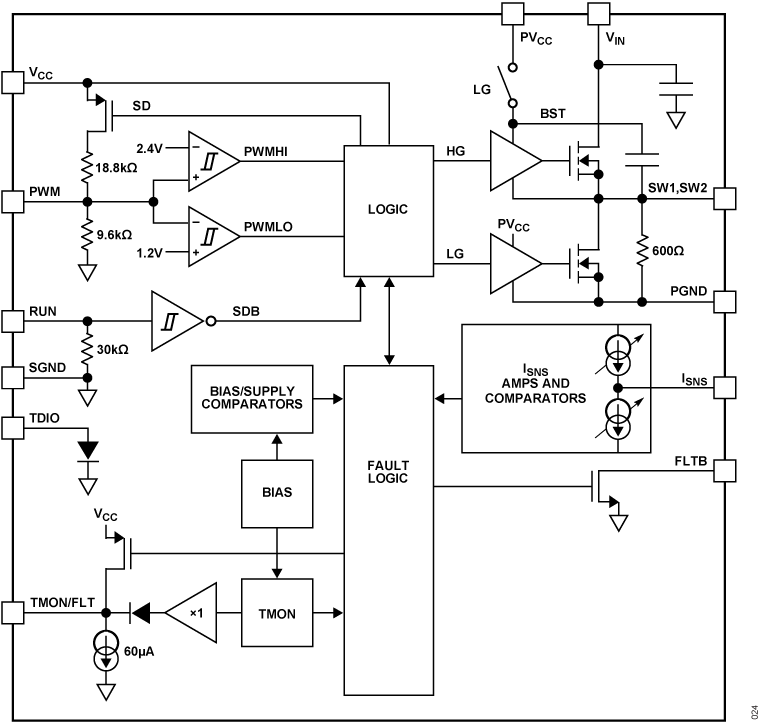

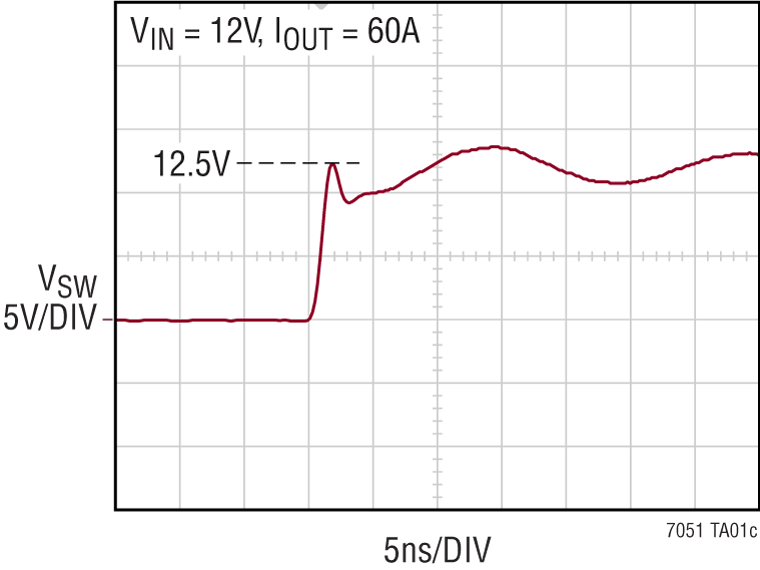

LTC7051 Typical Application Circuit LTC7051 Performance Graph LTC7051 Performance Graph LTC7051 Pin Configuration LTC7051 Functional Block Diagram
