LTC3617

±6A Monolithic Synchronous Step-Down Regulator for DDR Termination

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 4
1ku List Price Starting From $4.55
Features
  • ±6A Output Current
  • 2.25V to 5.5V Input Voltage Range
  • ±10mV Output Voltage Accuracy
  • Optimized for Low Output Voltages Down to 0.5V

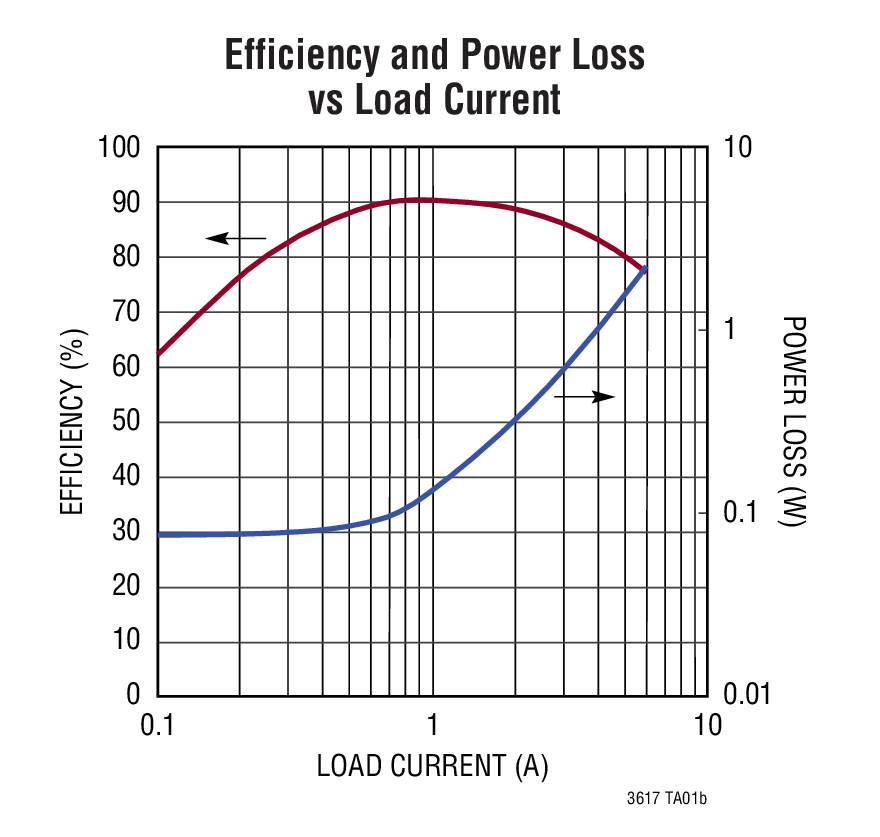

  • High Efficiency
  • Integrated Buffer for VTTR = VDDQIN • 0.5
  • Shutdown Current: <1µA
  • Adjustable Switching Frequency: Up to 4MHz
  • Optional Internal Compensation
  • Internal Soft-Start
  • Power Good Status Output
  • Input Overvoltage Protected

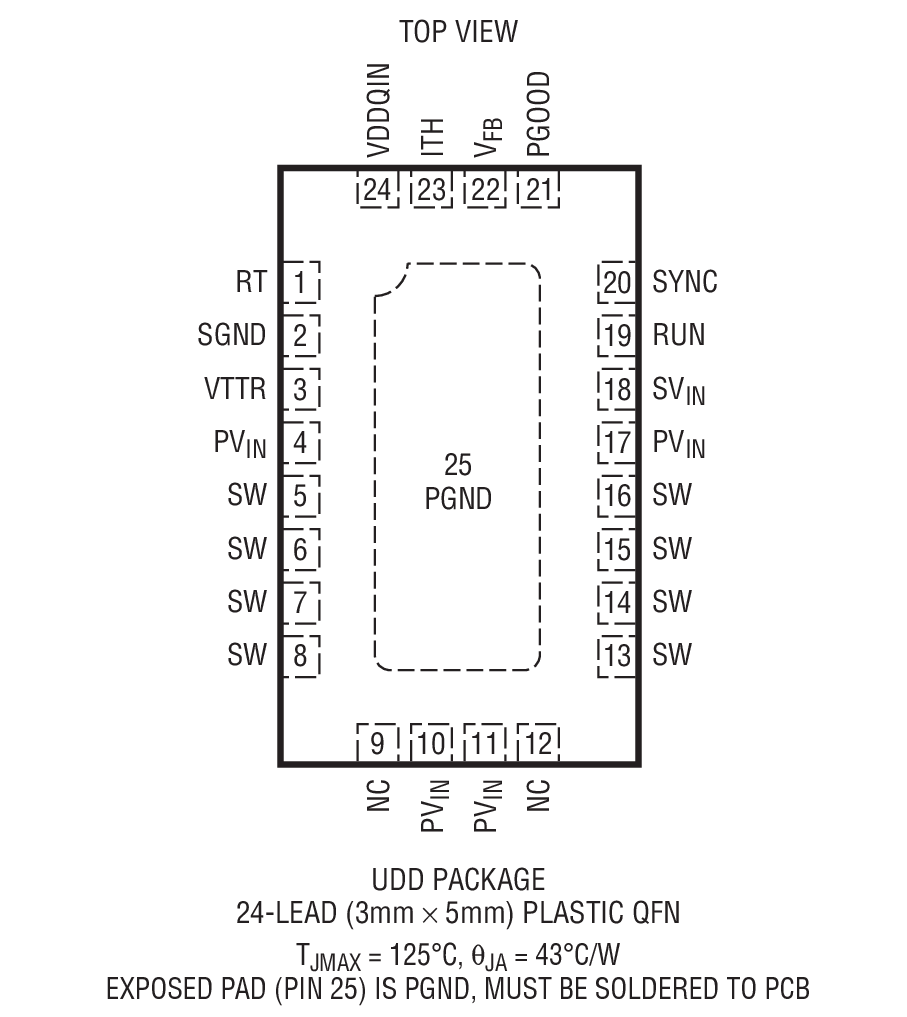

  • Thermally Enhanced 24-Pin 3mm × 5mm QFN Package
Additional Details
show more Icon

The LTC3617 is a high efficiency monolithic synchronous buck regulator utilizing a current mode, constant frequency architecture. It operates from an input voltage range of 2.25V to 5.5V and provides a regulated output voltage equal to 0.5 • VDDQIN while sourcing and sinking up to 6A of load current. An internal amplifier provides a VTTR output voltage equal to 0.5 • VDDQIN with an output current capability of ±10mA.

The operating frequency is externally programmable up to 4MHz, allowing the use of small surface mount inductors. For switching-noise-sensitive applications, the LTC3617 can be synchronized to an external clock up to 4MHz.

Forced continuous mode operation in the LTC3617 reduces noise and RF interference. Adjustable external compensation allows the transient response to be optimized over a wide range of loads and output capacitors.

The internal synchronous switch increases efficiency and eliminates the need for an external catch diode, minimizing external component count and board space. The LTC3617 is offered in a leadless 24-pin 3mm × 5mm thermally enhanced QFN package.

Applications

  • DDR Termination
  • Supports DDR, DDR2 and DDR3 Standards
  • Tracking Supplies
Part Models 4
1ku List Price Starting From $4.55

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3617EUDD#PBF
  • HTML
  • HTML
LTC3617EUDD#TRPBF
  • HTML
  • HTML
LTC3617IUDD#PBF
  • HTML
  • HTML
LTC3617IUDD#TRPBF
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC1707A

LTC3617EUDD Demo Board | VIN=2.25V to 5.5V, VOUT1 = 0.5VIN (VTT) @ ±6A, VOUT2 = 0.5VIN (VTTR) @ ±10mA

zoom

DC1707A

LTC3617EUDD Demo Board | VIN=2.25V to 5.5V, VOUT1 = 0.5VIN (VTT) @ ±6A, VOUT2 = 0.5VIN (VTTR) @ ±10mA

LTC3617EUDD Demo Board | VIN=2.25V to 5.5V, VOUT1 = 0.5VIN (VTT) @ ±6A, VOUT2 = 0.5VIN (VTTR) @ ±10mA

Product Detail

Demonstration circuit 1707 is a high efficiency monolithic step-down DC/DC switching regulator designed for double-data-rate (DDR) memory termination in computer systems. The VTT output is capable of sourcing and sinking up to 6A with an output voltage equal to one-half the voltage applied to the VDDQIN terminal or one-half the input supply voltage, selected by a jumper. An additional low current output (VTTR) also equal to one-half the voltage on VDDQIN can source and sink up to 10mA. Input voltage range is from 2.25V to 5.5V with overvoltage protection for transients exceeding 6.5V.
