LTC3618

Dual 4MHz, ±3A Synchronous Buck Converter for DDR Termination

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 10
1ku List Price Starting From $4.90
Features
  • DDR Power Supply, Termination and Reference
  • High Efficiency: Up to 94%
  • Dual Outputs with ±3A Output Current Capability
  • 2.25V to 5.5V Input Voltage Range
  • ±1% Output Voltage Accuracy
  • VTT Output Voltage Down to 0.5V
  • Shutdown Current ≤1μA
  • VTTR = VDDQIN/2, VFB2 = VTTR
  • Adjustable Switching Frequency Up to 4MHz
  • Internal or External Compensation
  • Selectable 0°/90°/180° Phase Shift Between Channels
  • Internal or External Soft-Start for VDDQ, Internal Soft-Start for VTT
  • Power Good Status Outputs

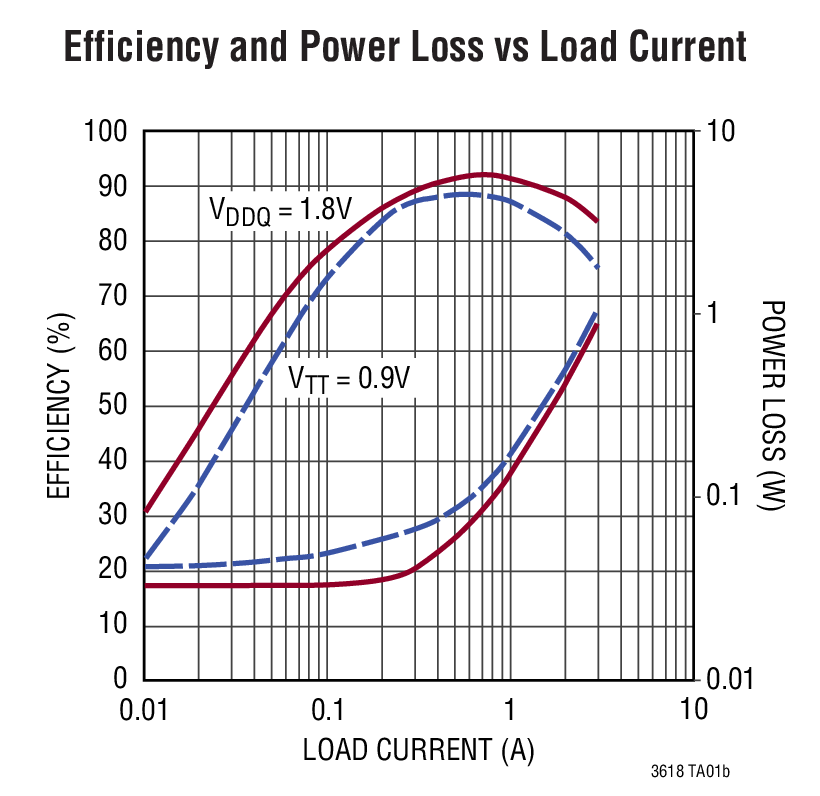

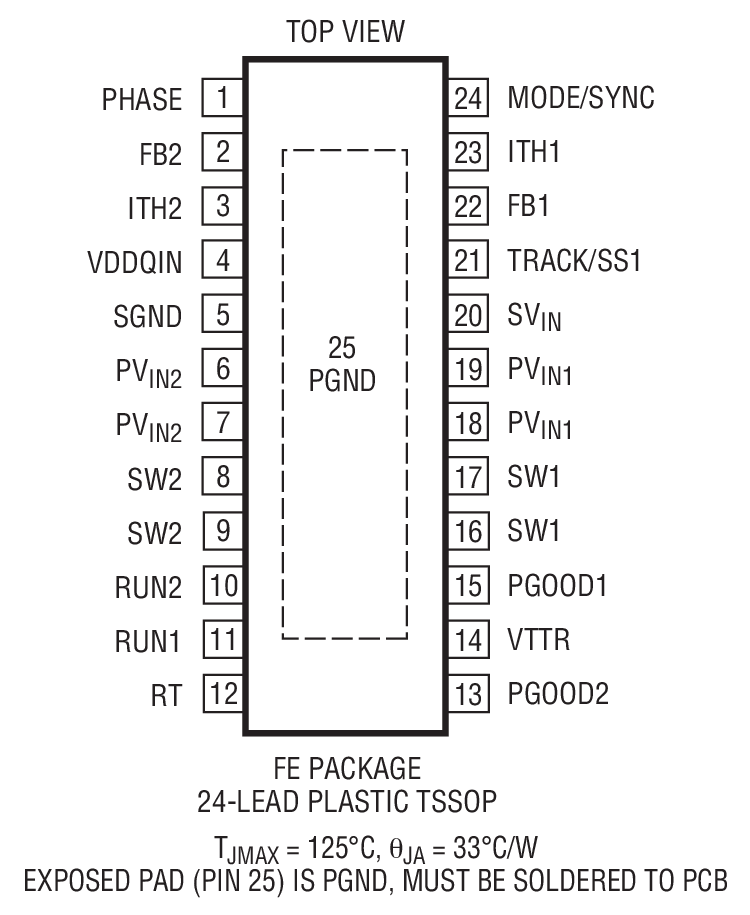

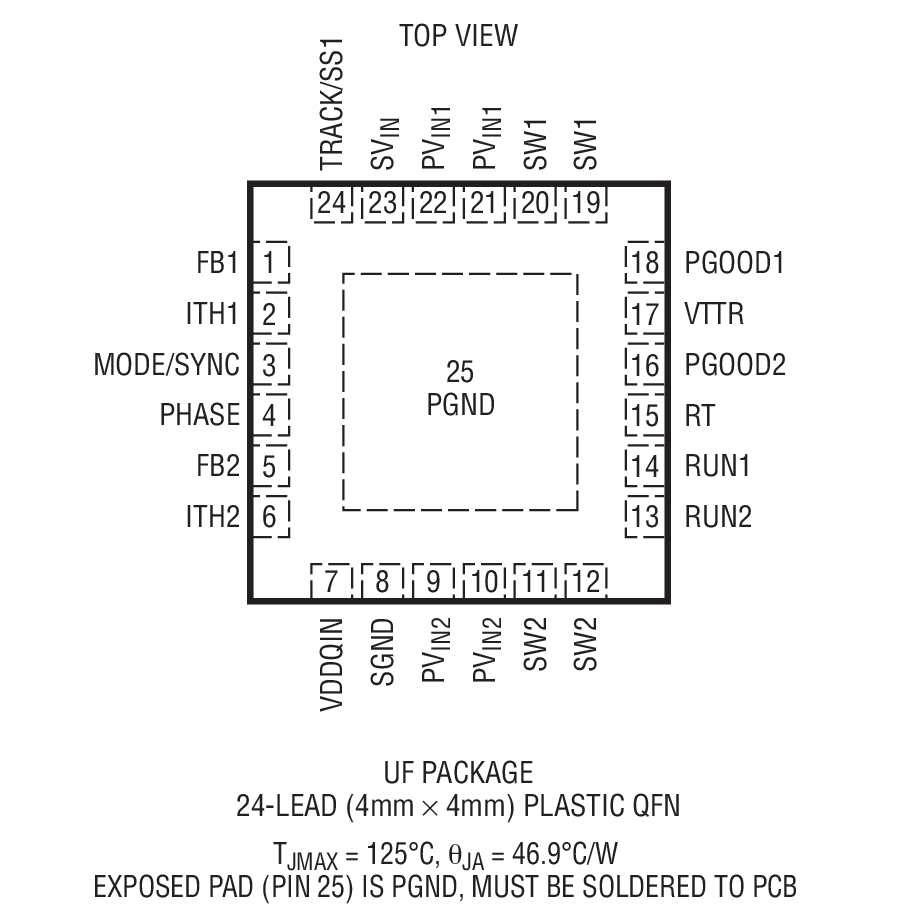

  • Low Profile 4mm × 4mm QFN-24 and TSSOP-24 Packages
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LTC3618 is a dual synchronous step-down regulator using a current mode, constant-frequency architecture. It provides a complete DDR solution with an input voltage range from 2.25V to 5.5V.

The output of the first step-down regulator offers a high accuracy VDDQ supply. A buffered reference generates VTTR at 50% of VDDQIN and drives loads up to ±10mA. The second regulator generates the DDR termination voltage (VTT) equal to VTTR. Both regulators are capable of delivering ±3A of load current at 1MHz switching frequency.

The operating frequency is externally programmable up to 4MHz, allowing the use of small surface mount inductors. 0°, 90°, or 180° of phase shift between the two channels can be selected to minimize input current ripple. For switching noise-sensitive applications, the LTC3618 can be synchronized to an external clock up to 4MHz.

The LTC3618 is offered in leadless 24-pin 4mm × 4mm QFN and thermally enhanced 24-pin TSSOP packages.

APPLICATIONS

  • DDR Memory
  • Supports DDR, DDR2, and DDR3 Standards
  • Tracking Supplies
Part Models 10
1ku List Price Starting From $4.90

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3618EFE#PBF
  • HTML
  • HTML
LTC3618EFE#TRPBF
  • HTML
  • HTML
LTC3618EUF#PBF
  • HTML
  • HTML
LTC3618EUF#TRPBF
  • HTML
  • HTML
LTC3618IFE#PBF
  • HTML
  • HTML
LTC3618IFE#TRPBF
  • HTML
  • HTML
LTC3618IUF#PBF
  • HTML
  • HTML
LTC3618IUF#TRPBF
  • HTML
  • HTML
LTC3618IUF#WPBF
  • HTML
  • HTML
LTC3618IUF#WTRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3618EFE#PBF

PRODUCTION

LTC3618EFE#TRPBF

PRODUCTION

LTC3618IFE#PBF

PRODUCTION

LTC3618IFE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3618EFE#PBF

PRODUCTION

LTC3618EFE#TRPBF

PRODUCTION

LTC3618IFE#PBF

PRODUCTION

LTC3618IFE#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC1726A

LTC3618EUF Demo Board | For DDR Termination, 2.25V ≤ VIN ≤ 5.5V, VDDQ = 1.5V/1.8V/2.5V @ ±3A, VTT = 0.5VDDQ @ ±3A, VTTR Current = ±10mA

zoom

DC1726A

LTC3618EUF Demo Board | For DDR Termination, 2.25V ≤ VIN ≤ 5.5V, VDDQ = 1.5V/1.8V/2.5V @ ±3A, VTT = 0.5VDDQ @ ±3A, VTTR Current = ±10mA

LTC3618EUF Demo Board | For DDR Termination, 2.25V ≤ VIN ≤ 5.5V, VDDQ = 1.5V/1.8V/2.5V @ ±3A, VTT = 0.5VDDQ @ ±3A, VTTR Current = ±10mA

Product Detail

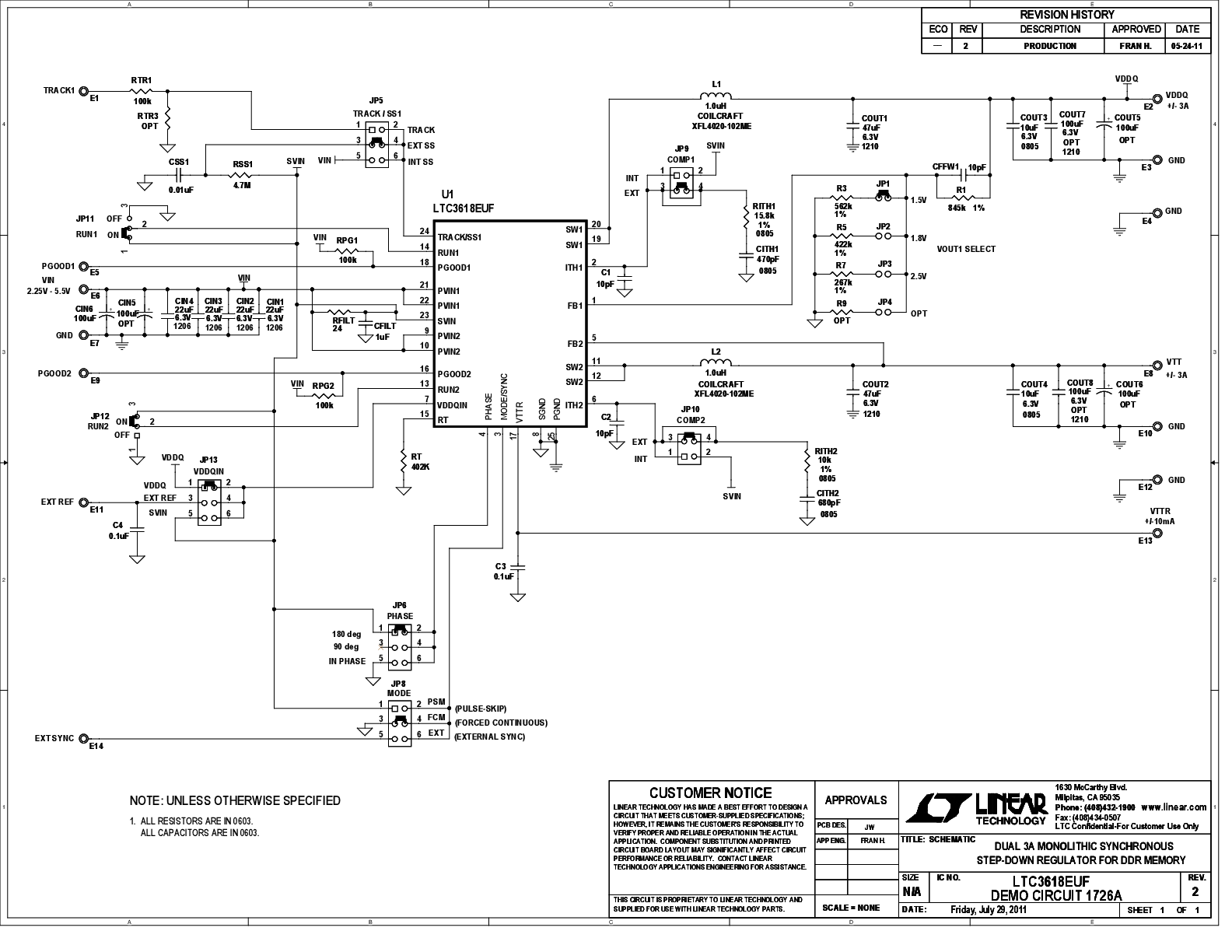

Demonstration circuit 1726 is a dual high efficiency monolithic step-down (buck) DC/DC switching regulator designed for double-data-rate (DDR) memory termination in computer systems. The VDDQ output is capable of sourcing and sinking up to 3A with output voltages of 1.5V, 1.8V, 2.5V plus an optional voltage, selected using jumpers. The VTT output can also source and sink up to 3A with an output voltage equal to half of the VDDQ voltage, half of the input voltage or half of an externally applied voltage, selected using a jumper. An additional low current output (VTTR) equal to the VTT voltage capable of sourcing and sinking up to 10mA is included. Input voltage range is from 2.25V to 5.5V with overvoltage protection for transients exceeding 6.5V.
