LTC9101-2

推荐新设计使用

12/24 端口 IEEE 802.3bt PoE PSE 控制器

数据手册 (Rev. A) 产品选型表

产品模型: 2

Viewing:

产品详情

完全符合 IEEE 802.3bt 3 类和 4 类标准的 PSE
多达 24 个 PSE 端口，每个端口有两个电源通道
可耐受 +80V/–20V 面向引脚的端口
受 ECC 保护的 eFlash 和数据 RAM
每个通道均具有低功耗路径损耗
- 100mΩ 检测电阻
- 30mΩ 或低 MOSFET R_DS(ON)
芯片组提供电气隔离
- 不再需要光电元件和隔离式 3.3V 电源

可靠性极高的多点 PD 检测
- 连接检查可以区分单签名和双签名 PD
持续的每端口电压和电流监控
与 1MHz I²C 兼容的串行控制接口
引脚或 I²C 可编程 PD 电源

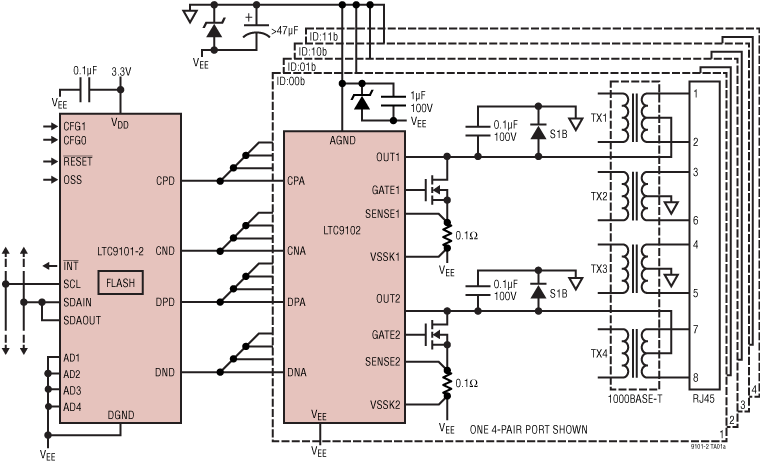

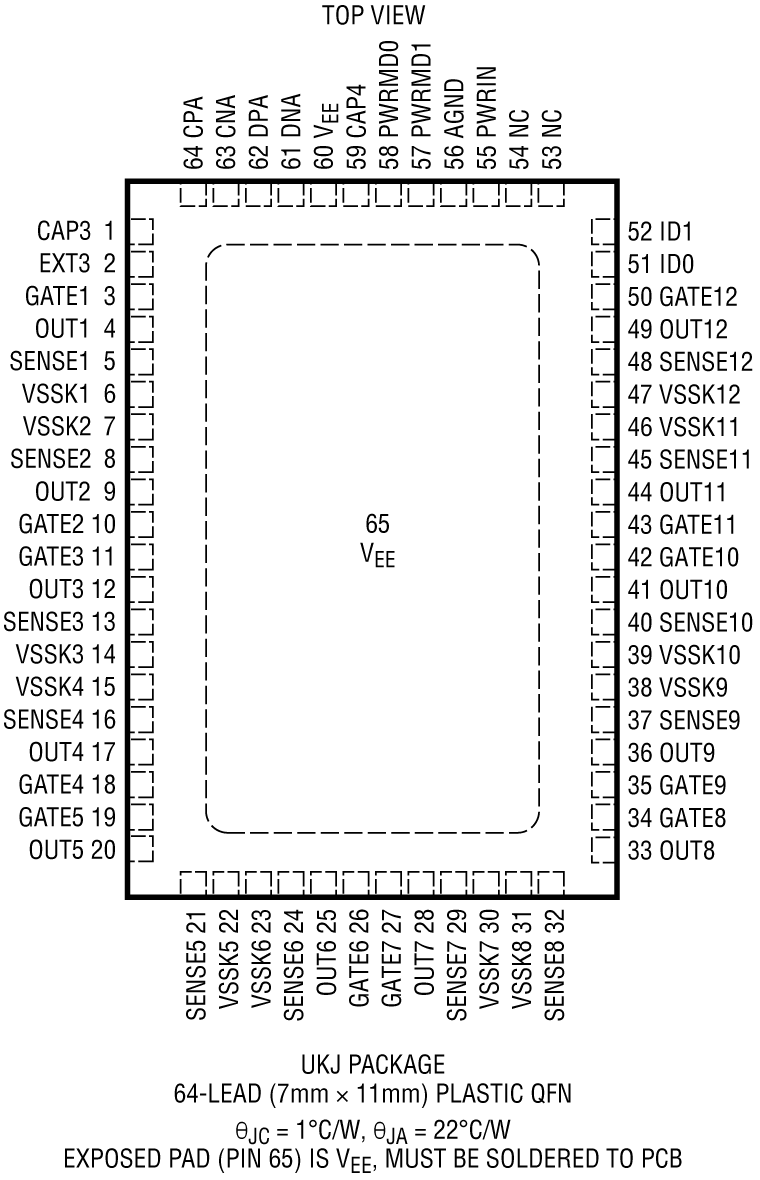

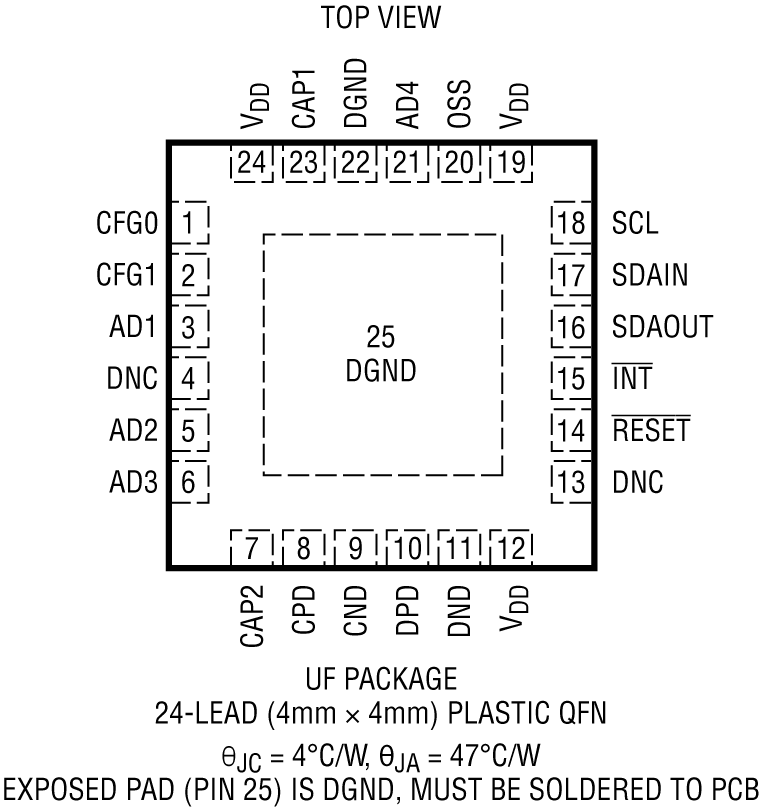

采用 24 引脚 4mm × 4mm (LTC9101‑2) 和 64 引脚 7mm × 11mm (LTC9102) QFN 封装

参考资料

数据手册 1

LTC9101-2/LTC9102: 12/24-Port IEEE 802.3bt PoE PSE Controller Data Sheet (Rev.A) 03/24/2023

用户手册 1

UG-2131: Evaluating the LTC9101-2/LTC9101-2A/LTC9101-2B and LTC9102 48-Channel IEEE 802.3at/bt PSE (Rev.A) 01/21/2025

申请保密协议

如需申请软件编程文档，请填写软件申请表。

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LTC9101AUF-2#PBF	24-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC9101AUF-2#TRPBF	24-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

9月 19, 2024 - 24_0142 LTC9101- Wire Diameter and Bond Composition Change
		PCN24_0142_Form Material_Report Qualification Results Summary
LTC9101AUF-2#PBF	量产
LTC9101AUF-2#TRPBF	量产

这是最新版本的数据手册

软件资源

Evaluation Software 1

Software Interface Datasheet

The software interface datasheet for this PSE may be requested from the Software Request Form (SRF). This datasheet describes the I²C interface and programming details for the respective PSE controller.

Software Interface Datasheet

找不到您所需的软件或驱动?

评估套件

Evaluating the LTC9101-2/LTC9101-2A/LTC9101-2B and LTC9102 48-Channel IEEE 802.3at/bt PSE

立即购买更多内容

产品详情

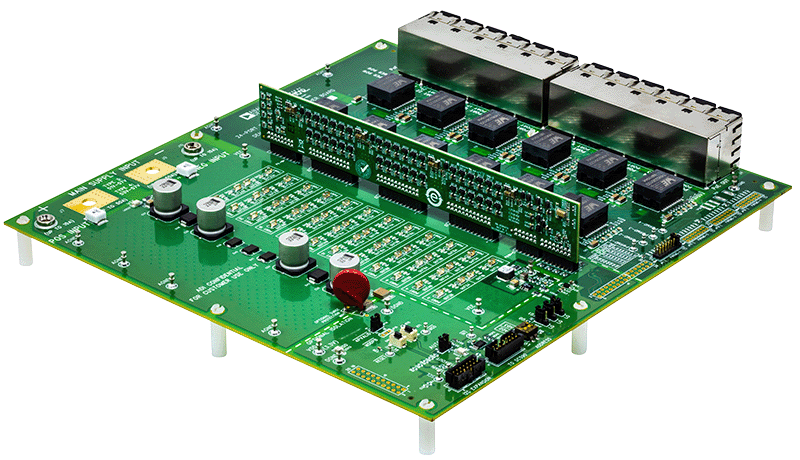

The EVAL-LTC9101-2 is a 48-channel IEEE 802.3at/bt compliant power sourcing equipment (PSE). The EVAL-LTC9101-2 includes the DC3159A-C, DC3159A-D, or DC3159A-E daughter card, the DC3017A-B motherboard, and features the LTC9101-2/ LTC9101-2A/LTC9101-2B and LTC9102 chipset.

In the EVAL-LTC9101-2, the daughter card has a single LTC9101-2x digital controller, where X denotes either the LTC9101-2, LTC9101-2A, or the LTC9101-2B. The DC3159A-C has the LTC9101-2, the DC3159A-D daughter card has the LTC9101-2A and the DC3159A-E has the LTC9101-2B. The digital controller interfaces with four LTC9102 (12-channel) analog controllers for a total of 48 PSE channels.

The LTC9101-2x use a proprietary isolated data interface allowing the LTC9101-2x digital controller to directly connect to the host controller I²C interface and eliminating the need for costly optocouplers and an additional 3.3 V supply.

The EVAL-LTC9101-2 kit connects to up to twenty-four, 802.3af/at/bt PDs directly at each port for 4-pair power evaluation. This kit version can operate autonomously or with host control over I²C.

The EVAL-LTC9101-2A kit connects to up to forty-eight, 802.3af/at PDs with an ethernet splitter for each two ports for 2-pair power evaluation. This kit version requires host control over I²C.

The EVAL-LTC9101-2B kit connects to up to forty-eight, 802.3af/at/bt PDs with an ethernet splitter for each two ports for 2-pair power evaluation. This kit version can operate autonomously or with host control over I²C.

Indicator LEDs quickly show channel status for the 48 power channels. An optional on-board buck regulator provides 3.3 V from the V_EE supply for the digital circuity. This demonstration manual provides an EVAL-LTC9101-2 overview and quick start procedure.

Design files for this circuit board are available.
