优势和特点
- 高效率:高达 95%
- 3A 输出电流
- 低静态电流:64μA
- 低 RDS(ON) 内部开关:77mΩ
- 输入电压范围:2.25V 至 5.5V
- 可设置频率范围:300kHz 至 4MHz
- ±2% 输出电压准确度
- 0.8V 基准可提供低输出电压
- 可选的强制连续/具可调突发箝位电平的突发模式 (Burst Mode®) 操作
- 可同步开关频率
- 低压差操作:100% 占空比
- 电源良好输出电压监视
- 过热保护
- 采用 16 引脚裸露衬垫 TSSOP 和 QFN 封装
产品详情

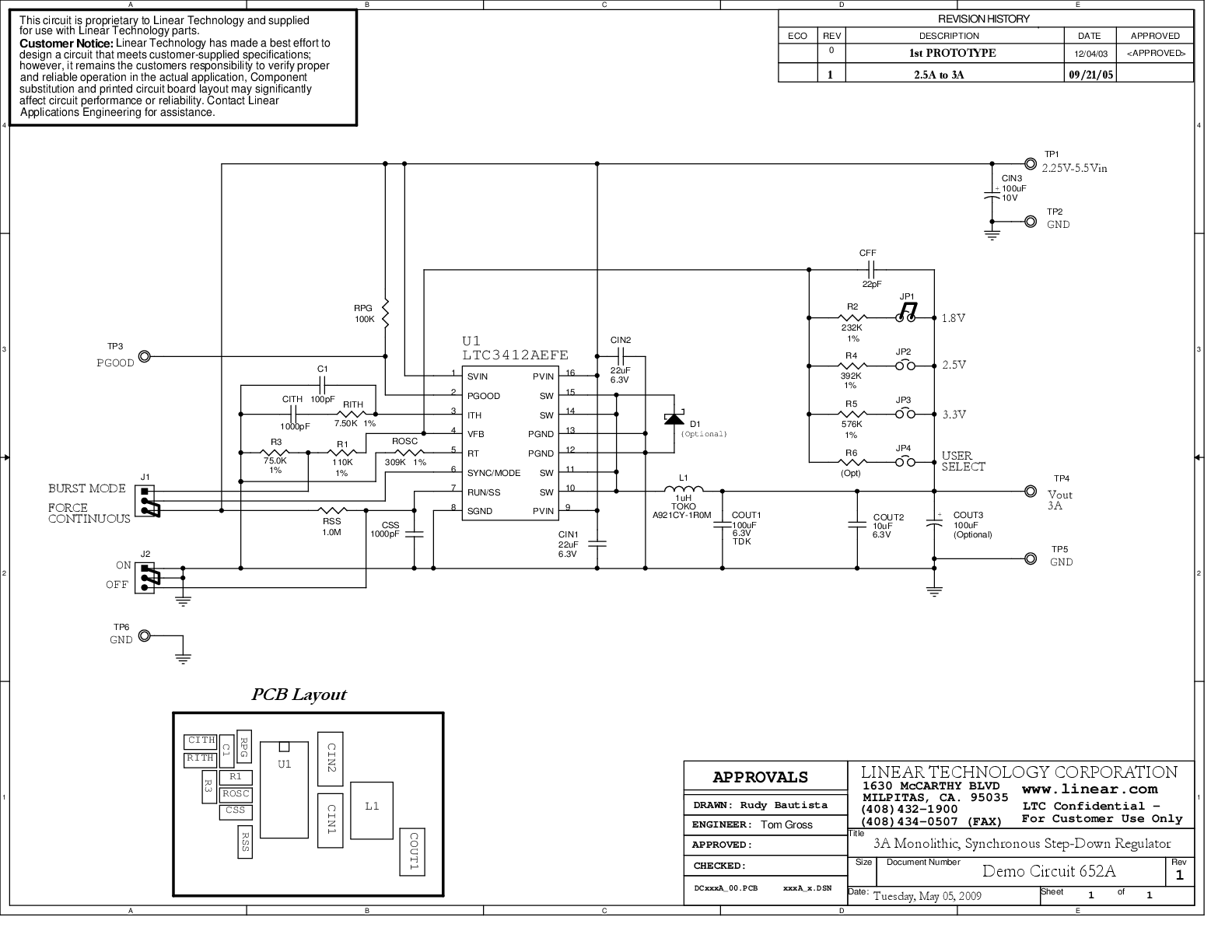

LTC®3412A 是一款高效率单片式同步、降压型 DC/DC 转换器,采用一种恒定频率、电流模式架构。其工作输入电压范围为 2.25V 至 5.5V,并可在输送高达 3A 输出电流的情况下提供一个 0.8V 至 5V 的已调输出电压。具 77mΩ 接通电阻的内部同步电源开关提高了效率,并免除了增设一个外部肖特基二极管的需要。开关频率可由一个外部电阻器来设定,也可使之与一个外部时钟相同步。100% 占空比提供了低压差操作,从而延长了便携式系统中的电池使用寿命。OPTI-LOOP® 补偿允许在一个很宽的负载和输出电容范围内对瞬态响应进行优化。
可通过配置使 LTC3412A 执行突发模式操作或强制连续操作。强制连续操作可降低噪声和 RF干扰 ,而突发模式操作则可在轻负载条件下通过减少栅极电荷损失来提供高效率。在突发模式操作中,由于突发箝位电平在外部进行控制,因而能够根据应用的要求来调节输出电压纹波。
应用
- 负载点调节
- 笔记本电脑
- 便携式仪器
- 分布式电源系统
产品生命周期
量产
该产品系列中至少有一个型号已量产并可供采购。该产品适合用于新设计,但也可能有更新的替代产品。
