优势和特点
- VIN 范围:1.8V 至 5.5V,启动之后为 500mV
- 输出电压范围:2.2V 至 15V
- 400mA 连续输出电流 (对于 VIN = 5V 和 VOUT = 12V)
- 当停机时输出与输入断接

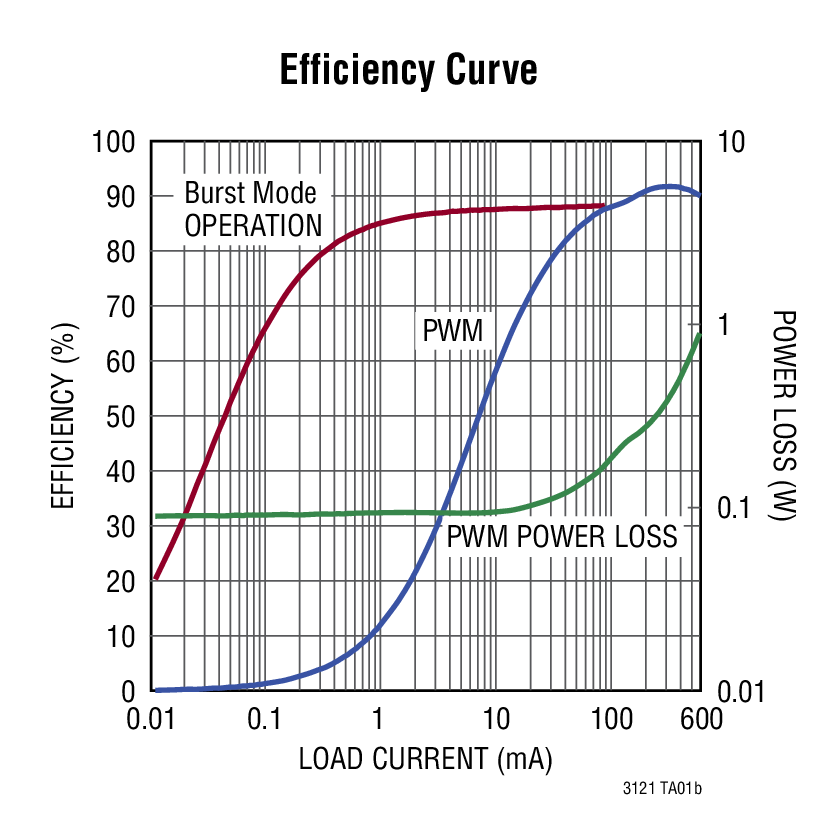

- 同步整流:效率高达 95%
- 浪涌电流限制
- 高达 3MHz 的可调开关频率可同步至外部时钟
- 可选的突发模式 (Burst Mode®) 操作:25μA IQ
- 输出过压保护
- 软起动
- 在停机模式中 IQ < 1μA

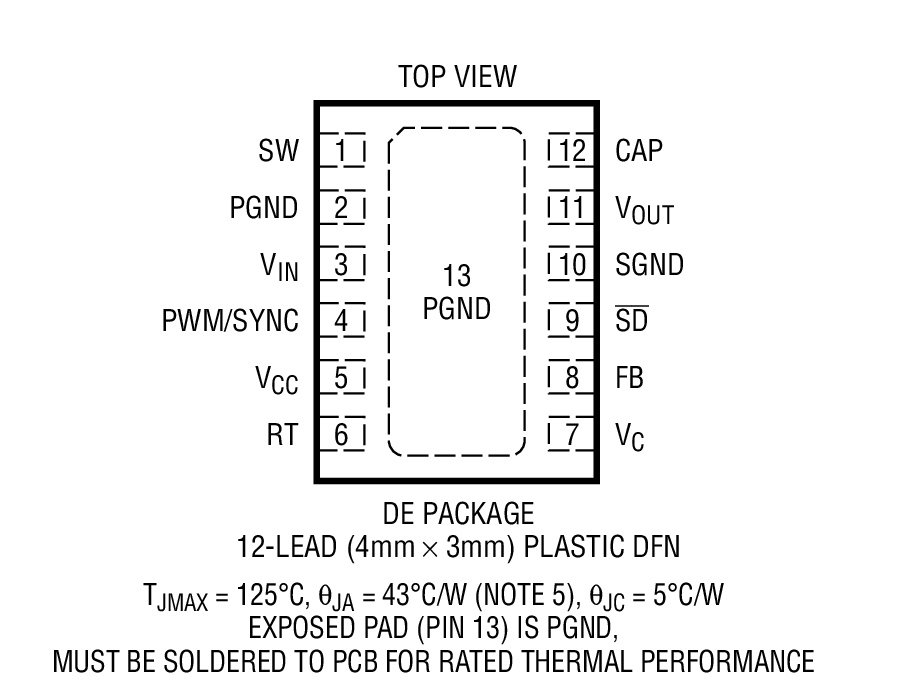

- 12 引脚、3mm x 4mm 耐热性能增强型 DFN 封装
产品详情
LTC®3121 是一款同步升压型 DC/DC 转换器,具有真正的输出断接和浪涌电流限制功能。1.5A 的电流限值以及设置高达 15V 输出电压的能力使 LTC3121 非常适合于众多要求苛刻的应用。一旦起动,器件操作将在输入低至 500mV 的情况下持续进行,从而延长了许多应用中的运行时间。
LTC3121 在停机模式中具有输出断接能力,从而大幅度地减少了输入电源消耗并使 VOUT 能完全放电。100kHz 至 3MHz 的可调 PWM 开关频率优化了应用,可实现最高的效率或最小的解决方案占板面积。对于那些对噪声敏感的应用,也可使振荡器同步至一个外部时钟。可选的突发模式操作将静态电流减小至 25μA,从而在整个负载范围内确保了高效率。内部软起动功能可限制启动期间的浪涌电流。
该器件的其他特点包括 <1μA 的停机电流以及短路、热过载和输出过压情况下的稳健保护功能。LTC3121 采用扁平 12 引脚 (3mm x 4mm x 0.75mm) DFN 封装。
应用
- PCI Express 板卡
- 压电式执行器
- 小型 DC 电机
- 从电池、5V 或后备电容器产生 12V 模拟电源轨
产品生命周期
量产
该产品系列中至少有一个型号已量产并可供采购。该产品适合用于新设计,但也可能有更新的替代产品。

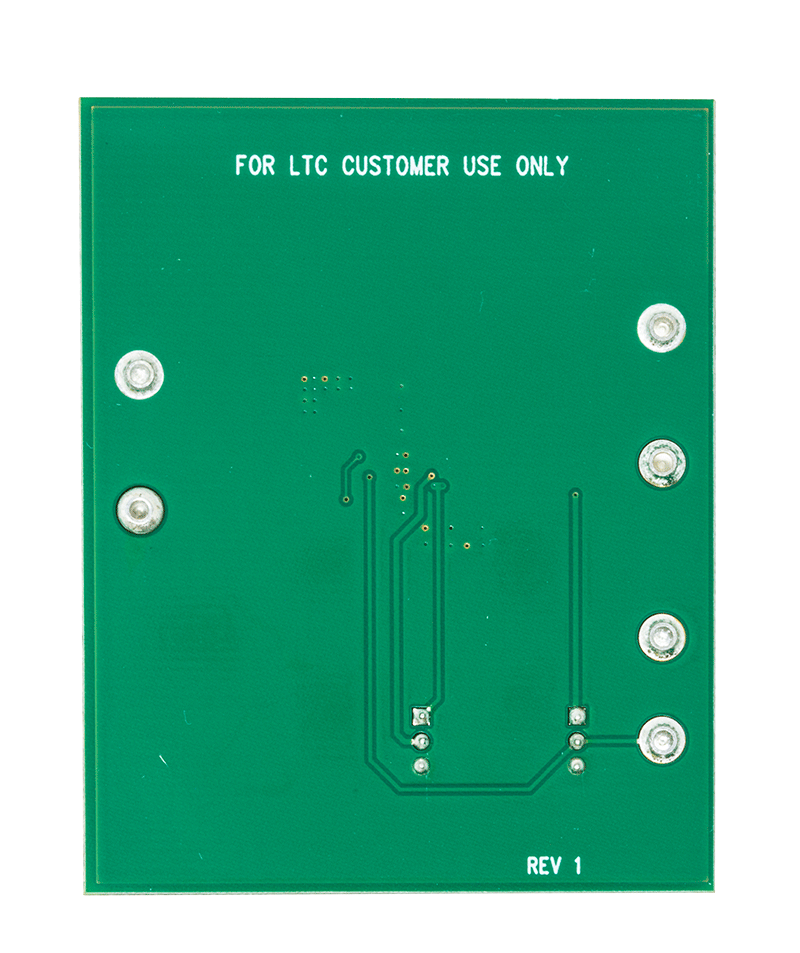

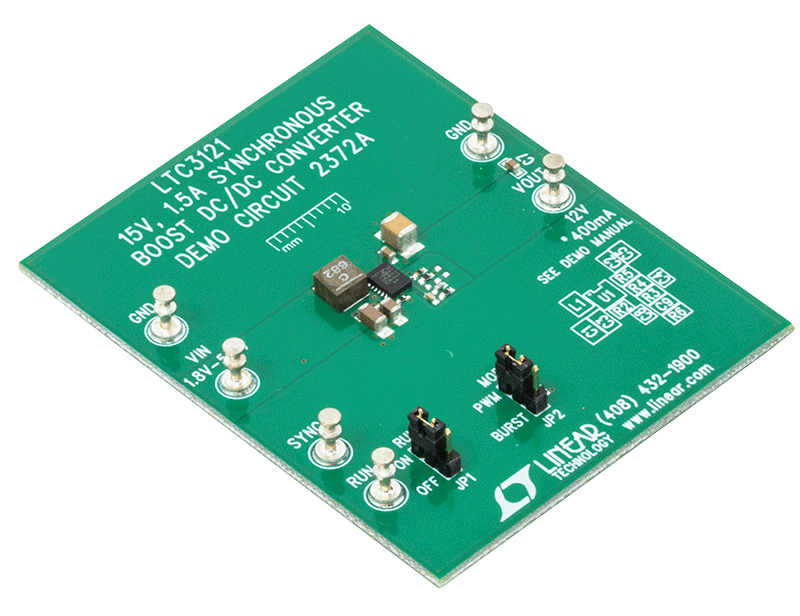

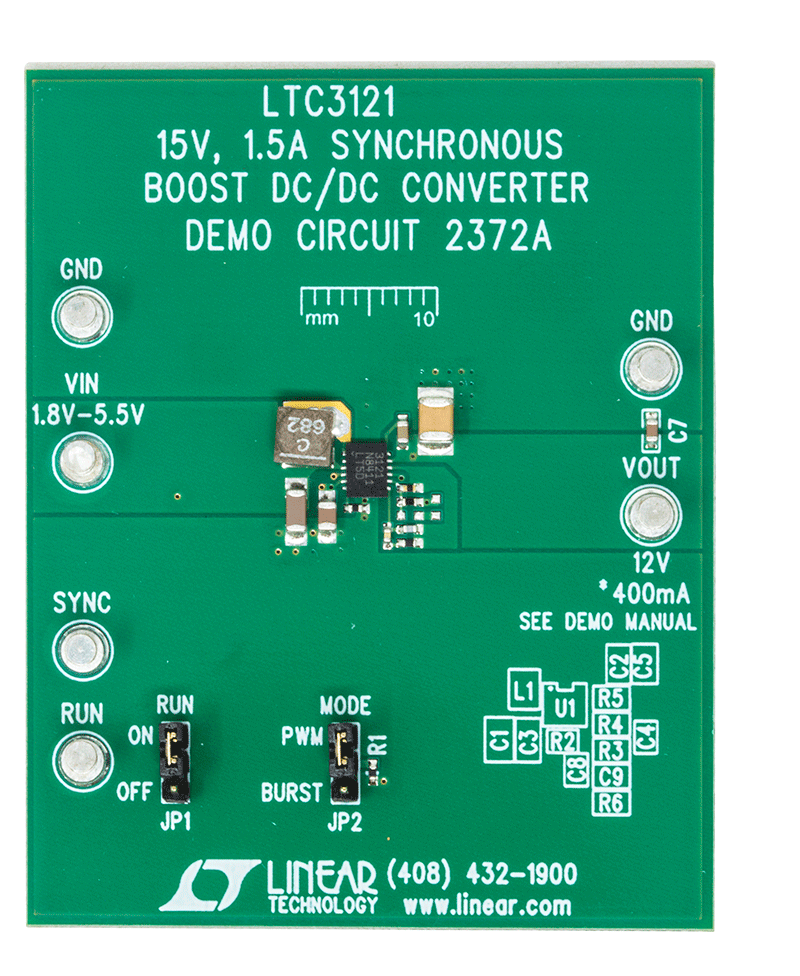

评估套件 (1)
