LT3008

3μA IQ、20mA、45V 低压差线性稳压器

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
查看： 产品详情
arrow-icon

不是您想寻找的产品？

viewall 去产品选项表
file 查看数据手册
Documentation 查看所有文档
LTspice LTC2960 - Supervisory Circuits, LT3008 - LDO Linear Regulators Download 2.1 KB LTspice LT3008 - LDO Linear Regulators, LTC2960 - Supervisory Circuits Download 2.04 KB LTspice LT3008 Demo Circuit - 3µA IQ, 20mA, 45V LDO Linear Regulator (45V to 3.3V @ 20mA) Download 1.00KB LTspice LT8610/LT3008-2.5 Demo Circuit - Ultralow Iq 2.5V, 3.3V Step-Down with LDO (3.8-27V to 3.3V @ 2.5A & 2.5 @ 20mA) Download 3.00KB LTspice LT3008 - LDO Linear Regulators Download 0.73 KB
产品模型 70
特性
  • 超低静态电流：3μA
  • 输入电压范围：2.0V 至 45V
  • 输出电流：20mA
  • 压差电压：300mV
  • 可调输出 (VADJ = VOUT(MIN) = 600mV)
  • 固定输出电压：1.2V、1.5V、1.8V、2.5V、3.3V、5V
  • 输出容差：±2% (在整个负载、输入电压和温度范围内)
  • 在采用低 ESR 陶瓷输出电容器 (最小值为 2.2μF) 时可稳定
  • 停机电流：
  • 电流限制保护
  • 反向电池保护
  • 热限制保护
  • TSOT-23 和 2mm x 2mm DFN 封装



更多细节
show more Icon

LT®3008 系列是一款微功率、低压差电压 (LDO) 线性稳压器。该器件可提供 20mA 的输出电流和一个 300mV 的压差电压。无负载静态电流为 3μA。当负载增加时，接地引脚电流保持在低于 5% 输出电流的水平上。在停机模式中，静态电流小于 1μA。

LT3008 稳压器利用低 ESR 陶瓷电容器 (所需的最小电容值仅为 2.2μF) 来优化稳定性和瞬态响应。LT3008 不像其他常见的稳压器那样需要额外的 ESR。内部保护电路包括电流限制、热限制、反向电池保护和反向电流保护。

对于那些需要中等输出驱动能力以及超低待机功耗的应用而言，LT3008 系列是理想的选择。该器件具有 1.2V、1.5V、1.8V、2.5V、3.3V 和 5V 的固定输出电压，以及一个具 0.6V 至 44.5V 的可调输出电压范围版本。LT3008 采用 6 引脚 DFN 和 8 引脚 TSOT-23 封装。


Applications

  • 汽车
  • 低电流电池供电型系统
  • 保活电源
  • 远程监视
  • 公用事业表
  • 低功率工业应用



Show More Arrow image
file 查看数据手册
Documentation 查看所有文档
LTspice LTC2960 - Supervisory Circuits, LT3008 - LDO Linear Regulators Download 2.1 KB LTspice LT3008 - LDO Linear Regulators, LTC2960 - Supervisory Circuits Download 2.04 KB LTspice LT3008 Demo Circuit - 3µA IQ, 20mA, 45V LDO Linear Regulator (45V to 3.3V @ 20mA) Download 1.00KB LTspice LT8610/LT3008-2.5 Demo Circuit - Ultralow Iq 2.5V, 3.3V Step-Down with LDO (3.8-27V to 3.3V @ 2.5A & 2.5 @ 20mA) Download 3.00KB LTspice LT3008 - LDO Linear Regulators Download 0.73 KB
产品模型 70
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT3008

文档

4
overlayclose

筛查

1 应用

mobileoverlaydownarrow
  • 全部
    TickIcon
  • 数据手册
  • 用户手册
  • 可靠性数据
  • 全部
    TickIcon
  • 英文
  • 日文
resetfilter

重置过滤器

数据手册

2

PDF Vector

PDF

更新 04/03/2012
英文

LT3008 Series: 3μA IQ, 20mA, 45V Low Dropout Linear Regulators Data Sheet

打开PDF文件

redirect
236.00K
download

下载 PDF

PDF Vector

PDF

更新 06/11/2012
日文

LT3008シリーズ: 消費電流3μAの20mA、45V低損失リニア・レギュレータ データシート

打开PDF文件

redirect
676.00K
download

下载 PDF

用户手册

1

PDF Vector

PDF

更新 09/24/2009
英文

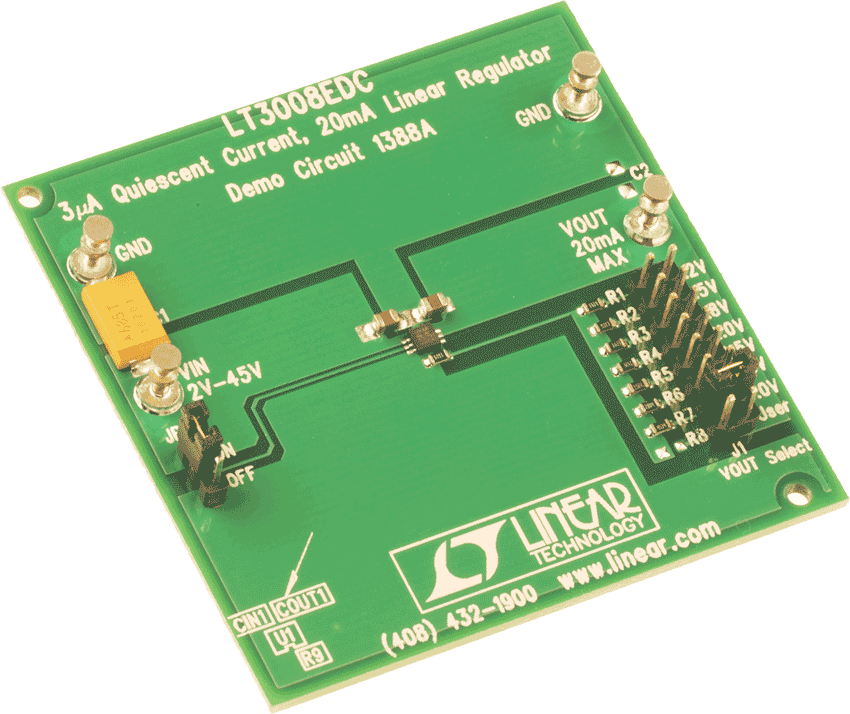

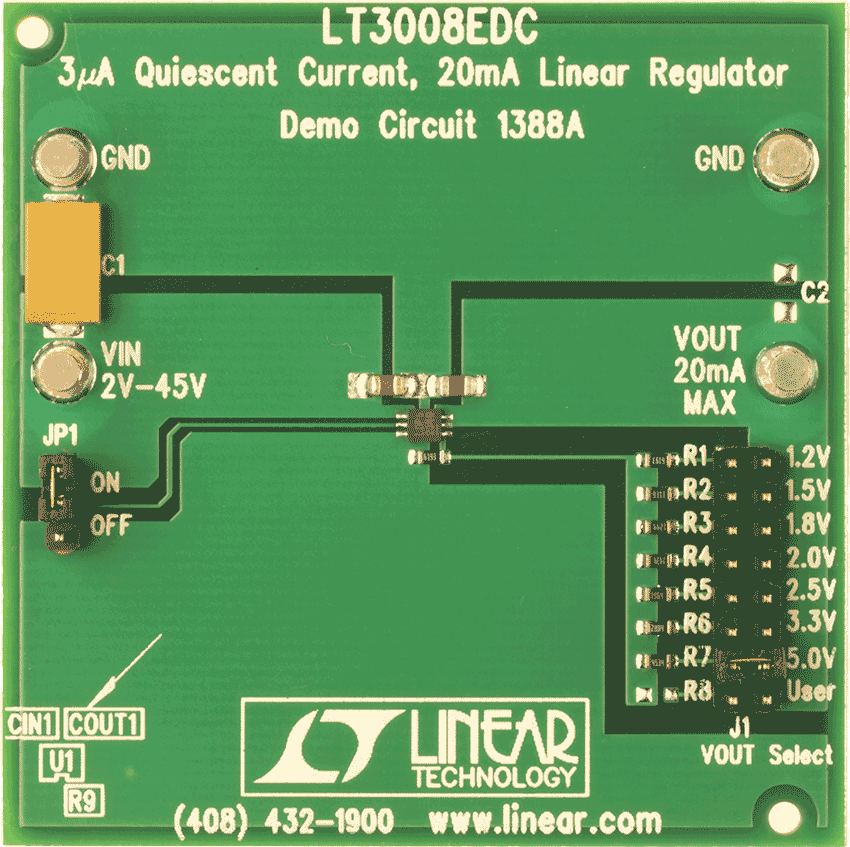

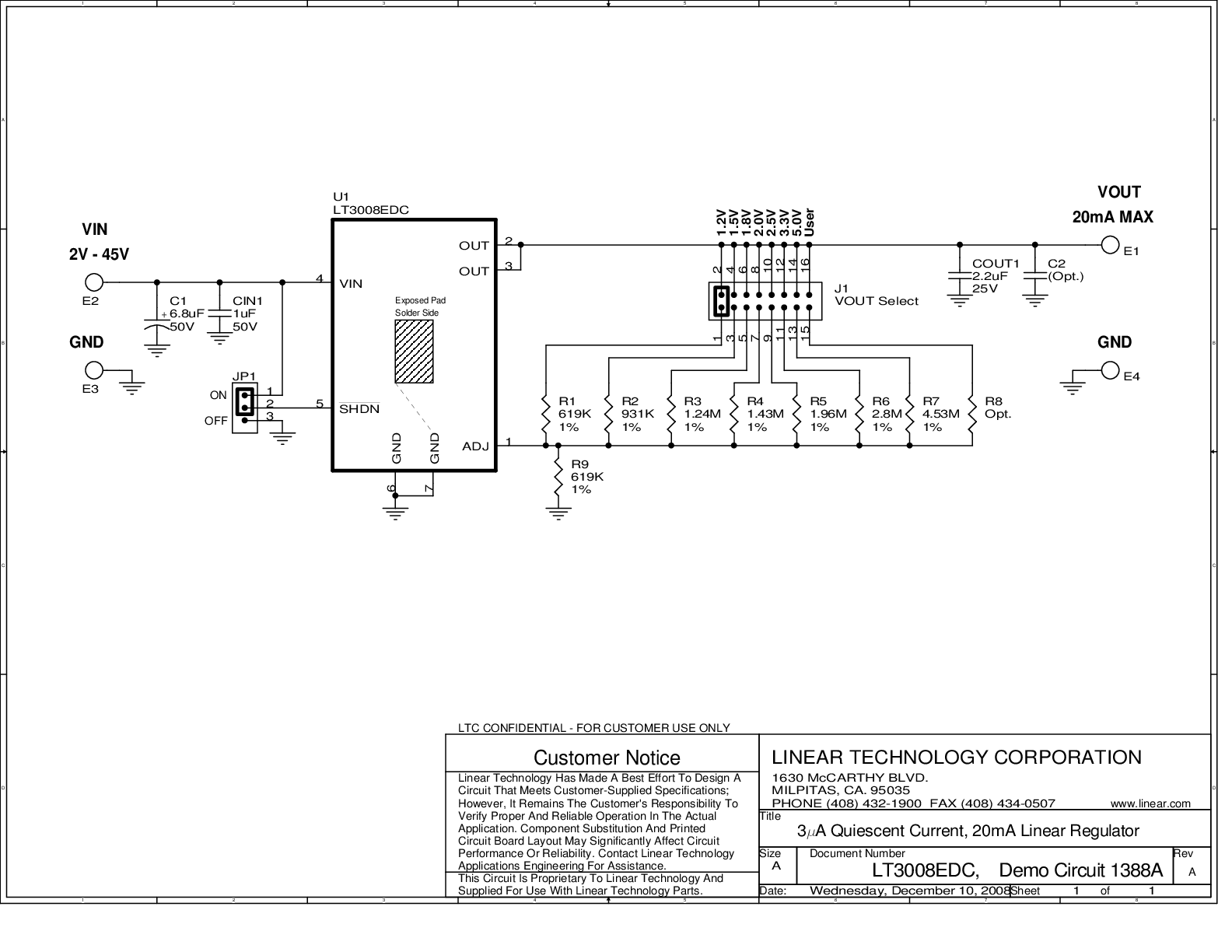

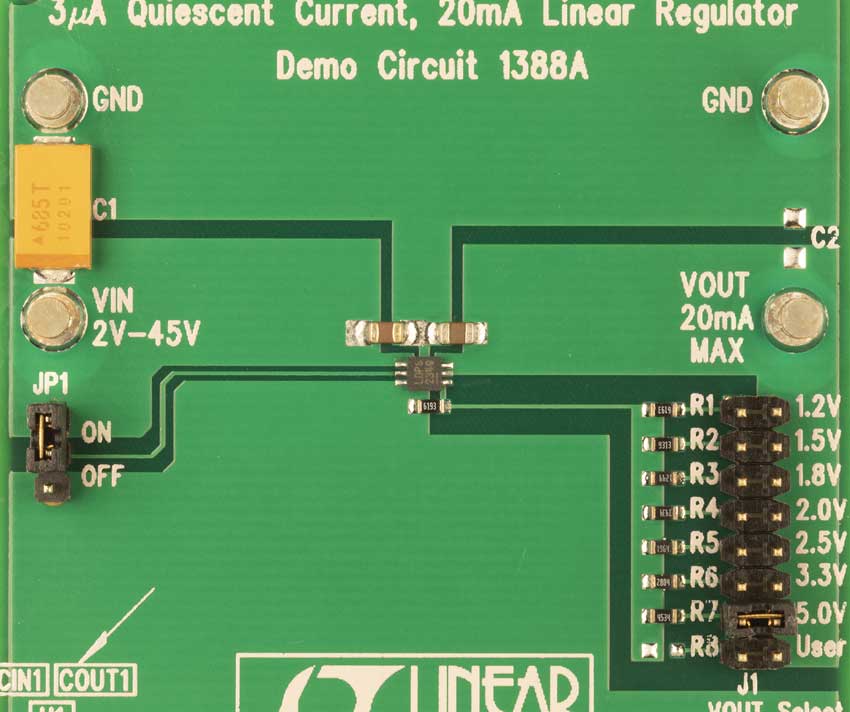

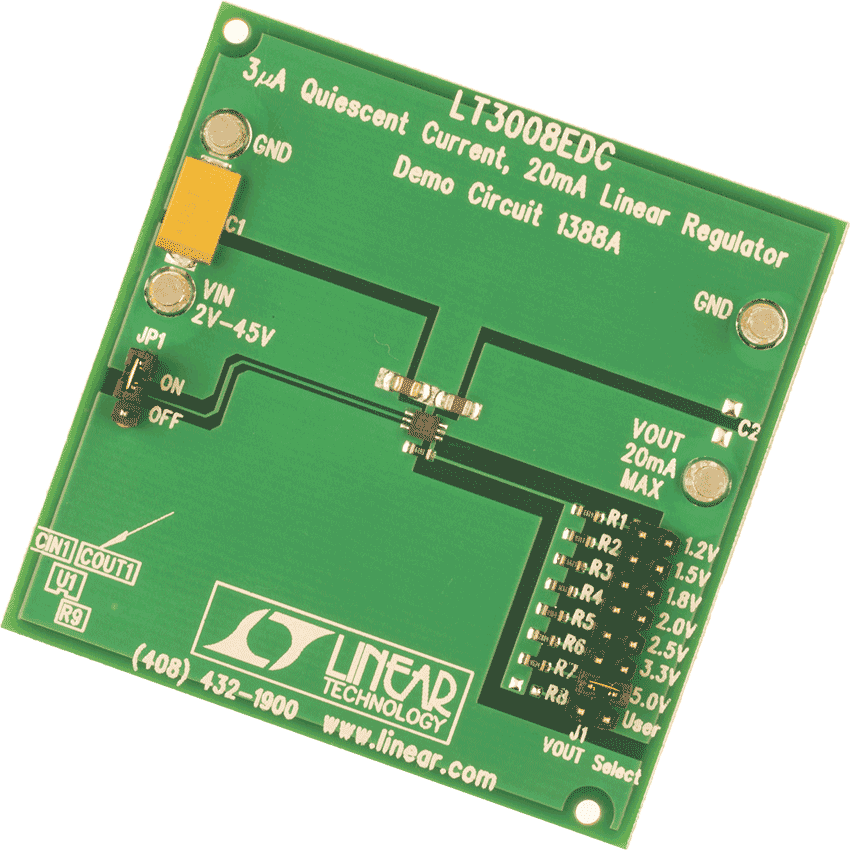

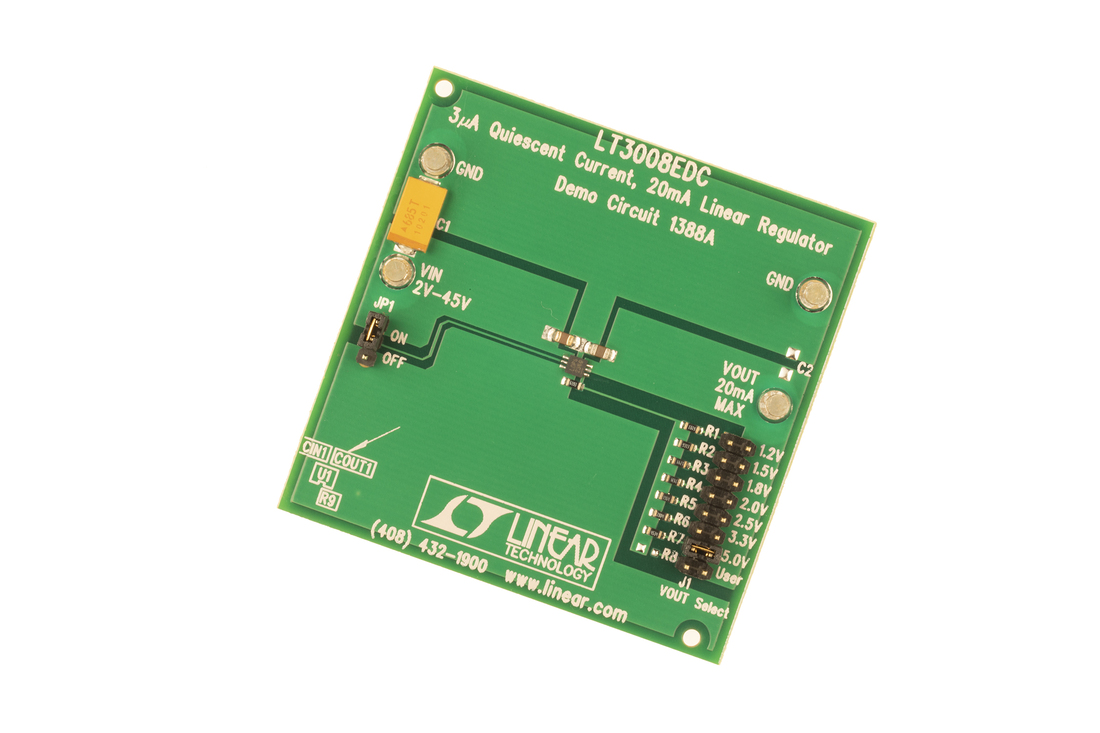

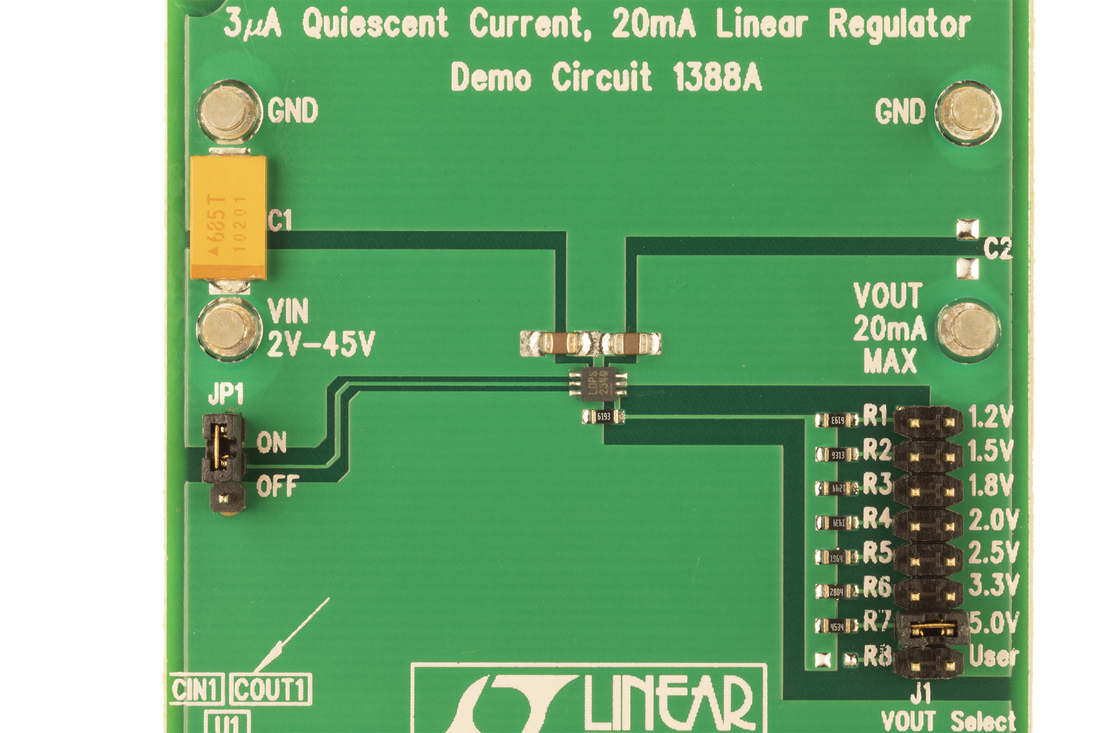

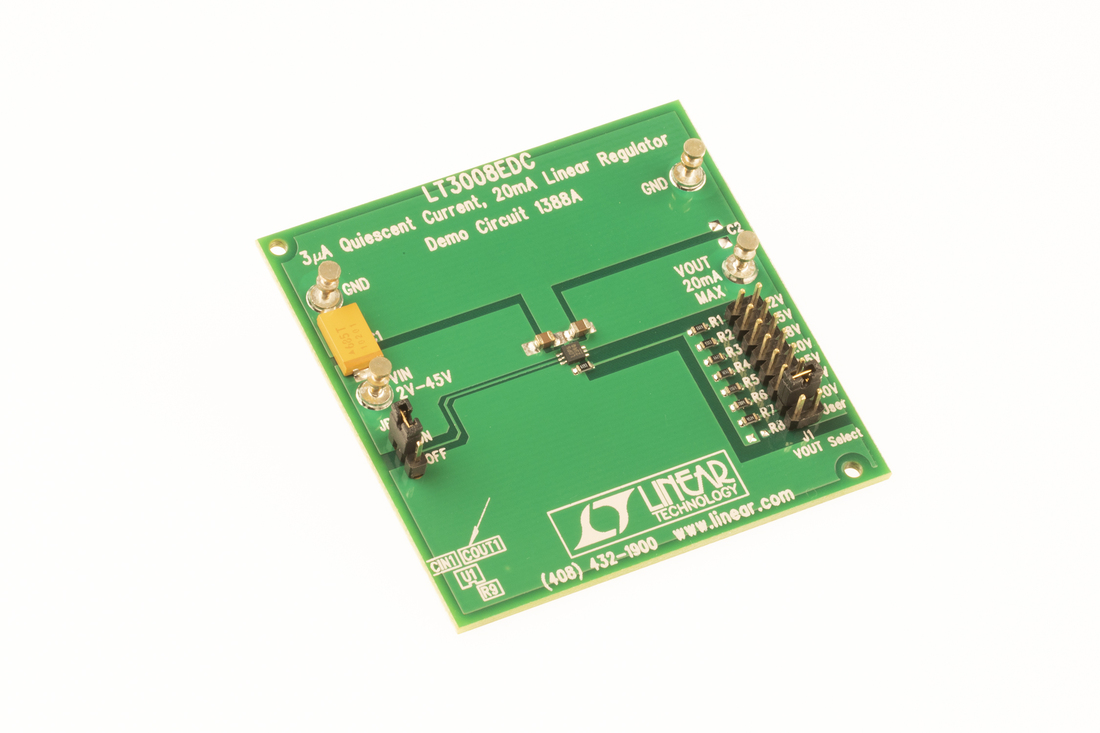

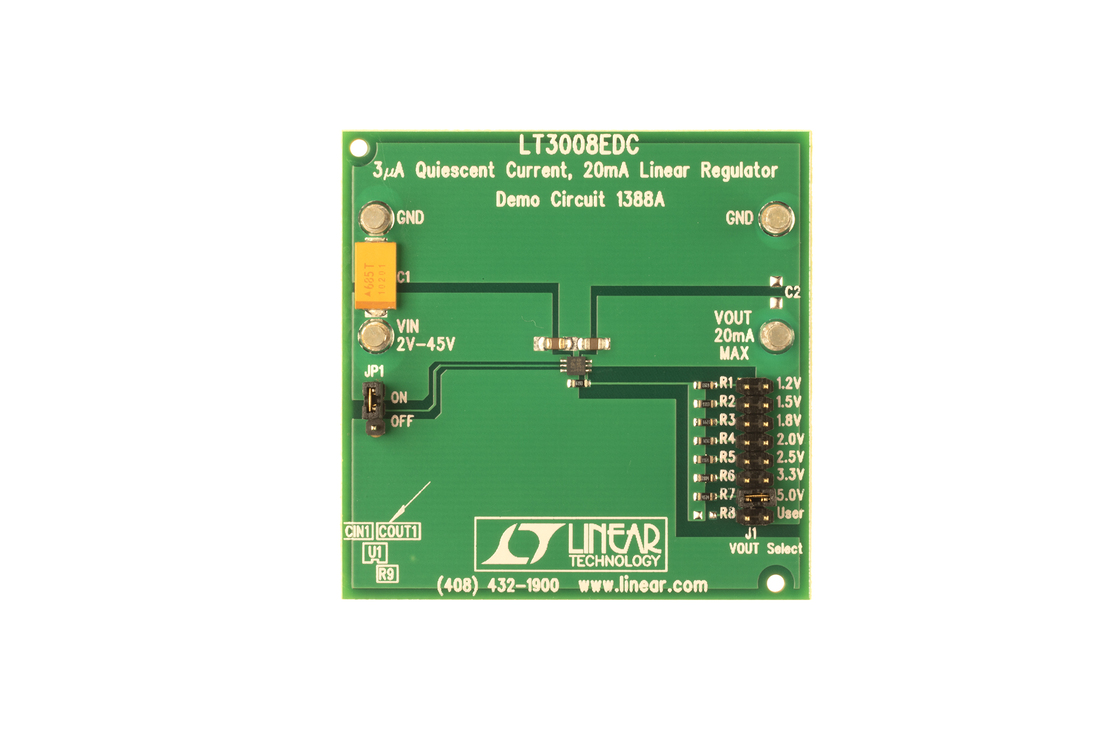

DC1388A - Demo Manual redirect icon

1.00M

download

下载 PDF

可靠性数据

1

PDF Vector

PDF

更新 03/26/2018
英文
R531 Reliability Data redirect icon

23.66 K

download

下载 PDF

没有符合要求的搜索结果。请尝试重置您的筛选或搜索一个不同的术语

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

新闻 2

LT3008 - 纤巧和高压的 LDO 具 3uA IQ
高压、低压差线性稳压器可在低至 -55ºC 工作

产品选型指南 1

Not Your Dad's LDO

解决方案设计及宣传手册 1

Linear Low Dropout (LDO) Regulator Solutions

视频

1

Thumbnail Image

视频

2018-12-07

02:15

Power Scaling in Strain Gauge Applications

了解更多
更多 Arrow image

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号 引脚/封装图-中文版 文档 CAD 符号，脚注和 3D模型
LT3008EDC#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008EDC#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008EDC-1.2#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008EDC-1.2#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008EDC-1.5#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008EDC-1.5#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008EDC-1.8#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008EDC-1.8#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008EDC-2.5#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008EDC-2.5#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008EDC-3.3#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008EDC-3.3#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008EDC-5#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008EDC-5#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ETS8#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ETS8#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ETS8-1.2#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ETS8-1.2#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ETS8-1.5#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ETS8-1.5#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ETS8-1.8#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ETS8-1.8#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ETS8-2.5#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ETS8-2.5#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ETS8-3.3#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ETS8-3.3#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ETS8-5#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ETS8-5#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008IDC#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008IDC#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008IDC-1.2#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008IDC-1.2#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008IDC-1.5#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008IDC-1.5#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008IDC-1.8#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008IDC-1.8#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008IDC-2.5#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008IDC-2.5#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008IDC-3.3#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008IDC-3.3#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008IDC-5#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008IDC-5#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ITS8#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ITS8#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ITS8-1.2#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ITS8-1.2#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ITS8-1.5#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ITS8-1.5#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ITS8-1.8#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ITS8-1.8#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ITS8-2.5#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ITS8-2.5#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ITS8-3.3#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ITS8-3.3#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ITS8-5#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008ITS8-5#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008MPTS8#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008MPTS8#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008MPTS8-1.2#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008MPTS8-1.2#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008MPTS8-1.5#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008MPTS8-1.5#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008MPTS8-1.8#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008MPTS8-1.8#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008MPTS8-2.5#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008MPTS8-2.5#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008MPTS8-3.3#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008MPTS8-3.3#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008MPTS8-5#TRMPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3008MPTS8-5#TRPBF 8-Lead SOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
