ADPM12160

推荐用于新设计

1600W, Nonisolated Quarter-Brick DC-DC Power Module

1600W, Non-Isolated Quarter-Brick DC/DC Power Module

数据手册 (Rev. 0) 产品选型表

产品模型: 7

Viewing:

概述

Electrical
- 40V to 60V Input Voltage Range
- 12V Fully Regulated Output Voltage
- Thermal Design Power up to 1600W
- Peak Power up to 2400W
- Peak Efficiency up to 98% at Half Load
- Fully Protected: OTP, Input UVLO and OVLO,Input OCP, Output OVP, Output OCP and SCP
- No Minimum Load Required
- Fast Load-Transient Response with CoupledInductor
- Optional Logic for Remote ON/OFF (REM)
- PMBus™ Configuration
- Event Data Recorder (Black Box)
- Parallel Operation with Active Current Sharing
- Nonisolated

Mechanical

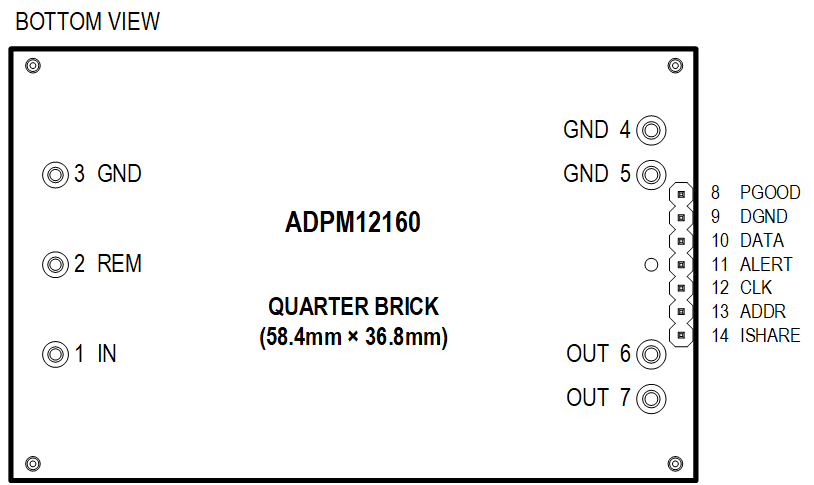

- Industry-Standard Quarter-Brick Footprint:58.4mm × 36.8mm × 15.1mm (2.30in × 1.45in ×0.59in)
- Optional Pin Length: 2.79mm, 3.70mm, or4.32mm
Safety and Certification
- IEC/UL/EN/CSA 62368-1
- Compliance with RoHS EU Directive 2011/65/EUand (EU)2015/863
- ISO 9001, TL 9000, ISO 14001, ISO 45001Certified Manufacturing Facility

The ADPM12160 is a high-power, quarter-brick DC-DC converter that provides up to 98% efficiency at half load.

The ADPM12160 is a nonisolated converter that delivers a fully regulated 12V output with a continuous power level of 1600W and a peak power capability of up to 2400W for limited time.

APPLICATIONS

Distributed Power Architectures
Wireless Networks
Access and Optical Network Equipment
Enterprise Networks
Latest-Generation ICs (DSP, FPGA, and ASIC)and Microprocessor-Powered Applications

产品模型: 7

参考资料

数据手册 1

ADPM12160: 1600W, Nonisolated Quarter-Brick DC-DC Power Module Data Sheet (Rev.0) 10/29/2025

用户手册 1

EVAL-ADPM12160 User Gudie: Evaluating the ADPM12160, Nonisolated Quarter-Brick DC-DC Power Module (Rev.0) 10/29/2025

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
ADPM12160CMLCH	MSM LAMINATE	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
ADPM12160CMLZBH	MSM LAMINATE	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
ADPM12160CMLZBL	MSM LAMINATE	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
ADPM12160CMLZCH	MSM LAMINATE	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
ADPM12160CMLZCL	MSM LAMINATE	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
ADPM12160CMLZDH	MSM LAMINATE	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
ADPM12160CMLZDL	MSM LAMINATE	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

评估套件

Evaluating the ADPM12160, Nonisolated Quarter-Brick DC-DC Power Module

立即购买更多内容

特性和优点

40V to 60V Input Voltage Range
12V Output Voltage
ADPM12160CMLZCH Installed by Default
Active-High Logic
Support One Module, or Two, or Three, or FourModules in Parallel Operation
-40°C to +85°C Temperature Range
High-Current PCB Lugs for Input and Output VoltageConnection
Current-Sense Resistors for Input and Output CurrentMonitoring
PMBus Interface
Fully Assembled and Tested

产品详情

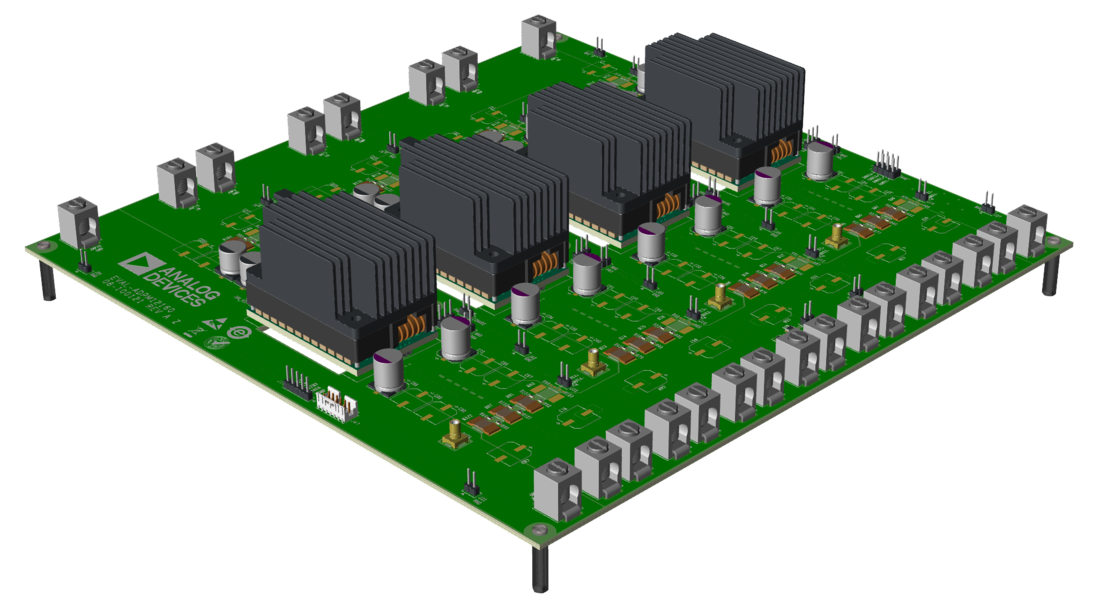

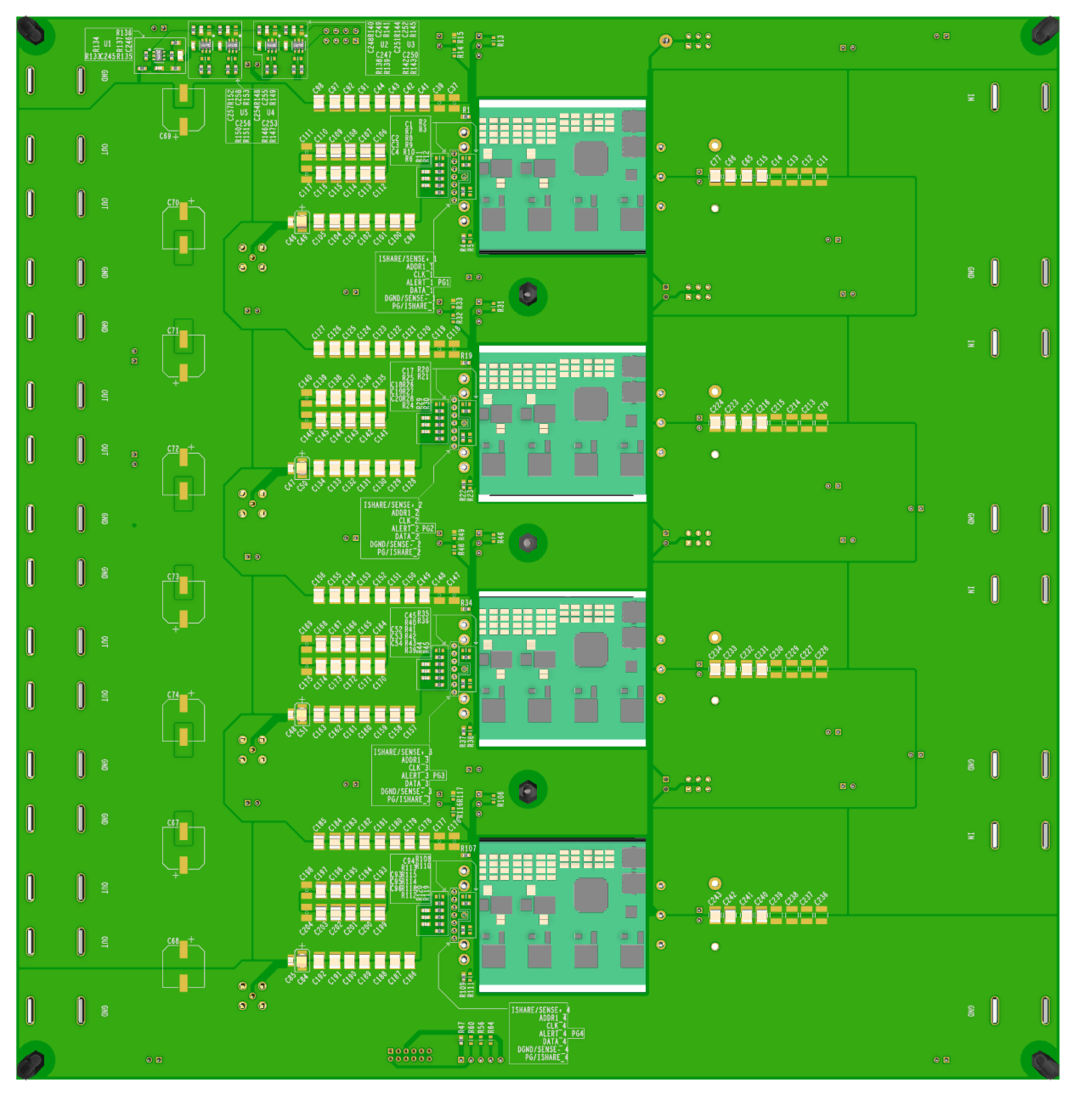

The EVAL-ADPM12160 evaluation (EV) board is a proven design that evaluates the ADPM12160, a 1600W, nonisolated quarter-brick DC-DC power module with a PMBus digital interface. The EV board comes with the ADPM12160CMLZCH installed as the default.

The EV board is designed to evaluate the performance of an ADPM12160 module, or two, or three, or four ADPM12160 modules in parallel operation.

The EV board operates over a 40V to 60V input voltage range and supports a 12V output voltage.

The MAX34451, a 16-channel V/I monitor, is used as the PMBus controller for voltage and current telemetry in the ADPM12160 module. The MAX34451 EV kit and its Windows^®-based graphical user interface (GUI) software are used for communication between the EVAL-ADPM12160 board and PC.

资料

EVAL-ADPM12160 User Gudie: Evaluating the ADPM12160, Nonisolated Quarter-Brick DC-DC Power Module (Rev.0)
2025/10/29
