ADPL31613

预发布

Dual 1.3A, 1.2MHz Boost/Inverter in 3mm × 3mm DFN

数据手册 (Rev. 0) 产品选型表
Viewing:
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

概述

  • 1.2MHz Switching Frequency
  • Low VCESAT Switches: 380mV at 1.3A
  • High Output Voltage: Up to 38V
  • Wide Input Range: 2.4V to 16V
  • Inverting Capability
  • 5V at 630mA from 3.3V Input
  • 12V at 320mA from 5V Input
  • –12V at 200mA from 5V Input
  • Uses Tiny Surface-Mount Components
  • Low Shutdown Current: <2μA
  • Low Profile (0.75mm) 10-Lead 3mm × 3mm Dual Flat No-Lead (DFN) Package
ADPL31613
Dual 1.3A, 1.2MHz Boost/Inverter in 3mm × 3mm DFN

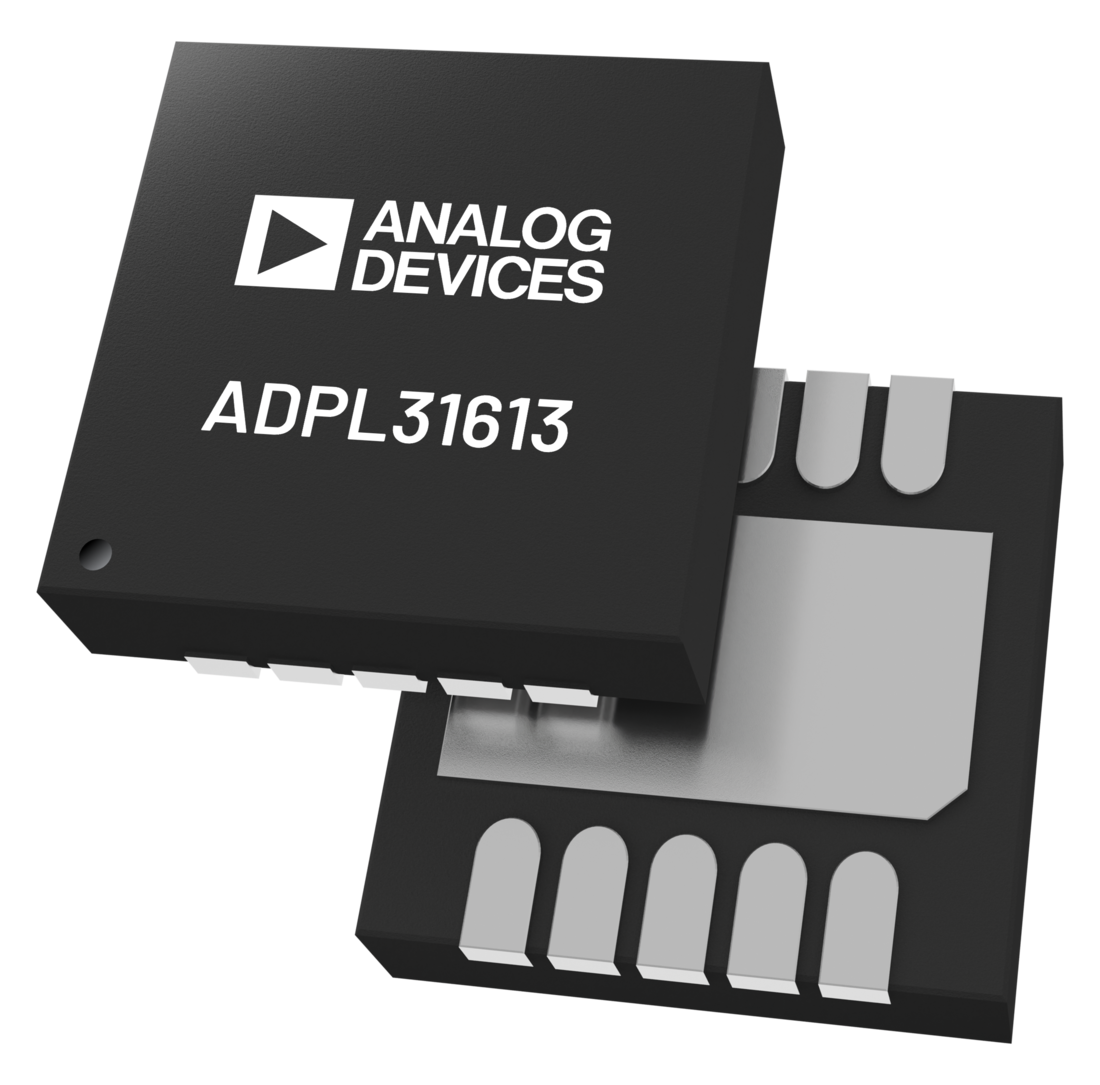

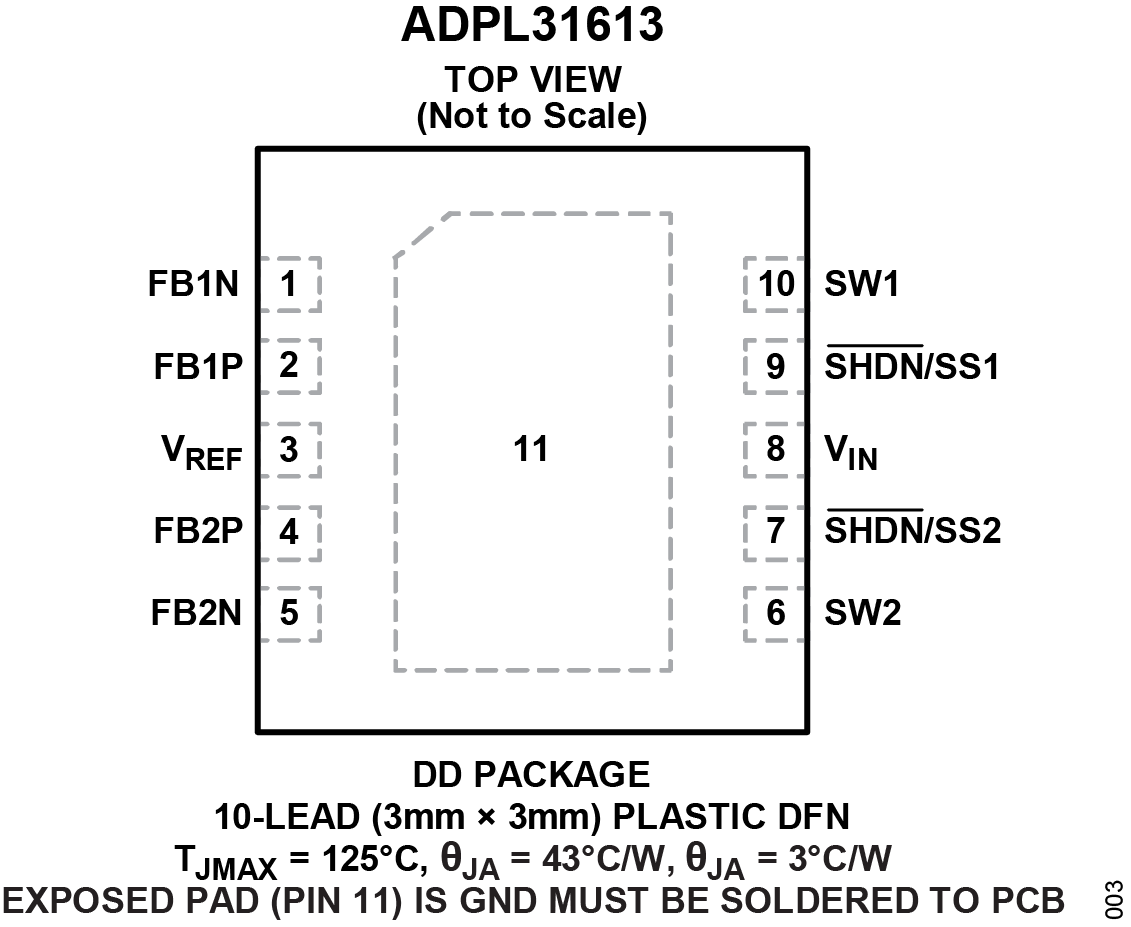

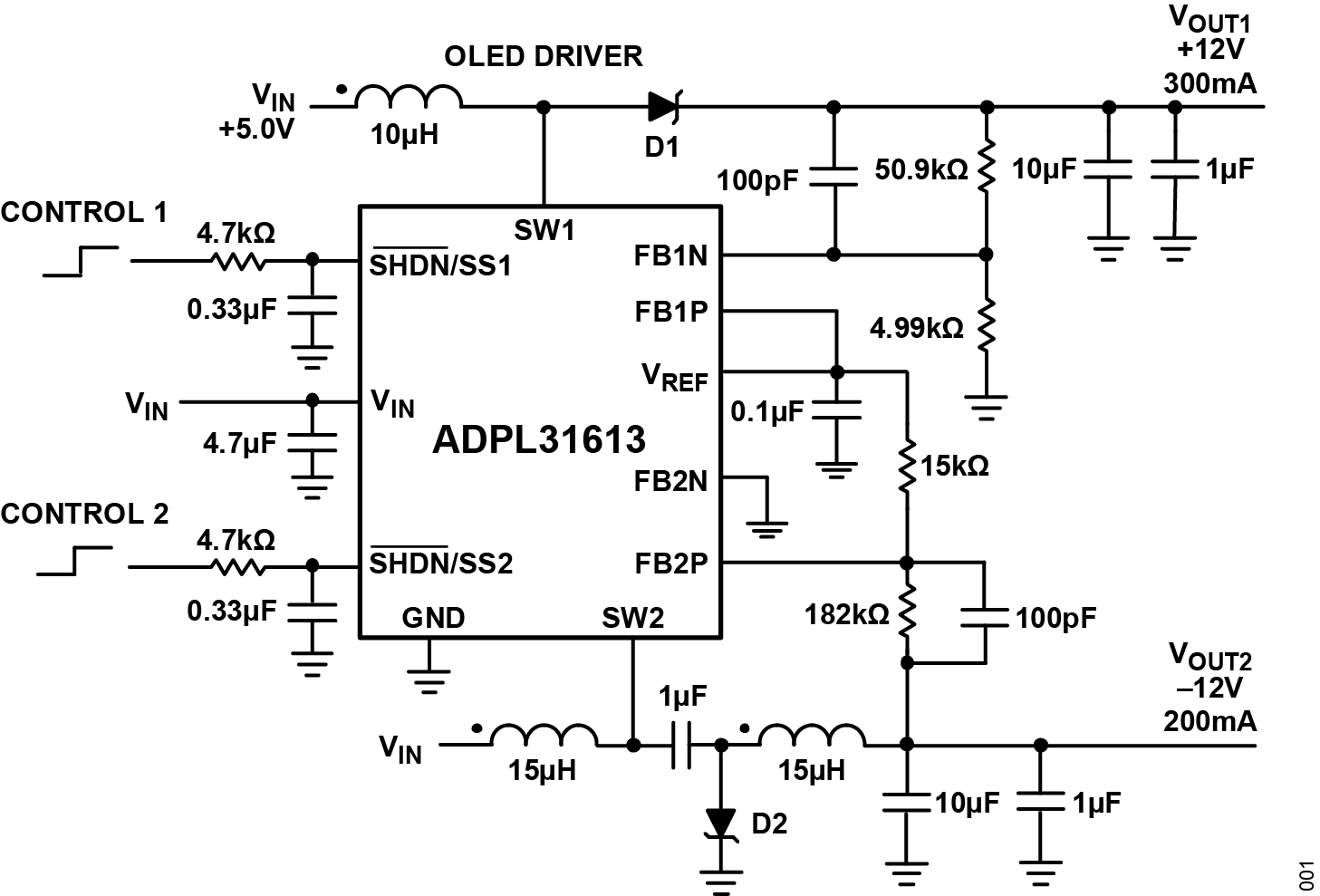

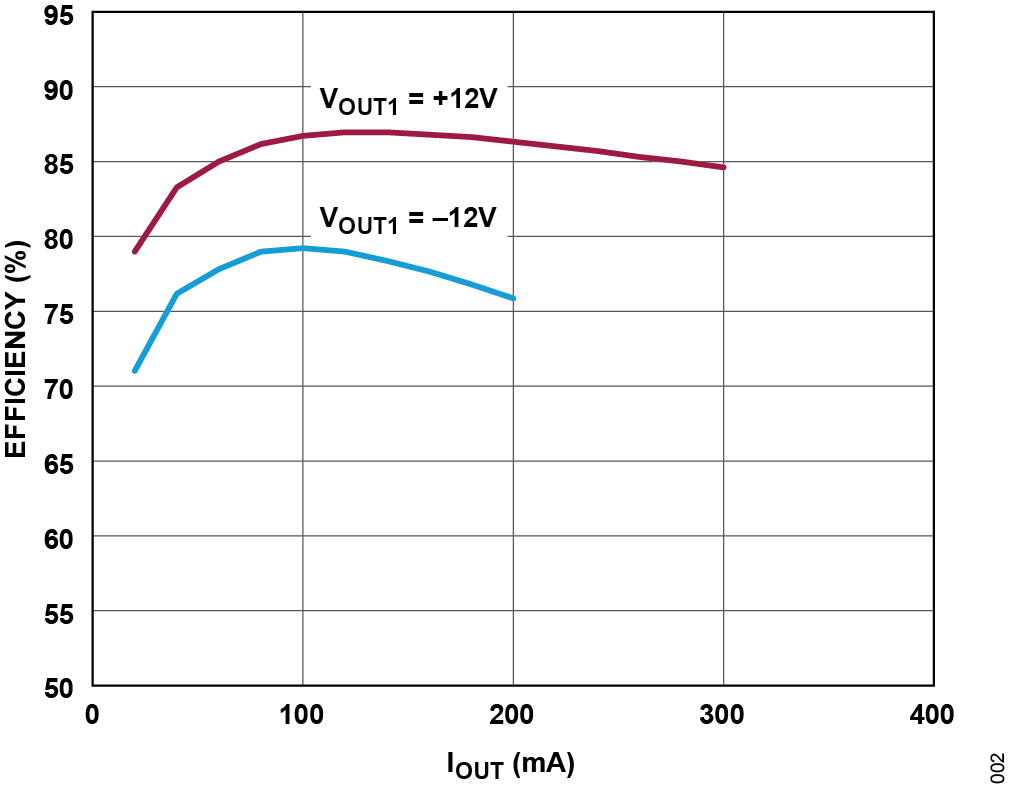

ADPLl31613 Typical Application ADPLl31613 Typical Application Efficiency ADPL31613 Pin Configuration ADPL31613 Chip Illustration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

工具及仿真模型

LTspice

LTspice中提供以下器件型号：

  • ADPL31613
LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADPL31613-AZ

Evaluates: ADPL31613 in a ±12V Output Voltage Application

立即购买 更多内容

特性和优点

  • VOUT1 = 12V at IOUT1 = up to 300mA
  • VOUT2 = -12V at IOUT = up to 200mA
  • VIN Range = 4.5V to 10V
  • Fixed Frequency 1.2MHz Operation
  • Resistor Programmable Output Voltage
  • Current Mode Control, Internal Compensation and Soft-Start
  • Proven Printed Circuit Board (PCB) Layout
  • Fully Assembled and Tested

产品详情

The EVAL-ADPL31613-AZ evaluation board is a dual-output converter featuring the ADPL31613 in both boost and inverter configurations. Both converters are powered from the same 4.5V to 10V input source. The Boost converter outputs 12V at 300mA, and the Inverter outputs -12V at 200mA. The evaluation board demonstrates small size and a low component count. The ADPL31613 operates with inputs up to 16V, but on this evaluation circuit the input is limited by the boost output magnitude. In a Boost converter, the input needs to be less than the output.

The EVAL-ADPL31613-AZ is designed so that the Inverting converter can be easily configured as a Boost converter. Instructions are included in the EVAL-ADPL31613-AZ Schematic Diagram. Both circuits are designed to demonstrate the soft-start feature, the advantages of the 1.2MHz switching frequency, and the internal 38V/1.3A switches.

Both outputs of this evaluation board can be modified to handle higher voltages. The evaluation board is intended for space-conscious applications such as digital cameras, cellular phones, palmtop computers, PC cards, miniature disk drives, X Digital Subscriber Line (xDSL) power supplies, flash memory products, local 5V or 12V supplies, and Liquid-Crystal Display (LCD) displays.
EVAL-ADPL31613-AZ
Evaluates: ADPL31613 in a ±12V Output Voltage Application

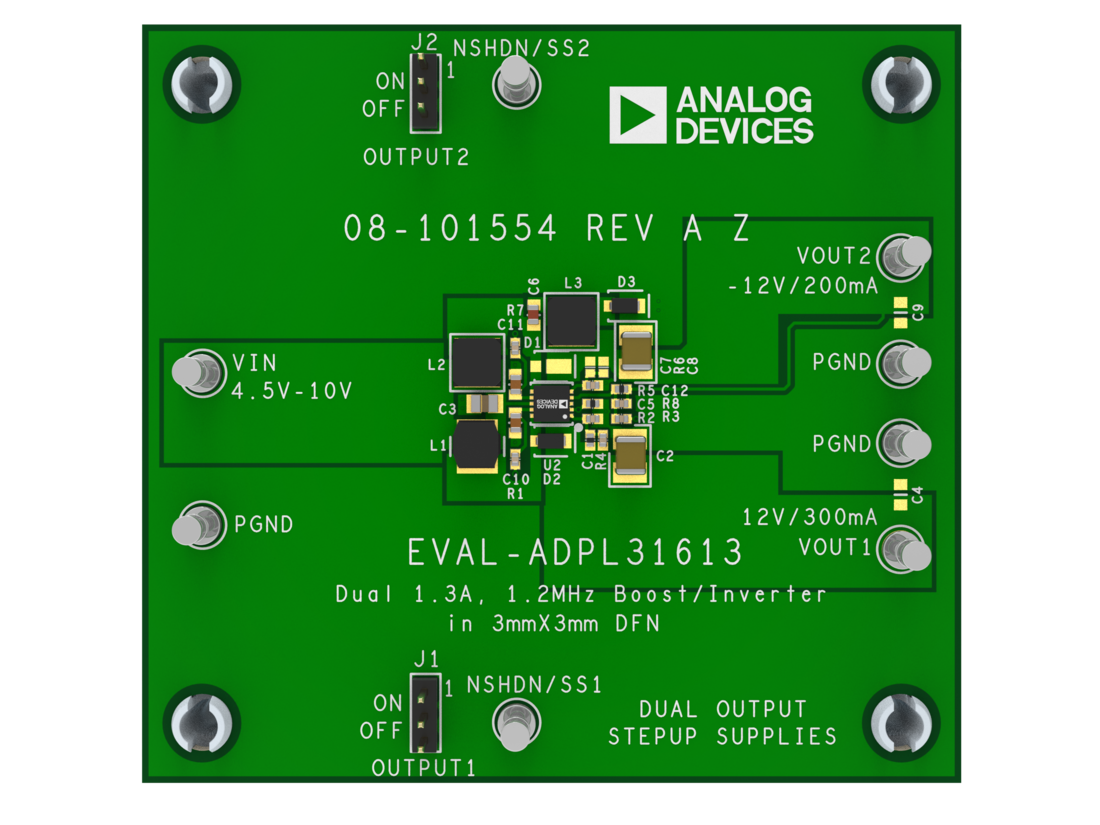

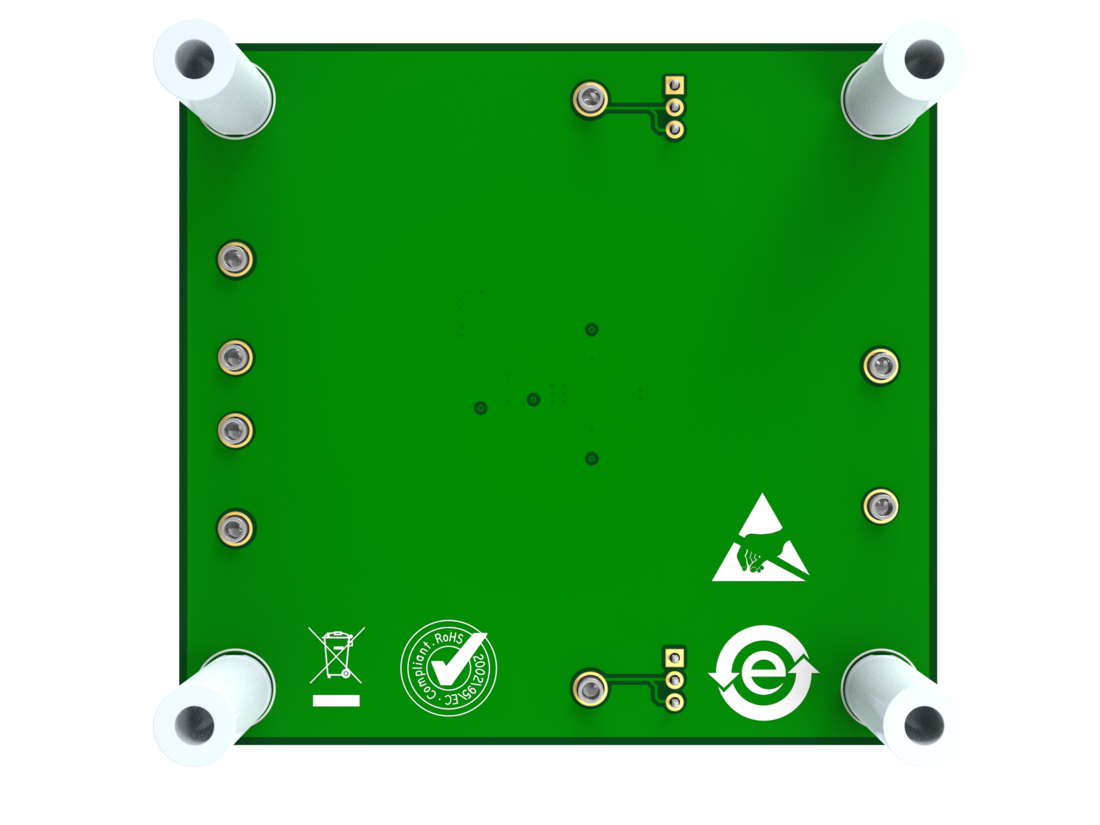

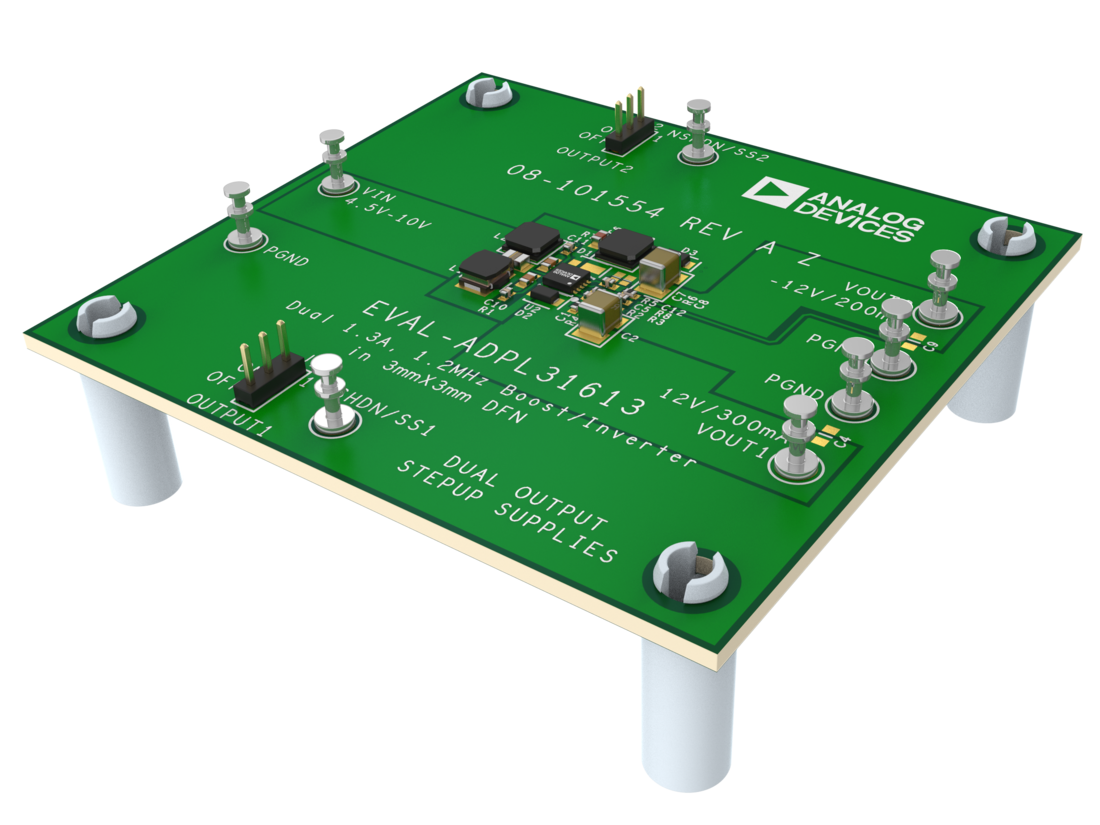

EVAL-ADPL31613-AZ Top Angle Evaluation Board EVAL-ADPL31613-AZ Top Evaluation Board EVAL-ADPL31613-AZ Bottom Evaluation Board
